Bose L1 Model II System with B2 Bass & ToneMatch Audio Engine - Black

Name: Bose L1 Model II System with B2 Bass & ToneMatch Audio Engine - Black
Brand: Bose
SKU: 359377-0010-AN-JAA
Price: 18346.0 USD
Availability: InStock

AED 18,346.00

Quantity

Subtotal: AED 0.00

Vendor: Bose
SKU: 359377-0010-AN-JAA
Availability: In Stock
Product Type: Speakers

The black L1 Model II System with B2 Bass & ToneMatch Audio Engine from Bose is a portable amplification system for musicians, DJs, and public speakers. It can be used to deliver up to 180° of horizontal sound coverage and features a smooth tonal balance across the stage and throughout the room.

The Model II system is built with an Articulated Array speaker technology for better tonal balance. The loudspeaker's 24 vertically mounted drivers are precisely angled to create clearer highs and more consistent tone in the room. The included B2 bass module offers greater flexibility and power at the low end

Furthermore, the T1 ToneMatch Audio Engine is a digital multi-channel mixer designed for use with the Bose L1 sound systems. It has advanced controls that adapt to your voice or instrument and the 4-channel engine features 100 ToneMatch presets, intelligent EQ, and a suite of studio-class effects and professional-quality processors. It is designed to enrich the sound of musicians using any Bose L1 system. The tone-shaping tools quickly bring you closer to the true sounds of your voice and instruments.

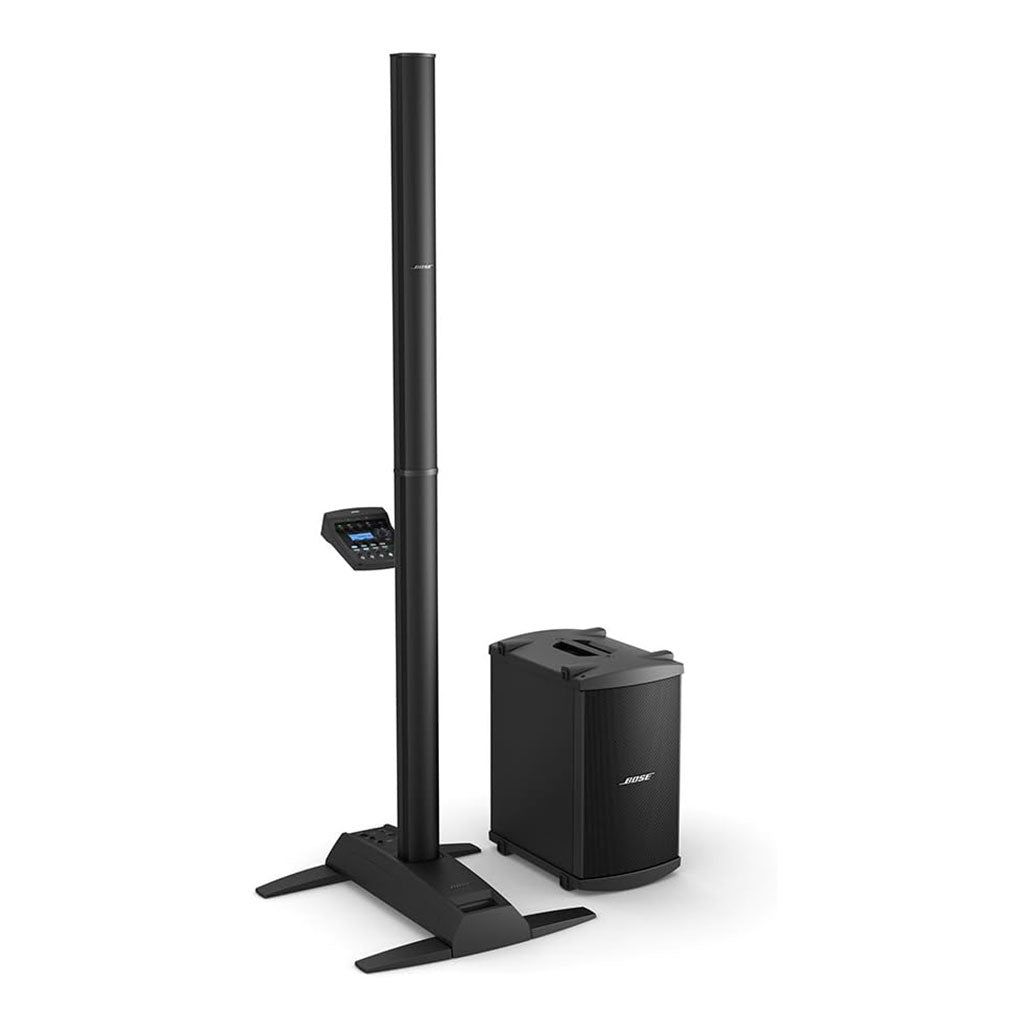

Bose L1 Model II System with B2 Bass

The L1 Model II System with B2 Bass Package from Bose is a portable amplification system for musicians, DJs and public speakers. It can be used to deliver 180 degrees of horizontal sound coverage and smooth tonal balance for live stage, theater, rehearsals, and more.

The Model II sound system is an all-in-one system that replaces conventional monitors, mixers and PA speakers. The loudspeaker's 24 vertically mounted drivers are precisely angled to create clearer highs and more consistent tone in the room. And this professional sound system is packed with proprietary Bose technologies to improve amplified sound. In addition, the included B2 bass module offers greater flexibility and power at the low end.

Full, Flexible Bass

The high-performance B2 bass module delivers greater low-frequency output when you need more powerful bass for larger audiences. The module includes 3 settings for increased flexibility. The normal setting is suitable for bass guitar or when miking a kick drum. A higher setting is designed for DJ/music playback applications. And the lower setting works well for acoustic guitar and vocals. You can power one B2 bass module on a single L1 power stand. And the PackLite power amplifier (sold separately) lets you add a second B2 bass module for maximum low-end power.

Easy and Efficient

The L1 Model II power stand weighs only 24 lb, and its 4 retractable legs make it easy to transport and set up. The power stand also has a simplified control section; the single line-level input can be used with instruments, mics, mixers, laptops, MP3 players or DVD systems. All of the system's components are also built to handle the road. The loudspeaker has a rugged, reinforced grille, and each package includes padded carrying bags for major components.

Spatial Dispersion and Articulated Array Speaker Technologies

This produces wide, uniform sound coverage. The 24 small drivers are arranged using Articulated Array speaker technology in a slim, vertical enclosure, creating nearly 180 degrees of horizontal coverage and consistent tonal balance.

Integrated Power Amplifiers

These amplifiers in the power stand provide clean, precise amplification for L1 Model II system with up to two B1 bass modules or one B2 bass module.

Analog Input, Trim Control and Signal/Clip LED

This is for line-level analog input via ¼" TRS phone cable. It can be used for instruments or other audio sources like DJ mixers, MP3 players, computers or DVD systems.

Bass Module Out

This is for amplified bass output signal to one or two B1 bass modules or one B2 bass module. L1 system automatically adjusts equalization appropriately when bass modules are connected.

Bass Line Out

This delivers post-DSP bass signal output. Accepts ¼" TRS phone cable. Use to connect powered subwoofer, additional amplification system or Bose PackLite amplifier with up to two additional bass modules.

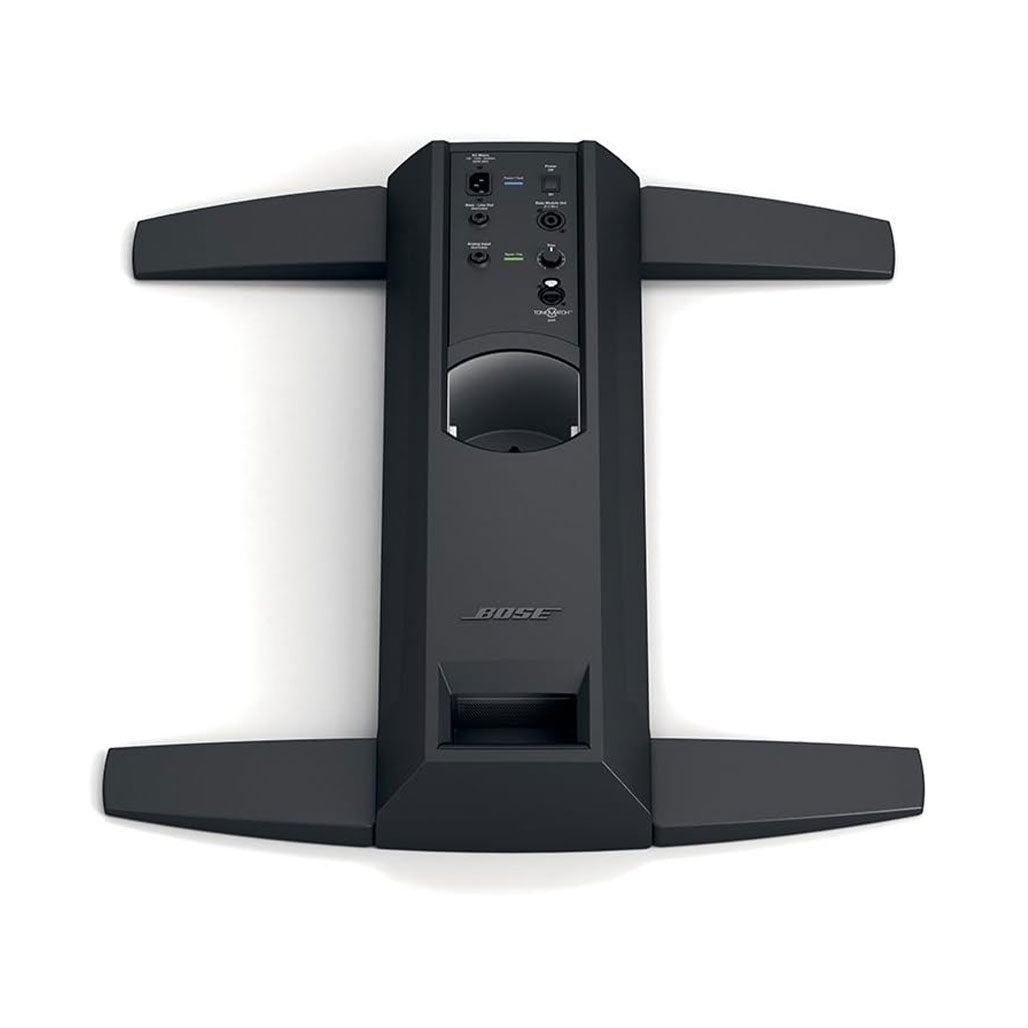

Retractable Legs

These legs provide stability for streamlined power stands and loudspeakers. Four retractable legs fold out of power stand simultaneously for quick setup and compact transport.

Convenient Carry Bags

There are convenient carry bags, each for the loudspeaker, power stand and bass module, making getting to and from your gig that much easier.

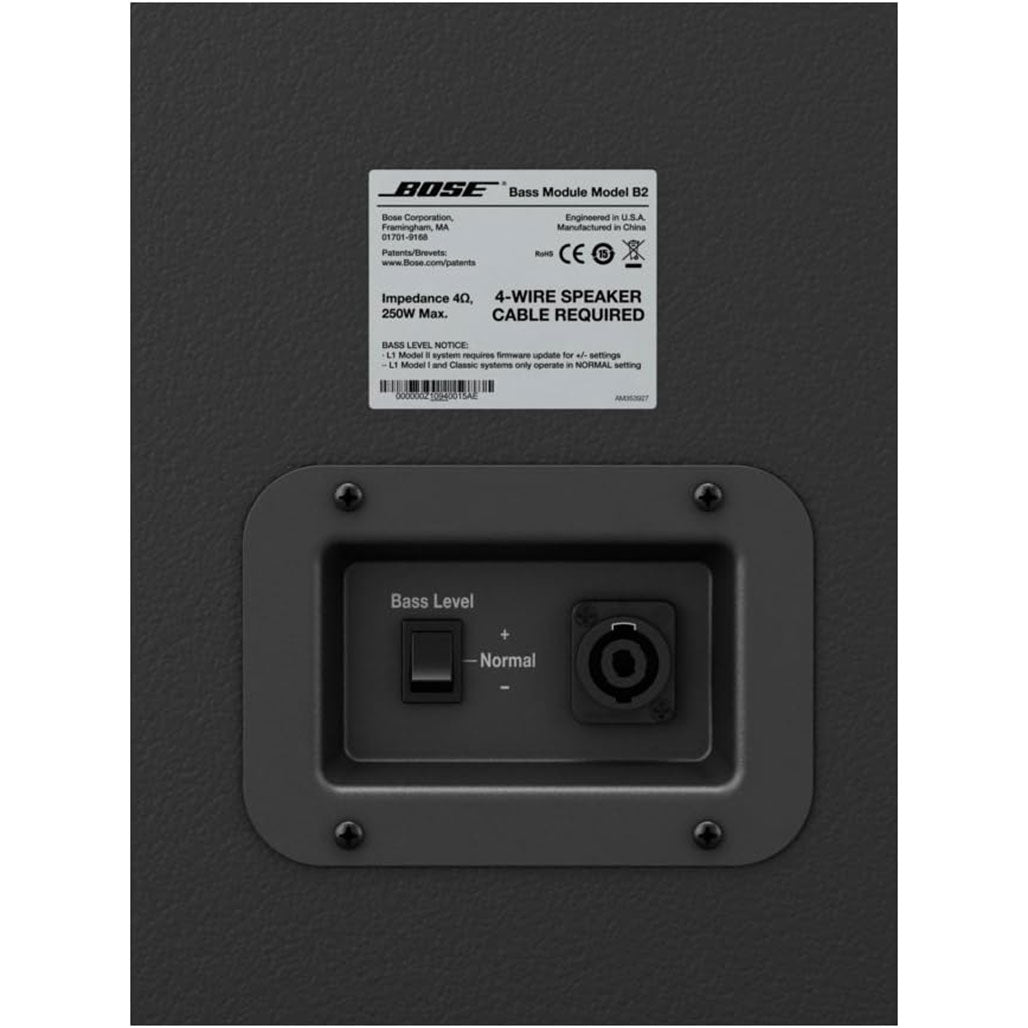

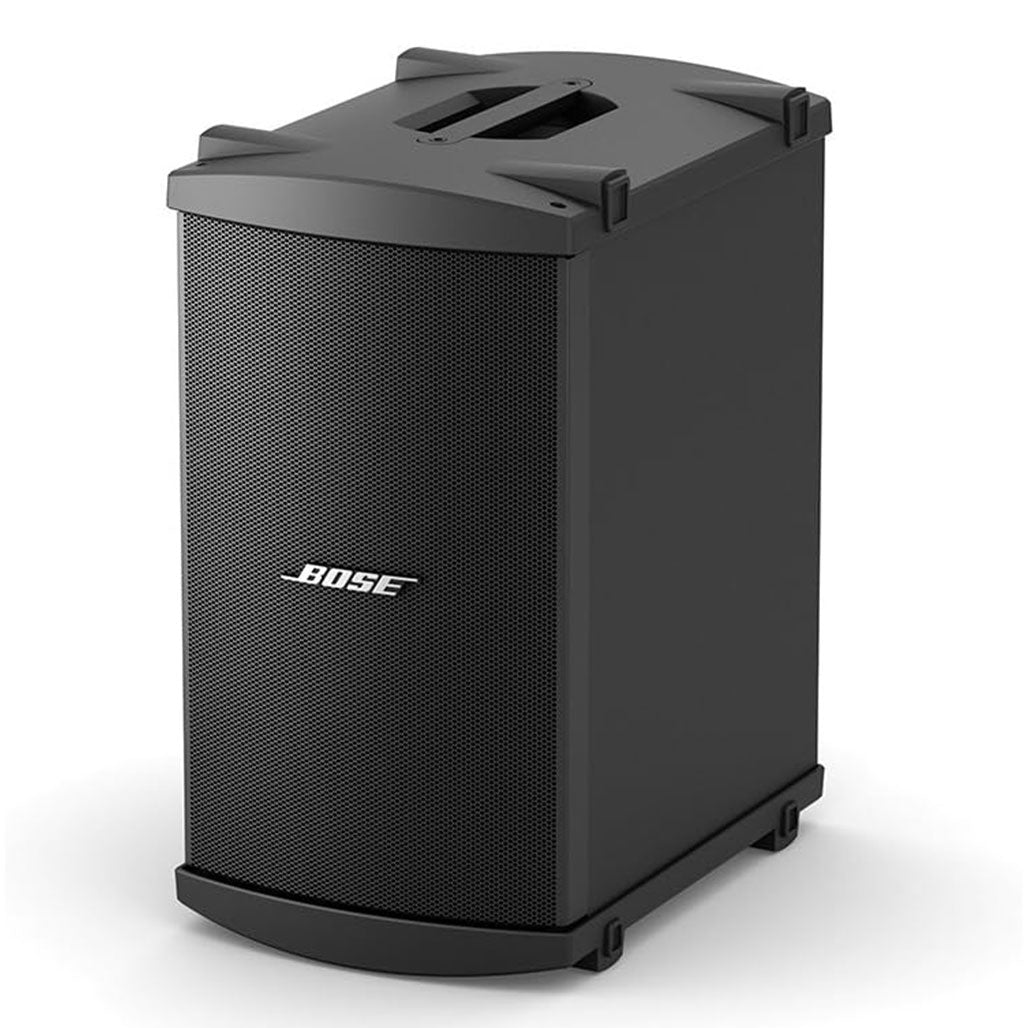

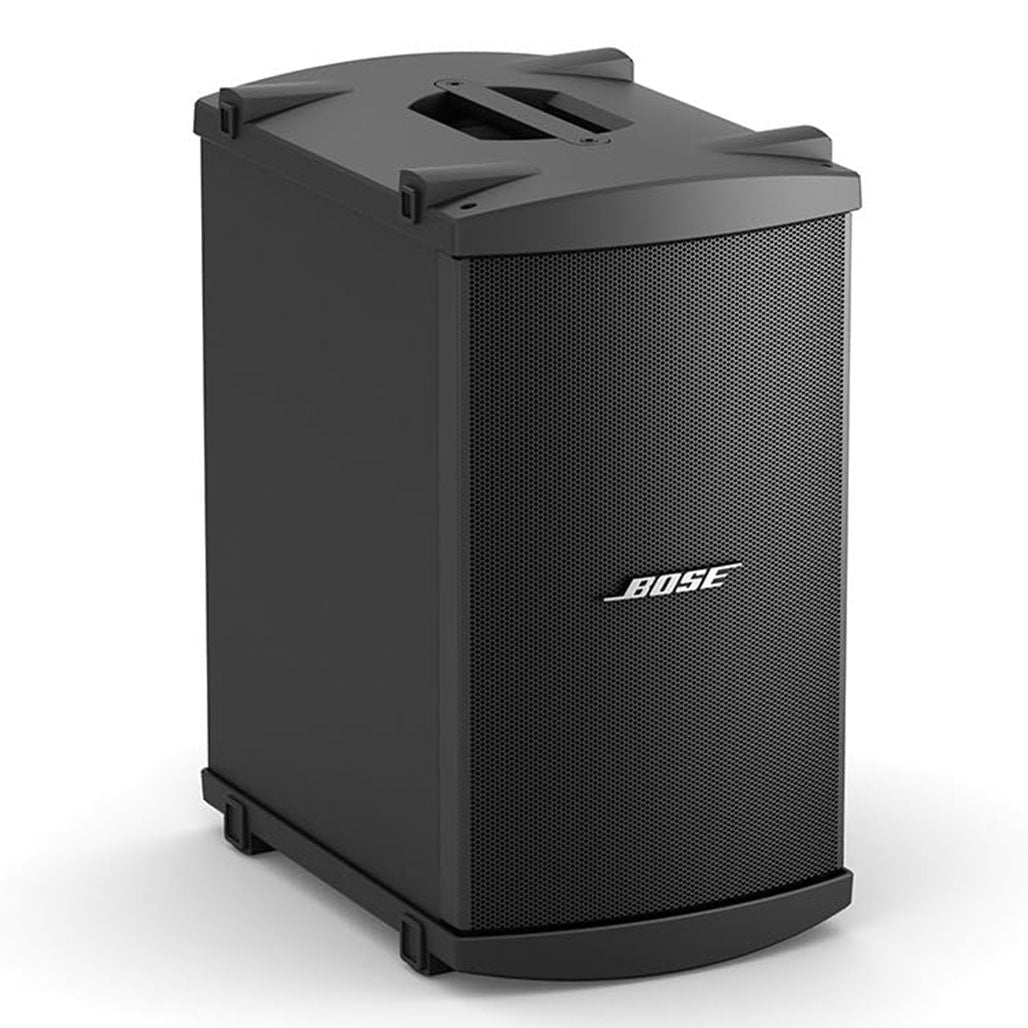

B2 Bass Module with Highly Efficient Speaker Design

Highly efficient speaker design features two 10.0" (13.3 cm), high-output, high-excursion drivers that produce deep, strong bass from a small enclosure. 3 level settings provide flexibility of output. When connected to power stand, active equalization circuitry automatically adjusts bass signal appropriately.

Compact Enclosure

It is easy to transport, set up and break down. Small footprint takes up considerably less space than traditional bass cabs required for same performance. Interlocking end caps let you securely stack two modules together on their sides.

Additional Features

Recommended for up to 500 audiences, 24-speaker articulated line array delivers 180° horizontal sound coverage, Produces consistent tonal balance with little volume drop-off over distance, System's interconnecting pieces allow for efficient transport, easy setup and breakdown, one B2 bass module included

Bose T1 ToneMatch Audio Engine and Mixer for the Bose L1 Audio System

The Bose T1 ToneMatch Audio Engine is a compact digital mixing device for the Bose L1 Portable Line Array Speaker System. The T1 ToneMatch delivers a host of propriety, DSP based algorithms, EQ settings and effects for processing vocals and instruments in order to achieve genuine, authentic tone. Up to 100 proprietary ToneMatch settings allow for effortless results and there is plenty of room for user storage, which provides musicians and vocalists with the ability to store their own scenes.

Integrated ToneMatch Audio Engine and Audio Technologies

The T1 features four independent channels featuring Bose's largest library of ToneMatch instrument and microphone presets, proprietary zEQ and a complete suite of studio-class effects and sound processors.

Proprietary ToneMatch Presets

Optimize the L1 system to match intended natural sound of specific instruments and vocal mics. Over 100 presets are organized into quick-access banks and can be independently assigned to each channel. Free ongoing updates via USB connection between your computer and ToneMatch audio engine.

Proprietary zEQ

Proprietary zEQ automatically adjusts the range of tone controls to match your voice or instrument, making it easier to fine tune your sound. Conventional mixers may have fixed EQ ranges that don't accurately affect desired frequencies when adjusted. But zEQ appropriately redefines low, mid and high frequency ranges of specified sources.

Single-Band ParaEQ

Single-band ParaEQ centers on frequency you specify for each independent channel. Valuable tool for reshaping problematic frequencies in certain venues.

Five Reverb Types

Five reverb types (small, medium, large, plate and cavern) available for global assignment, with individual channel controls for decay time, mix level and brightness.

Three Delay Types

Three delay types (analog, digital and tape) can be independently assigned to selected channels, with control over feedback time and mix level for each channel. For example, you can select tape delay for your vocal on channel 1 and analog delay for your guitar on channel 2.

Ten Modulation Effects

Ten modulation effects (three chorus types, two flange types, four phaser types and one vintage tremolo effect) can be independently assigned to selected channels, with control over designated parameters for each channel.

Seven Dynamics Processing Types

Seven dynamics processing types (three compressors, limiter, de-esser, kick gate and noise gate) can be assigned to independent channels.

Scenes

Scenes allow you to store, recall and edit "snapshots" of all key ToneMatch audio engine settings at any given time. This feature helps simplify setup when you're using an L1 system repeatedly in different venues. The engine includes five predefined Bose scenes, five My scenes and five Shared scenes you can give to other L1 owners.

Chromatic tuner

Chromatic tuner for convenient tuning of instruments.

Large Backlit Display

Large backlit display with intuitive layout and easy-to-read text for modes and settings.

Rotary Encoder

Rotary encoder for quick access to modes, effects and parameters, including ToneMatch presets, zEQ, ParaEQ, reverbs, delays, modulators, dynamics processing, scenes and tuner. Features clean, circular layout.

Aux Mode (Channels 1 - 3)

Aux mode (channels 1 - 3) sends channels' dry, pre-fader or post-fader audio to aux output for connection to additional L1 systems or recording devices. Independent level controls for optimal signal output.

Channel Volume, Mute and FX Mute (1 - 4/5)

Channel volume, mute and FX mute (1 - 4/5) for adjusting individual channel volume, muting individual channels and muting all effects on selected channels.

Master Volume

Master volume adjusts overall level of master output.

Phantom Power

Phantom power applies +48V power to input channels 1 - 3 to drive specific microphones.

ToneMatch Cable

ToneMatch cable transfers audio signals and provides power to ToneMatch audio engine from L1 Model II power stand. Use the optional T1 power supply for connections to L1 Model I and Compact systems.

Mounting Bar and Carriage

Mounting bar and carriage for securely attaching ToneMatch audio engine to L1 Model I or Model II loudspeaker.

Cover and Carrying Case

Cover and carrying case help protect engine when storing and transporting.

Specifications:

Physical

Dimensions	Top Speaker: 43.5 x 3.5 x 4" / 110.5 x 9 x 10.5 cm Bottom Speaker: 43.5 x 3.5 x 4" / 110.5 x 9 x 10.5 cm Power Module: 5 x 10 x 27" / 12.8 x 26.2 x 69.2 cm Subwoofer: 23.4 x 13.3 x 18.9" / 59.4 x 33.8 x 48 cm
Weight	Top Speaker: 16.3 lb / 7.4 kg Bottom Speaker: 17.4 lb / 7.9 kg Power Module: 23.7 lb / 10.7 kg Subwoofer: 45 lb / 20.4 kg

Packaging Info

Package Weight	126.3 lb
Box Dimensions (LxWxH)	48 x 46 x 18.25"

Bose T1 ToneMatch Audio Engine And Mixer For The Bose L1 Audio System Specs

Connections	Mic/line inputs (1 - 3) Line inputs (4/5, L/R) Trim controls and signal/clip LEDs (1 - 4/5) Preamp outputs (1 - 3) Aux output 1/4" TRS Master analog output ToneMatch port USB port
Dimensions	2.67 x 6.5 x 8.25" (6.76 x 16.6 x 20.9cm)
Weight	2.1 lbs (1 kg)
