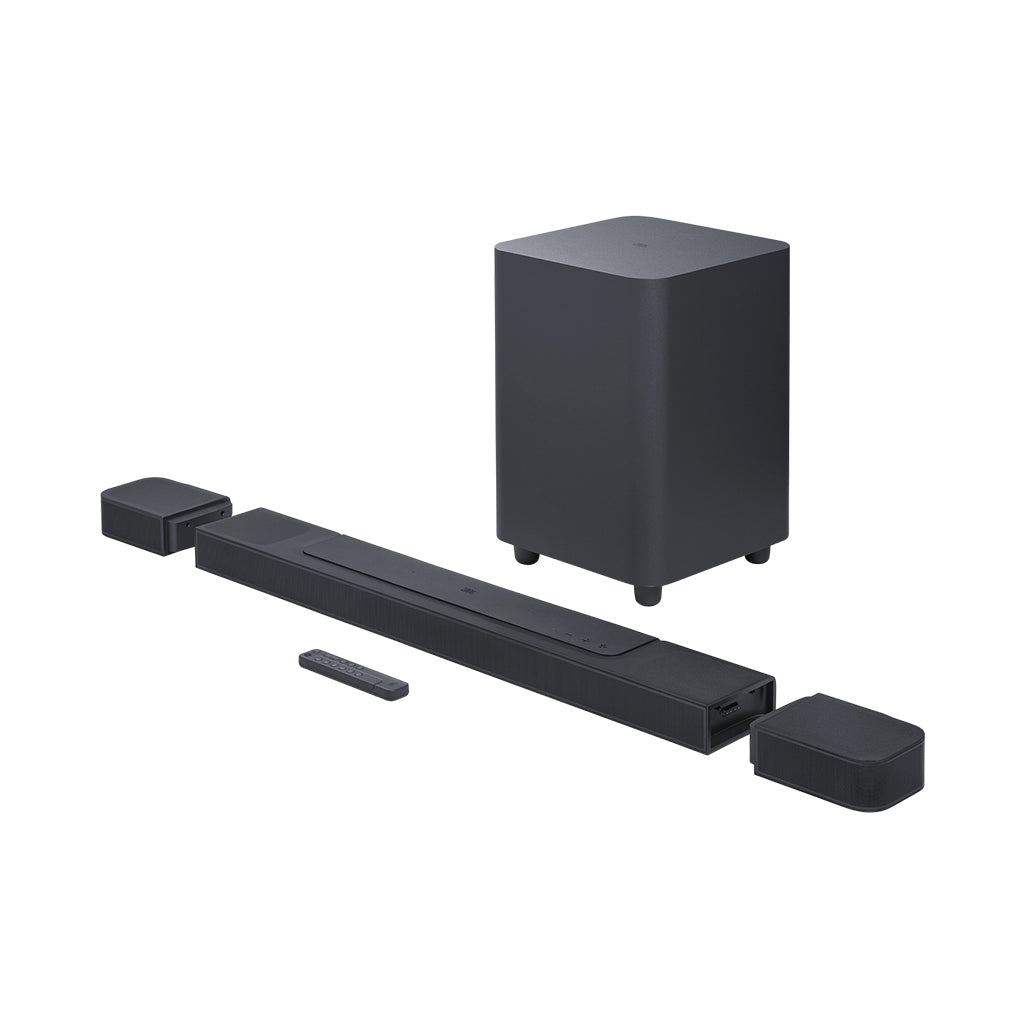

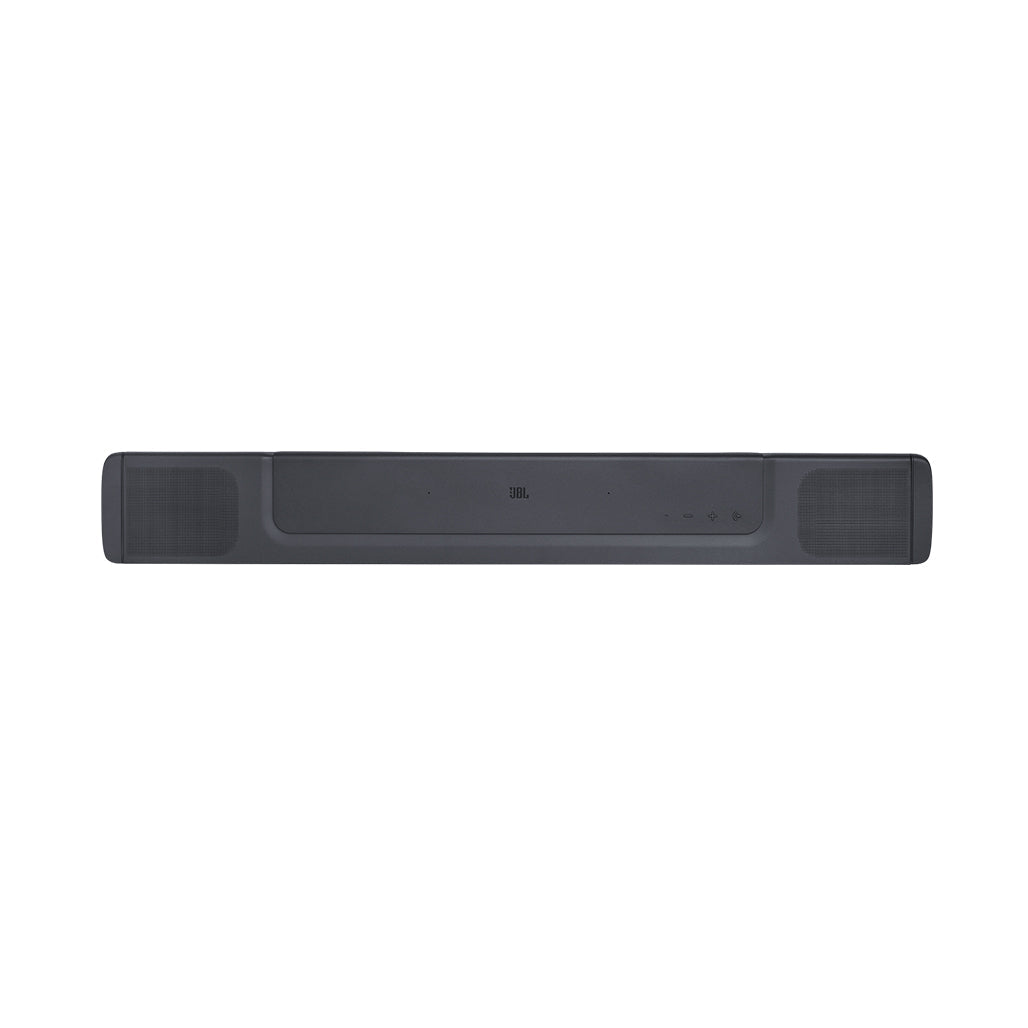

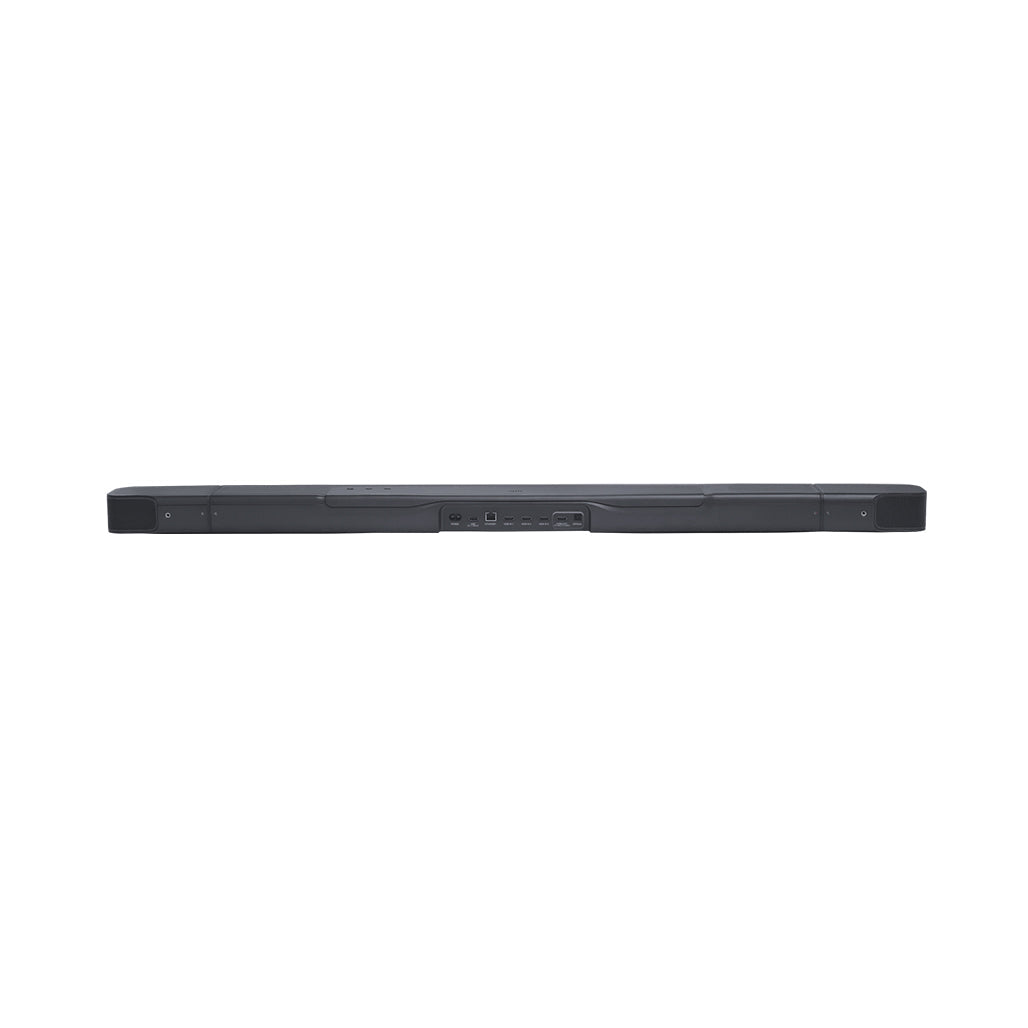

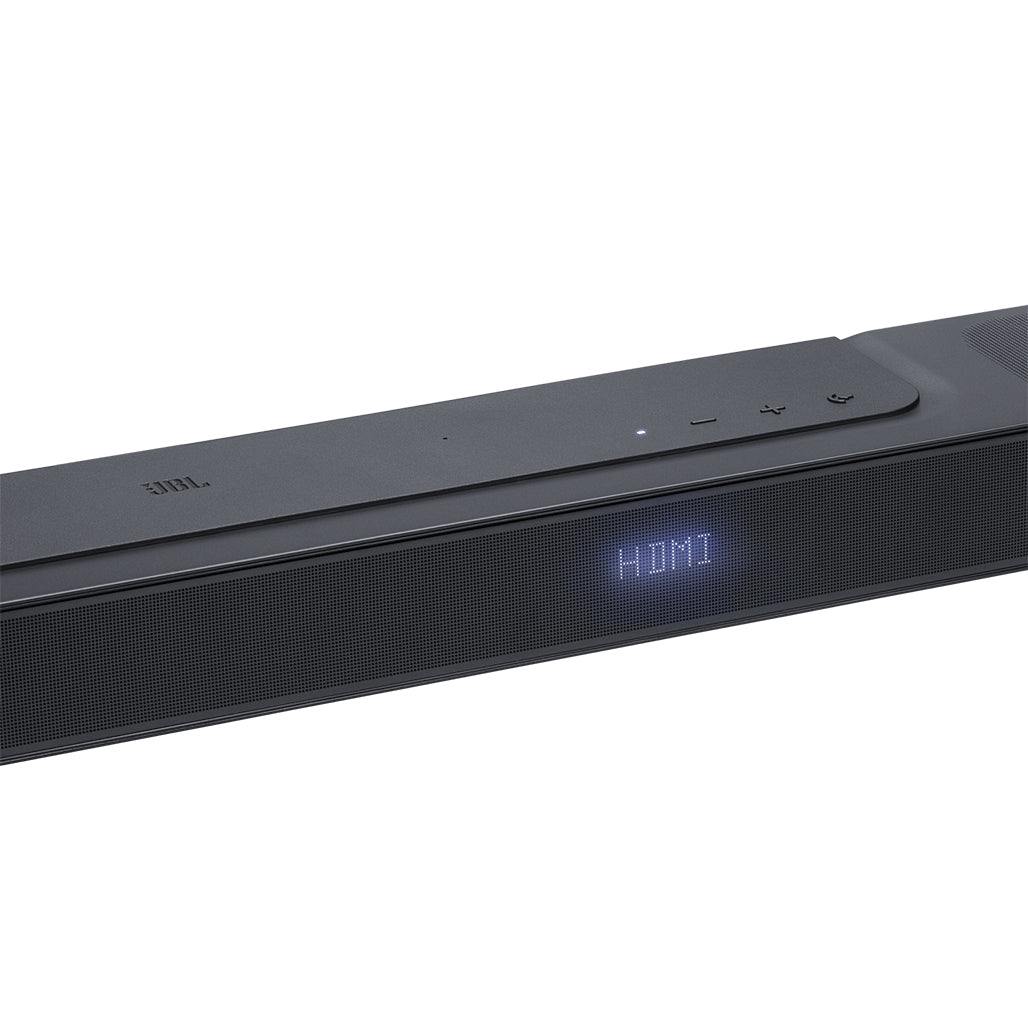

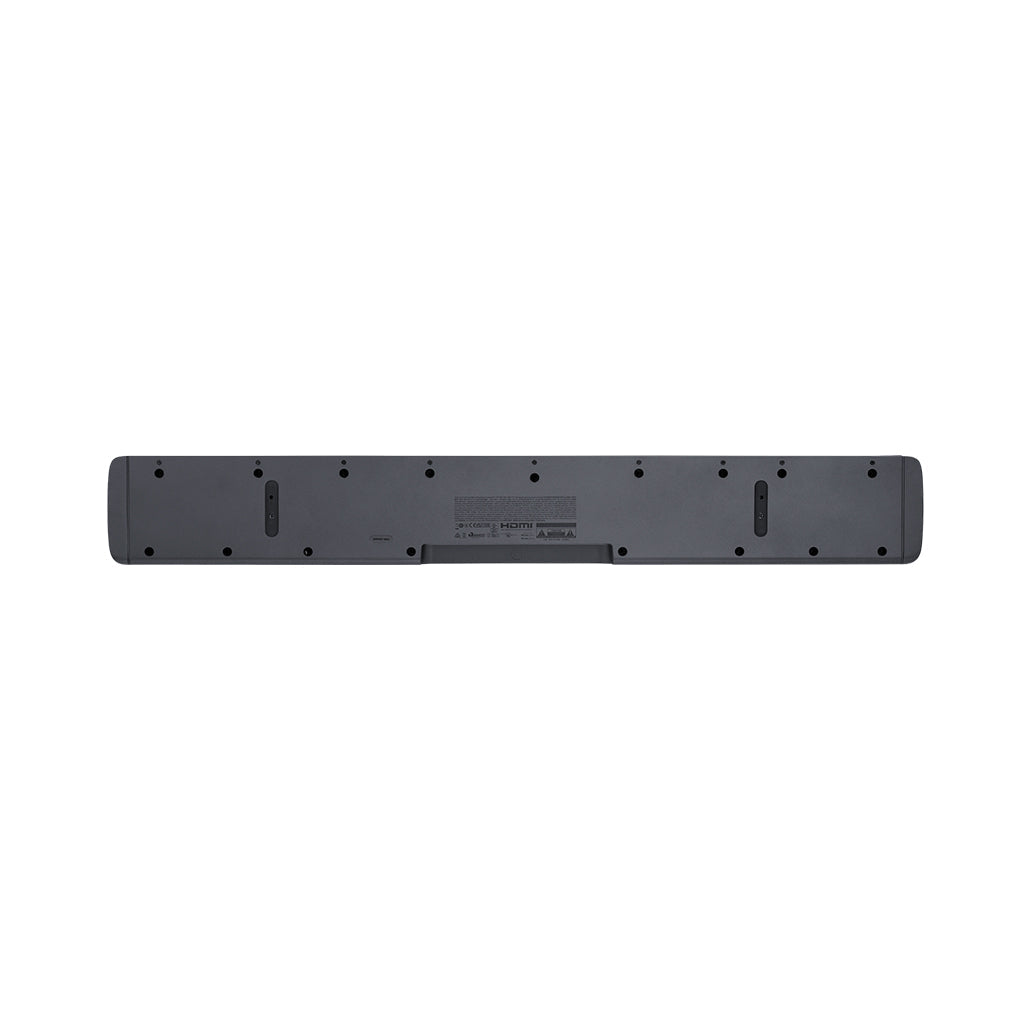

The JBL Bar 1000 is designed to transform home entertainment with a cinematic 7.1.4 channel surround sound system. Featuring Dolby Atmos®, DTS:X, and JBL’s MultiBeam™ technology, this premium soundbar creates a 3D audio experience that fills the room with clarity and depth. Two up-firing drivers in the soundbar and two more in the detachable surround speakers ensure powerful, theater-quality sound from every angle.

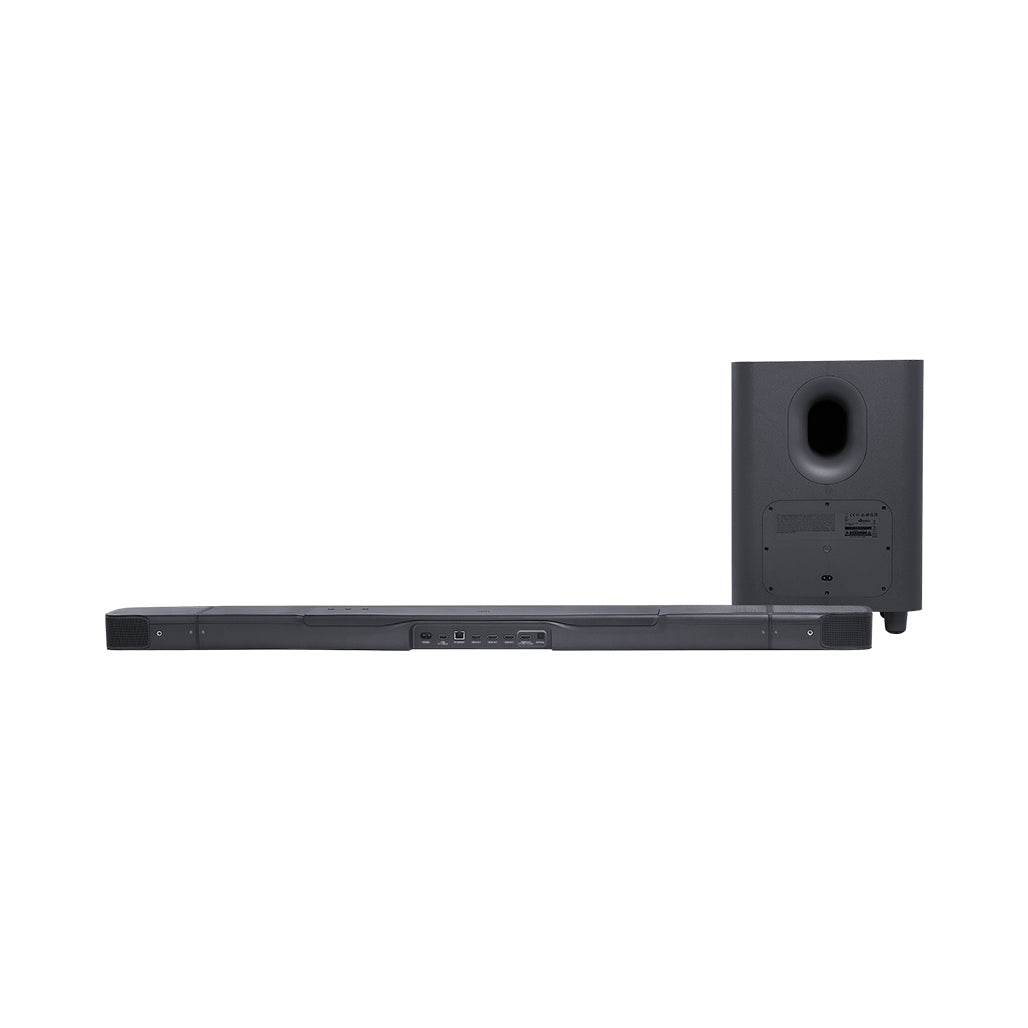

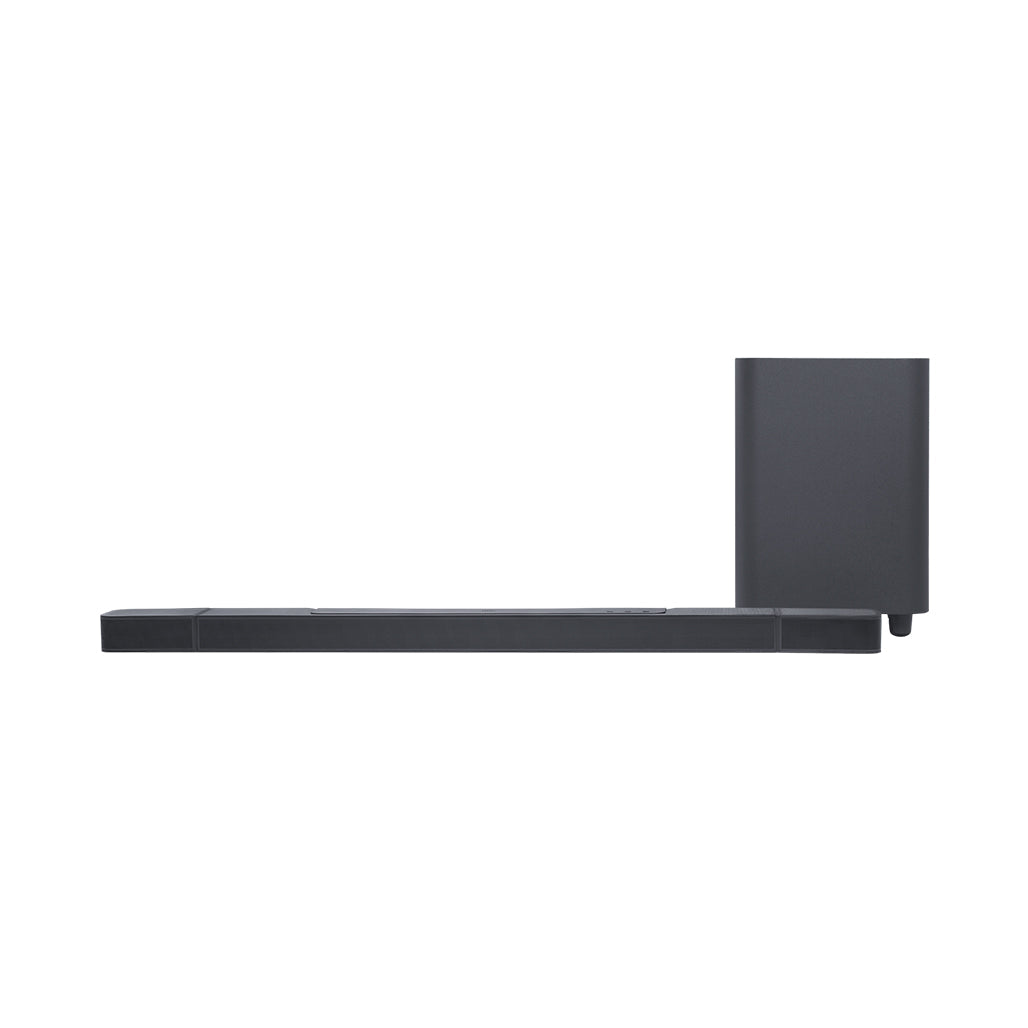

This soundbar system comes with detachable wireless surround speakers and a 10-inch wireless subwoofer, delivering rich bass and immersive audio without the hassle of additional wires. With built-in Wi-Fi supporting AirPlay, Chromecast, and Alexa Multi-Room Music, users can stream over 300 music services in high-definition. Automatic software updates also keep the system up to date with the latest features, ensuring a future-ready audio setup for movies, music, and gaming.
Key Features
-
True 3D Surround Sound – Dolby Atmos®, DTS:X, and MultiBeam™ technology deliver immersive cinematic sound.
-

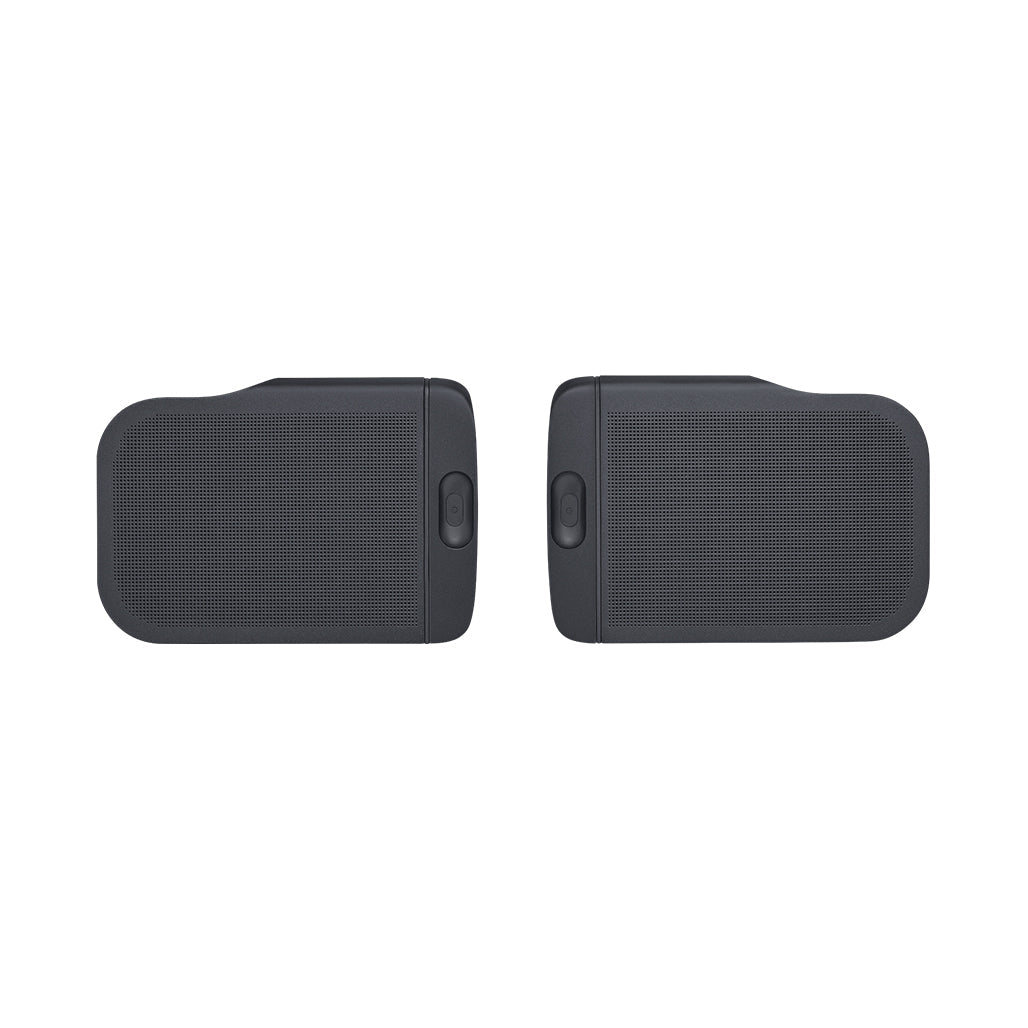

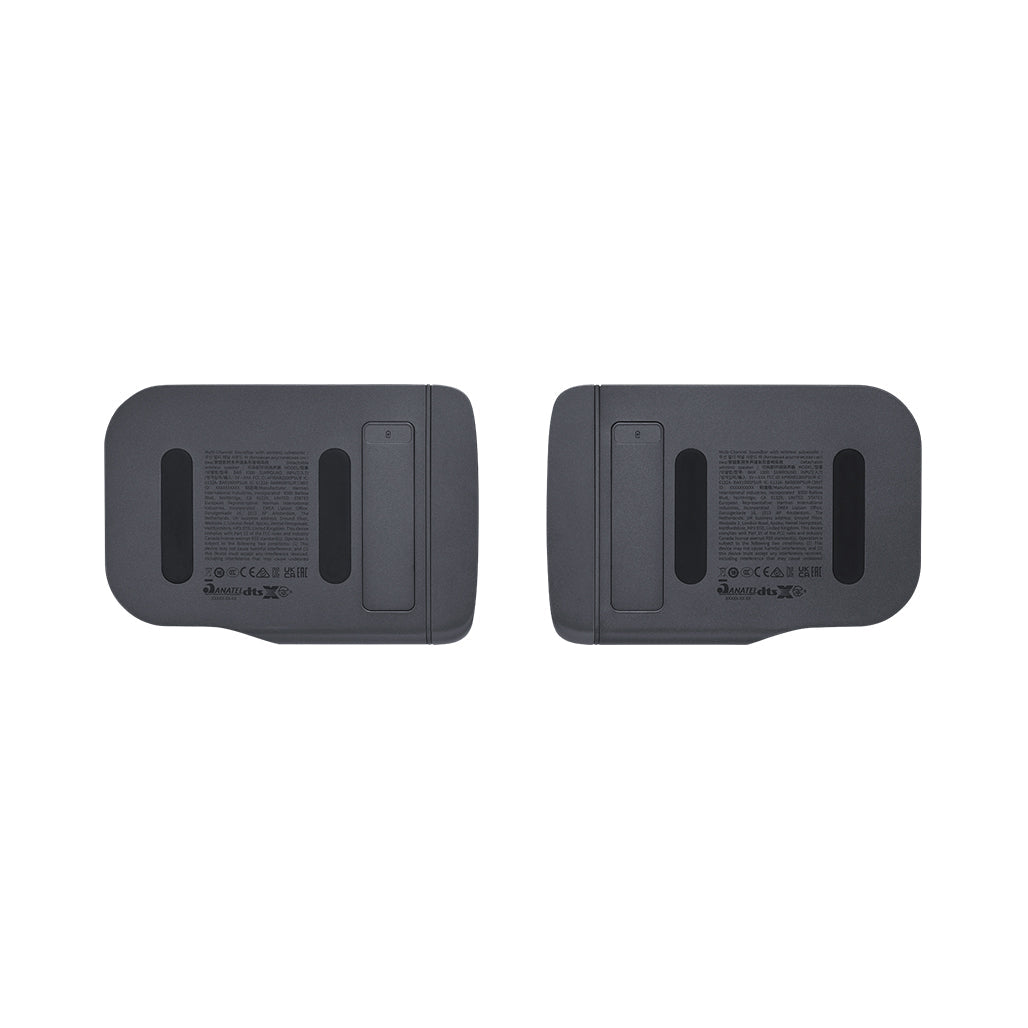

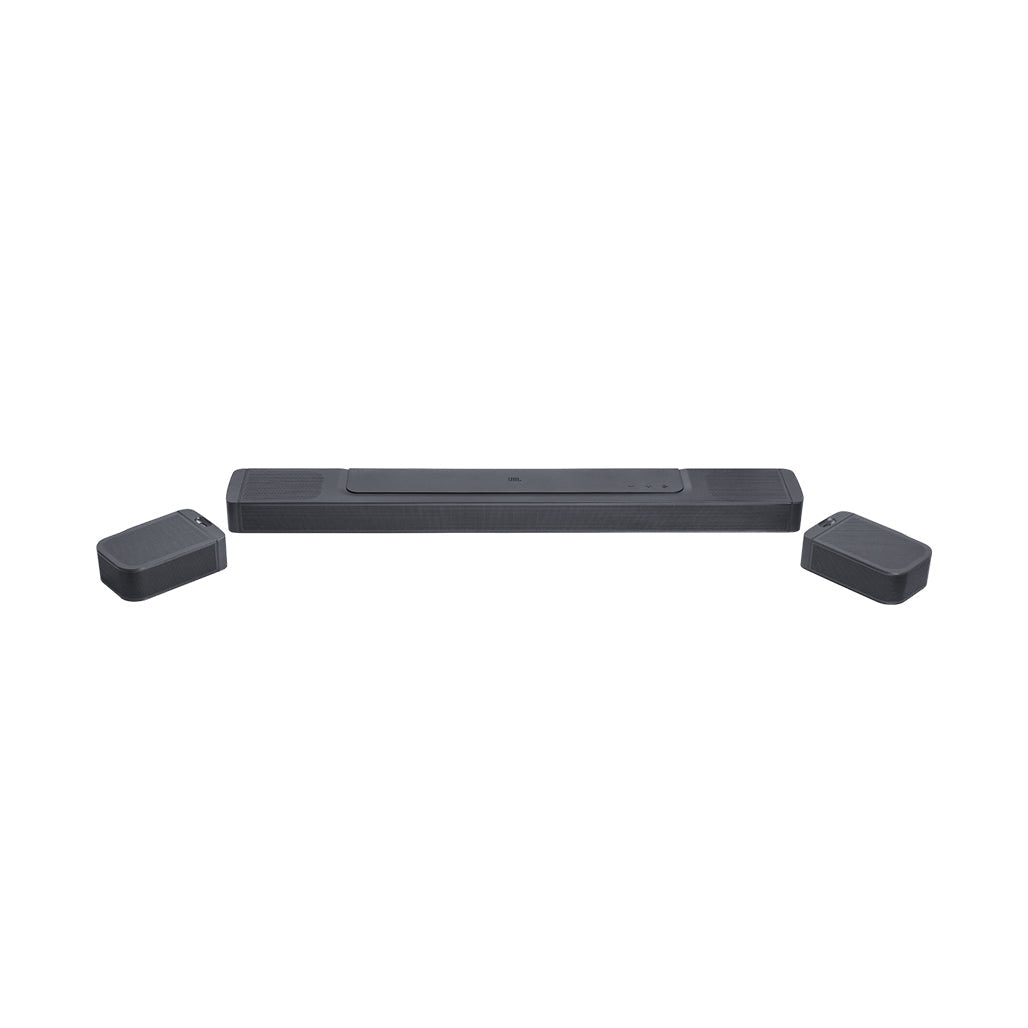

Detachable Wireless Surround Speakers – Battery-powered rear speakers provide real surround sound with easy placement.
-
Powerful Audio Performance – 880W of total output power ensures room-filling sound.
-

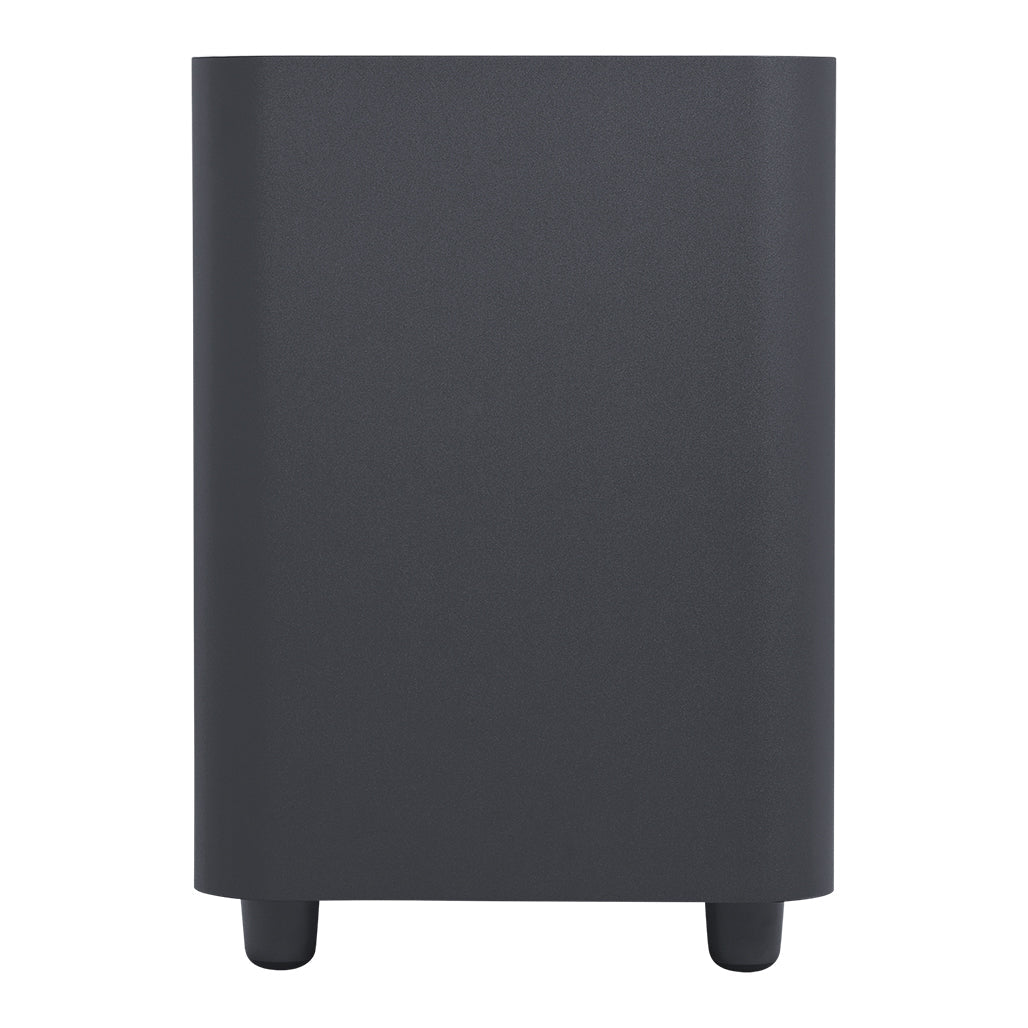

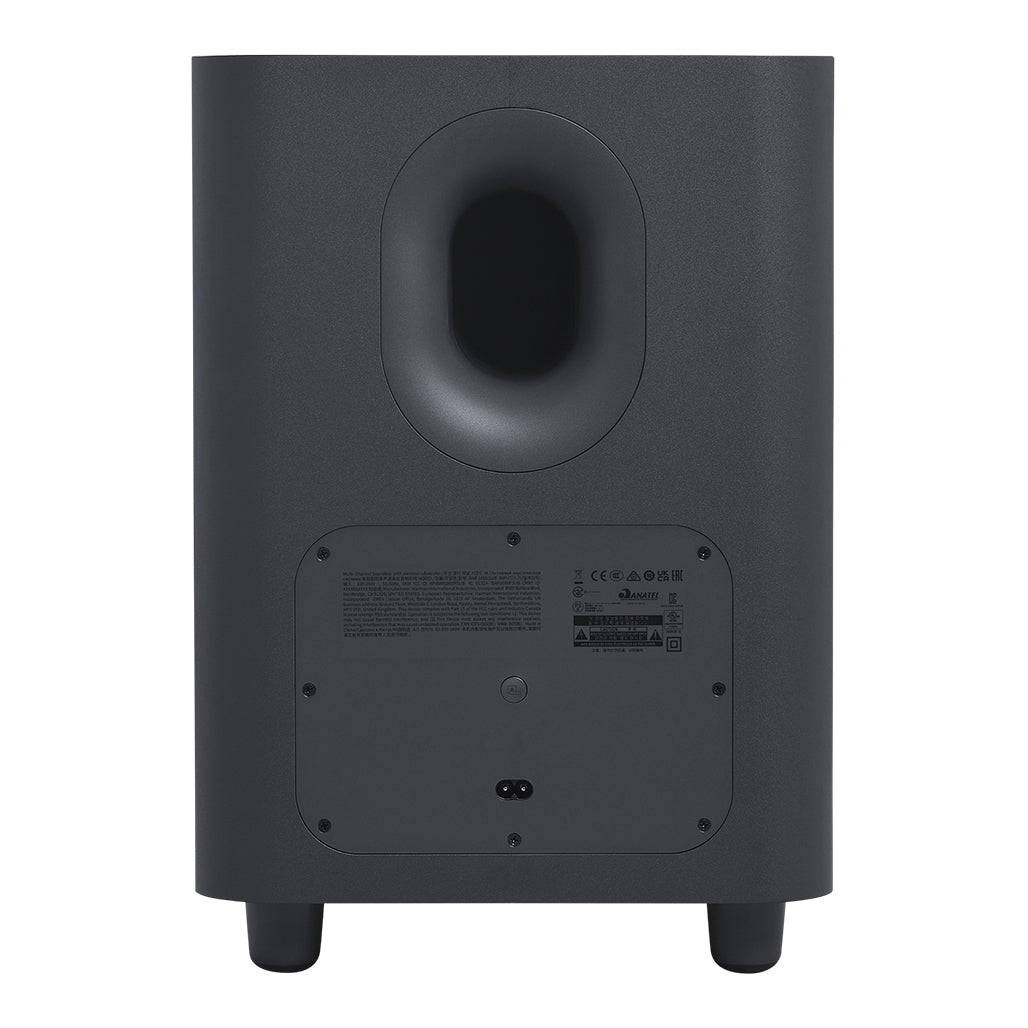

Wireless Subwoofer – A 10” subwoofer produces deep and punchy bass.
-
Built-In Wi-Fi Streaming – Access AirPlay, Chromecast, Alexa MRM, and over 300 streaming services.
-
Automatic Software Updates – The system stays up-to-date with new features via Wi-Fi.
-
Seamless Connectivity – HDMI eARC, Bluetooth 5.3, and multiple HDMI inputs for easy setup with TVs and devices.
Specifications
General Specifications
-
Model: BAR 1000
-
Sound system: 7.1.4 channel
-
Power supply: 100 - 240V AC, ~ 50/60Hz
-
Networked standby power: < 2.0W
-
Operating temperature: 0°C - 45°C
Audio Specifications
-
Total speaker power output (Max @THD 1%): 880W
-
Soundbar output power (Max @THD 1%): 440W
-
Surround speaker output power (Max @THD 1%): 2x 70W
-
Subwoofer output power (Max @THD 1%): 300W
-
Soundbar transducer: 5x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers
-
Surround speaker transducer: 0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range drivers
-

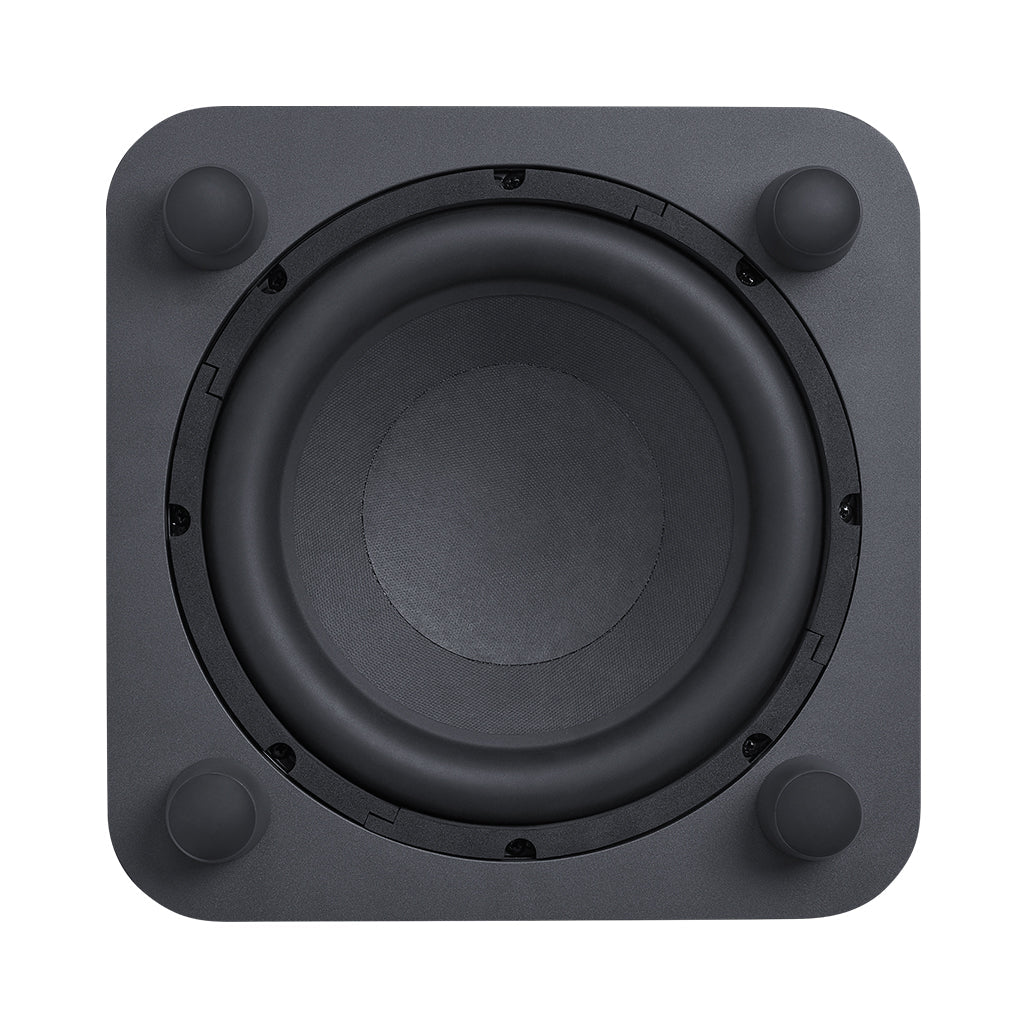

Subwoofer transducer: 10” (260mm)
-
Frequency response: 33Hz - 20kHz (-6dB)
-
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
-
Total soundbar: 1194 x 56 x 125 mm / 47" x 2.2" x 4.9"
-
Main soundbar: 884 x 56 x 125 mm / 34.8" x 2.2" x 4.9"
-
Detachable surround speakers (each): 155 x 56 x 125 mm / 6.1" x 2.2" x 4.9"
-
Subwoofer: 305 x 440.4 x 305 mm / 12" x 17.3" x 12"
-
Soundbar weight: 3.7 kg / 8.2 lbs
-
Detachable surround speaker weight (each): 1.4 kg / 3.1 lbs
-
Subwoofer weight: 10 kg / 22 lbs
-
Packaging dimensions: 1000 x 375 x 475 mm / 39.4" x 14.8" x 18.7"
-
Packaging weight: 19.4 kg / 42.7 lbs
Control and Connection Specifications
-
USB port: Type A
-
USB rating: 5V DC, 0.5A
-
Supporting file format: MP3
-
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
-
MP3 sampling rate: 16 - 48 kHz
-
MP3 bitrate: 80 - 320 kbps
-
Bluetooth version: 5.3
-
Bluetooth profile: A2DP 1.2, AVRCP 1.5
-
Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz
-
Bluetooth transmitter power: <15dBm (EIRP)
-
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
-
2.4G Wi-Fi frequency: 2412 - 2472MHz
-
2.4G Wi-Fi power: < 20dBm (EIRP)
-
5G Wi-Fi frequency: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
-
5G Wi-Fi power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
-
2.4G wireless frequency range: 2406 - 2474MHz
-
2.4G wireless power: <10dBm (EIRP)
-
Battery: Lithium battery, 3.635V, 3283mAh
Video Specifications
-
HDMI video input: 3
-
HDMI video output (with eARC): 1
-
HDMI HDCP version: 2.3
-
HDR pass-through: HDR10, Dolby Vision

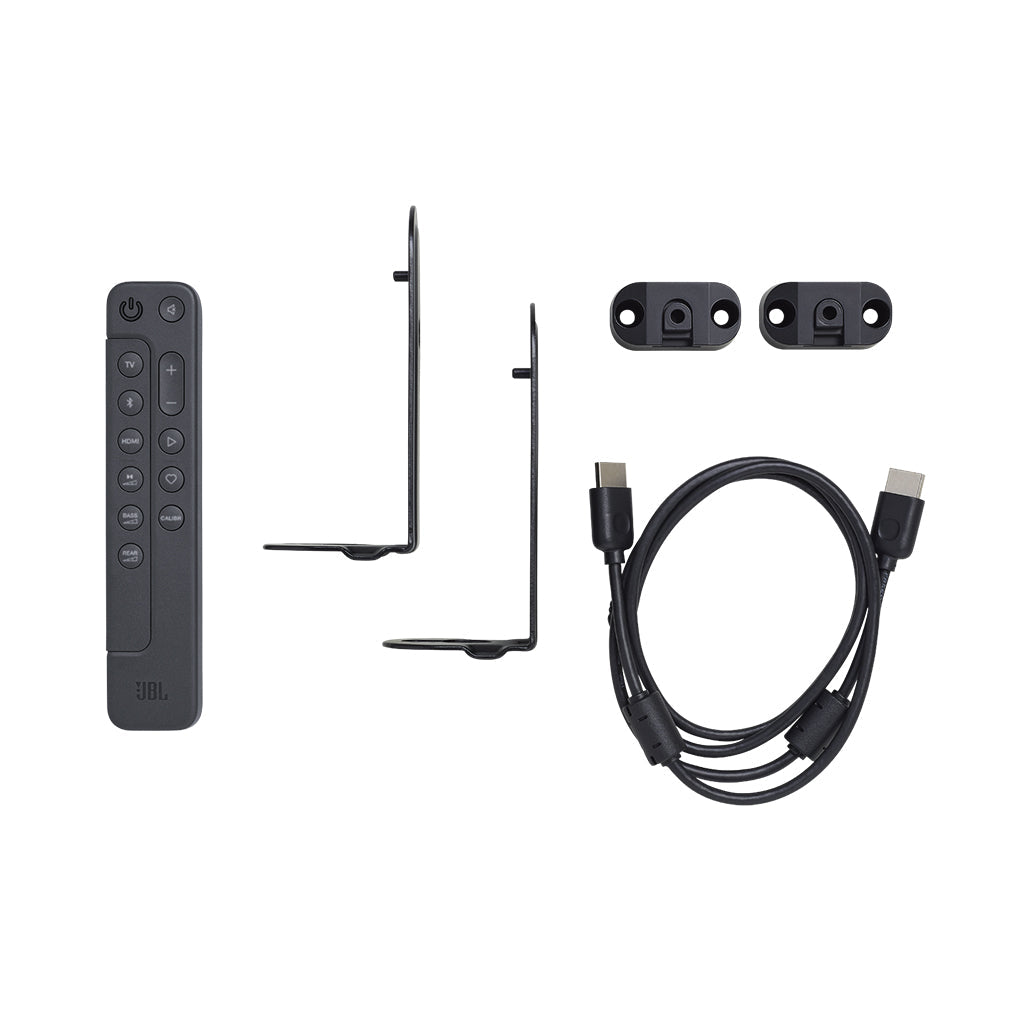

What's in The Box
-
1x Main soundbar
-
2x Detachable wireless surround speakers
-
1x Wireless subwoofer
-
Remote control with 2x batteries
-
Power cords (up to 8pcs depending on region SKUs)
-
1x HDMI cable
-
2x L-shape wall-mount brackets (main bar) + 2x U-shape wall-mount brackets (surround speakers) kit with screws
-
4x Side caps
-
Quick start guide
-
Safety instruction and Warranty card
-
Wall mount template
Conclusion:
The JBL Bar 1000 offers a premium 7.1.4 channel sound experience with true Dolby Atmos®, DTS:X, and MultiBeam™ surround sound. With detachable wireless speakers, a powerful subwoofer, seamless connectivity, and Wi-Fi streaming, it provides an advanced home theater solution for movies, music, and gaming. This system ensures high-quality performance and convenience, making it an ideal choice for users seeking immersive sound with modern wireless flexibility.
