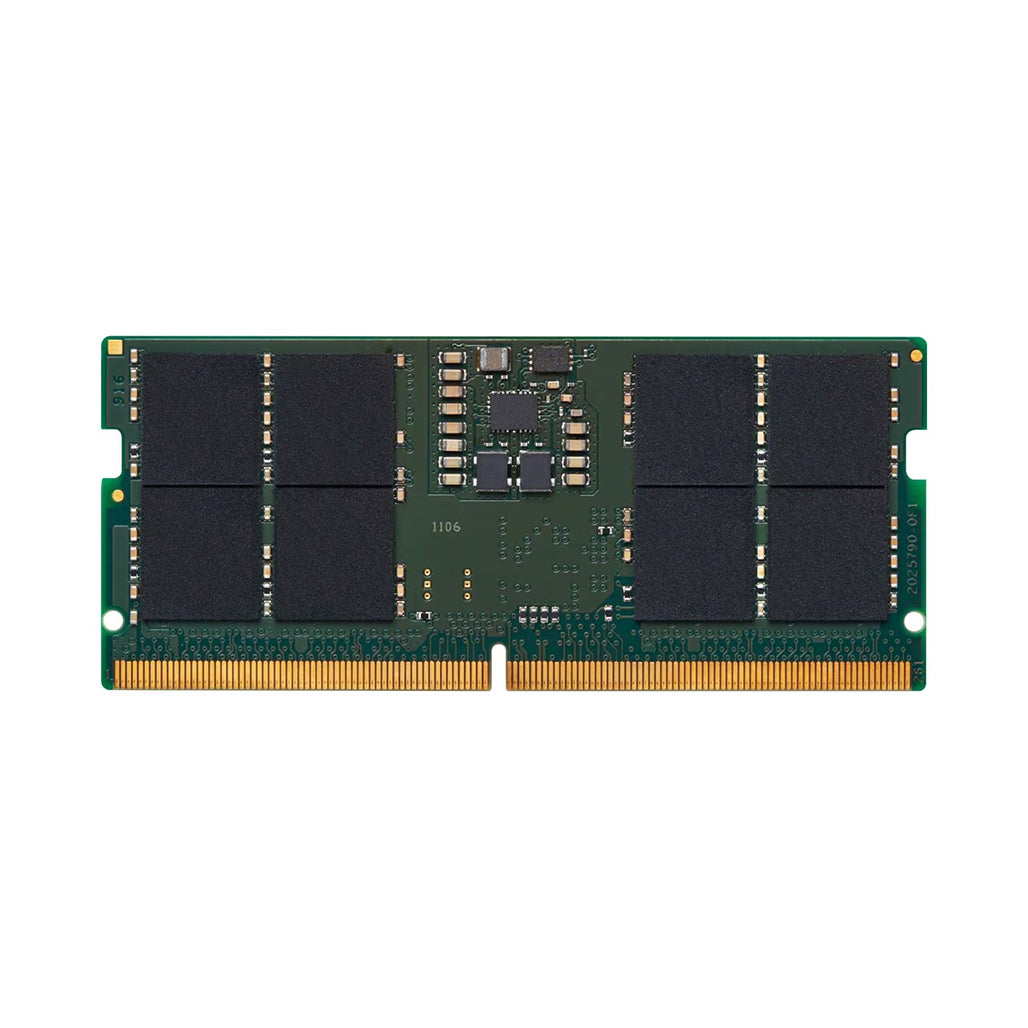

Kingston 16GB DDR5-5600 CL46 SODIMM Laptop Memory – KVR56S46BS8-16 | High-Speed 262-Pin RAM with On-Die ECC

The Kingston KVR56S46BS8-16 16GB DDR5 SODIMM module delivers next-generation memory performance for laptops and compact systems requiring high bandwidth and energy efficiency. Designed with a 262-pin configuration, this memory stick supports DDR5-5600 speeds with CL46 latency, offering enhanced responsiveness for multitasking, gaming, and content creation. Compatibility with JEDEC standard timing ensures seamless integration into a wide range of systems that support DDR5 memory, while the 1Rx8 architecture and 2G x 64-bit configuration provide dependable performance for modern computing tasks.

Manufactured with premium components and gold contact fingers, this Kingston ValueRAM module ensures durability and long-term stability. It operates at a typical voltage of 1.1V and features integrated On-Die ECC (Error Correction Code) for real-time data integrity, reducing the risk of system crashes. With compliance to RoHS and halogen-free standards, this memory module supports environmentally conscious computing. Whether for system upgrades or new builds, this DDR5 module is a reliable choice for power users and professionals seeking faster memory throughput and superior reliability.

Key Features:

• High-Speed Performance:
  DDR5-5600 speed enables quicker data transfers and higher memory bandwidth compared to DDR4, optimizing performance in demanding applications.

• Low Power Consumption:
  Operates at a typical voltage of 1.1V, contributing to energy efficiency and reduced heat output in laptops and compact systems.

• On-Die ECC Technology:
  Provides built-in error correction to improve data integrity and system reliability, ideal for both consumer and professional environments.

• JEDEC Standard Compliance:
  Ensures wide compatibility and stability across systems supporting DDR5 memory specifications.

• Compact SODIMM Format:
  262-pin form factor with a low-profile height of 1.18” (30.00mm) fits easily into space-constrained systems like laptops and mini-PCs.

• Environmentally Friendly:
  RoHS compliant and halogen-free construction supports sustainability and reduces the use of harmful substances.

Specifications:

• Model Number: KVR56S46BS8-16

• Capacity: 16GB

• Data Rate: DDR5-5600

• CAS Latency: CL46

• Memory Architecture: 1Rx8 (Single Rank)

• Component Density: 2G x 64-bit

• Memory Type: SDRAM (Synchronous DRAM)

• Form Factor: 262-Pin SODIMM

• Contact Material: Gold Fingers

• Timing (JEDEC Standard): 46-45-45

• Voltage Requirements:

  • VDD = 1.1V

  • VDDQ = 1.1V

  • VPP = 1.8V

  • VDDSPD = 1.8V to 2.0V

• Thermal Rating:

  • Operating Temperature: 0°C to +85°C

  • Storage Temperature: -55°C to +100°C

• Row Cycle Time (tRCmin): 48ns (min)

• Refresh Command Time (tRFCmin): 295ns (min)

• Row Active Time (tRASmin): 32ns (min)

• UL Rating: 94 V - 0

• PCB Height: 1.18” (30.00mm)

• Compliance: RoHS and Halogen-Free

Conclusion:
Engineered for next-level speed and efficiency, the Kingston KVR56S46BS8-16 16GB DDR5 SODIMM memory module has been built with precision to meet the evolving needs of high-performance laptops and compact systems. With its fast data rates, reduced power usage, and robust error correction, it ensures a smooth and stable computing experience for both everyday users and professionals.
