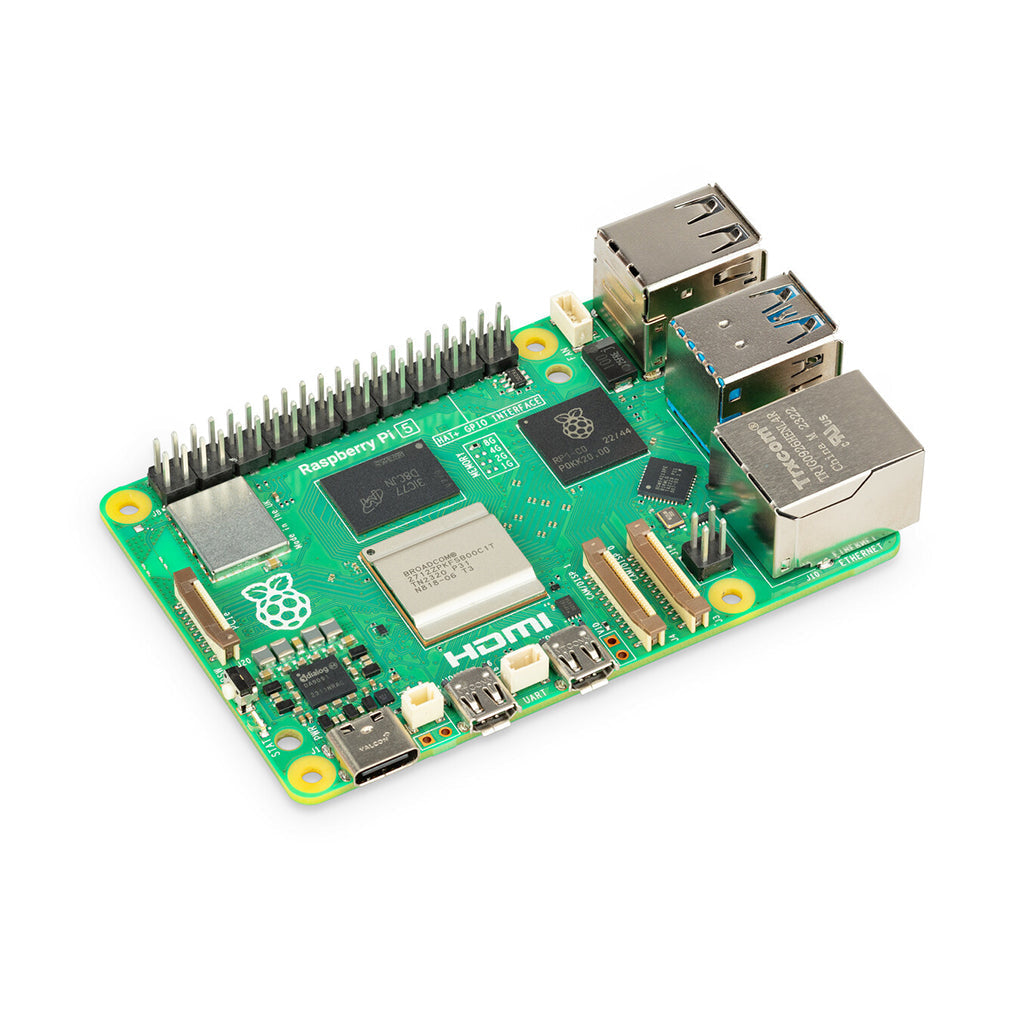

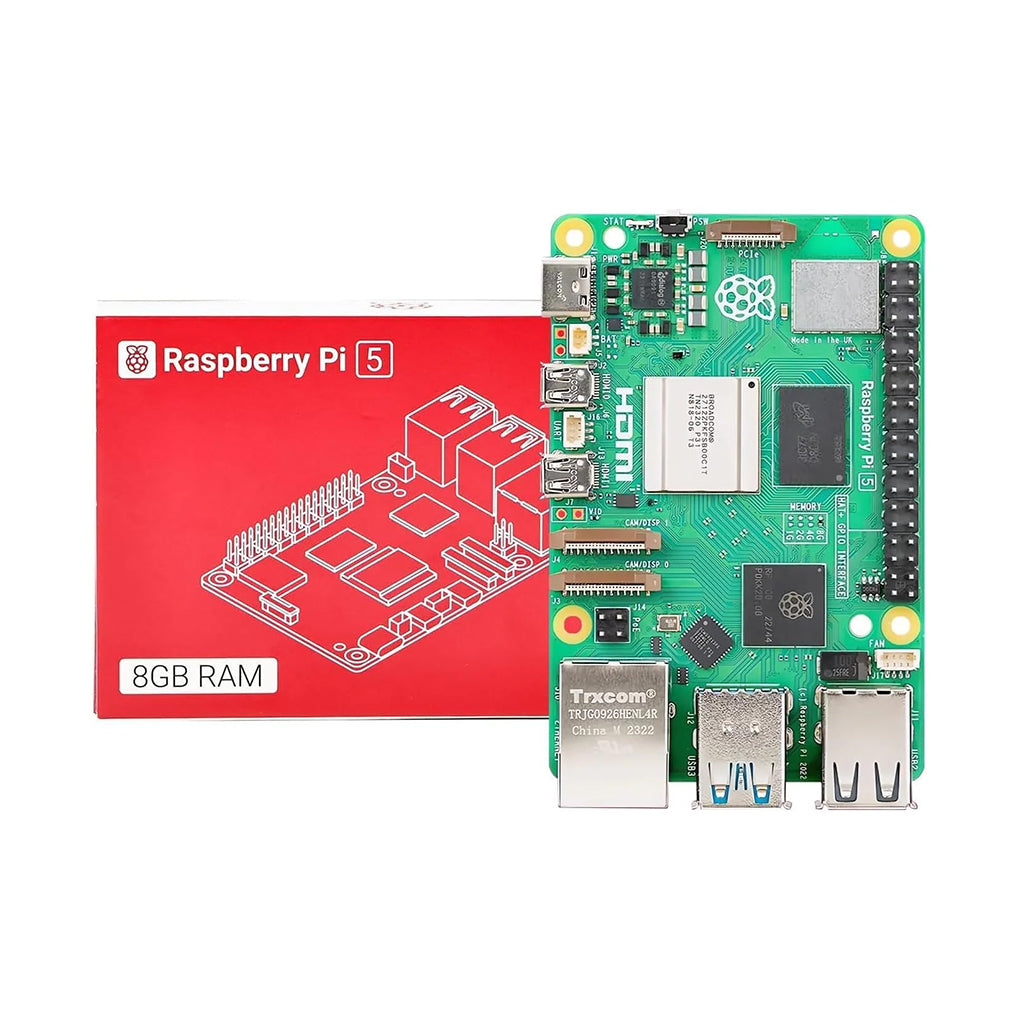

Raspberry Pi 5 Model B 8GB RAM – Quad-Core Arm Cortex-A76, USB 3.0, PCIe 2.0, Dual 4K HDMI, Enhanced Performance

Introducing the Raspberry Pi 5 Model B with 8GB RAM, the most advanced version yet, offering up to 3× the speed of its predecessors. Powered by the Broadcom BCM2712 quad-core Arm Cortex-A76 processor running at 2.4GHz, it delivers exceptional performance for a wide range of applications. The inclusion of the RP1 I/O controller, designed in-house, ensures optimal functionality and efficiency.

The Raspberry Pi 5 enhances connectivity and expandability with dual USB 3.0 ports for high-speed data transfer, dual 4K HDMI outputs with HDR support for superior visual experience, and PCIe 2.0 x1 interface for connecting M.2 SSDs, which significantly improves data transfer speeds and boot times. With 8GB of LPDDR4X-4267 SDRAM, it provides ample memory for demanding tasks and smoother multitasking.

The Raspberry Pi 5 is compatible with the latest Raspberry Pi OS, optimized to leverage the full power of this new model. Whether for work, leisure, or enterprise applications, the Raspberry Pi 5 offers a powerful and versatile computing solution.

Key Features:

• Enhanced Performance: The Broadcom BCM2712 quad-core Arm Cortex-A76 CPU at 2.4GHz provides up to 3× the speed of previous models.
• Expanded Connectivity: Includes dual USB 3.0 ports for faster data transfer, dual 4K HDMI outputs with HDR, and PCIe 2.0 x1 interface for M.2 SSDs.
• Ample Memory: 8GB LPDDR4X-4267 SDRAM available for handling demanding tasks and ensuring smooth performance.
• Advanced I/O Controller: The RP1 I/O controller enhances overall performance and connectivity.
• Versatile Display and Camera Connectors: Supports interchangeable camera and DSI display connectors.

Specification:

• CPU: Broadcom BCM2712, 2.4GHz quad-core 64-bit Arm Cortex-A76
• GPU: VideoCore VII, supporting OpenGL ES 3.1 and Vulkan 1.2
• Display Outputs: Dual 4Kp60 HDMI® with HDR support
• HEVC Decoder: 4Kp60
• RAM: LPDDR4X-4267 SDRAM (4GB and 8GB SKUs available)
• Wireless: Dual-band 802.11ac Wi-Fi®
• Bluetooth: 5.0 / Bluetooth Low Energy (BLE)
• Storage: microSD card slot with high-speed SDR104 mode support
• USB Ports: 2 × USB 3.0, 2 × USB 2.0
• Networking: Gigabit Ethernet, PoE+ support (requires separate PoE+ HAT)
• Camera/Display Connectors: 2 × 4-lane MIPI
• PCIe Interface: 2.0 x1 (requires separate M.2 HAT or adapter)
• Power: 5V/5A DC via USB-C, Power Delivery support
• Additional Features: Raspberry Pi standard 40-pin header, Real-time clock (RTC) powered from external battery, Power button

The Raspberry Pi 5 Model B with 8GB RAM redefines computing power in a compact form factor, providing enhanced performance, connectivity, and versatility for a wide range of uses.
