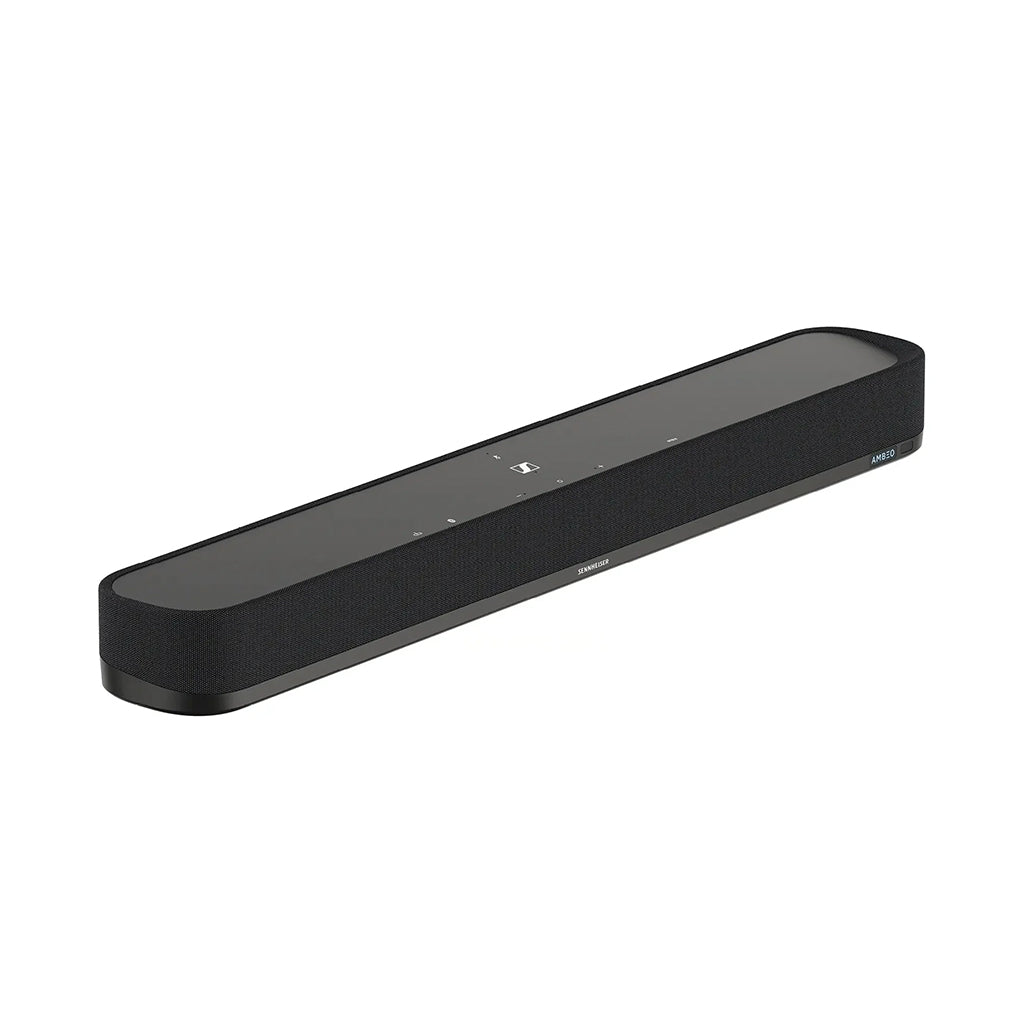

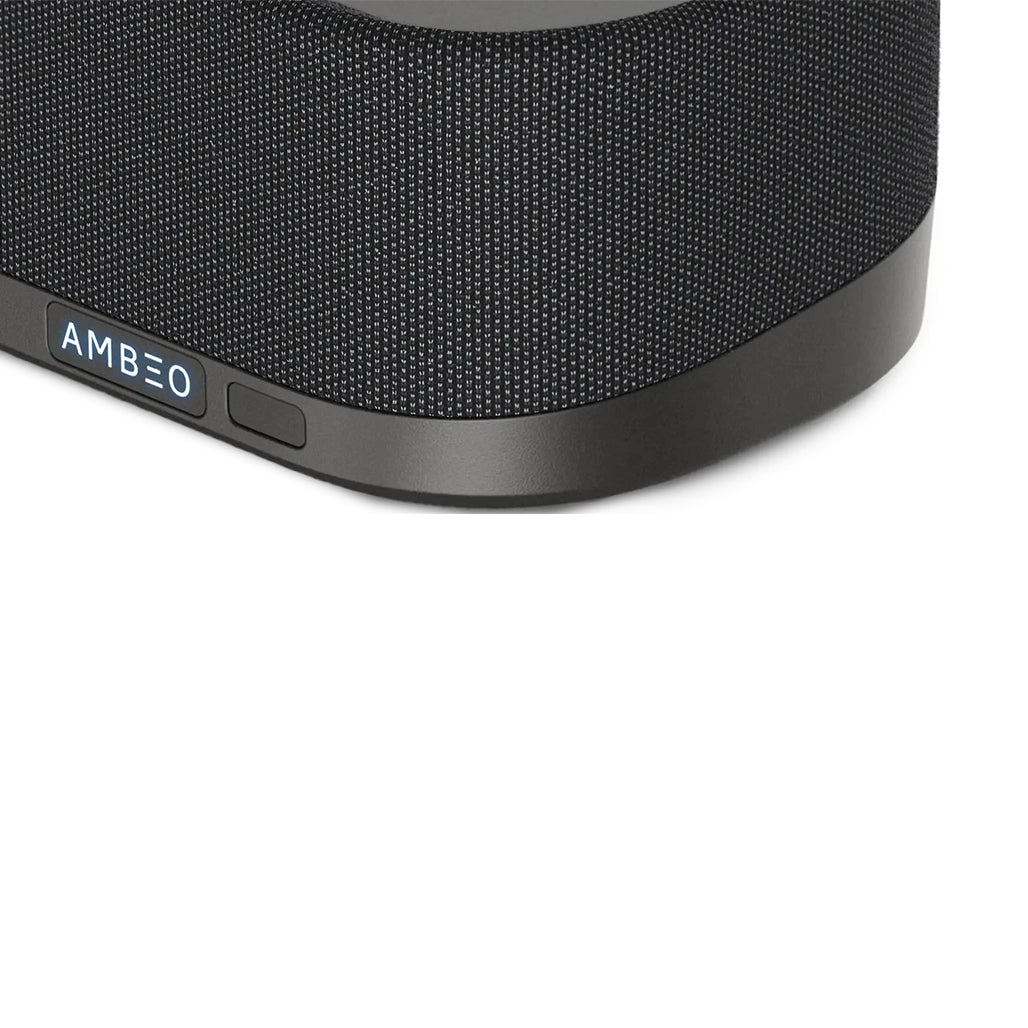

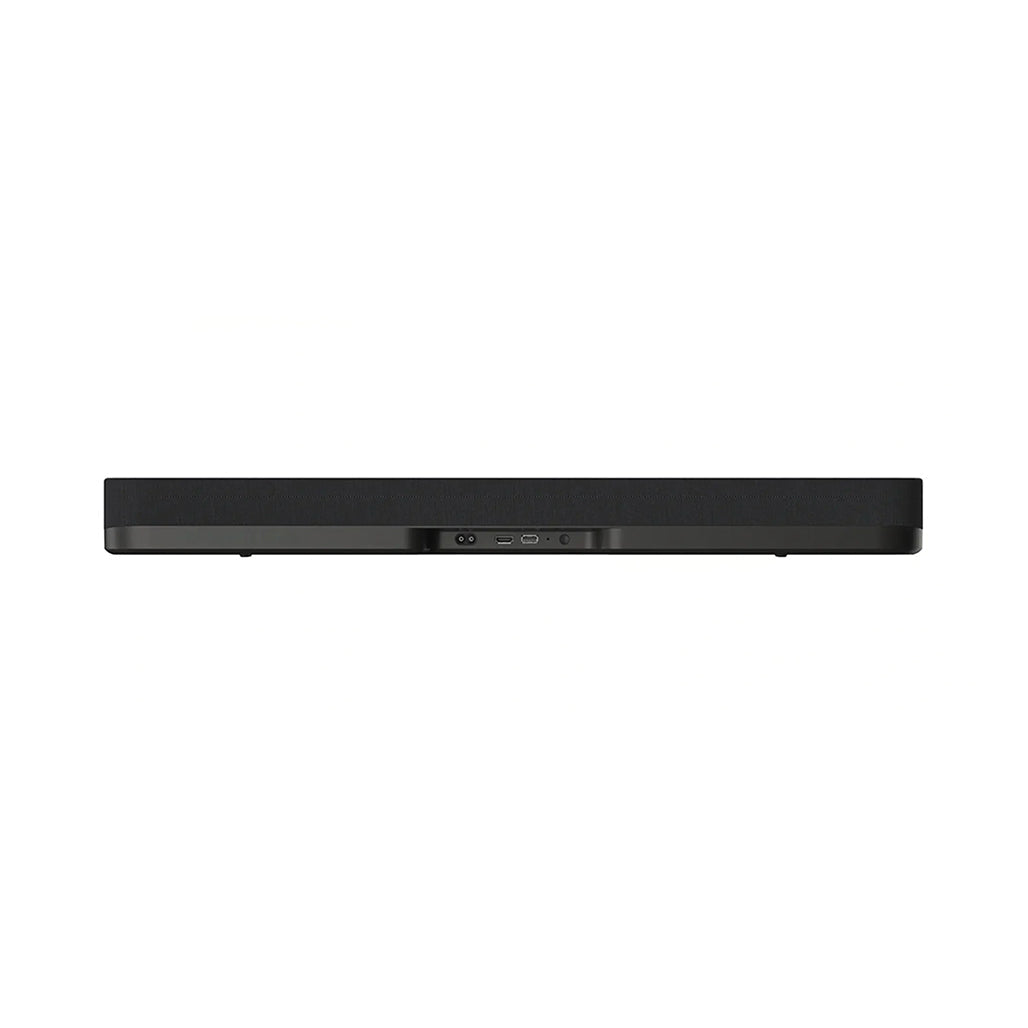

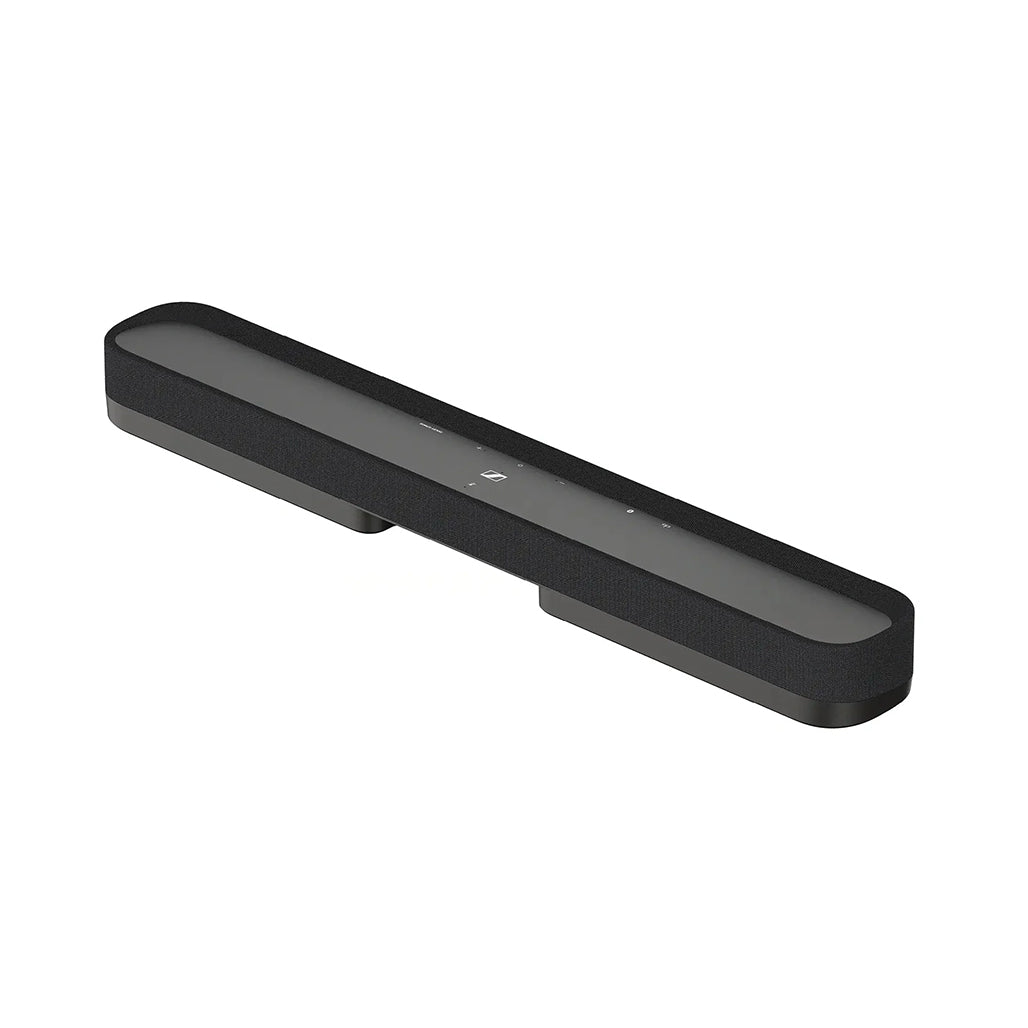

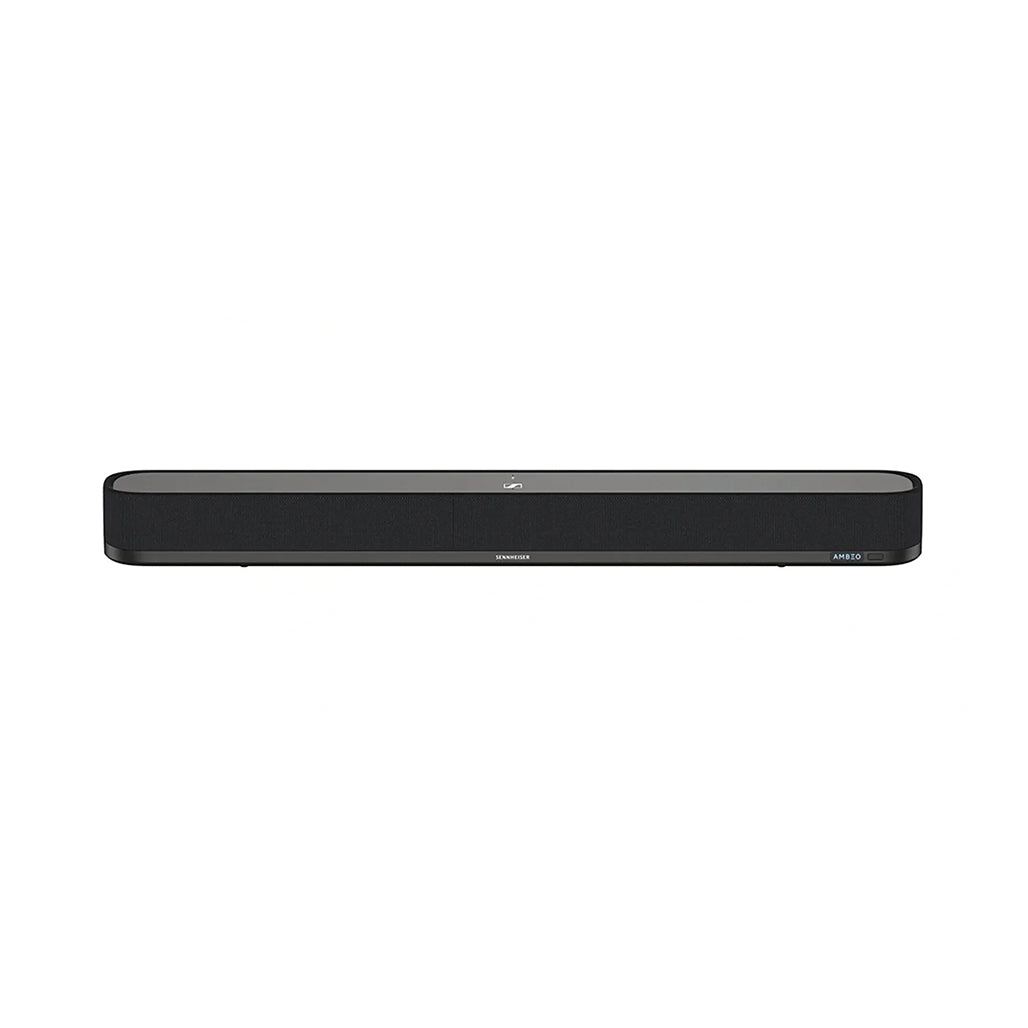

Sennheiser AMBEO Soundbar Mini – 7.1.4 Dolby Atmos Soundbar

The Sennheiser AMBEO Soundbar Mini is a compact premium soundbar designed to deliver immersive home theater audio from a single device. A virtual 7.1.4 surround sound experience is created through AMBEO virtualization technology, while support is provided for advanced 3D audio formats including Dolby Atmos, DTS, MPEG-H, and 360 Reality Audio. Powerful audio is produced by six integrated speakers, four full-range drivers, and dual 4-inch woofers, allowing detailed mids, clear dialogue, and deep bass reaching as low as 43Hz to be reproduced without a separate subwoofer being required.

Room-filling sound is automatically optimized through intelligent self-calibration, where the acoustics of the room are analyzed and the soundstage is adapted accordingly. Stereo content can also be transformed into a wider immersive soundstage through AMBEO upmixing. Convenient wireless streaming is supported through Wi-Fi, Bluetooth, Apple AirPlay 2, Chromecast built-in, Spotify Connect, and Tidal Connect, while Alexa voice functionality is built in. Control and sound customization are provided through the Sennheiser Smart Control App, making the AMBEO Soundbar Mini suitable for movies, TV, music, streaming, and everyday home entertainment.

Key Features

• Virtual 7.1.4 Surround Sound: A 7.1.4 home theater environment is recreated from a single compact soundbar through advanced AMBEO virtualization technology, allowing sound to be positioned around and above the listening area.
• Dolby Atmos and Advanced 3D Audio Support: Immersive audio formats including Dolby Atmos, DTS, MPEG-H, and 360 Reality Audio are supported, allowing compatible movies, music, and entertainment to be reproduced with greater spatial detail.
• Built-In Dual 4-Inch Woofers: Powerful low-frequency performance is delivered through two integrated 4-inch cellulose cone woofers, with bass reproduction extending down to 43Hz.
• High-Fidelity Full-Range Drivers: Four 1.6-inch cellulose cone full-range drivers are used to reproduce detailed mids, clear vocals, and balanced high-frequency sound.
• 250W RMS Amplification: Six Class D amplifiers are integrated, with a combined amplification power of 250W RMS being provided for dynamic home entertainment audio.
• Automatic Room Calibration: Four built-in far-field high-precision microphones are used to analyze room acoustics, allowing the sound presentation to be automatically adapted to the listening environment.
• AMBEO Stereo Upmixing: Standard stereo content can be expanded into a wider room-filling soundstage through AMBEO virtualization.
• Adaptive Audio Processing: Content being played can be analyzed so that suitable audio adjustments are automatically applied for an optimized listening experience.
• Voice Enhancement: Speech and dialogue clarity can be improved through the dedicated Voice Enhancement function, making conversations in movies, TV programs, and other content easier to hear.
• Night Mode: Dynamic sound can be controlled for quieter listening, allowing entertainment to be enjoyed with reduced disturbance.
• Wireless Music Streaming: Music and other audio content can be streamed through Chromecast built-in, Apple AirPlay 2, Spotify Connect, Tidal Connect, Bluetooth, and UPnP.
• Wi-Fi 6 Connectivity: IEEE 802.11 a/b/g/n/ac/ax wireless networking is supported for reliable network connectivity and high-quality audio streaming.
• Bluetooth 5.0: Bluetooth 5.0 Classic/BLE connectivity is included, with AAC and SBC audio codecs being supported.
• Wireless AMBEO Sub Connectivity: Bluetooth Low Energy 5.2 connectivity is provided for compatible wireless subwoofer communication.
• HDMI eARC: An HDMI 2.1 eARC connection is provided, allowing high-quality audio to be transferred directly from a compatible television.
• Alexa Built-In: Compatible Alexa functionality is integrated, allowing supported voice-based control to be accessed where available.
• Smart Control App: Sound settings, equalizer adjustments, presets, setup options, and additional controls can be managed through the Sennheiser Smart Control App.
• Compact Design: A compact 70 cm wide enclosure is used, allowing powerful home theater sound to be integrated into entertainment spaces without multiple speakers and cables.

Specifications

Product

• Product: Sennheiser AMBEO Soundbar Mini
• Article Number (SKU): 700137

Amplifier

• Amplifier: 6 × Class D amplifiers
• Total Amplification Power: 250W RMS

Speaker System

• Total Number of Speakers: 6
• Full-Range Drivers: 4 × 1.6" (40 mm) cellulose cone full-range drivers
• Woofers: 2 × 4" cellulose cone drivers

Audio Processing

• Audio Processing: Quad-Core 1.8GHz SoC
• Frequency Response: 43Hz – 20kHz (-3dB)

Supported Immersive Audio Technologies

• AMBEO virtualization
• Dolby Atmos
• DTS
• MPEG-H
• 360 Reality Audio
• Stereo content upmixing

Connectivity

• Chromecast built-in
• UPnP
• Apple AirPlay 2
• Spotify Connect
• Tidal Connect

HDMI

• HDMI TV (eARC) Out: 1 × HDMI eARC
• HDMI Version: HDMI 2.1

USB

• USB: 1 × USB Type-A socket
• USB Purpose: Power supply for accessories/external devices
• USB Output: 5V DC, 1A

Room Calibration Microphones

• Microphone Input for Room Calibration: 4 × built-in far-field high-precision microphones

Dimensions

• Dimensions with Feet: 70 × 6.9 × 10.1 cm
• Dimensions without Feet: 70 × 6.7 × 10.1 cm

Weight

• Approx. 3.3 kg

Network

• Network Transmission System: 2 × 2 MIMO
• Transmission Frequency (Country-Specific): 2,400 MHz to 2,483.5 MHz / 5,170 MHz to 5,835 MHz
• Network Output Power: 100 mW maximum
• Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac/ax

Network Modulation – 2.4GHz Band

• CCK
• DQPSK
• DBPSK for DSSS
• 64QAM
• 16QAM
• QPSK
• BPSK for OFDM

Network Modulation – 5GHz Band

• 1024-QAM
• 256-QAM
• 64QAM
• 16QAM
• QPSK
• BPSK

Bluetooth

• Bluetooth Version: 5.0 Classic/BLE
• Bluetooth Wireless Transmission to Sub: Bluetooth Low Energy 5.2
• Bluetooth Transmission Frequency: 2,400 MHz to 2,483.5 MHz
• Bluetooth Modulation: GFSK, π/4 DQPSK, 8DPSK
• Bluetooth Profiles: A2DP, AVRCP, GATT
• Bluetooth Output Power – BT SoC: 10mW maximum
• Bluetooth Output Power – BT Sub: 10mW maximum
• Bluetooth Codec – BT SoC: AAC, SBC
• Bluetooth Codec – BT Sub: LC3

Power

• Voltage Range: 100–240V ~ 50/60Hz
• Maximum Current: 2.5A
• Standby Power Consumption: Maximum 1.9W

Environmental Conditions

• Operating Temperature Range: 0°C to +40°C
• Storage Temperature Range: -20°C to +70°C
• Relative Humidity: 10% to 90%

What's Included

• Sennheiser AMBEO Soundbar Mini
• Remote control including lithium battery
• Premium high-speed HDMI cable
• Instruction manual
• Country-specific power cord

Conclusion

The Sennheiser AMBEO Soundbar Mini is designed for home entertainment setups where immersive surround sound, compact dimensions, and extensive wireless connectivity are required. A virtual 7.1.4 soundstage is produced through AMBEO technology, while Dolby Atmos, DTS, powerful integrated woofers, automatic room calibration, HDMI eARC, Wi-Fi, Bluetooth, AirPlay 2, Chromecast, and major music streaming platforms are supported. With its integrated speaker system and intelligent audio processing, cinematic sound can be delivered from a single streamlined soundbar without a traditional multi-speaker installation.
