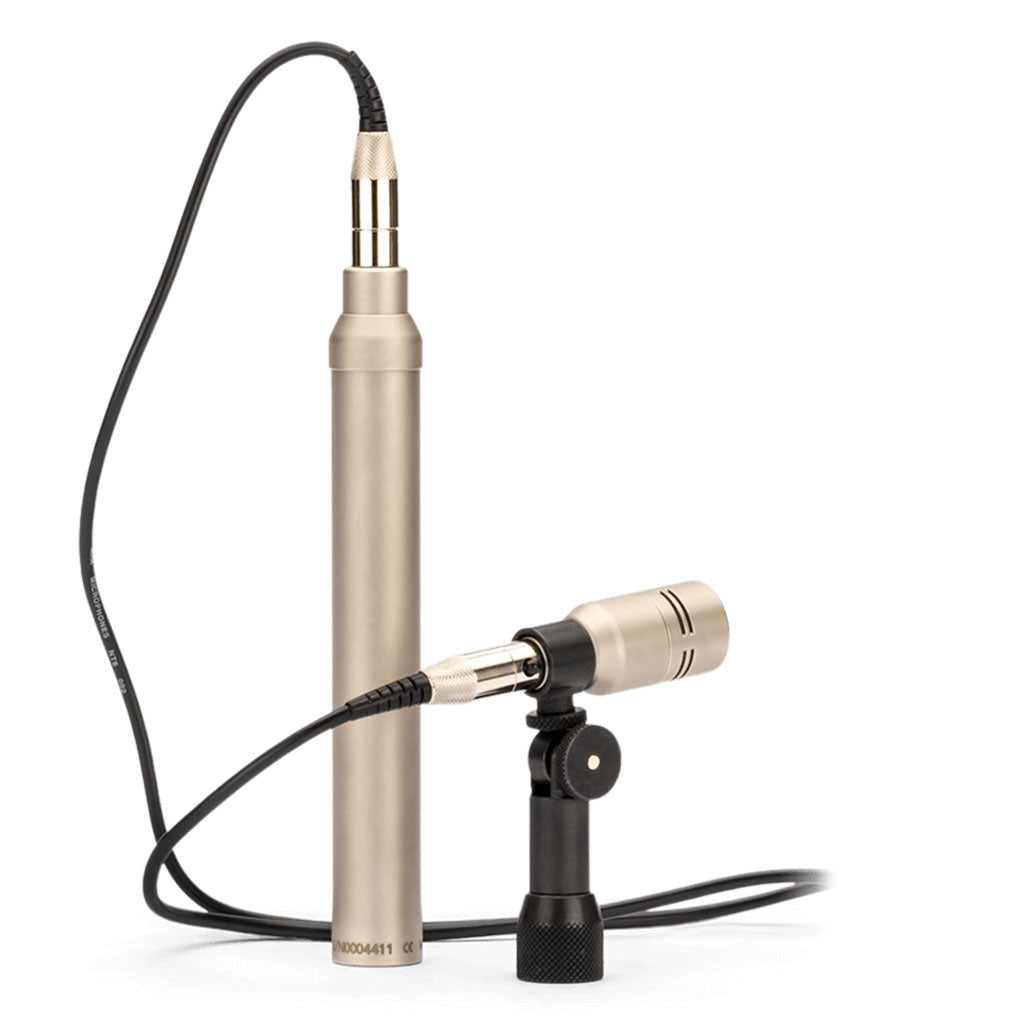

Rode NT6 Compact 1/2 Inch Cardioid Condenser Microphone - Precision Audio Capture

The Rode NT6 is a high-performance small-diaphragm cardioid condenser microphone, crafted to deliver precise and accurate audio capture in demanding recording environments. Its innovative design separates the microphone capsule from the preamp, connected by a 3-meter shielded Kevlar-reinforced cable, allowing for flexible placement in constrained or challenging locations. This modular setup ensures that high sound quality is maintained even in difficult mounting situations.

Equipped with a 1/2-inch gold-sputtered condenser capsule, the NT6 offers exceptional sound reproduction and durability. The microphone includes a two-stage high-pass filter (80Hz) and a -10dB pad to effectively manage low-frequency noise and handle high sound pressure levels. With its cardioid polar pattern, the NT6 captures sound with focus while minimizing off-axis noise, making it suitable for various recording scenarios. Engineered with JFET impedance conversion and a bipolar output buffer, the NT6 ensures reliable performance and minimal distortion.

Key Features:

• Modular Design: A remote capsule is connected via a 3-meter shielded, Kevlar-reinforced cable, providing flexibility in placement within tight or awkward spaces.
• Gold-Sputtered Capsule: The 1/2-inch gold-sputtered condenser capsule ensures high-quality sound reproduction and durability.
• High-Pass Filter and Pad: Features a two-stage high-pass filter (80Hz) and a -10dB pad to manage low-frequency noise and handle high sound pressure levels effectively.
• Cardioid Polar Pattern: Captures sound with focus while rejecting off-axis noise, making it ideal for diverse recording scenarios.
• Precision Engineering: Utilizes JFET impedance conversion and a bipolar output buffer for reliable performance and minimal distortion.

Specifications:

• Acoustic Principle: Pressure Gradient
• Active Electronics: JFET impedance converter with bipolar output buffer
• Capsule: 0.50"
• Polar Pattern: Cardioid
• Address Type: End
• Frequency Range: 40Hz - 20kHz
• Output Impedance: 200Ω
• Maximum SPL: 135dB SPL
• Maximum Output Level: 6.0mV (@ 1kHz, 1% THD into 1KΩ load)
• Sensitivity: -37.0dB re 1 Volt/Pascal (16.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
• Equivalent Noise: 19dBA
• Power Requirements: P24 and P48
• Output Connection: XLR
• Dimensions (mm): 189 (H) x 64 (W) x 20 (D)

Final Conclusion:

The Rode NT6 is distinguished by its compact and efficient design, providing superior audio quality in complex recording situations. Its modular construction, high-grade components, and adjustable features make it a dependable choice for capturing clear and precise sound in both studio and field environments. The NT6 meets the needs of professionals seeking high performance and adaptability in their audio recording equipment.
