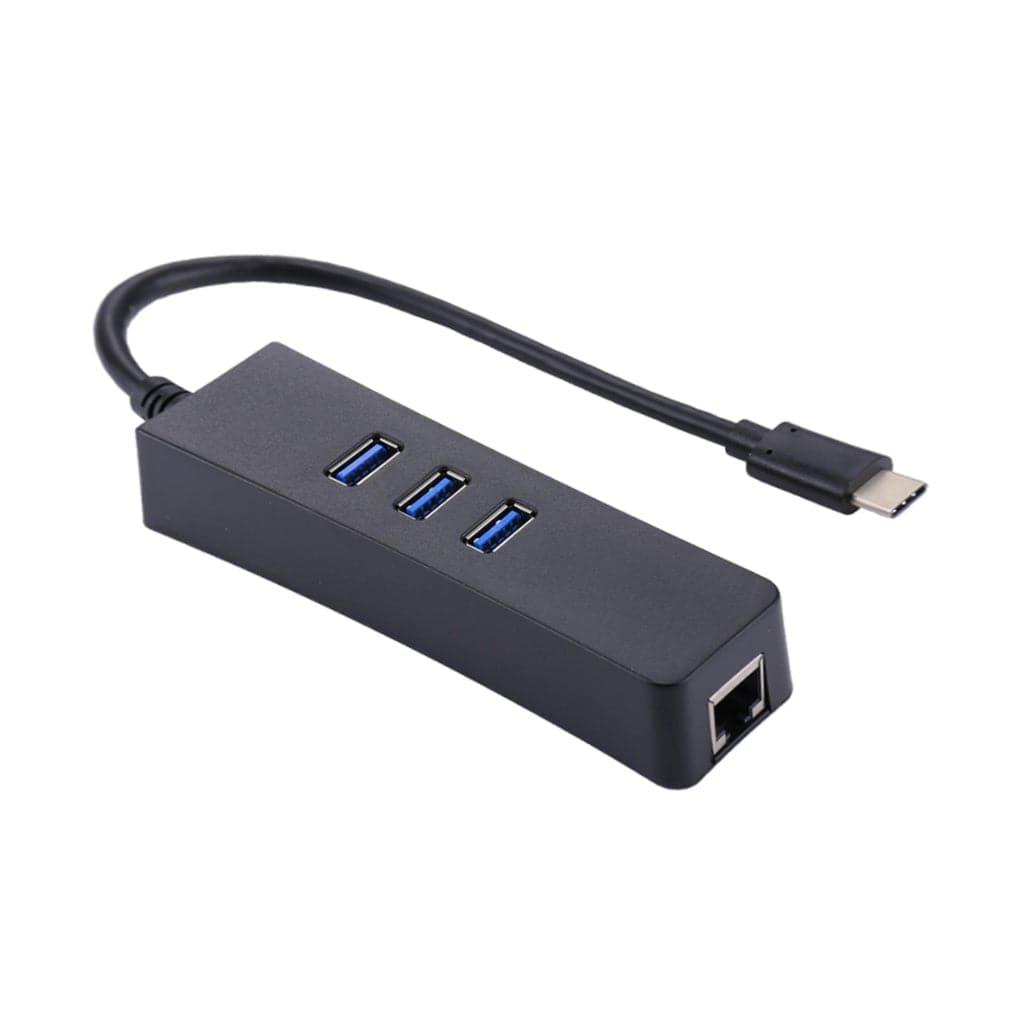

Boost your network and device connectivity with the 3-Port High-Speed Ethernet Adapter with Type-C. This versatile hub integrates gigabit Ethernet and three USB-A ports into a single compact unit, delivering reliable wired networking alongside expanded peripheral support. Whether you’re streaming large files, video conferencing, or connecting external drives, the adapter’s built-in Ethernet MAC and transceiver ensure seamless data transfer at up to 1 Gbps. Plug it into any USB-C port for instant access to robust LAN speeds and extra USB connectivity—no drivers required.
Key Features
-
Gigabit Ethernet Performance
Supports 10/100/1000 Mbps speeds with auto-negotiation for optimal network throughput. -
All-in-One Integrated Chip
Combines MAC, physical layer, and transceiver functions in a single chipset for efficiency and reliability. -
Flexible Power Options
Draws power directly from the USB-C port or via an optional external adapter for consistent operation. -
Advanced Power Management
Built-in suspend/resume detection reduces power consumption when idle. -
Full- and Half-Duplex Modes
Complies with IEEE 802.3 and 802.3u standards to support diverse network configurations. -
Broad USB Compatibility
Works with USB 1.1, 2.0, and 3.0 hosts for universal plug-and-play functionality. -
Expanded USB Hub
Three downstream USB-A 3.0 ports deliver up to 5 Gbps per port for high-speed data and accessory connections.
Specifications
-
Network Speeds: 10/100/1000 Mbps (auto-negotiation)
-
Chipset: Integrated Ethernet MAC, PHY, and transceiver
-
Power Source: USB-C bus-powered or optional external supply
-
Power Management: Suspend/resume detection logic
-
Duplex Modes: Full-duplex and half-duplex support
-
Standards: IEEE 802.3, IEEE 802.3u
-
USB Compliance: USB 1.1, USB 2.0, USB 3.0
-
USB Ports: 3 × USB-A 3.0 (5 Gbps)
-
Interface: USB-C male to Ethernet RJ45 + 3 × USB-A female
