AMD Ryzen™ 9 9900X

Zen 5 Powerhouse for High-Performance Desktops

Designed for elite desktop users, the AMD Ryzen™ 9 9900X delivers industry-leading performance with the latest Zen 5 architecture, 12 high-efficiency cores, and next-gen PCIe® 5.0 connectivity. Whether you're building a powerhouse for gaming, creative workflows, or intensive multitasking, this chip offers the cutting-edge performance you need—backed by overclocking support and integrated AMD Radeon™ graphics.

KEY FEATURES

Zen 5 Architecture
Built on the new Granite Ridge platform, the 9900X features 12 cores and 24 threads, offering incredible throughput and responsiveness across workloads.

Extreme Clock Speeds

• Base Clock: 4.4 GHz

• Max Boost Clock: Up to 5.6 GHz
  Push performance even further with unlocked overclocking and AMD Precision Boost Overdrive.

Next-Gen Memory & Expansion

• DDR5 Memory Support (Up to 192GB)

• PCIe® 5.0 Interface for lightning-fast GPUs and storage

• Support for NVMe RAID and high-speed USB 3.2 Gen 2

Integrated Radeon™ Graphics
With 2 RDNA-based cores running at 2200 MHz, the built-in graphics offer smooth desktop experiences without requiring a discrete GPU for basic tasks.

Advanced Tuning and Monitoring

• Compatible with AMD Ryzen™ Master software

• Curve Optimizer and EXPO™ Technology support for fine-tuned control

Thermal Efficiency

• Built on TSMC 4nm FinFET process

• Default TDP: 120W

• Max Operating Temp: 95°C
  Recommended: Liquid cooling solution for peak performance

FULL SPECIFICATIONS

GENERAL

• Product Name: AMD Ryzen™ 9 9900X

• Codename: Granite Ridge

• Platform: AM5 Socket

• Launch Date: August 15, 2024

• Architecture: Zen 5

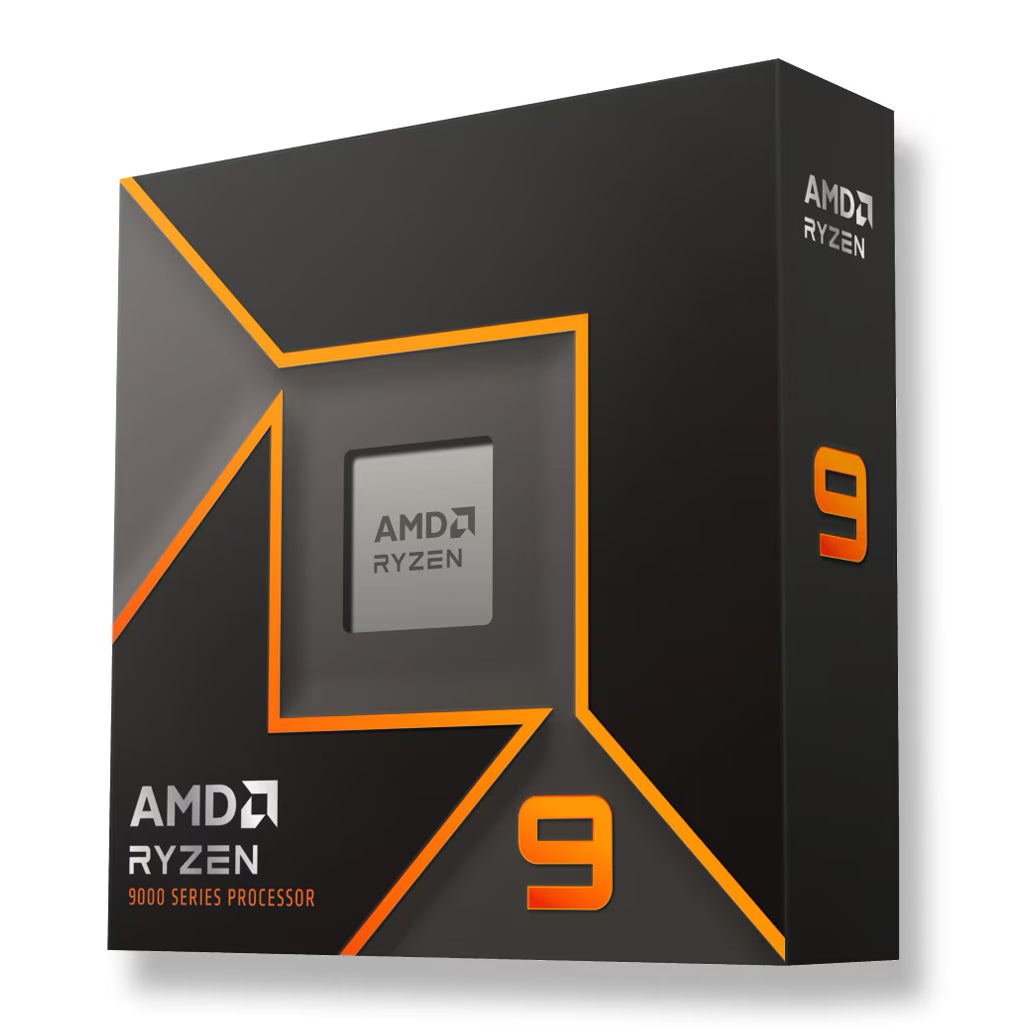

• Package: Boxed Processor (Cooler not included)

• Unlocked: Yes

CORE CONFIGURATION

• Cores / Threads: 12 / 24

• L1 Cache: 960 KB

• L2 Cache: 12 MB

• L3 Cache: 64 MB

• Die Count: 3 (Core: 4nm, I/O: 6nm)

CLOCK SPEEDS

• Base: 4.4 GHz

• Boost: Up to 5.6 GHz

MEMORY SUPPORT

• Type: DDR5 UDIMM

• Max Capacity: 192 GB

• Channels: Dual

• Speeds:

  • 2x1R: DDR5-5600

  • 2x2R: DDR5-5600

  • 4x1R: DDR5-3600

  • 4x2R: DDR5-3600

• ECC: Yes (with motherboard support)

• AMD EXPO™ Ready: Yes

GRAPHICS

• Integrated GPU: AMD Radeon™ Graphics

• Core Count: 2

• GPU Frequency: 2200 MHz

• USB Type-C DisplayPort Alt Mode: Supported

CONNECTIVITY & I/O

• USB:

  • 4x USB 3.2 Gen 2 (10Gbps)

  • 1x USB 2.0

• PCIe® Version: 5.0

• Native PCIe® Lanes: 28 total (24 usable)

• Chipset PCIe Expansion (Examples):

  • X870E: 8x Gen4

  • B650E: 8x Gen4

• NVMe Support: Boot, RAID 0/1/5/10

SOFTWARE & OS SUPPORT

• OS Compatibility:

  • Windows 11 & 10 (64-bit)

  • RHEL x86 64-bit

  • Ubuntu x86 64-bit

• Ryzen Master Software: Supported

INSTRUCTION SETS & EXTENSIONS
AES, AMD-V, AVX/AVX2/AVX512, FMA3, SSE (up to SSE4A), SHA, MMX+, SSSE3, x86-64

RECOMMENDED COOLING

• Not included in-box

• Liquid cooling recommended for optimal thermal performance

PRODUCT IDs

• Boxed: 100-100000662WOF

• Tray: 100-000000662
