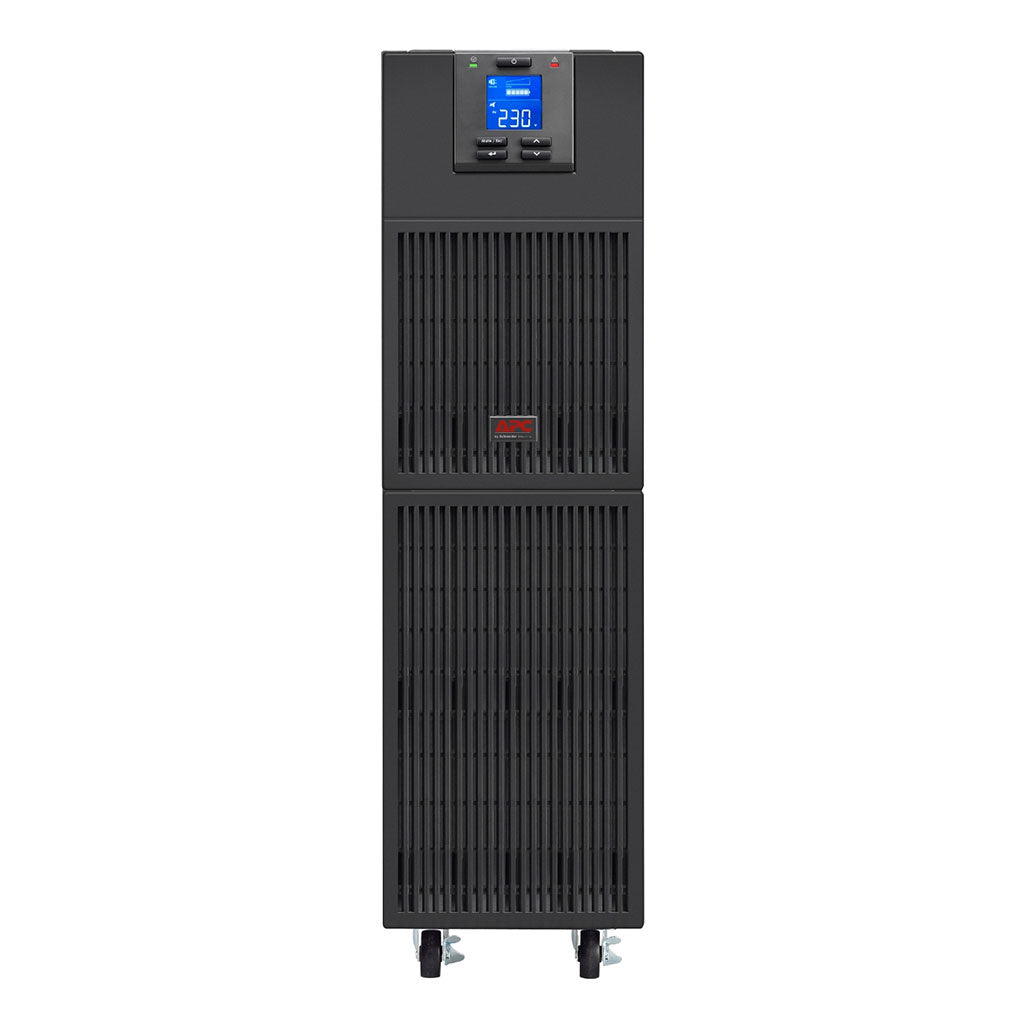

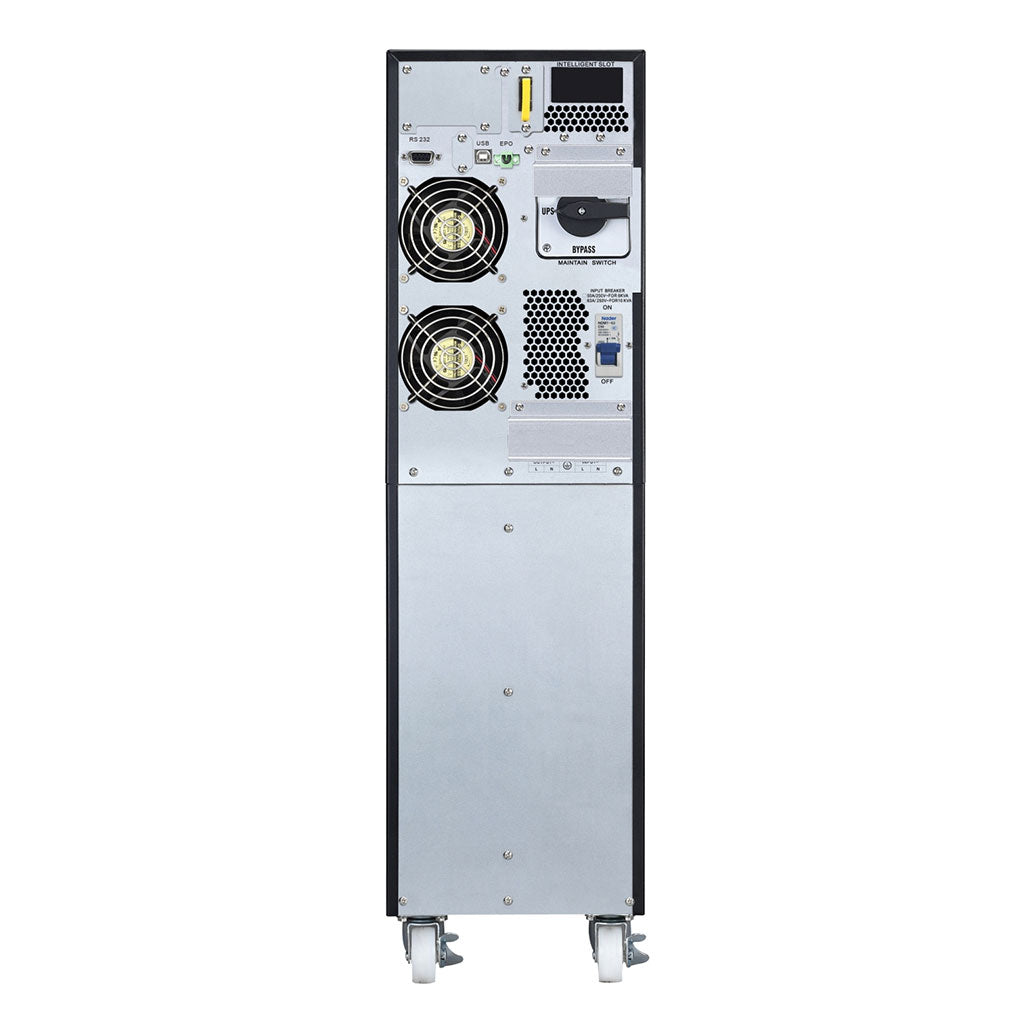

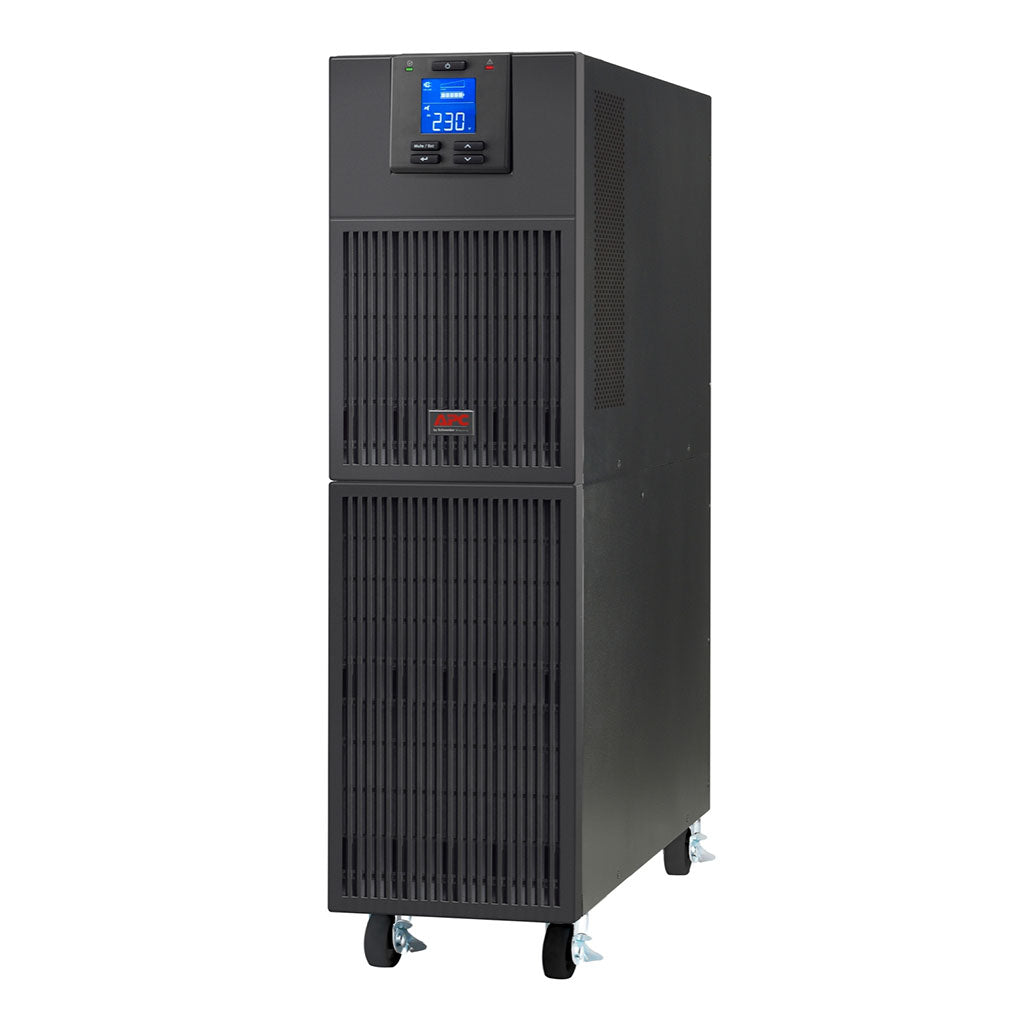

APC Easy UPS On-Line 10kVA/10kW Tower 230V - Reliable Power Protection for Essential Systems
The APC Easy UPS On-Line 10kVA/10kW Tower offers robust and high-quality double-conversion online power protection for critical systems, ensuring stable power even in the most challenging conditions.
Key Features:
- Rated Power: Provides 10,000 W / 10,000 VA, supporting substantial loads and critical equipment.
- Output Voltage: Configurable for 220V, 230V, or 240V nominal output voltage to match your needs.
- Efficiency: Achieves a remarkable 94% efficiency at full load, reducing energy consumption and operational costs.
- Output Voltage Distortion: Maintains a low 1% distortion for clean and stable power delivery.
- Output Frequency: Syncs to mains at 50/60 Hz ± 3 Hz for consistent power supply.
- Load Crest Factor: Supports a 3:1 load crest factor for handling peak loads.
- UPS Type: Double conversion online technology for the highest level of power protection.
- Wave Type: Delivers a pure sine wave output, ensuring compatibility with sensitive electronics.
- Bypass: Features internal automatic and manual bypass for uninterrupted power supply during maintenance.
Input Specifications:
- Main Input Voltage: 230V, with support for 220V and 240V input voltages.
- Voltage Range: Supports a wide input voltage range of 110 - 300V at 60% load and 176 - 300V at full load.
- Input Frequency: Auto-sensing 40 - 70 Hz for flexible power input.
- Connector Type: 1 hard wire 3-wire (1P + N + E) for reliable connections.
Battery and Runtime:
- Battery Type: Durable lead-acid battery for reliable power storage.
- Battery Voltage: Operates at 192V for optimal performance.
- Recharge Time: Typical recharge time of 5 hours for quick recovery.
- Battery Life: Expected battery life of 3 - 5 years, ensuring long-term reliability.
- Battery Charger Power: Capable of charging at 235W for efficient power restoration.
Communications and Management:
- Interface Ports: Includes a multifunction LCD status and control console for easy monitoring and management.
- Alarm System: Provides distinct alarms for battery operation, low battery, and overload conditions.
- Emergency Power Off (EPO): Yes, for immediate shutdown in emergencies.
- Free Slots: One available slot for additional management options.
- Surge Protection: Offers a 600 Joules surge energy rating for enhanced protection against power surges.
Physical Specifications:
- Dimensions: Compact tower design with a height of 68.5 cm, width of 19 cm, and depth of 44.7 cm.
- Weight: Net weight of 65 kg, with a shipping weight of 77 kg for easy transport and installation.
- Color: Sleek black (RAL 7010) design for professional aesthetics.
- Mounting Position: Vertical installation with no preference for location.
Environmental and Safety Standards:
- Operating Temperature: Designed for a wide range of operating temperatures (0 - 40 °C).
- Humidity: Operates efficiently in humidity levels from 0 - 95% (non-condensing).
- Elevation: Suitable for use up to 3000 meters above sea level.
- Storage Conditions: Can be stored at temperatures from -15 to 60 °C and humidity levels from 0 - 95% (non-condensing).
- Noise Level: Emits a low 58 dBA of audible noise, ensuring a quiet operation environment.
- Thermal Dissipation: Manages 2128 BTU/hr of thermal dissipation for effective heat management.
- Protection Class: IP20 rating for solid object protection.
Included Accessories:
- Cables: Comes with 1 USB cable and 1 RS-232 configuration cable.
- User Manual: Comprehensive manual for easy setup and operation.
Invest in the APC Easy UPS On-Line 10kVA/10kW Tower for advanced power protection, high efficiency, and comprehensive management capabilities, ensuring your critical equipment remains operational and secure.
