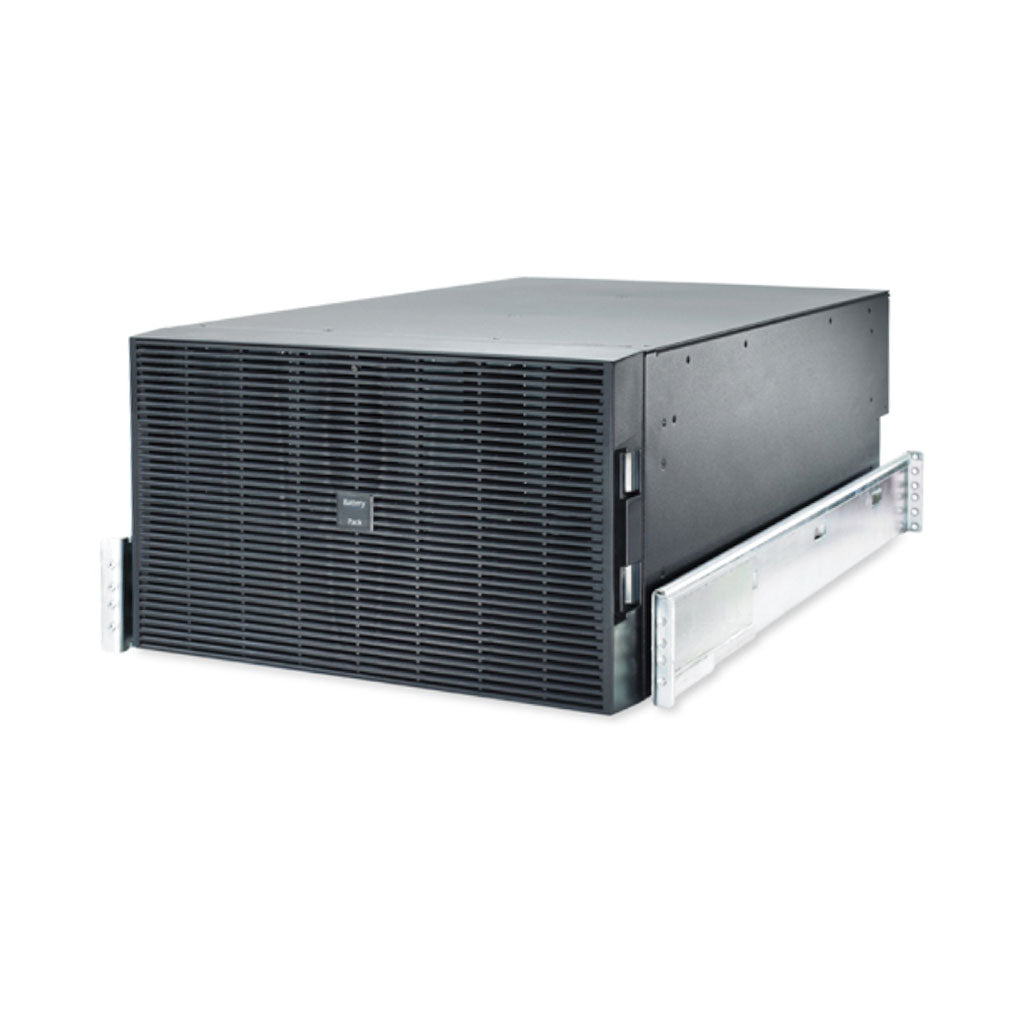

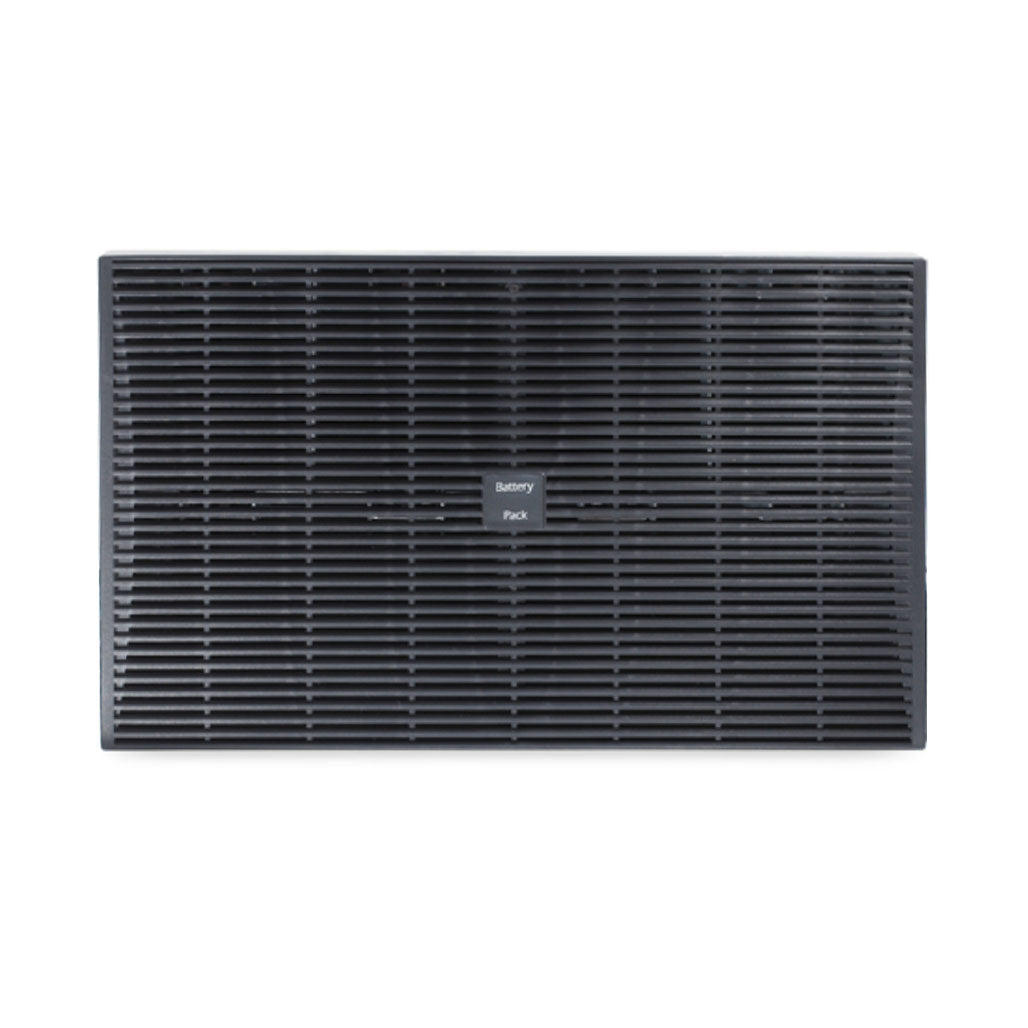

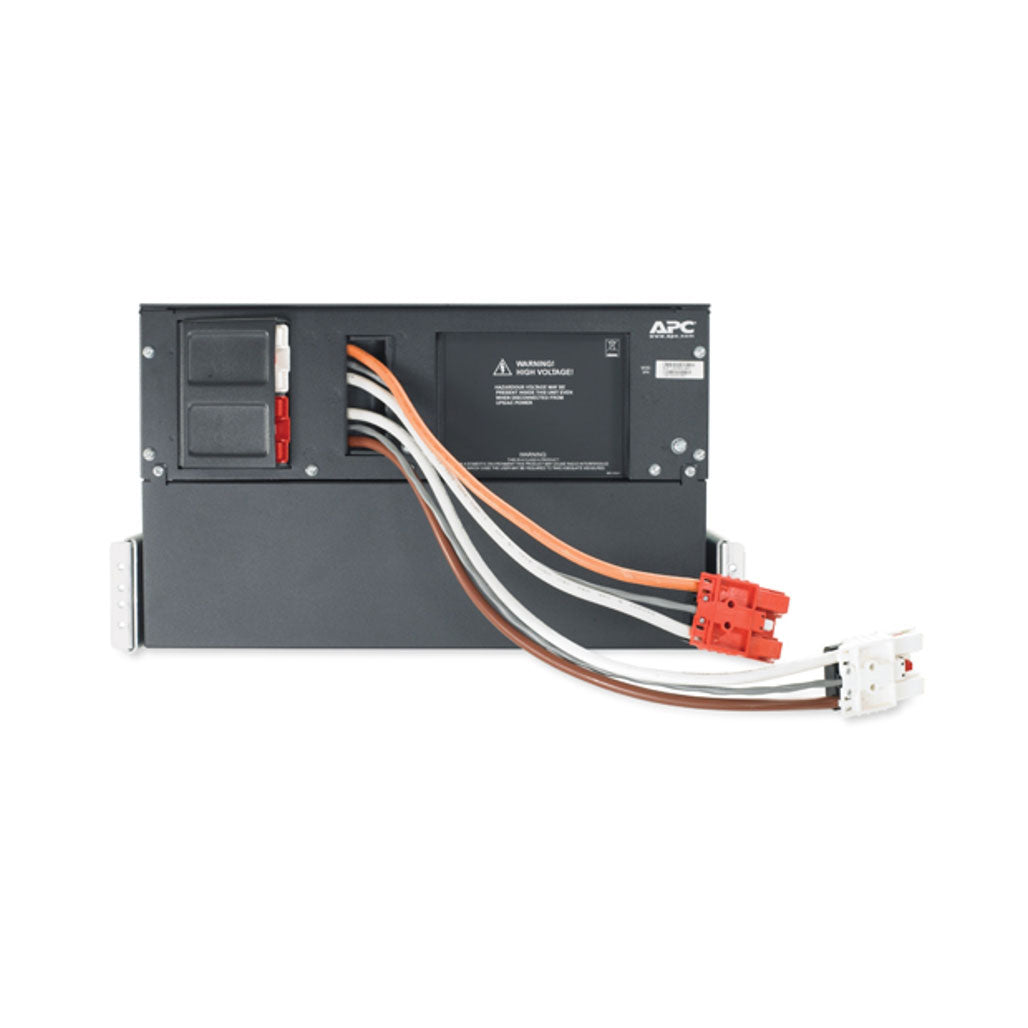

APC Smart-UPS RT192V RM Battery Pack - 192V, 6U, Rackmount, 2 Rows

APC Smart-UPS RT192V RM Battery Pack – High-Capacity Backup Power

The APC Smart-UPS RT192V RM Battery Pack provides high-capacity power backup for your Smart-UPS system, designed to ensure continuous operation during power outages. This robust battery pack features a 6U rackmount design and is equipped with VRLA (Valve Regulated Lead Acid) batteries to deliver reliable power and extended runtime.

Key Features:

• Battery Type: VRLA
• Battery Voltage: 192 V
• Number of Battery Replacement Units: 4
• Mounting Mode: Rack-mounted
• Device Mounting: 19-inch battery tray

Physical Characteristics:

• Height: 26.3 cm
• Width: 43.2 cm
• Depth: 73.9 cm
• Net Weight: 181.82 kg
• Color: Black
• Number of Rack Units: 6U

Provided Equipment:

• All required connectors
• Rack mounting brackets
• User manual

Environmental Conditions:

• Operating Temperature: 0 to 40 °C
• Storage Temperature: -15 to 45 °C
• Relative Humidity (Operation): 0 to 95 % non-condensing
• Relative Humidity (Storage): 0 to 95 % non-condensing
• Operating Altitude: Up to 10,000 ft
• Storage Altitude: Up to 15,240 m

Packing Details:

• Unit Type of Package 1: PCE
  • Number of Units in Package 1: 1
  • Package Dimensions: Height 43.2 cm, Width 61 cm, Length 100.3 cm
  • Package Weight: 220.45 kg
• Unit Type of Package 2: PAL
  • Number of Units in Package 2: 4
  • Package Dimensions: Height 101.4 cm, Width 100 cm, Length 120 cm
  • Package Weight: 879.968 kg

Standards Compliance: OSHPD

The APC Smart-UPS RT192V RM Battery Pack is essential for maintaining high availability and performance in critical applications, offering both reliability and extensive runtime in a compact, rackmountable design.
