Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0 slot, two PCIe 4.0 M.2 slots, 10 Power stages, Realtek 2.5Gb Ethernet, DP, HDMI, front USB 3.2 Gen 2 Type-C®, Aura Sync
- Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel Core™ processors
- Enhanced power solution: 10 power stages, six-layer PCB, ProCool socket, military-grade TUF components and Digi+ VRM for maximum durability
- Comprehensive cooling: Enlarged VRM heatsink, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Latest connectivity: PCIe 4.0 slot, PCIe 4.0 M.2 slots, front USB 3.2 Gen 2 Type-C®
- Made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
Durable. Stable. Reliable.

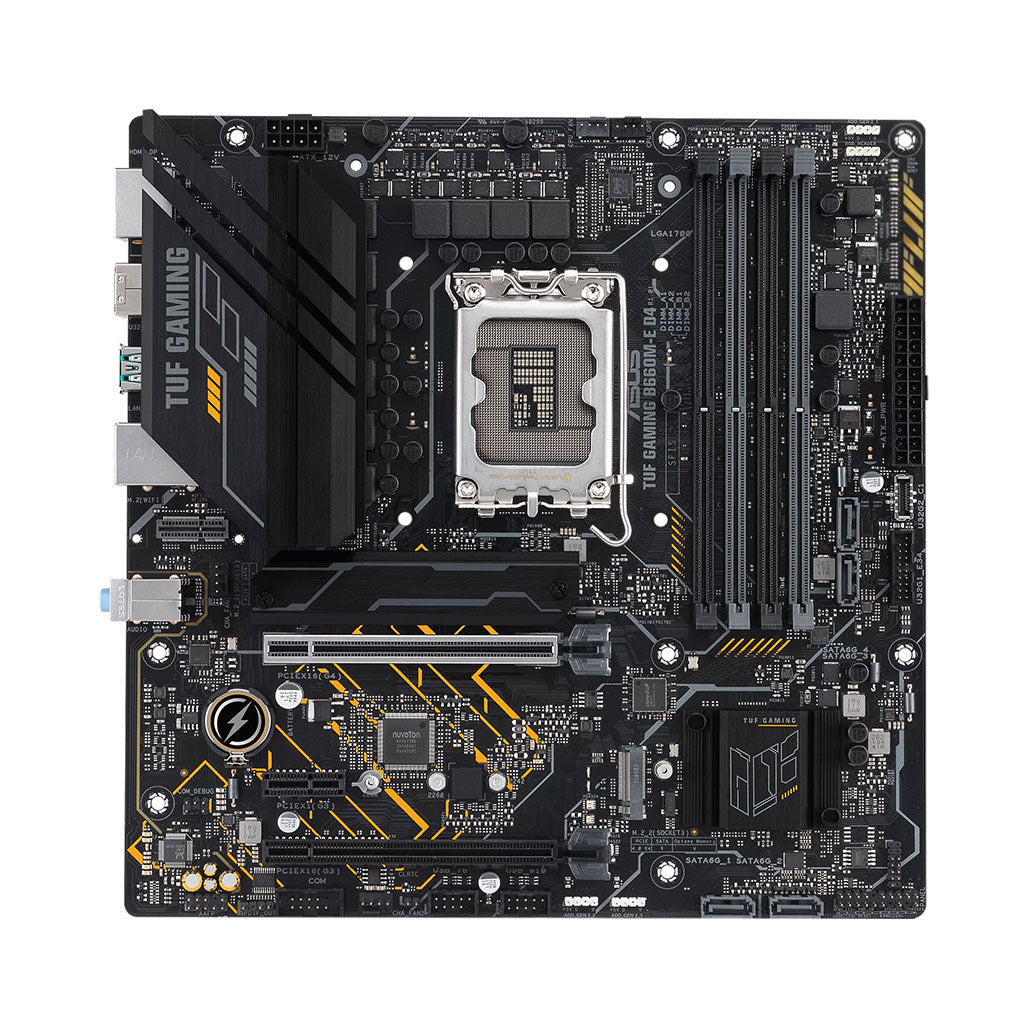

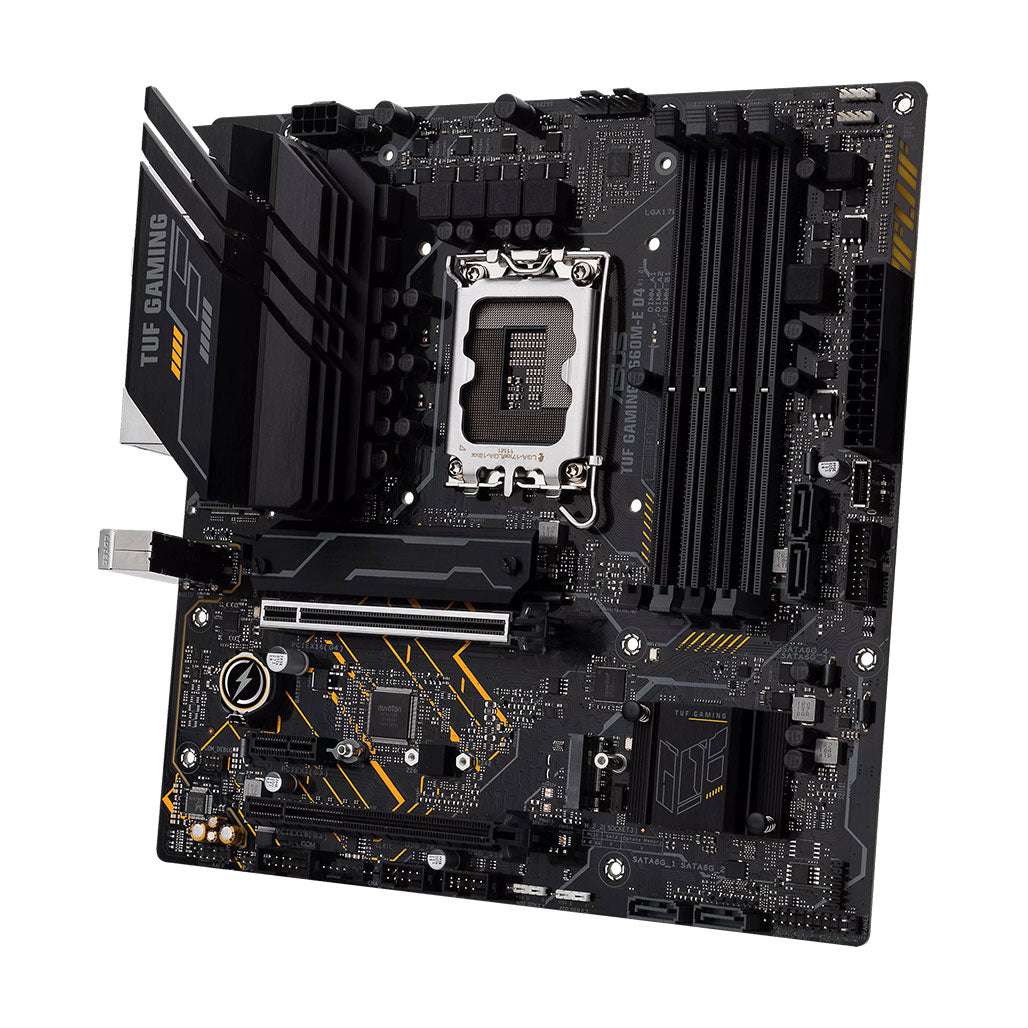

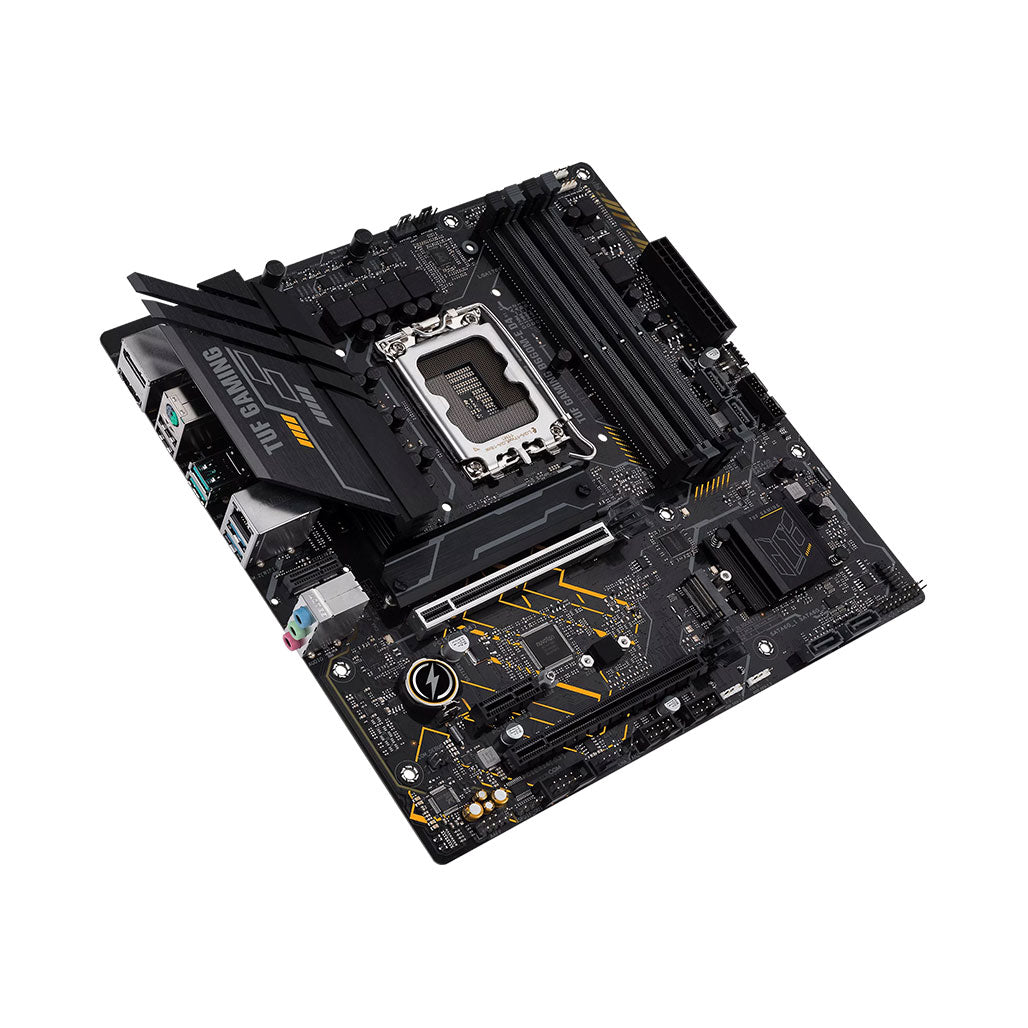

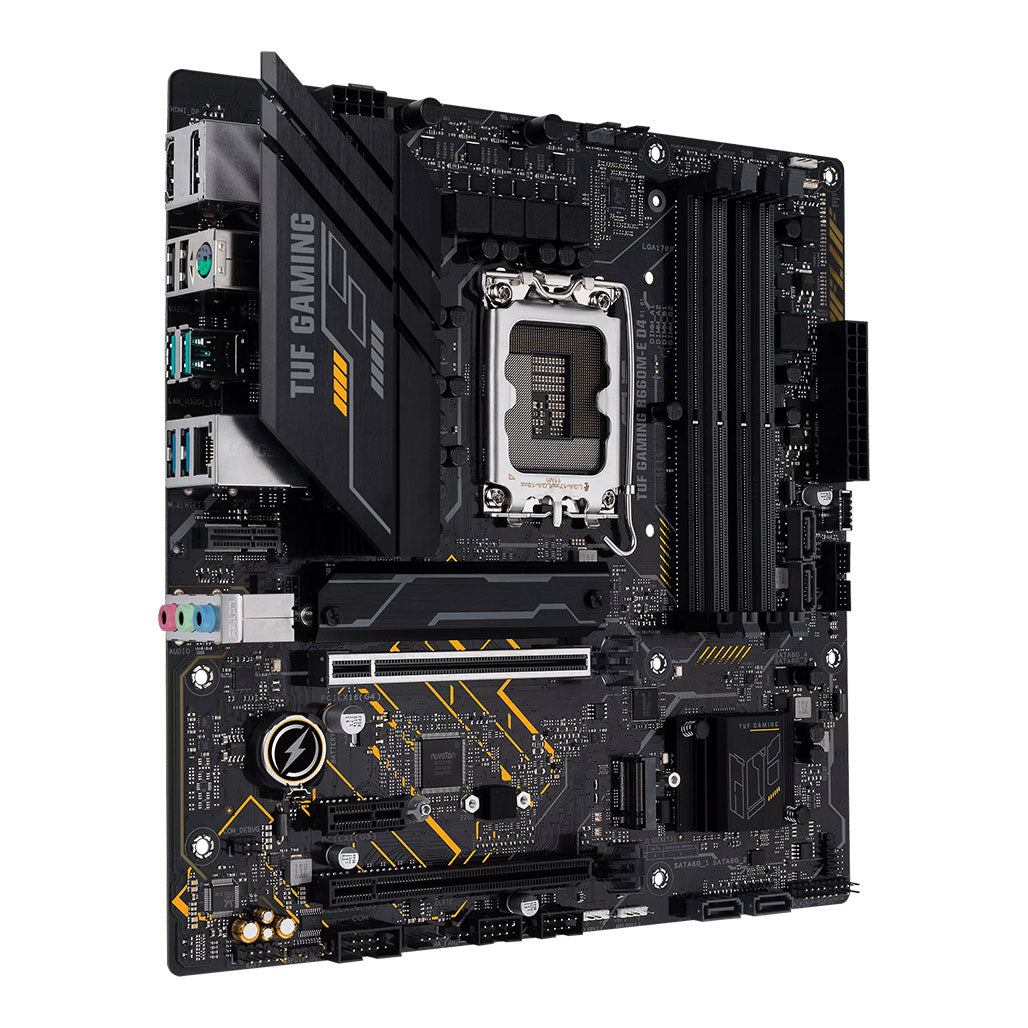

ASUS TUF GAMING B660M-E D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-E D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
Specifications:
Model:
- TUF GAMING B660M-E D4
CPU:
- Intel® Socket LGA1700 for 13th Gen Intel®
- Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
- Processors
- Supports Intel® Turbo Boost Technology 2.0
- and Intel® Turbo Boost Max Technology 3.0
Chipset:
- Intel® B660 Chipset
Memory:
- 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133MHz
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile
- (XMP)
- OptiMem II
Graphics:
- 1 x DisplayPort
- 1 x HDMI®port
Expansion Slots:
- Intel®13th & 12th Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot
- Intel® B660 Chipset*
- 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 1 x PCIe 3.0 x1 slot
Storage:
- Total supports 2 x M.2 slots and 4 x SATA
- 6Gb/s ports
- Intel®13th &12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280
- Intel® B660 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280
- (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
Ethernet:
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
Wireless & Bluetooth:
- V-M.2 slot only (Key E, CNVi & PCIe)
USB:
- Rear USB (Total 6 ports):
- 2 x USB 3.2 Gen 2 ports (Type-A)
- 2 x USB 3.2 Gen1 ports (Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 7 ports):
- 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio:
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features:
- - Audio Shielding
- - Power pre-regulator reduces power input noise to ensure consistent performance
- - Premium audio capacitors
- - Dedicated audio PCB layers
Back Panel I/O Ports:
- 2 x USB 3.2 Gen 2 ports
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Realtek2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x V-M.2 slot (Key E)
- 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors:
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2 connector (supports USB
- Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x AURA RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with
- Chassis intrude function
- 1 x S/PDIF Out header
Special Features:
- ASUS TUF PROTECTION
- - DIGI+ VRM
- - Enhanced DRAM Overcurrent Protection
- - ESD Guards
- - TUF LANGuard
- - Overvoltage Protection
- - SafeSlot Core+
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - M.2 Q-Latch
- - Q-DIMM
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution
- - Flexible M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - Box Headers
- - ProCool
- - SafeDIMM
- AURA Sync
- - AURA RGB header
- - Addressable Gen 2 headers
Software Features:
- ASUS Exclusive Software
- Armoury Crate
- - AURA Creator
- - AURA Sync
- - Fan Xpert 2+
- - Two-Way AI Noise Cancelation
- AI Suite 3
- - Performance And Power Saving Utility
- TurboV EVO
- EPU
- DIGI+ VRM
- TUF GAMING CPU-Z
- DTS Audio Processing
- Norton Anti-virus software (Free Trial
- version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
BIOS:
- 128 Mb Flash ROM, UEFI AMI BIOS
- Manageability
- WOL by PME, PXE
Accessories:
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 1 x M.2 SSD screw package
- 1 x TUF Gaming sticker
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x TUF Certification card
- 1 x User manual
Operating System: Windows® 11 64-bit, Windows® 10 64-bit,
Form Factor:
- mATX Form Factor
- 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
