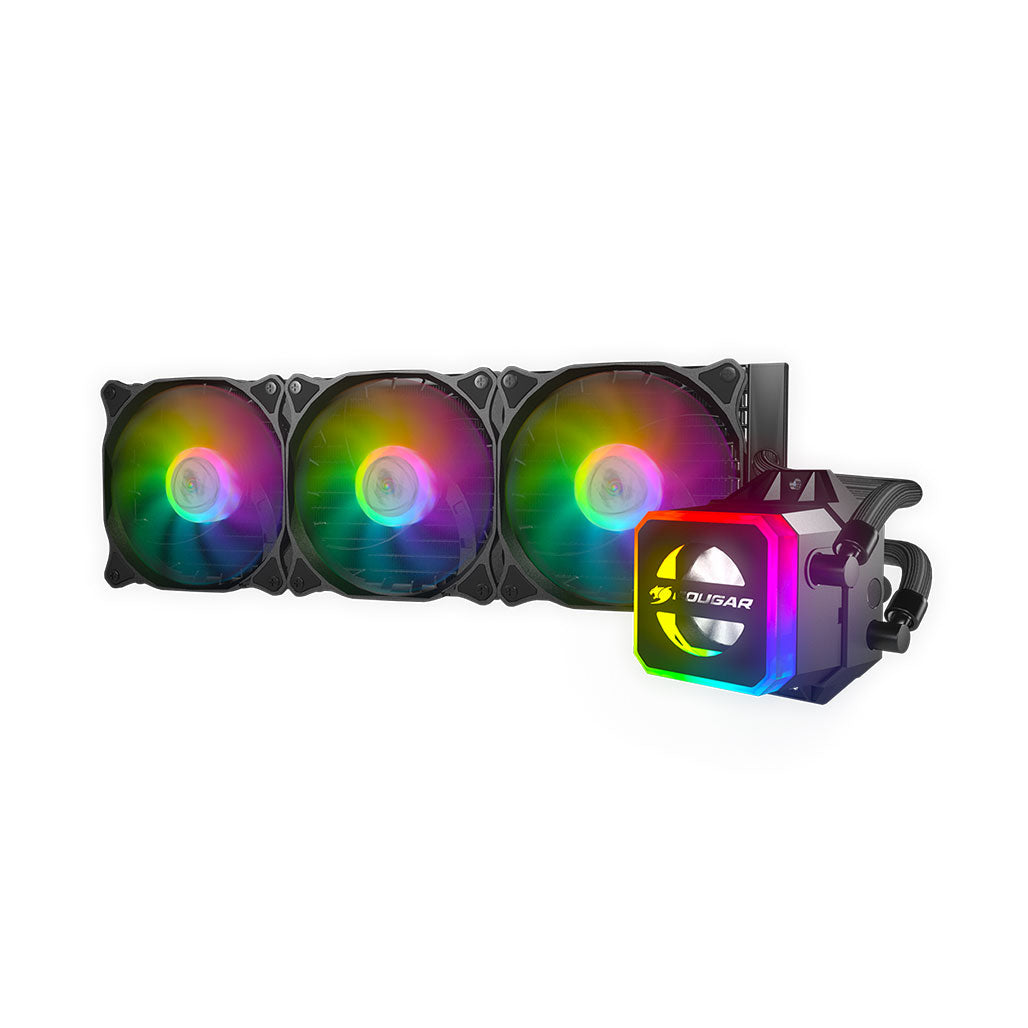

Cougar Liquid Cooling Helor 360

Model Number

RL-HLR360-V1

CPU Socket

Intel Socket 2066, 2011, 2011-3, 1366, 1200, 1156, 1155, 1151, 1150, 775
AMD Socket AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 (*)
* Not compatible with Socket TR4

Water Block & Pump

Dimensions (WxDxH)

81.8 x 94.8 x 78.3 mm

Cold Plate Material

Copper with Nickel Plating

Pump Speed

2700 ± 10% R.P.M

Rated Voltage

12 VDC

Rated Current

0.28 A

Power Consumption

3.36 W

Cable Length

Pump power: 300 mm / LED power: 600 mm

Connector & Control

3 Pin Fixed Speed

Lights

12 Addressable RGB LEDs (5V)

Radiator

Type

360mm

Dimensions (WxDxH)

394 x 120 x 27 mm

Material

Aluminum

Package

Package Content

Helor 360 x 1
Vortex Omega 120 x 3

Mounting Kit x 1
Core Box v2 & Power Connector x 1
Wireless Controller x 1
5V Addressable Header Adapter (Core Box v2 to M/B) x 1
1 to 3 Fan Splitter x 1
Maintenance Kit (100 ml Coolant & 1g Thermal Paste) x 1
User Manual x 1

Tubing

Material

Durable Rubber with Sleeves

Length

360 & 400 mm

Fans

Fan Model

Vortex Omega 120

Fan Quantity

3

Dimensions (WxDxH)

120 x 120 x 25 mm

Bearing Type

Hydro-Dynamic Bearing

Fan Speed

600-1800 ± 200 R.P.M

Air Flow

78.4 CFM (Max.)

Air Pressure

2.4 mm-H2O (Max.)

Acoustic Noise

37.1 dBA (Max.)

Rated Voltage

12 VDC

Rated Current

0.32 A

Power Consumption

3.84 W

Cable Length

Fan power : 600 mm / LED power : 600 mm

Connector & Control

4 Pin PWM

Lights

10 Addressable RGB LEDs (5V)
