80PLUS Gold Certified
Up to 92% efficiency power conversion to cut down your electricity bill

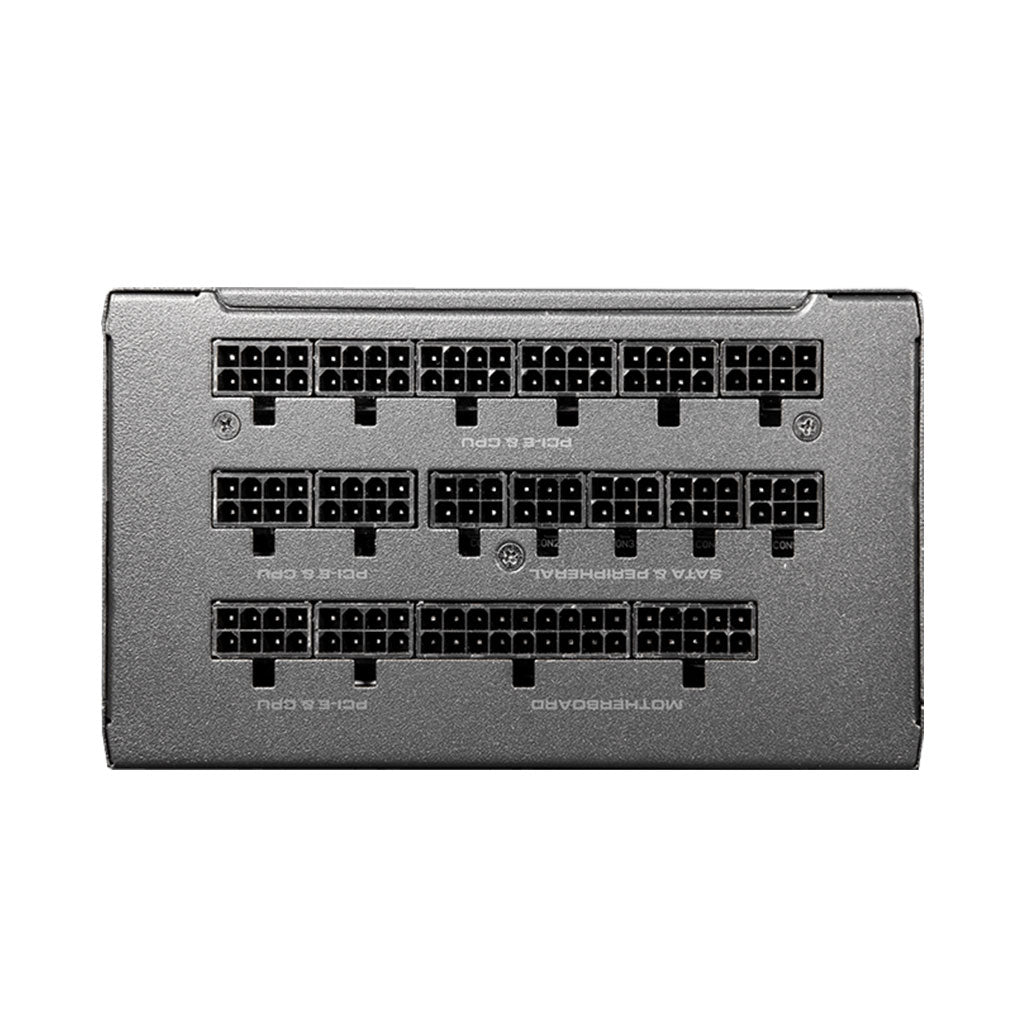

Fully Modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow

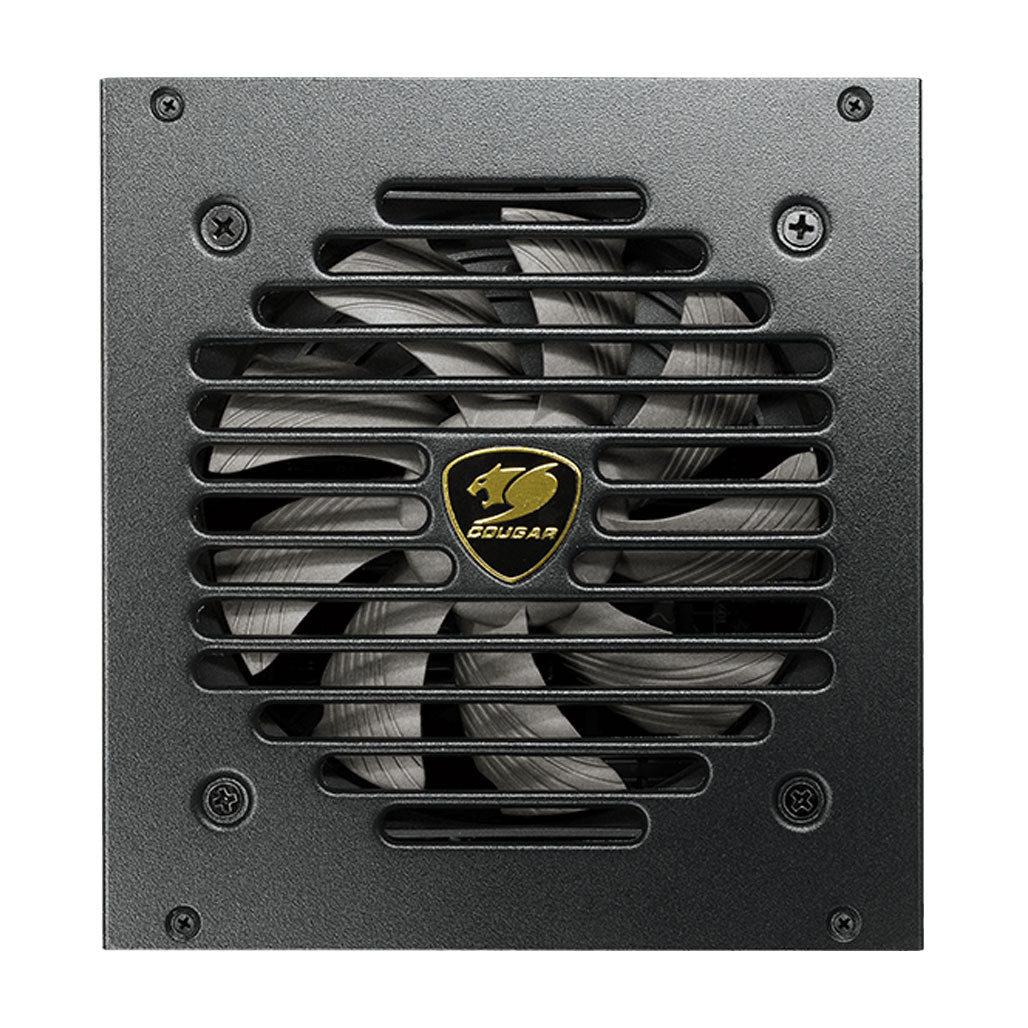

Durable HDB Fan
Hydro Dynamic Bearing Fan: Extended durability and lower noise levels
Superior fan Curve Tuning
Advanced technology for noise minimization
Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms
Support PCI Express 4.0 Next Generation Graphics Cards with 8(6+2) Pin PCI-E Connector
Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP
Maximum safety for your key system components
| Model Name | AC Input | DC output | |||||
| +3.3V | +5V | +12V | -12V | +5Vsb | Total | ||
| GEX1050 | AC100-240V 47-63Hz 13-6A |
20A | 20A | 87.5A | 0.3A | 3A | 1050W |
| 120W | 1050W | 3.6W | 15W | ||||
| Connector | Main | CPU | Peripherals | S-ATA | PCI-E | |
| Pin | 24(20+4) Pins | 8(4+4) Pins | 8 Pins | 4 Pins | 5 Pins | 8(6+2) Pins |
| GEX1050 | 1 | 1 | 1 | 4 | 12 | 8 |
