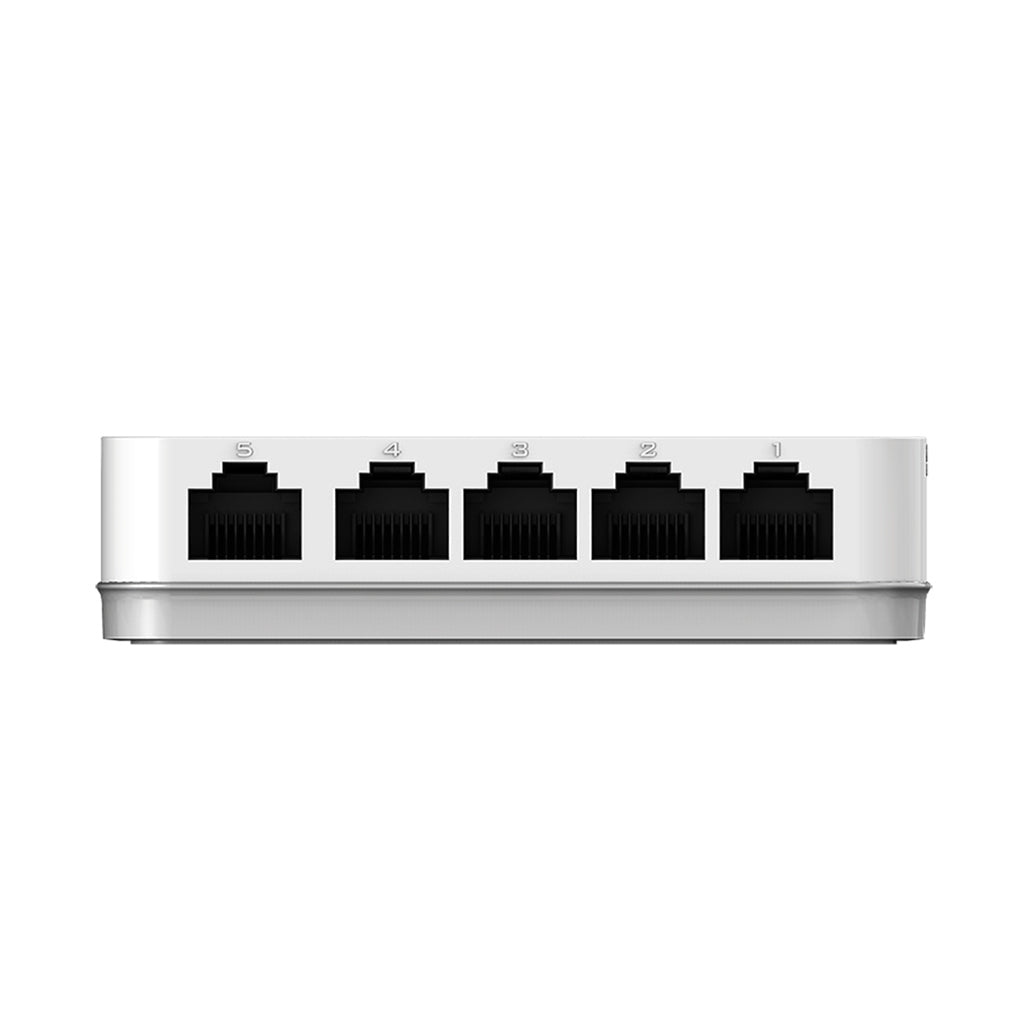

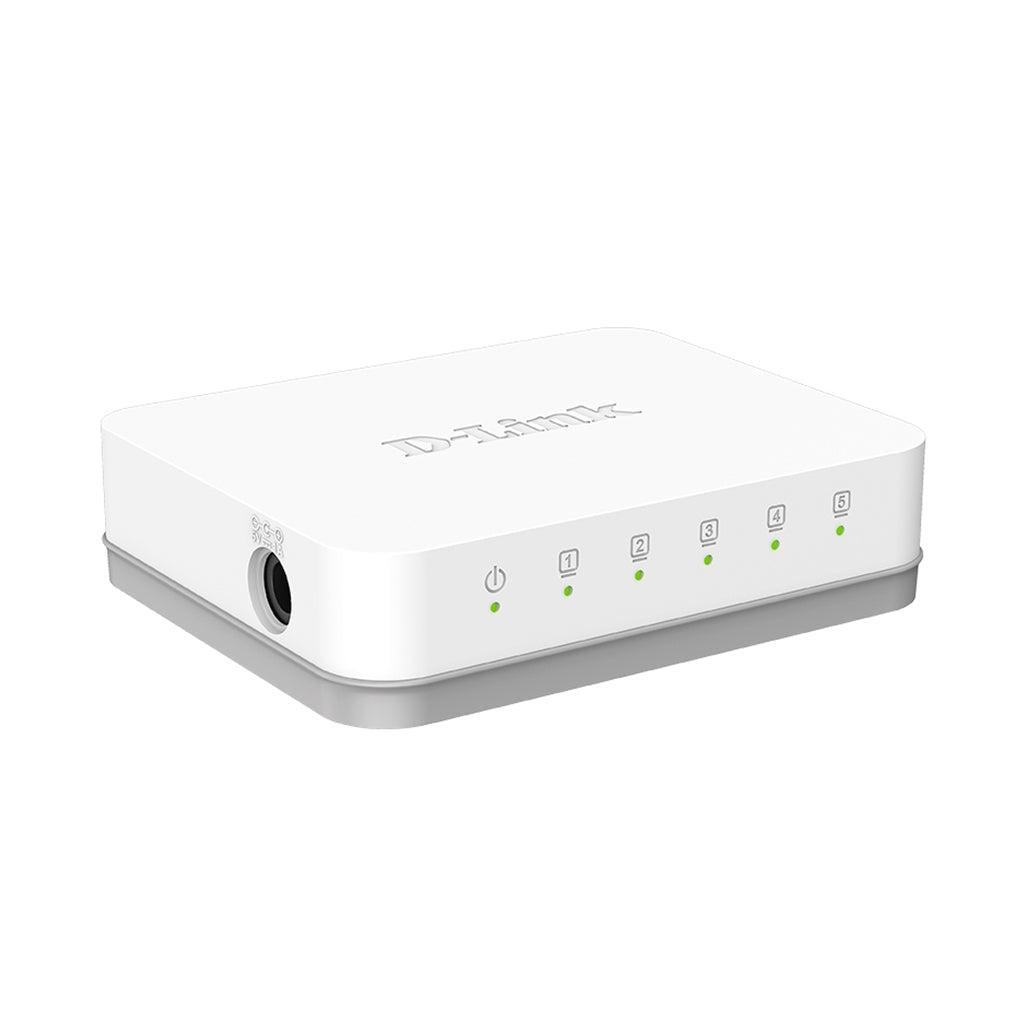

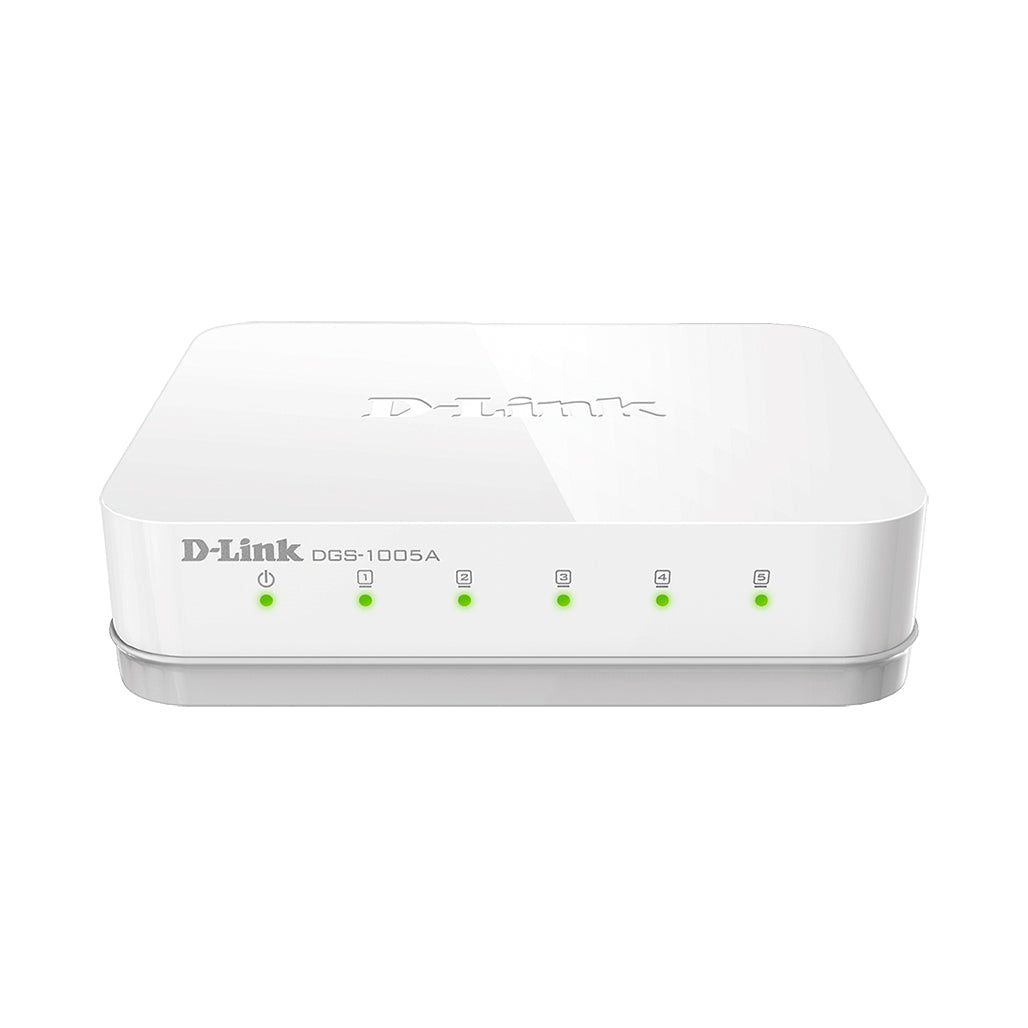

The D-Link DGS-1005A is a high-performance 5-port Gigabit unmanaged desktop switch designed to enhance network speed and efficiency in home or small office environments. This switch offers gigabit Ethernet ports for ultra-fast wired connections, ensuring reliable and swift data transfers across up to five connected devices. Equipped with Quality of Service (QoS) capabilities, the DGS-1005A efficiently manages and prioritizes network traffic, guaranteeing smooth performance even during peak usage times.
Engineered with energy conservation in mind, the switch automatically reduces power consumption by deactivating unused ports and adjusting power based on cable length. This feature not only minimizes energy costs but also contributes to environmental sustainability. Adhering to Energy Star Level V standards and RoHS regulations, the DGS-1005A supports eco-friendly practices through its energy-efficient power adapter and recyclable packaging. This switch is a dependable choice for anyone seeking to build a fast and efficient network while minimizing their environmental impact.
Key Features:
-
High-Speed Connectivity: The DGS-1005A delivers gigabit Ethernet speeds across five ports, enabling fast and reliable wired connections for devices such as PCs, servers, and network storage. With a switching capacity of 10 Gbps, this switch supports high-performance networking needs, ensuring seamless data transfers and efficient network management.
-
Automatic Power Saving: This switch incorporates advanced energy-saving features, such as automatic port shutdown when no link is detected and adjustments based on cable length. These features help conserve power by reducing energy usage for inactive ports and optimizing power according to the length of the connected cables, leading to substantial energy savings.
-
Environmental Compliance: Designed with environmental considerations, the DGS-1005A meets Energy Star Level V and complies with the CEC and MEPS regulations for energy-efficient power adapters. It adheres to RoHS standards to minimize hazardous material use and employs recyclable packaging to reduce environmental impact, aligning with the WEEE directive.
-
Durable and Reliable Operation: The switch is built with a fanless design to operate silently while providing robust protection against surges and lightning with 1kV protection for both AC power and Ethernet ports. Its MTBF (Mean Time Between Failures) of 1,152,221 hours indicates high reliability and long-lasting performance.
Specifications:
- Air Discharge: 8kV
- Auto MDI/MDIX: Yes
- Comply with RoHS 6: Yes
- Control: 802.3x Flow
- Dimensions: 91 x 73 x 22 mm
- Energy Efficiency Ethernet (EEE): Yes
- FAN: Fanless
- Flash Memory Size: 64 KBytes
- Head-of-line (HOL) Blocking Prevention: Yes
- Interfaces: 5 x 1000Base-T
- Jumbo Frame: 9,720 Bytes
- MAC Address Table Size: 4,000
- Max. Packet Forwarding Rate: 7.44 Mpps
- Maximum Heat Dissipation: 13.299 BTU/h
- Maximum Power Consumption: 3.90 W
- MTBF: 1,152,221 hours
- Operating Altitude: 2000 m
- Operating Humidity: 0% ~ 95% RH
- Operating Temperature: 0 ~ 40 °C
- Packet Buffer Size: 128 KBytes
- Power Input AC: 100 ~ 240 V
- Power Saving By Cable Length: Yes
- Power Saving By Link Status: Yes
- Standby Power Consumption: 0.6 W
- Storage Humidity: 0% ~ 95% RH
- Storage Temperature: -10 ~ 70 °C
- Store & Forwarding Forwarding: Yes
- Surge/Lightning Protection AC Power Inet: 1kV
- All Ethernet Ports: 1kV
- Switching Capacity: 10 Gbps
- Weight: 800 g
The D-Link DGS-1005A offers a blend of high-speed performance, energy efficiency, and environmental responsibility, making it an excellent choice for enhancing network connectivity while supporting sustainable practices. Its user-friendly plug-and-play installation ensures hassle-free setup, making it an ideal addition to any home or small office network.
