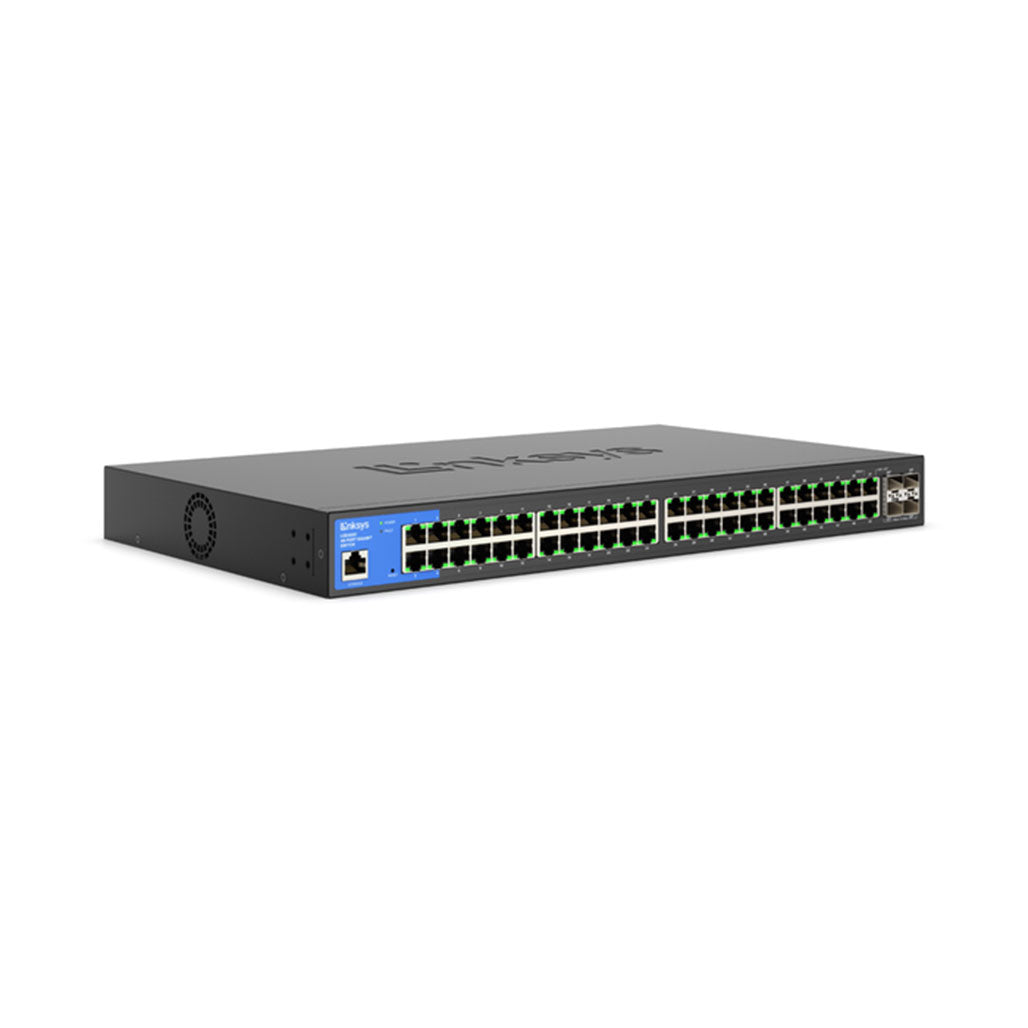

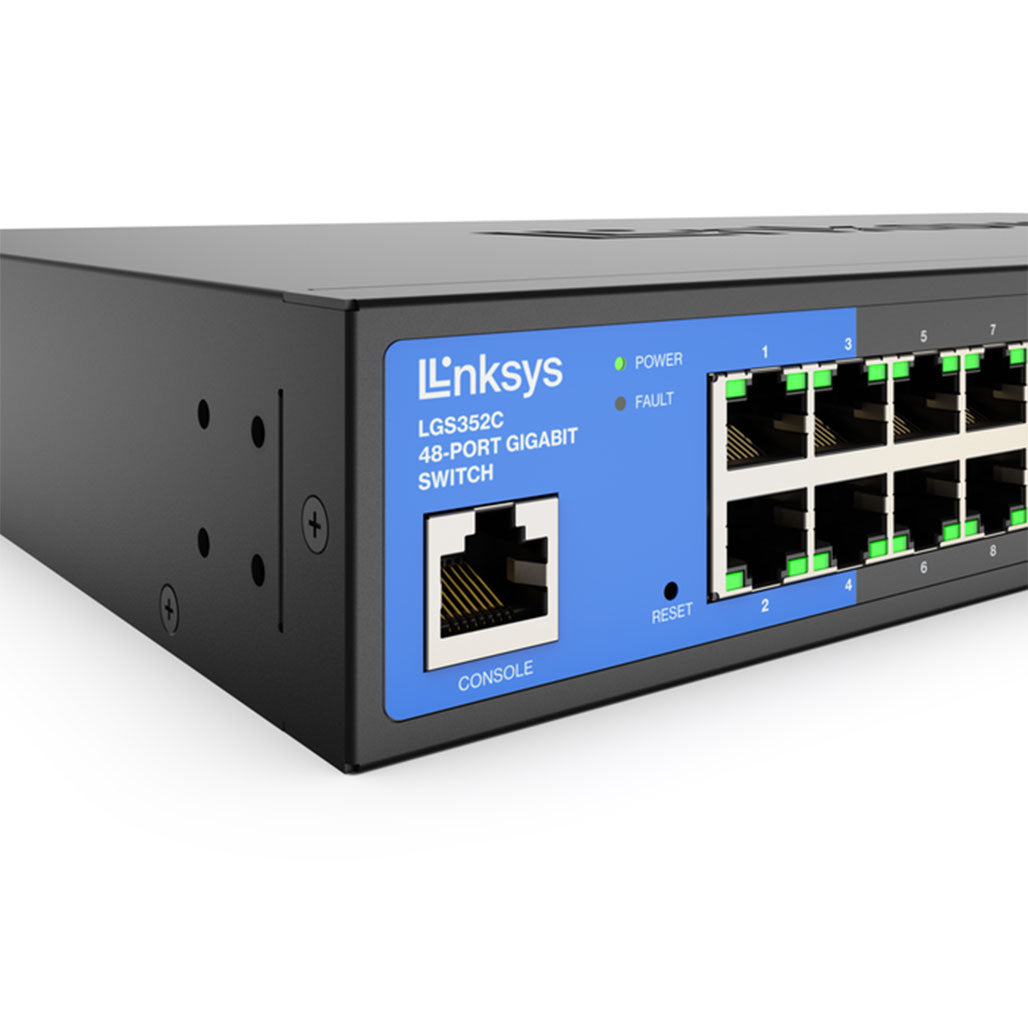

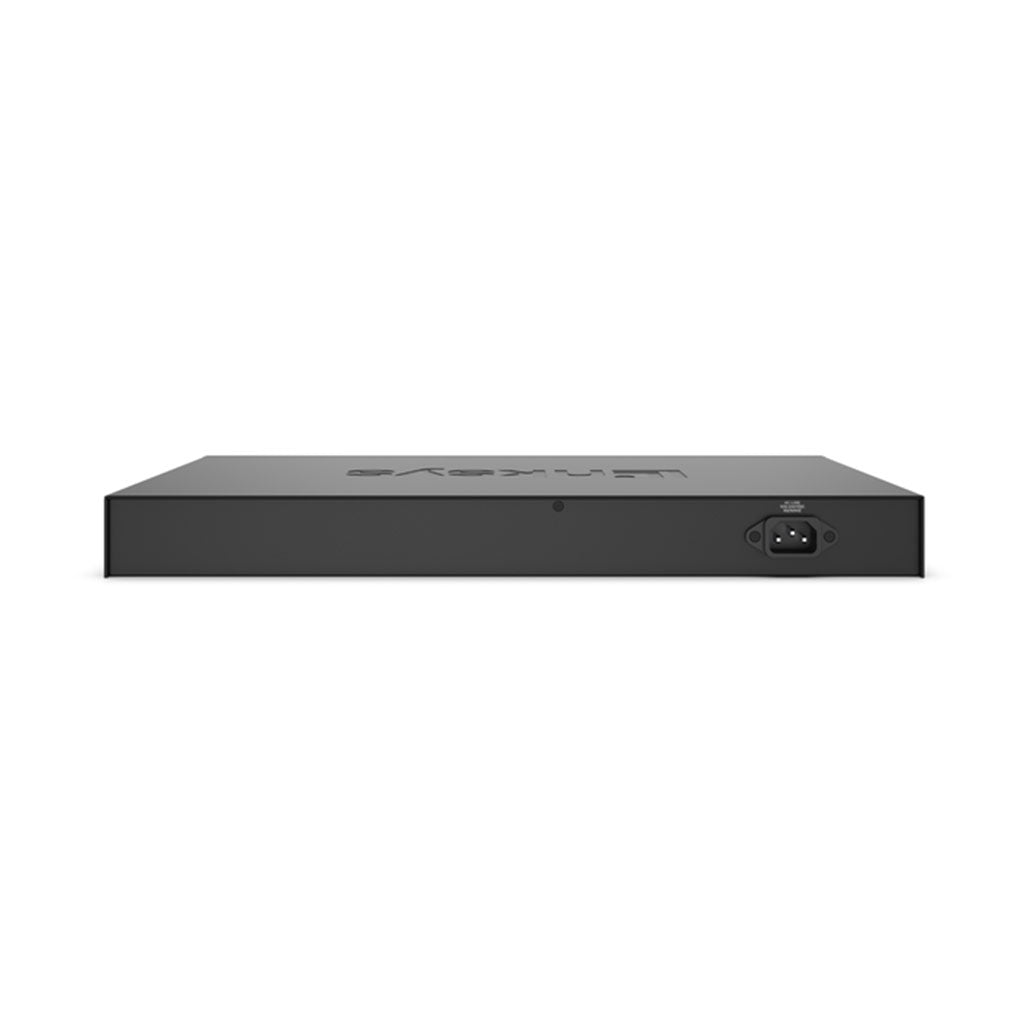

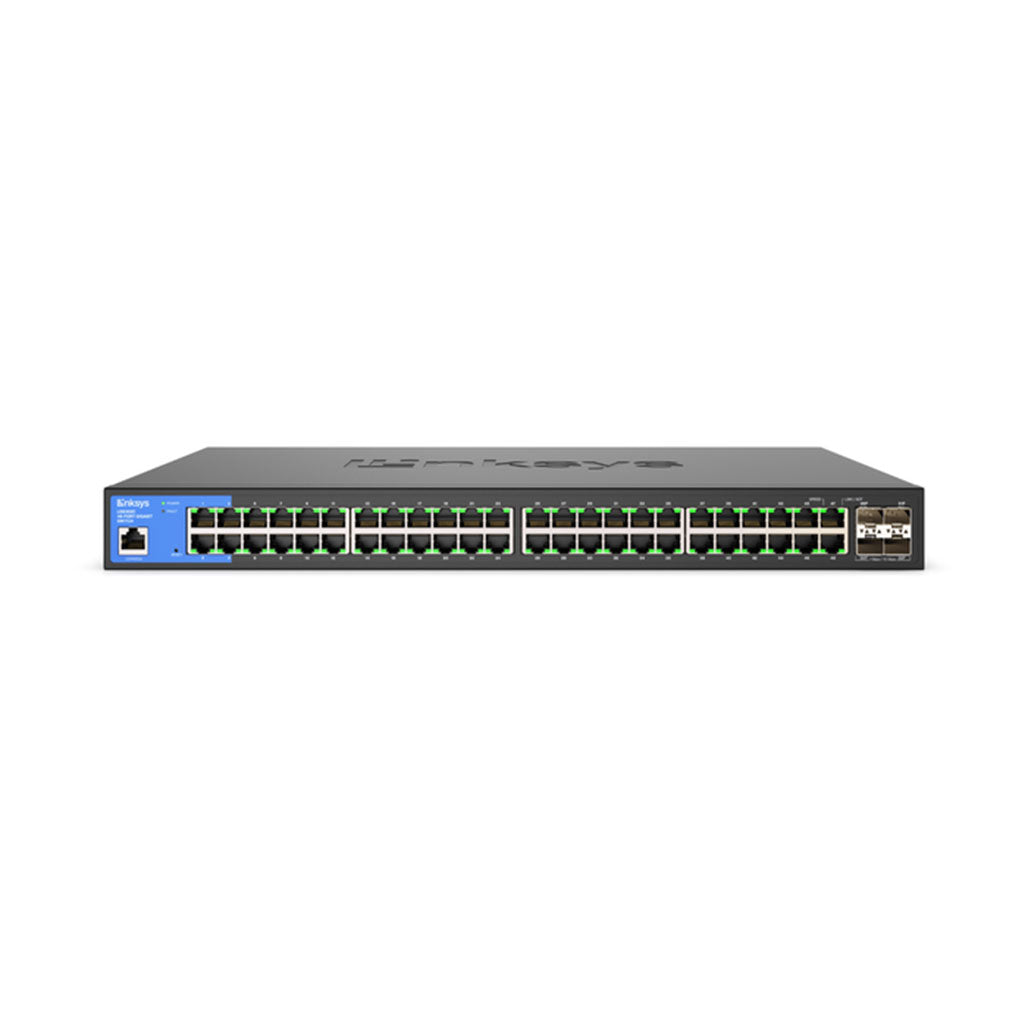

Gigabit Ethernet Switch is designed for business-class security and speed with 48 Gigabit Ethernet ports and 4 10G SFP+ uplinks
Overview:
Designed for business-class management, security, speed, and quality of service with 48 Gigabit Ethernet ports and 4 10G SFP+ uplinks.
- 10G SFP+ Uplink Ports (4)
- Advanced Network Security and QoS
- TAA Compliant
Specifications:
Switch Type: Managed
Switch Ports: 48
Power Consumption: 43.87W
Jumbo Frame (FE, GE): 12Kbytes
LEDs: Power, Fault
VLAN: Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Memory: 512MB
Forwarding Rate: 130.95 Mpps
Dimensions (LxWxH):
- (17.32 x 10.24 x 1.73 in)
- 3468 g (7.65 lb)
- 440 x 260 x 44 mm
Weight: 3468 g (7.65 lb)
Number of VLANs Supported: 256 active VLANs (4,096 range)
Operating Humidity: 10 to 90% RH
Operating Temperature: 0 to 50°C (32 to 122°F)
Ports:
- 4 10G SFP+
- 48 Gigabit Ethernet
Security Features:
- 802.1x Radius authentication
- DHCP snooping
- DOS Attack Prevention
- IP-MAC binding
- Port Isolation (Protected Ports)
- Port Security (256 max entries per port)
Rate Limiting: Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
Power Input:
- 1.5A
- 100–240V
- 50–60 Hz
Spanning Tree: IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)
Quality Of Service:
- 8 hardware queues
- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
- Strict, Weighted Round Robin (WRR)
Storage Temperature: -20 to 70°C (-4 to 158°F)
RMON: Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis
MAC Address Table Size: 32K
Switching Capacity: 176 Gbps
HOL Blocking Prevention: Head of line (HOL) blocking prevention
Auto Voice VLAN: Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Other Management: Console Port, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
Link Aggregation: IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
Access Control: Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
Storm Control: Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
Management Interface:
- HTTP
- HTTPS
Routing: Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
SNMP:
- Version 1
- Version 2c
- Version 3
Fans: 1, 8200 rpm (at full speed)
Storage Humidity: 5 to 95% RH (non-condensing)
IGMP Snooping: IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
Power Saving: EEE
Port Mirroring: Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Firmware Upgrade: Web Browser (HTTP/HTTPS)
