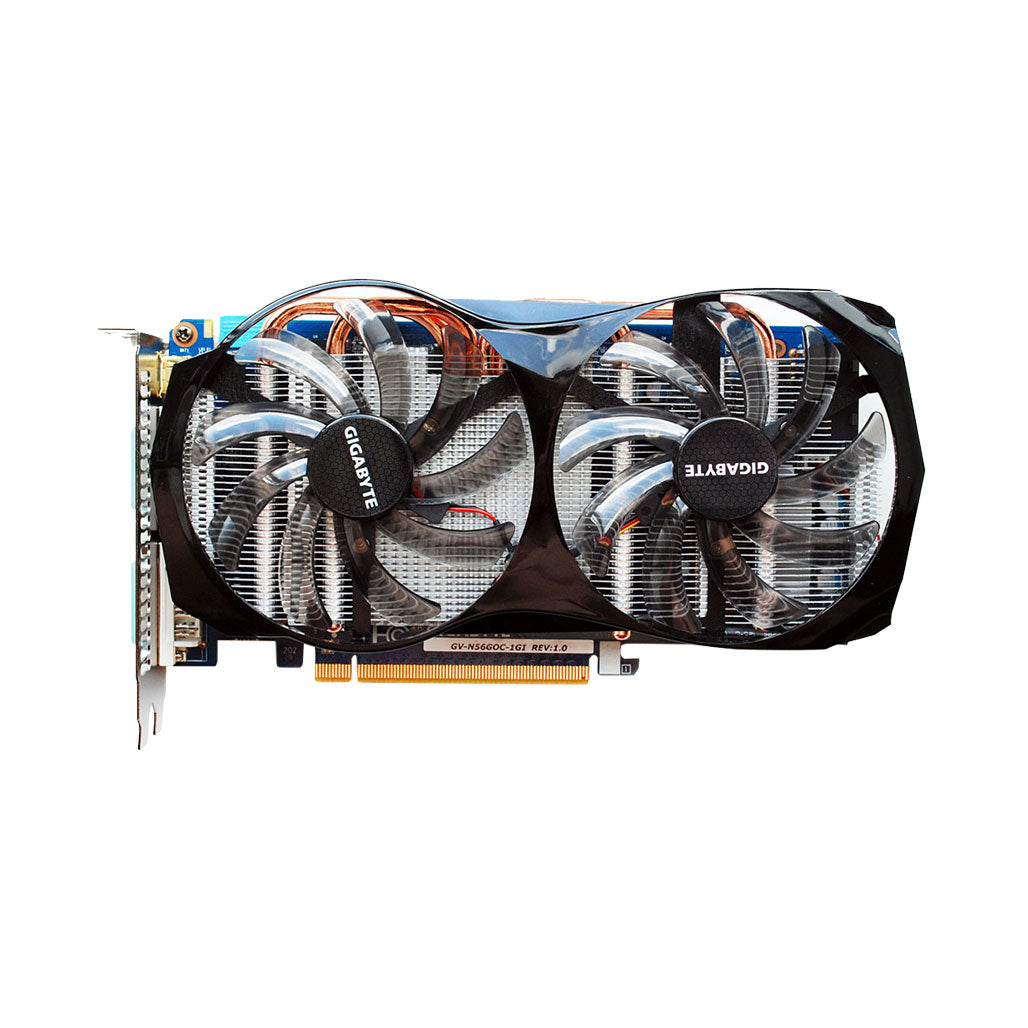

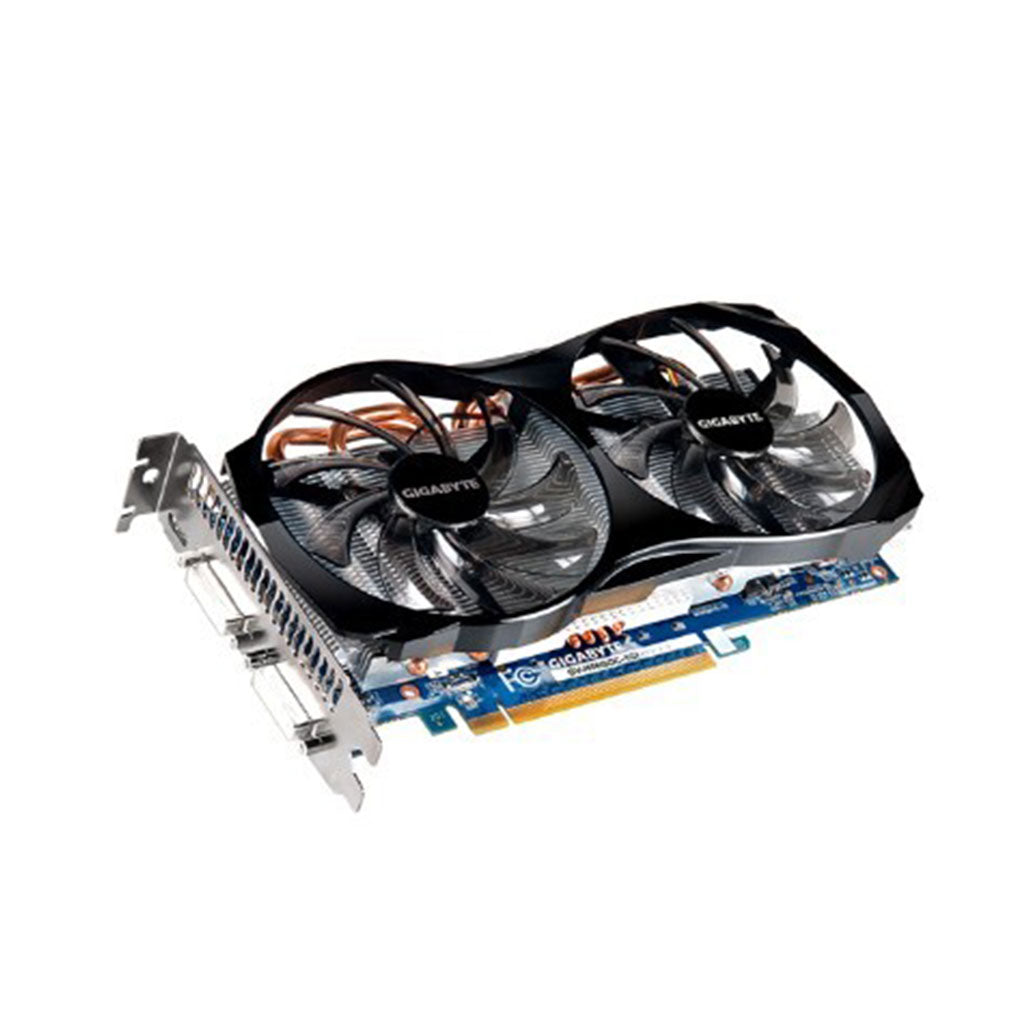

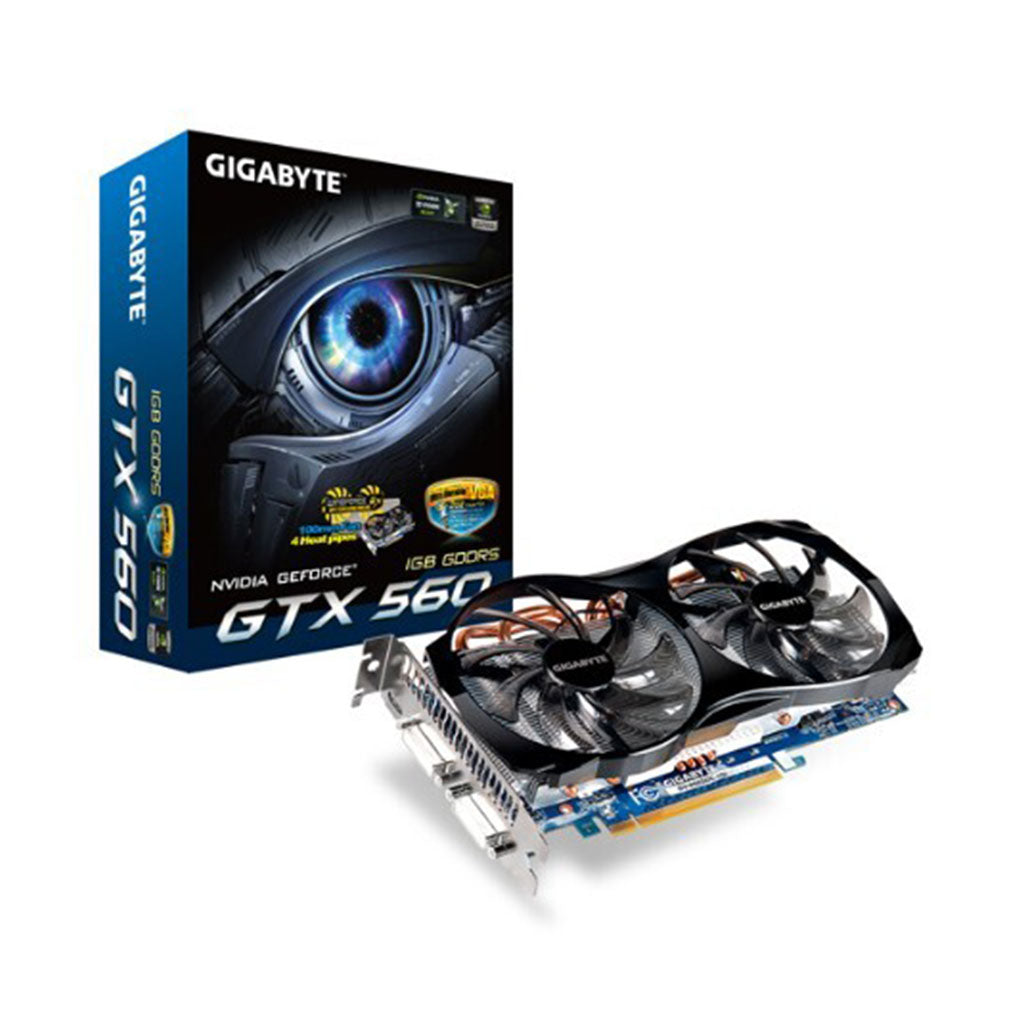

Gigabyte GeForce GTX 560 2.0 Graphics Card - 1GB GDDR5, 830 MHz Core Clock, Dual Link DVI-I

The Gigabyte GeForce GTX 560 2.0 graphics card delivers solid performance for gamers and multimedia enthusiasts seeking reliable, high-quality visuals. Equipped with the GeForce GTX 560 GPU, this card features a core clock speed of 830 MHz, providing efficient processing power for a variety of applications. The 1 GB of GDDR5 memory, with a memory clock speed of 4008 MHz, ensures smooth performance and rapid data transfer. The 256-bit memory bus enhances bandwidth, enabling efficient handling of demanding tasks.

The GTX 560 2.0 supports a maximum digital resolution of 2560 x 1600, allowing for high-definition displays and detailed visuals. It features dual link DVI-I connectors, mini HDMI, and a D-sub option (via adapter), offering versatile connectivity for various display setups. With a card size of 43 mm x 238 mm x 130 mm and an ATX PCB form factor, it fits well within standard PC cases. The card operates using PCI-E 2.0 and requires a minimum 500W power supply with two 6-pin external power connectors. The GTX 560 2.0 also supports DirectX 11.1 and OpenGL 4.2, ensuring compatibility with modern games and applications.

Key Features:

• Graphics Processing: GeForce GTX 560 GPU provides a reliable performance for various gaming and multimedia tasks.
• Core Clock: Operates at 830 MHz for efficient graphics processing.
• Memory: 1 GB of GDDR5 memory with a 4008 MHz memory clock for smooth data handling.
• Memory Bus: 256-bit bus width enhances memory bandwidth and performance.
• Resolution Support: Maximum digital resolution of 2560 x 1600 for high-definition displays.
• Connectivity: Dual link DVI-I x2, mini HDMI x1, D-sub1 (via adapter), and HDMI1 (via adapter) for versatile display options.
• Card Bus: PCI-E 2.0 interface for compatibility with a wide range of motherboards.
• Size and Form Factor: Card dimensions of H43 mm x L238 mm x W130 mm, fitting standard ATX cases.
• Power Requirements: Minimum 500W power supply with two 6-pin external power connectors required.
• Resolution Support: Analog max resolution of 2048 x 1536.
• Shader Clock: 1660 MHz for enhanced graphics rendering.
• DirectX and OpenGL Support: Compatible with DirectX 11.1 and OpenGL 4.2 for modern gaming and applications.

Specifications:

• Graphics Processing: GeForce GTX 560
• I/O: Dual link DVI-I x2, mini HDMI x1, D-sub1 (by adapter), HDMI1 (by adapter)
• Core Clock: 830 MHz
• Process Technology: 40 nm
• Memory Clock: 4008 MHz
• Memory Size: 1 GB
• Memory Type: GDDR5
• Memory Bus: 256 bit
• Card Bus: PCI-E 2.0
• Digital Max Resolution: 2560 x 1600
• Multi-view: 2
• Card Size: H43 mm x L238 mm x W130 mm
• PCB Form: ATX
• DirectX: 11.1
• OpenGL: 4.2
• Recommended PSU: Minimum 500W or greater system power supply with two 6-pin external power connectors
• Analog Max Resolution: 2048 x 1536
• Shader Clock: 1660 MHz
• Tools: N/A

Conclusion: The Gigabyte GeForce GTX 560 2.0 graphics card is a robust option for users seeking dependable performance and high-definition capabilities. Its combination of a high core clock, substantial memory bandwidth, and versatile connectivity options makes it suitable for a range of applications. The card’s compatibility with DirectX 11.1 and OpenGL 4.2 ensures that it meets the demands of modern gaming and multimedia tasks, making it a valuable addition to any gaming setup or workstation.
