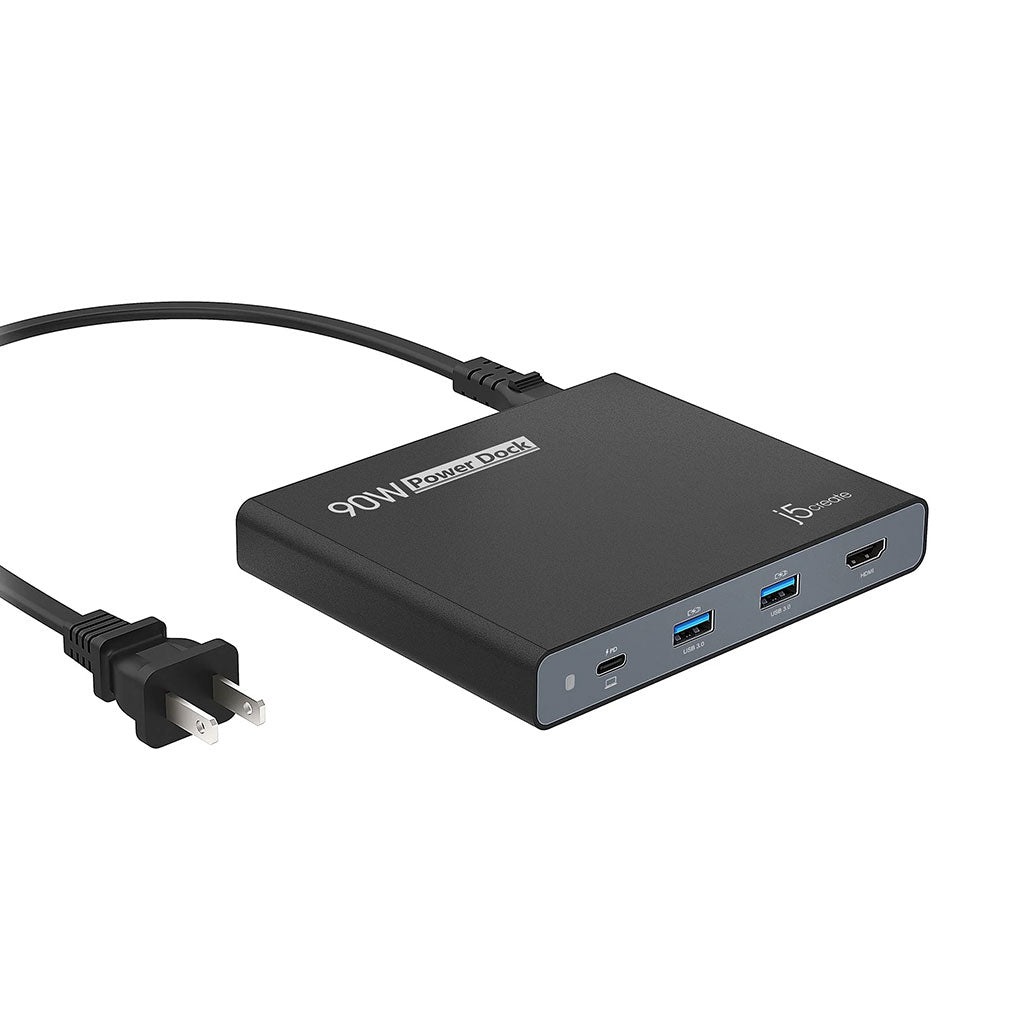

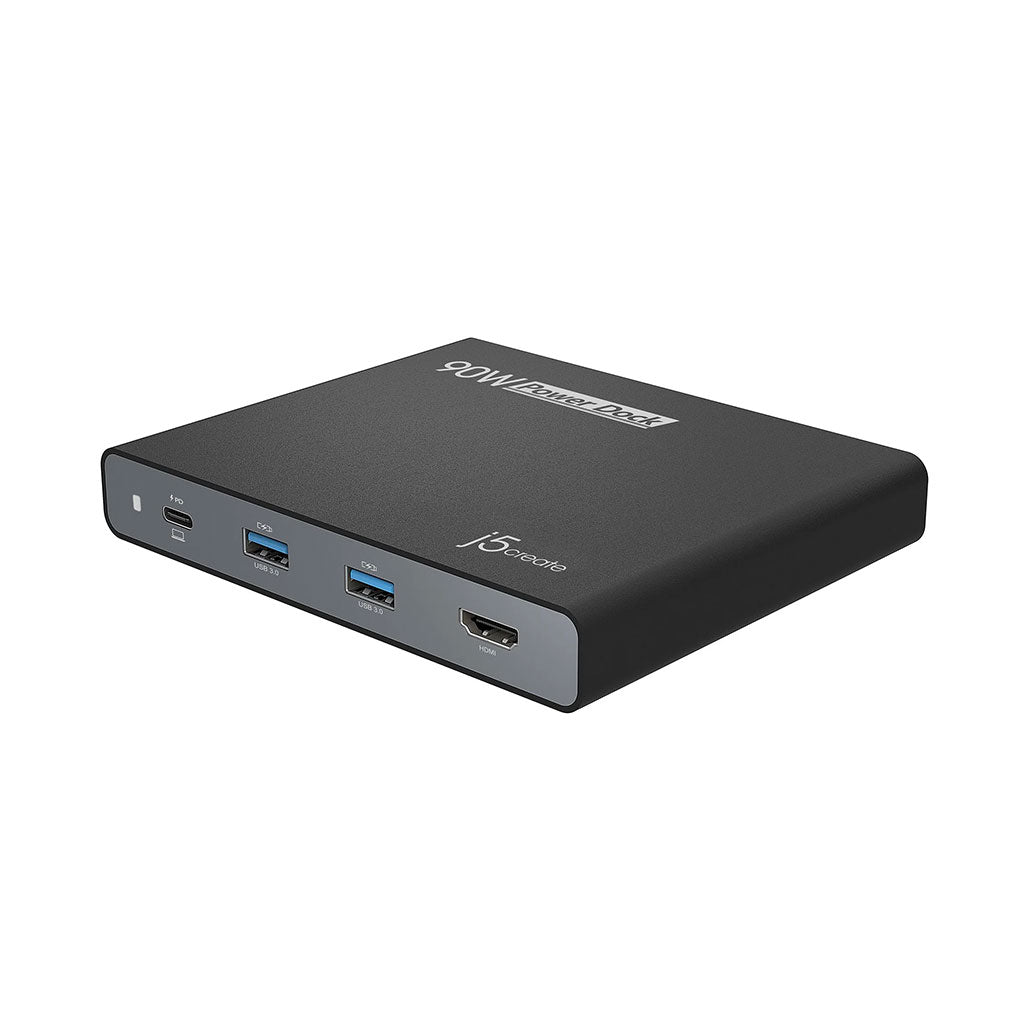

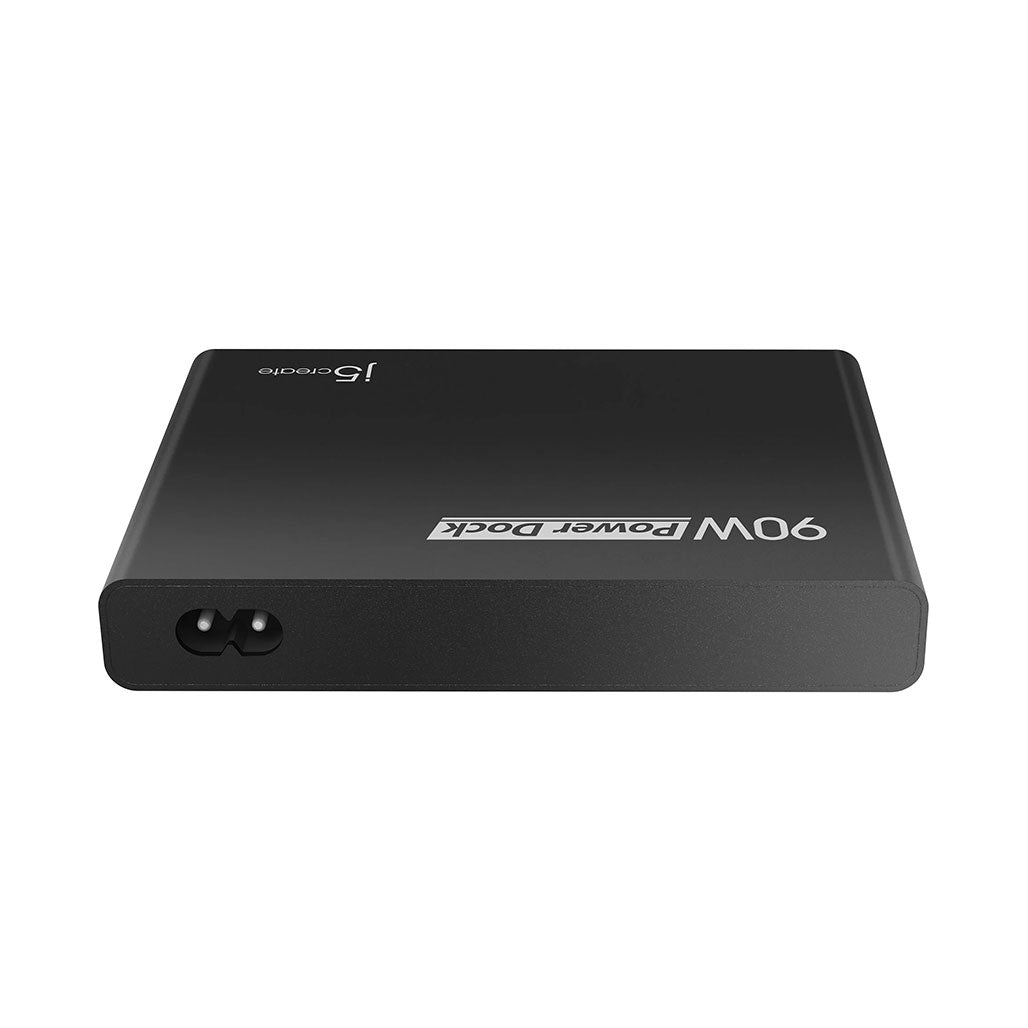

J5Create 90W Built-in USB-C™ Travel Dock - JCDP392 | Portable 4K HDMI Docking Station with Power Delivery

The J5Create 90W Built-in USB-C™ Travel Dock - JCDP392 is the ultimate solution for mobile professionals who need versatility and power in a compact package. This docking station combines the functionality of four separate adapters into one portable device, allowing you to connect a 4K HDMI™ display, two USB™ 3.0 peripherals, and charge your laptop with up to 65W of power delivery. The fast-charging capability also ensures that your USB-C™ and USB™ Type-A devices are powered up efficiently, making it ideal for on-the-go productivity.

Compatible with Windows®, macOS®, and Android™ systems, the JCDP392 features a sleek, durable aluminum design. Its detachable power cord and USB-C™ cable reduce cable clutter, ensuring a streamlined setup whether you're at your desk or traveling. With support for high-resolution displays and fast data transfer rates, this travel dock provides the connectivity and power you need in a convenient and portable format.

Key Features:

• Versatile Connectivity: Connect a 4K HDMI™ display, two USB™ 3.0 peripherals, and charge your device all from one compact dock.
• 4K HDMI™ Output: Supports a maximum display resolution of 3840 x 2160 at 30 Hz, ensuring crisp and clear video quality.
• High Power Delivery: Provides up to 65W of power via USB-C™, allowing you to charge your laptop and other devices simultaneously.
• Compact and Portable: The lightweight and sleek design, combined with a detachable power cord, makes it easy to carry and perfect for travel.
• Cross-Platform Compatibility: Works seamlessly with Windows®, macOS®, and Android™ devices, offering wide-ranging versatility.

Specifications:

Hardware

• Audio Supported: Yes
• Host Connector: USB-C™ 3.1 Male

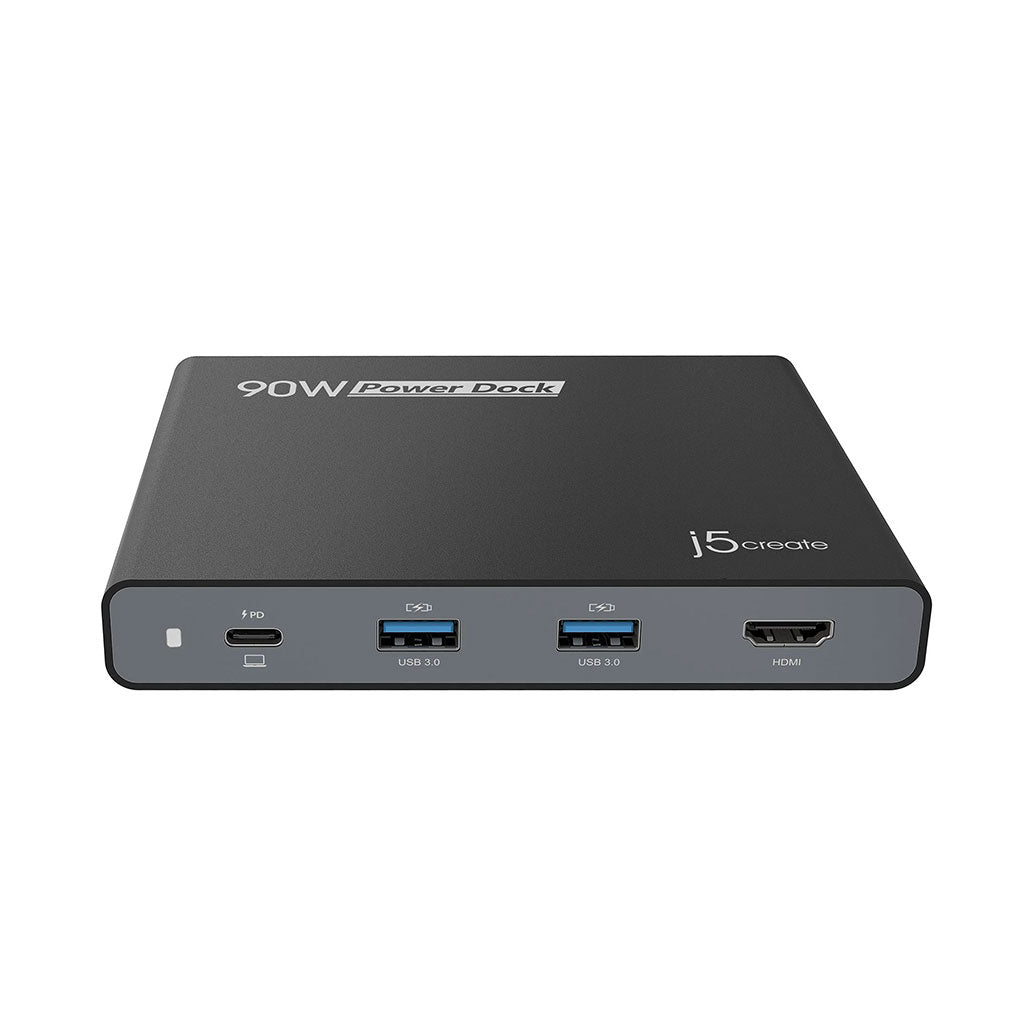

• Ports:
  • 1 x USB-C™ Power Delivery 3.0 (Host)
  • 2 x USB™ 3.0 Type-A
  • 1 x 4K HDMI™
• Power Source: Bus-powered or self-powered
• Video Output: HDMI™ Female

Performance

• Audio Channel: 2.1 via HDMI™
• Displays Supported: 1
• Max Data Transfer Rate: 5 Gbps
• Max Display Refresh Rate: 4K @ 30 Hz, 1080p @ 60 Hz
• Max Display Resolution: 3840 x 2160

Power

• Input Current: Up to 1.5A
• Input Voltage: 100 – 240V, 50-60 Hz
• Output Current:
  • USB-C™: Up to 3.25A
  • USB™ Type-A: 2.4A
• Output Voltage:
  • USB-C™: Up to 20V
  • USB™ Type-A: Up to 5V
• Power Consumption: ≤ 900 mA
• Power Delivery: Up to 65W via USB-C™

Physical Specifications

• Cable Length: 5 in. (127 mm)
• Color: Black
• Enclosure Type: Aluminum
• Operating Humidity: < 85% non-condensing
• Operating Temperature: 32 to 128°F (0 to 53°C)
• Product Depth: 0.77 in. (19.5 mm)
• Product Height: 4.13 in. (105 mm)
• Product Weight: 9.07 oz (257g)
• Product Width: 5.08 in. (129 mm)
• Storage Humidity: < 85% non-condensing
• Storage Temperature: 14 to 149°F (-10 to 65°C)

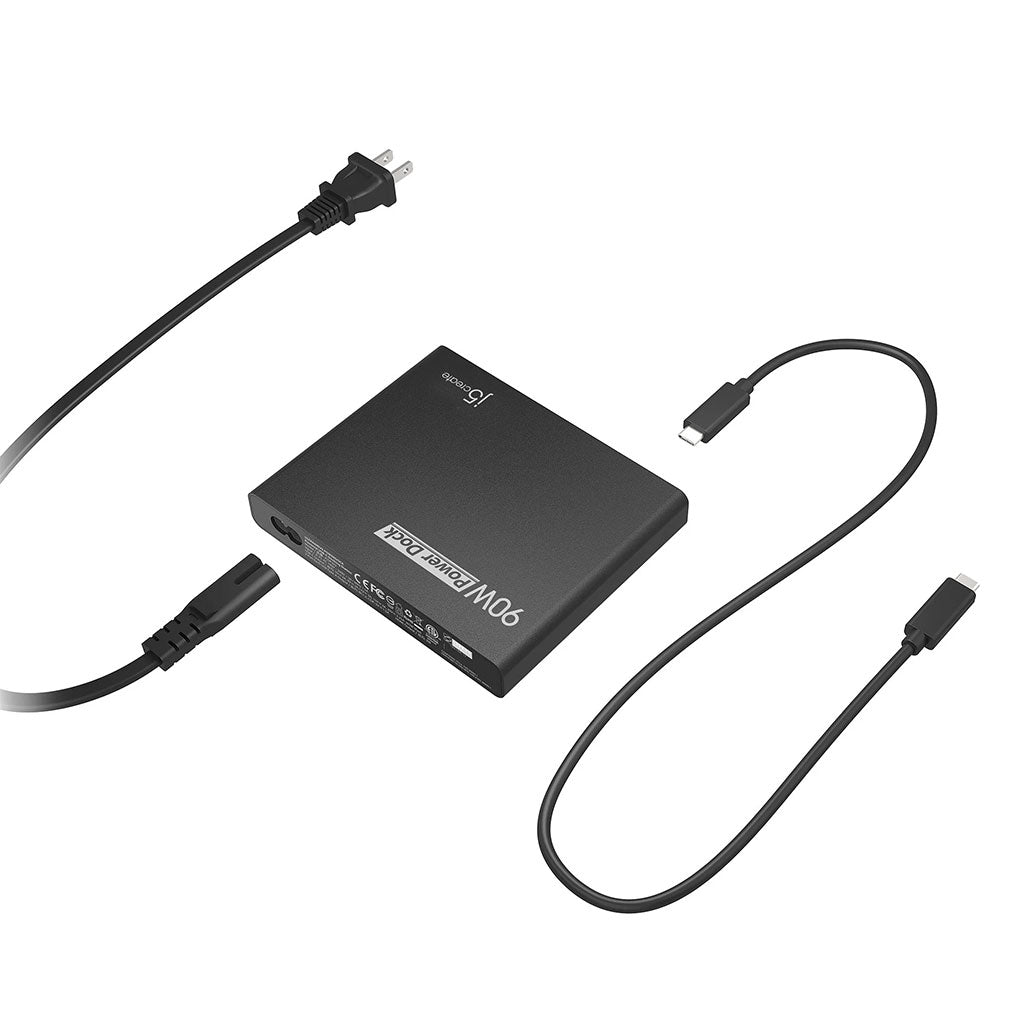

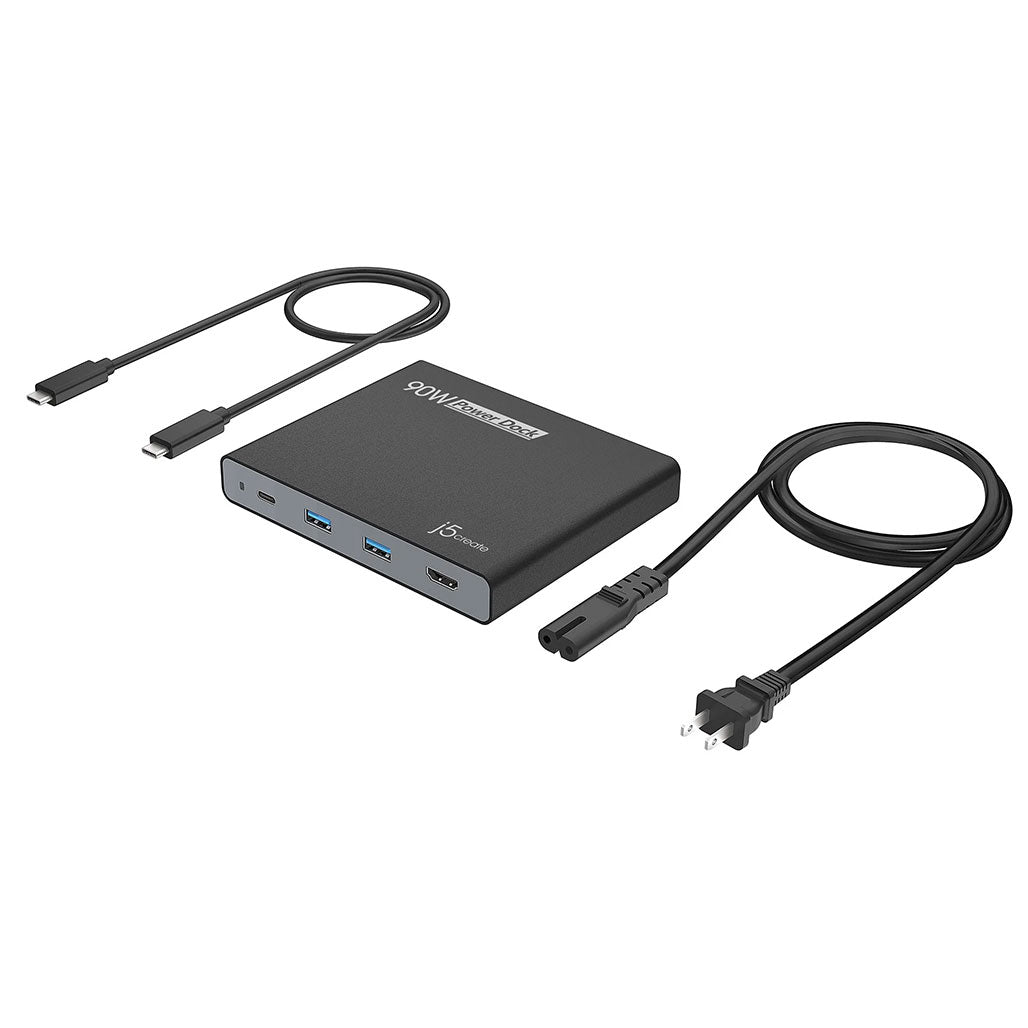

Package Contents:

• 1 x JCDP392 90W Built-in USB-C™ Travel Dock
• 1 x USB-C™ to USB-C™ 3.1 Cable (1.97 ft/60 cm)
• 1 x Detachable power cord (length and plug type vary by region)

Conclusion: The J5Create 90W Built-in USB-C™ Travel Dock offers a powerful and portable solution for professionals who require reliable connectivity and power delivery on the go. Its compact design, coupled with its robust functionality, ensures that your work setup remains efficient and streamlined, no matter where you are.
