J5Create Dual HDMI™ Video Capture with Power Delivery 60W – JVA06 | 1080p Video Capture and Streaming Device

The J5Create Dual HDMI™ Video Capture - JVA06 offers a robust solution for content creators and live streamers needing to capture high-quality video from two HDMI™ sources simultaneously. Designed for versatility and ease of use, this device supports uncompressed 1080p video and features multiple screen mode configurations such as PIP (Picture in Picture) and PBP (Picture by Picture). Users can adjust display settings and transitions effortlessly using the device's built-in controls. Additionally, the Chroma Key function allows for background image replacement, enhancing video production capabilities.

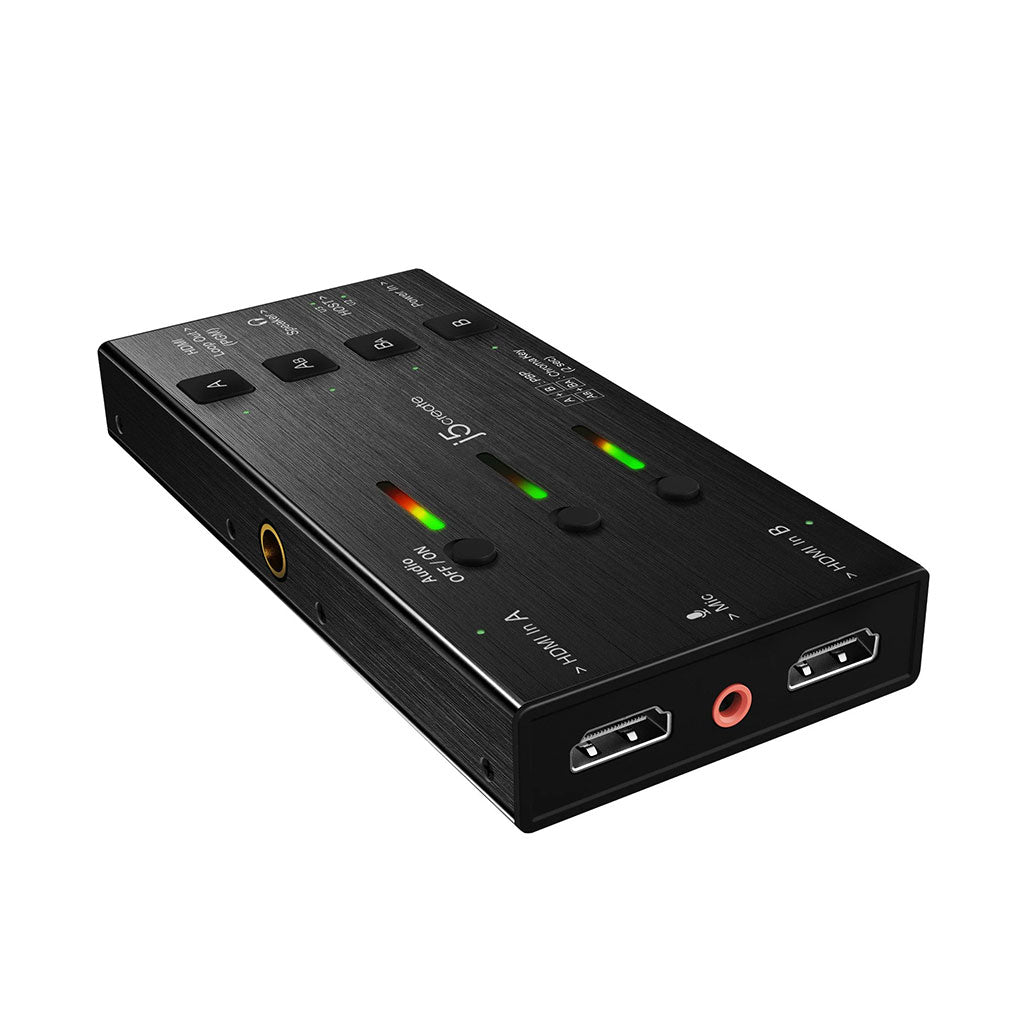

Equipped with flexible audio input options, including HDMI™ and a 3.5 mm analog port, the JVA06 facilitates simultaneous audio recording from HDMI™ sources and a microphone. The integrated audio mixer enables users to switch between four audio settings and manage three different audio inputs (Mic In, HDMI™ A, and HDMI™ B). With a USB-C® host connection supporting Power Delivery 3.0, the JVA06 ensures that connected USB-C devices can be charged while streaming or recording. Its compact aluminum design and included cold shoe adapters make it ideal for both stationary and mobile setups.

Key Features:

• Dual HDMI™ Input: Captures uncompressed 1080p video from two HDMI™ sources simultaneously, ideal for live streaming and recording.

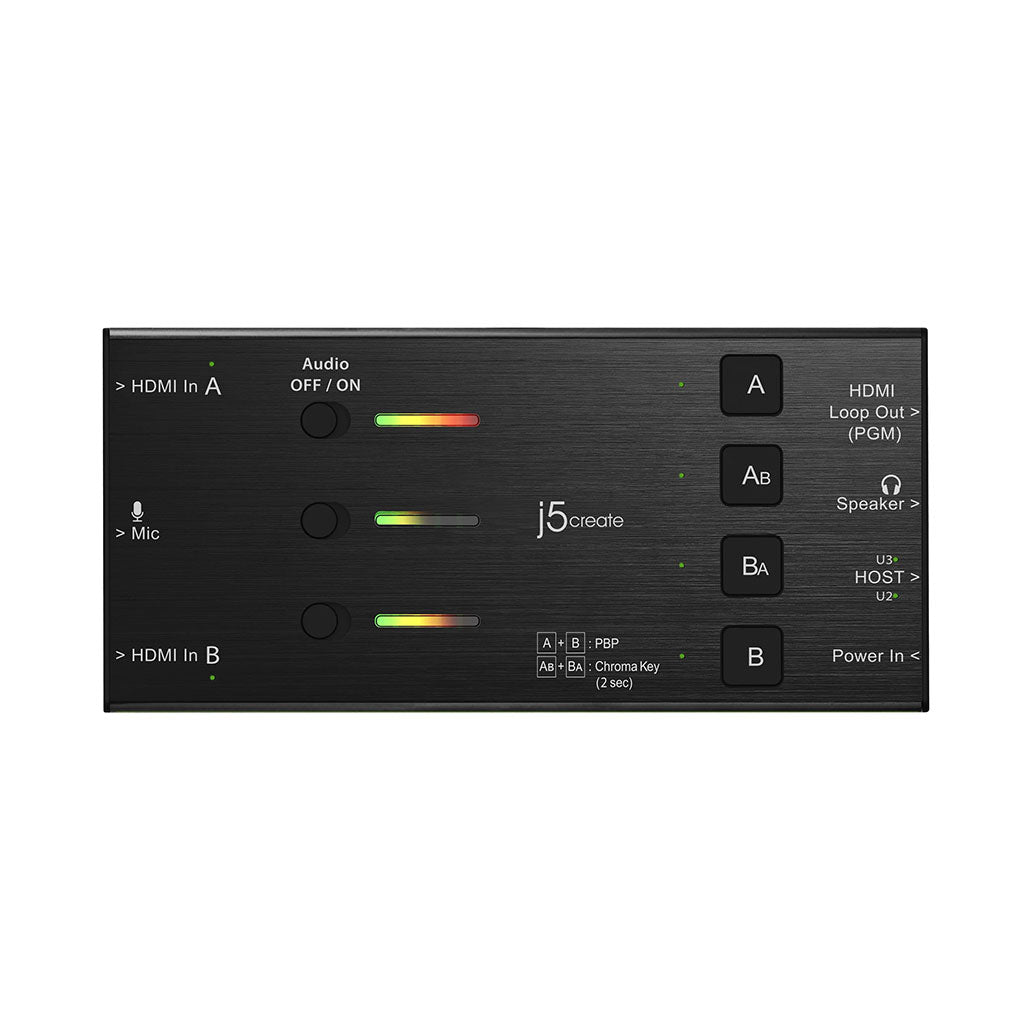

• Multiple Screen Modes: Offers six screen configurations, including PIP and PBP, with real-time display customization.
• Chroma Key Application: Allows background image replacement for enhanced video production.
• Flexible Audio Connections: Supports audio input via HDMI™ or 3.5 mm port, with an integrated audio mixer for managing multiple audio sources.
• Power Delivery 3.0: Charges connected USB-C devices while capturing video, providing up to 60W of power.

Specifications:

Hardware

• Audio Input: HDMI™ or 3.5 mm Mic In
• Audio Output: HDMI™ or 3.5 mm Speaker Out
• Host Connector: 1 - USB-C™ Male

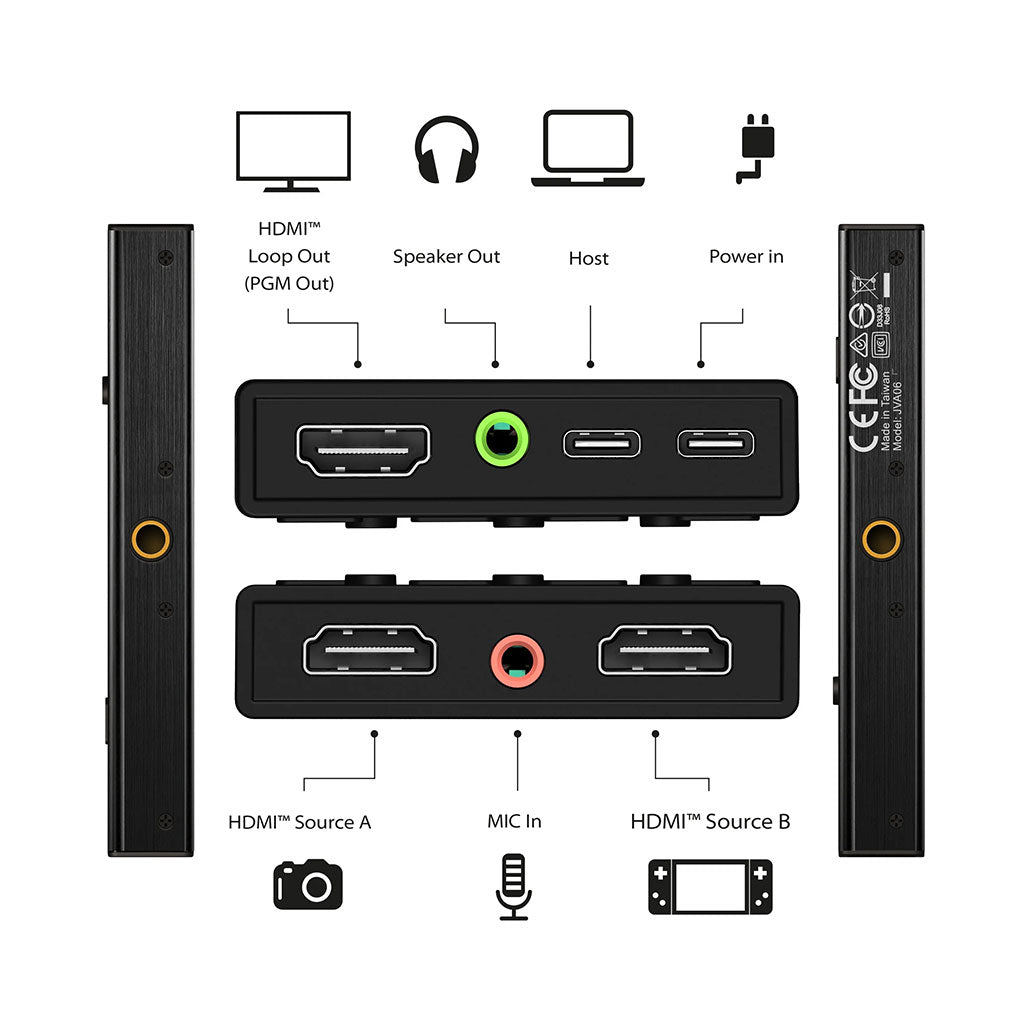

• Ports:
  • 1 - USB-C™ 3.0 (Host)
  • 1 - USB-C™ 3.0 (Power)
  • 2 - HDMI™ Input
  • 1 - HDMI™ Output
  • 1 - Mic In
  • 1 - Speaker Out
  • 2 - Cold Shoes
• Power Source: Bus-powered or self-powered (USB-C™ PD power)
• Video Input: 2 - HDMI™ Female
• Video Output: 1 - HDMI™ Female

Performance

• Audio Channel: 2.1 via HDMI™
• Audio Frequency: 48 kHz
• Compressions:
  • USB™ 2.0: MJPEG
  • USB™ 3.0: YUV 4:2:2
• Encode Format:
  • USB™ 3.0: YUV 4:2:2
  • USB™ 2.0: MJPEG
• Hdr Supported: No
• Headset: 40 mW output power into 16Ω at 3.3V
• THD: -75 dB at 20 mW
• Max Display Refresh Rate: 60 Hz
• Microphone: Stereo microphone supported, 24-bit sigma-delta ADC
• Supported Resolution - Input:
  • Progressive: 1920 x 1080p @ 24/25/30/50/60, 1680 x 1050p @ 60, 1600 x 1200p/900p @ 60, 1440 x 900p @ 60, 1400 x 1050p @ 60, 1366 x 768p @ 60, 1360 x 768p @ 60, 1280 x 1024p/800p/720p @ 60, 1024 x 768p @ 60, 800 x 600p @ 60, 720 x 576p/480p @ 60, 640 x 480p @ 60
  • Interlace: 1920 x 1080i @ 50/60, 720 x 576i @ 50, 720 x 480i @ 60
• Supported Resolution - Output:
  • 1920 x 1080p @ 60
  • 1280 x 720p @ 60
  • 720 x 576p @ 50
  • 720 x 480p @ 60
  • 640 x 480p @ 60

Power

• Input Current: Up to 3A
• Input Voltage: Up to 20V
• Output Current: Up to 3A
• Output Voltage: Up to 20V
• Power Consumption: ≤ 1000 mA
• Power Delivery: Up to 60W via USB-C™

Physical Specifications

• Cable Length:
  • USB-C™ to USB-C™: 23.6 in. (60 cm)
  • USB-C™ to USB™ Type-A: 23.6 in. (60 cm)
• Color: Black
• Enclosure Type: Aluminum
• Operating Humidity: < 85% non-condensing
• Operating Temperature: 32 to 118°F (0 to 45°C)
• Product Depth: 2.5 in. (63.7 mm)
• Product Height: 0.7 in. (18.4 mm)
• Product Weight: 6 oz (172g)
• Product Width: 5.3 in. (134.6 mm)
• Storage Humidity: < 85% non-condensing
• Storage Temperature: 14 to 149°F (-10 to 65°C)

Package Contents:

• 1 x JVA06 Dual HDMI™ Video Capture
• 1 x Quick Installation Guide (QIG)
• 1 x USB-C™ 2.0 to USB-C™ cable
• 1 x USB-C™ 3.0 to USB™ Type-A cable
• 1 x 39.4 in./100 cm HDMI™ cable

Conclusion: The J5Create Dual HDMI™ Video Capture - JVA06 stands out as an effective tool for content creators and live streamers seeking advanced video capture capabilities. With its dual HDMI™ input, customizable screen modes, and integrated audio management, this device enhances video production quality while offering the convenience of Power Delivery 3.0. Its compact design and versatile features make it a valuable addition to any professional setup.
