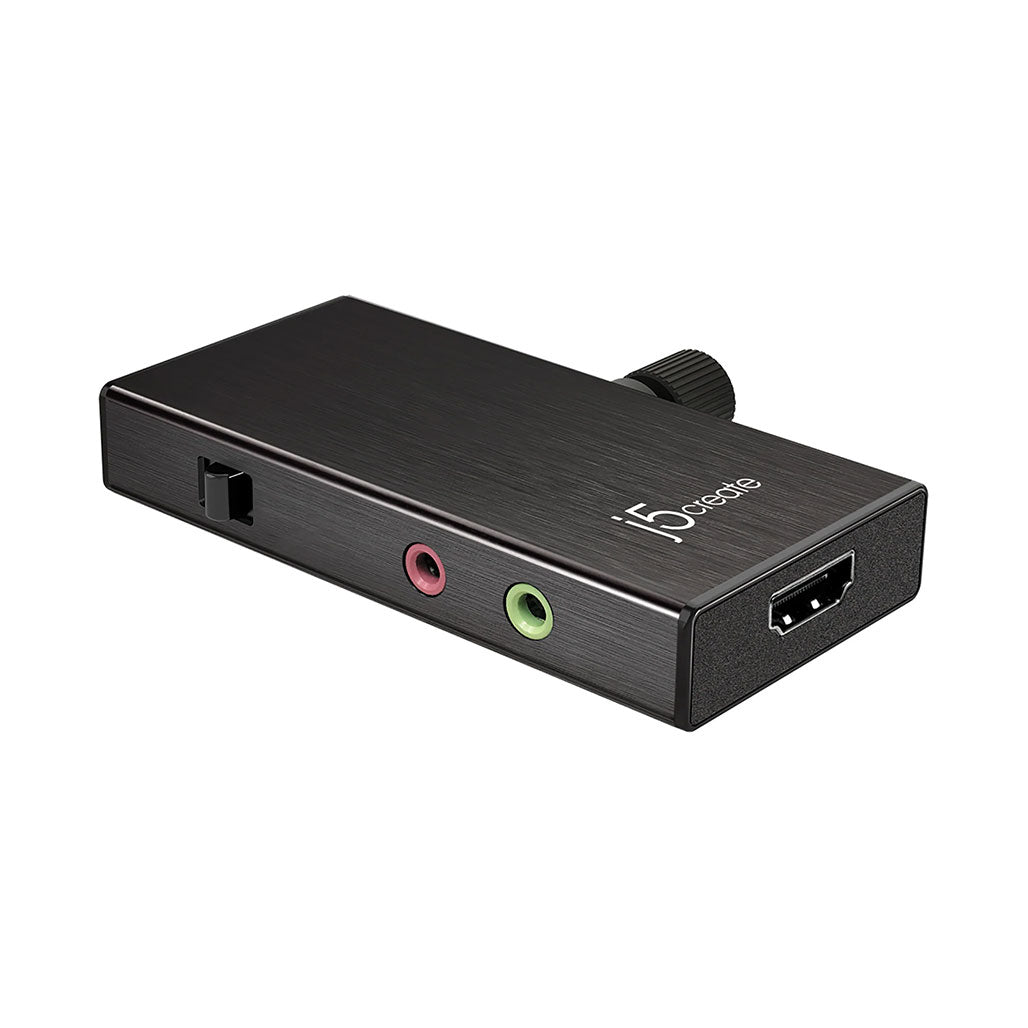

J5Create Live Capture Adapter HDMI to USB-C with Power Delivery - JVA02

The J5Create JVA02 Live Capture Adapter offers an exceptional solution for live streaming and video capture with its high-performance capabilities. This sleek and lightweight HDMI™ capture card is engineered to deliver uncompressed 1080p video at 60 frames per second via USB™ 3.0, ensuring clear and fluid video playback. The adapter supports Power Delivery 3.0, allowing users to stream continuously while charging connected USB™ devices simultaneously.

Designed for versatility and convenience, the JVA02 features a built-in audio mixer that enables users to toggle between microphone input, HDMI™ input, or a combination of both. This flexibility ensures a seamless audio experience. Additionally, the included cold shoe adapter facilitates easy attachment to your camera, enhancing mobility and user-friendliness. The JVA02 is ideal for content creators, gamers, and live streamers seeking a reliable and efficient capture solution.

Key Features:

• Uncompressed 1080p Video Capture: Provides clear and high-quality video at 60 fps via USB™ 3.0.
• Power Delivery 3.0 Support: Enables simultaneous live streaming and charging of connected USB™ devices.
• Built-in Audio Mixer: Allows toggling between Mic In, HDMI™ In, or a combination of both for versatile audio management.

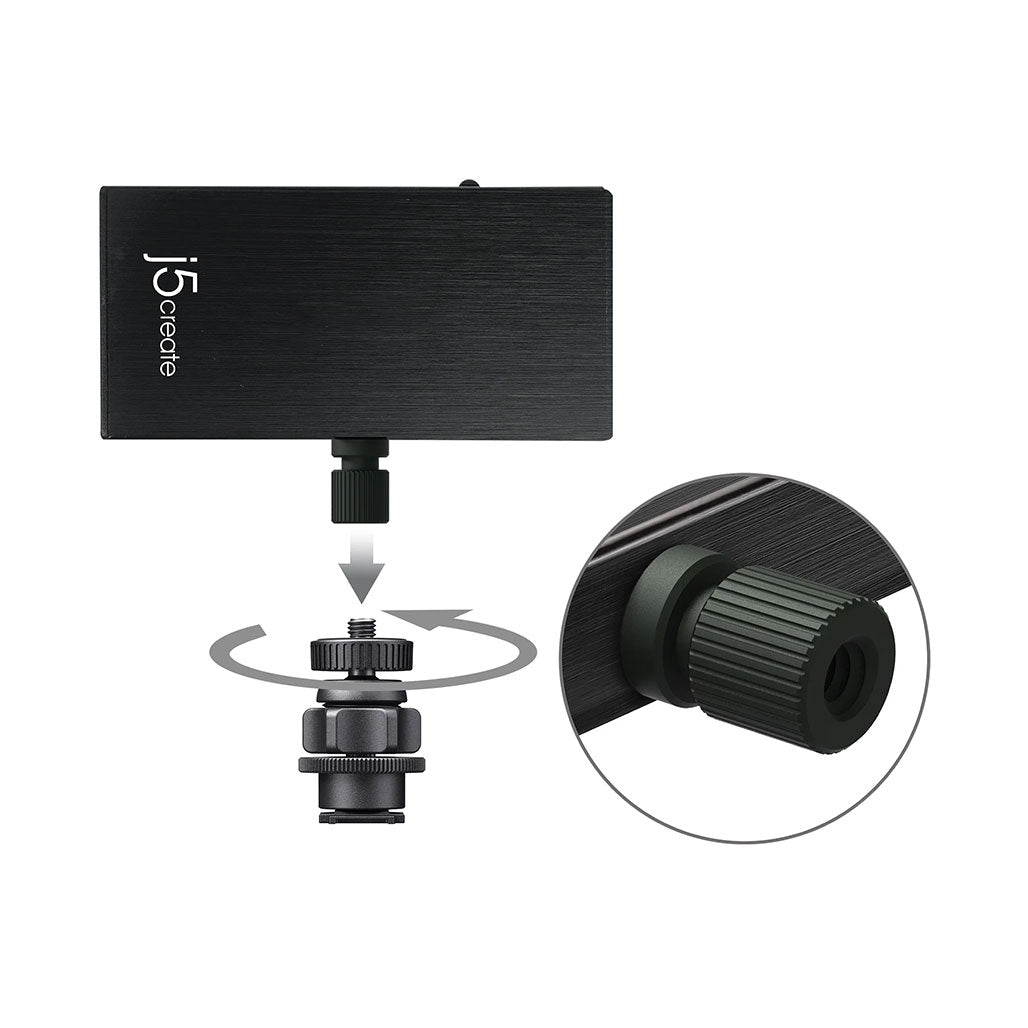

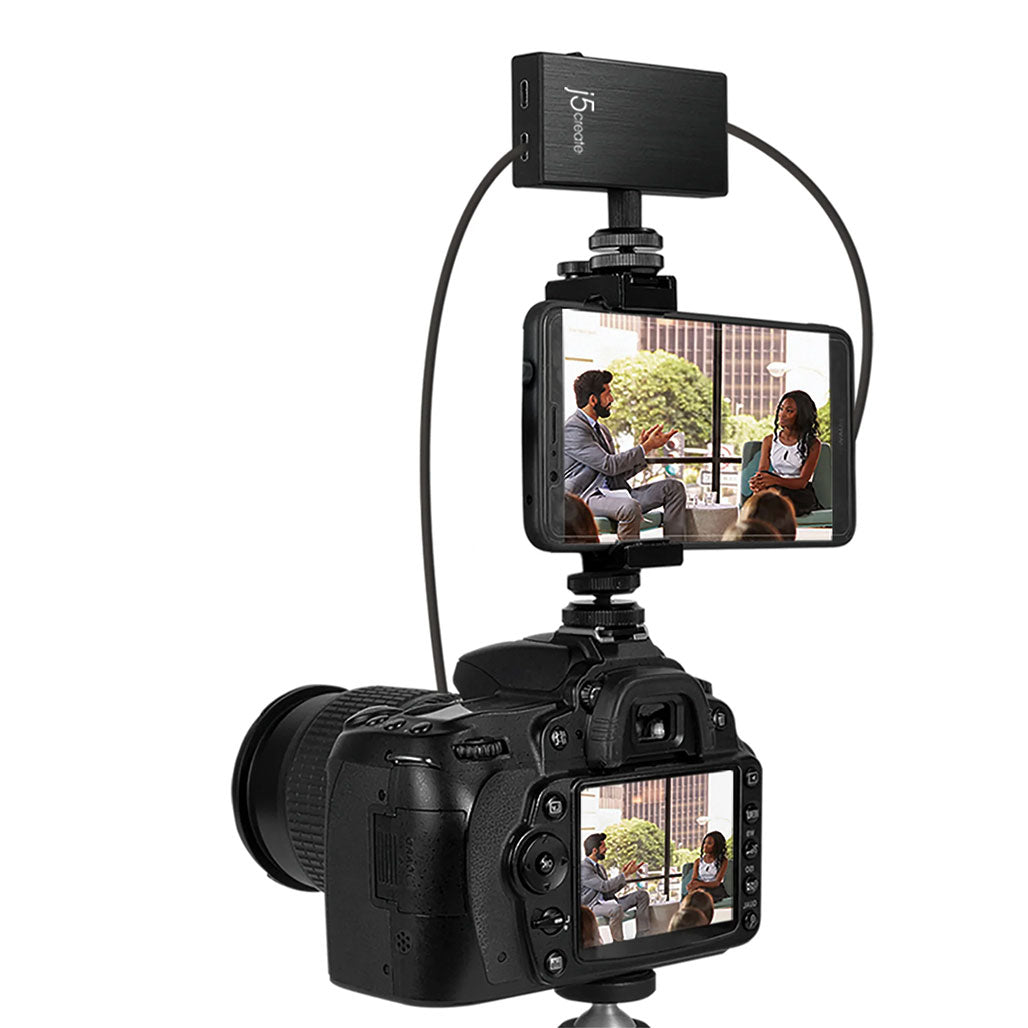

• Cold Shoe Adapter: Facilitates easy attachment to cameras, combining ease-of-use with enhanced mobility.

Specifications:

• Hardware:

  • Audio Input: 1 - 3.5mm AUX
  • Audio Output: 1 - 3.5mm AUX
  • Audio Switcher: Yes
  • Host Connector: 1 - USB-C® 3.1 Female

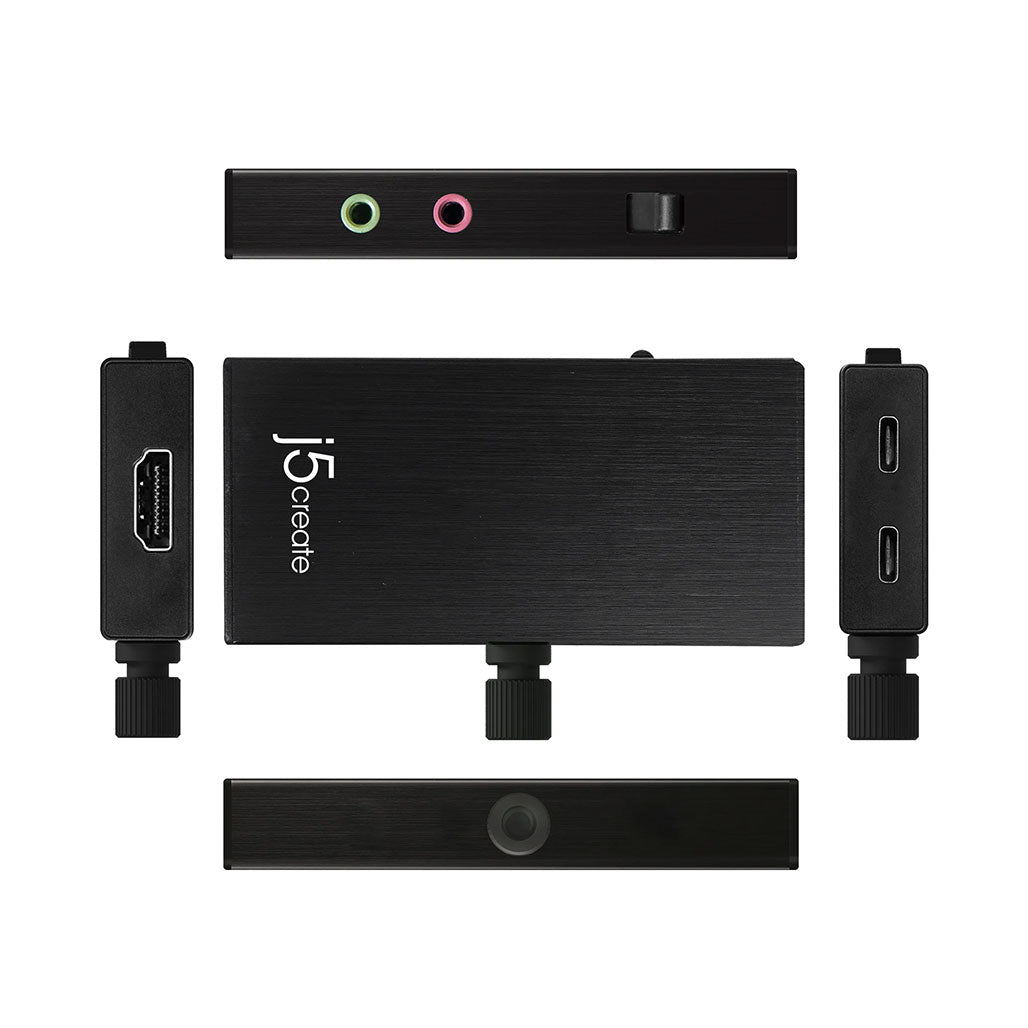

• Ports:

  • 1 - USB-C® 3.1 Gen 1 (Host)
  • 1 - USB-C® PD 3.0
  • 1 - HDMI™ Input
  • 1 - 3.5mm AUX Audio Out
  • 1 - 3.5mm AUX Mic In

• Power:

  • Power Source: Bus-powered or self-powered (USB-C® PD power)
  • Input Current: 3A
  • Input Voltage: 20V
  • Output Current: 3A
  • Output Voltage: 20V
  • Power Consumption: ≤ 280mA
  • Power Delivery: Up to 60W via USB-C®

• Performance:

  • Audio Channel: 2.1 via HDMI™
  • Audio Frequency: 48 kHz
  • Compressions:
    • USB™ 3.0: MJPEG/YUV 4:2:2
    • USB™ 2.0: MJPEG
  • Encode Format: MP4, MJPEG, H.264 / AVC + AACX
  • Headset: 2.1 Stereo
  • Max Display Refresh Rate: 60 Hz
  • Microphone: Stereo microphone supported
  • 24-bit Sigma-Delta ADC
  • Supported Resolution - Input: 1920 x 1080

• Physical Specifications:

  • Cable Length: 3.3 ft (1m)
  • Color: Black
  • Enclosure Type: Aluminum
  • Operating Humidity: <80% non-condensing
  • Operating Temperature: 32 to 104°F (0 to 40°C)
  • Product Depth: 0.69 in (17.5 mm)
  • Product Height: 2.54 in (64.5 mm)
  • Product Weight: 5.03 oz (142.5g)
  • Product Width: 5.27 in (133.8 mm)
  • Storage Humidity: <85% non-condensing
  • Storage Temperature: 14 to 149°F (-10 to 65°C)

Package Contents:

• 1 - JVA02 Live Capture Adapter
• 1 - USB-C® 2.0 to USB-C® cable
• 1 - USB-C® 3.0 to USB™ Type-A cable
• 2 - Cold shoe adapters
• 1 - Quick Installation Guide

The J5Create Live Capture Adapter JVA02 stands out as an essential tool for high-quality live streaming and video capture. Its blend of advanced features and practical design ensures reliable performance, making it an excellent choice for content creators and streamers aiming to enhance their video production capabilities.
