J5Create Ultradrive Kit USB-C Multi-Display Modular Dock JCD389 - 12 Configurations, 4K HDMI, Gigabit Ethernet

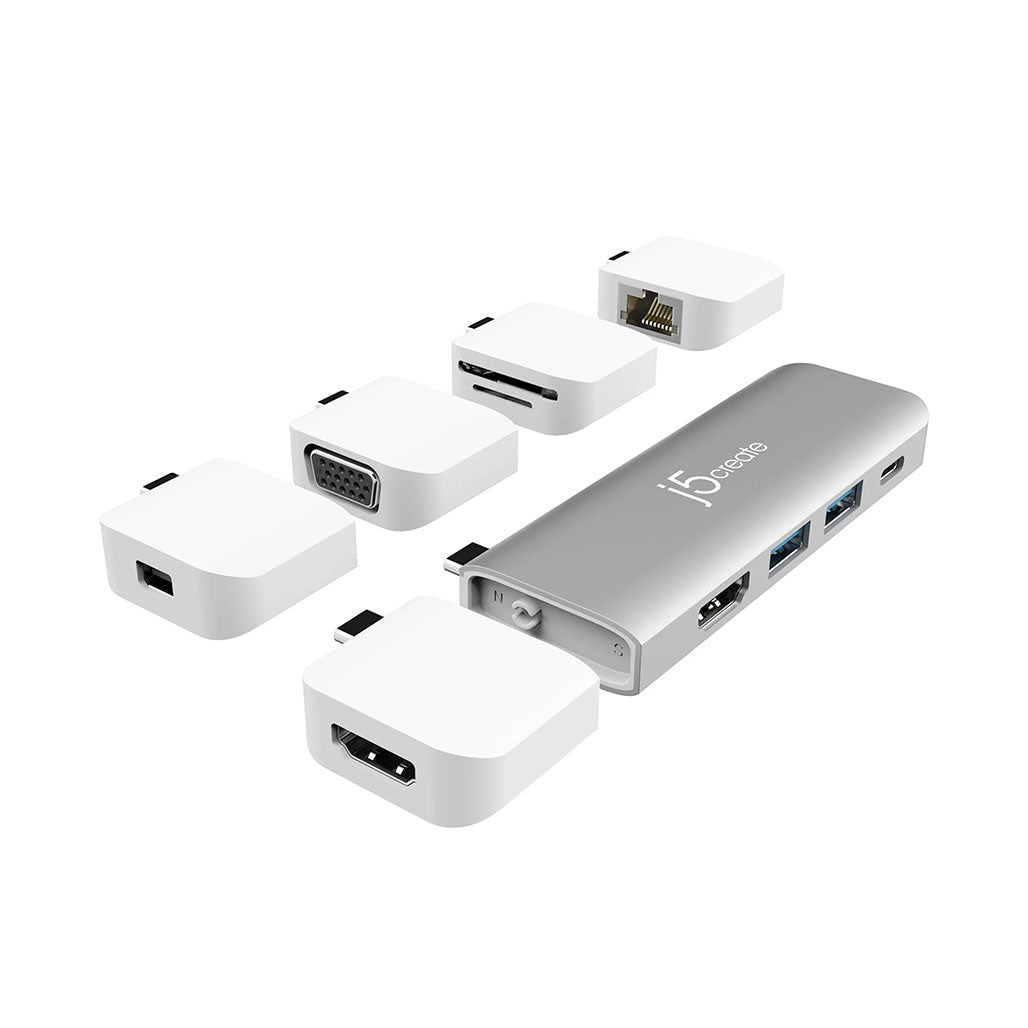

The J5Create Ultradrive Kit USB-C Multi-Display Modular Dock JCD389 offers exceptional flexibility and performance for modern connectivity needs. This award-winning docking station features a main body and 5 detachable magnetic kits, allowing for 12 different configuration combinations to support video, data storage, and charging functionalities. Whether working in the office, at home, or on the go, users can create a versatile triple display setup from their MacBook Pro® with ease.

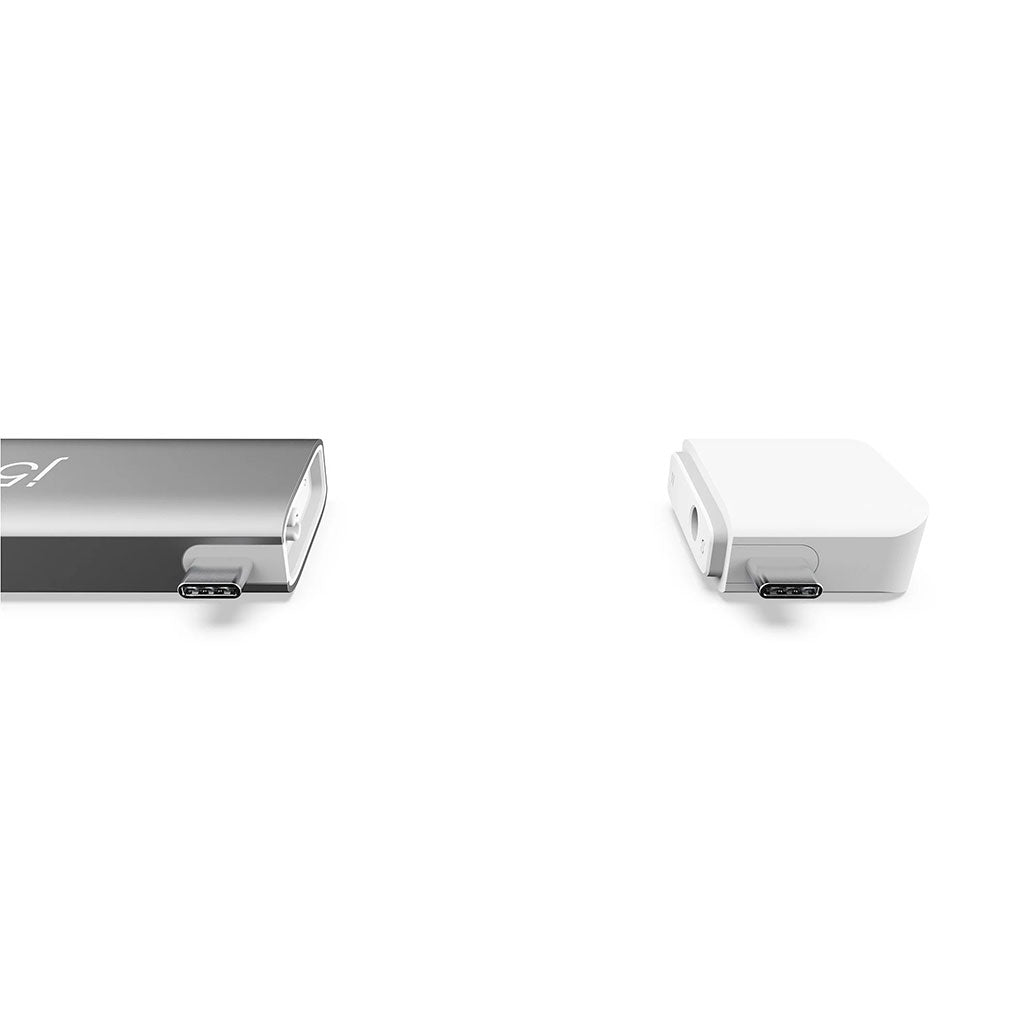

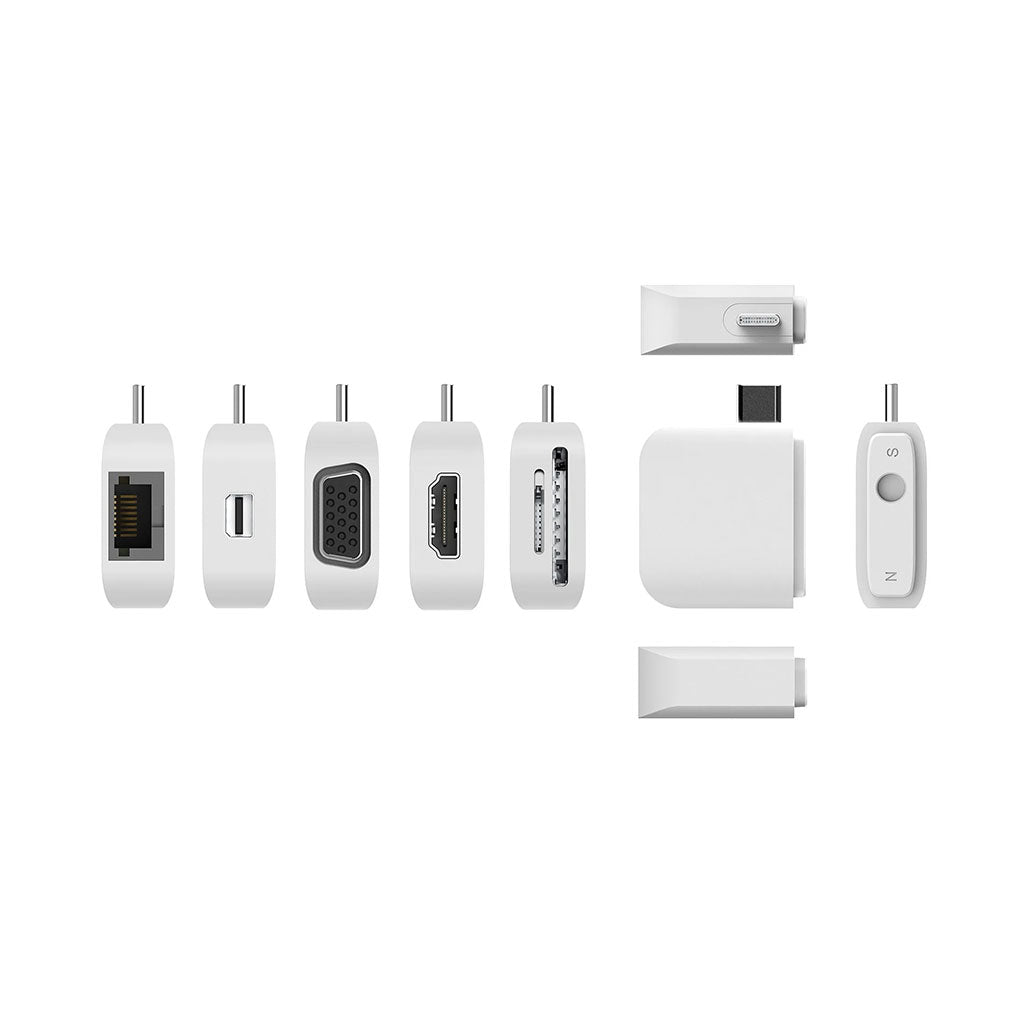

Each detachable magnetic kit is a standalone mini adapter, expanding the dock’s capabilities further. With options including 4K HDMI™, mini DisplayPort™, VGA, Gigabit Ethernet™, and an SD™/microSD™ memory card reader, this modular dock is an all-in-one solution for diverse connectivity needs. A hard-shell carrying case is included to simplify travel and organization, making it an ideal accessory for professionals and travelers alike.

Key Features:

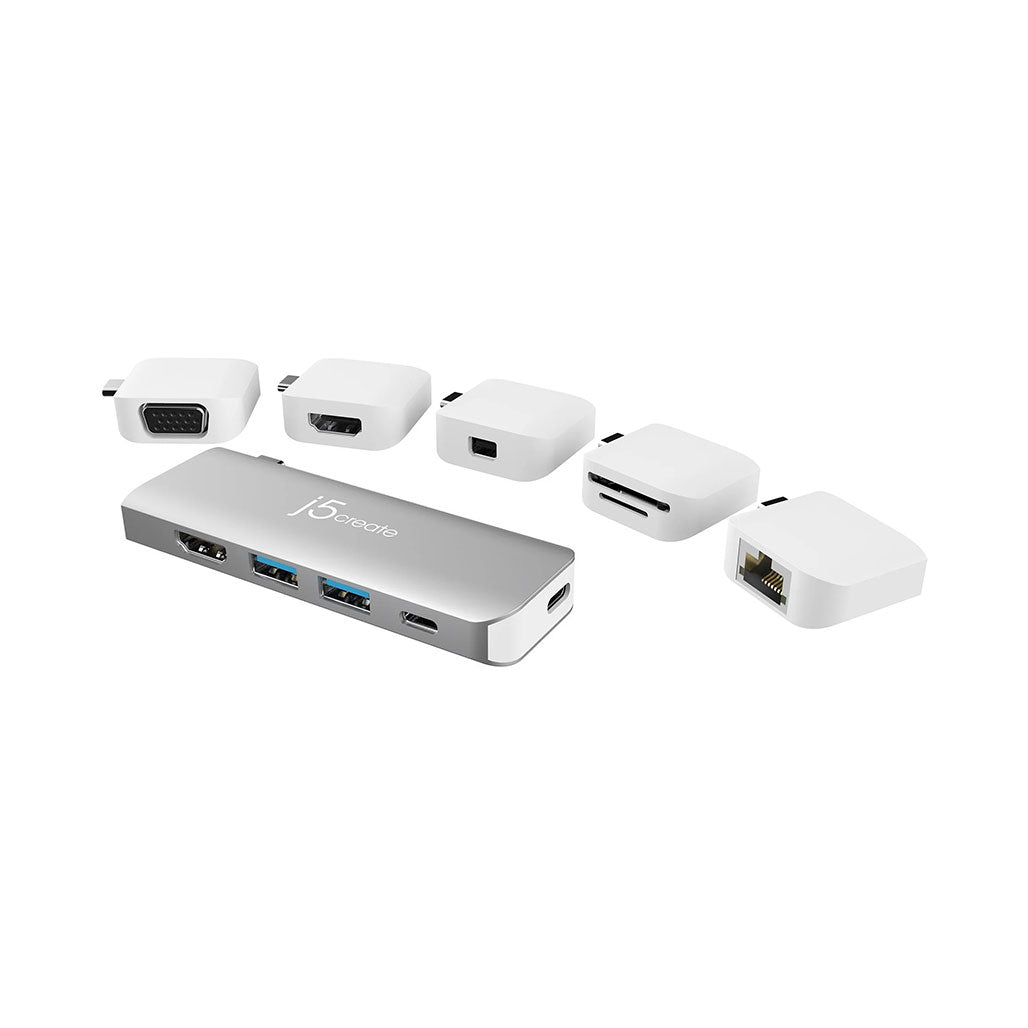

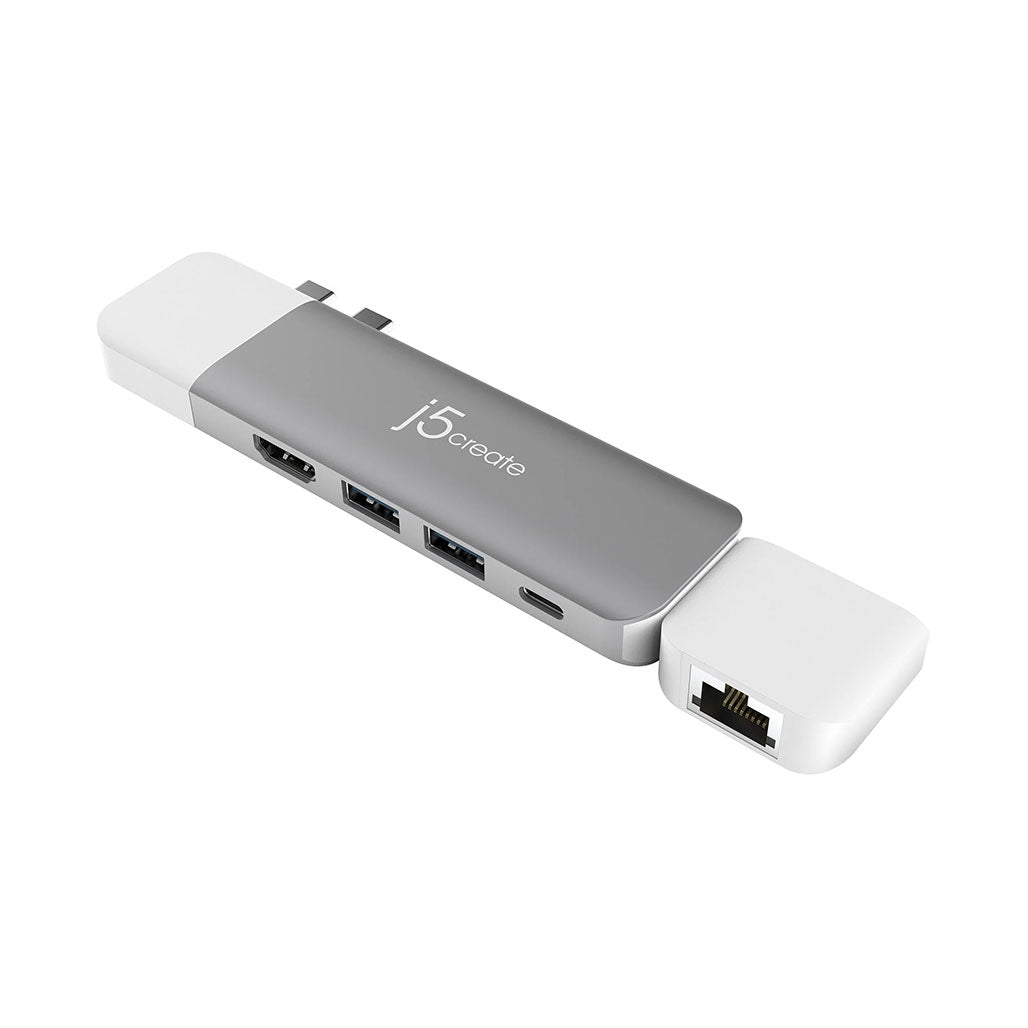

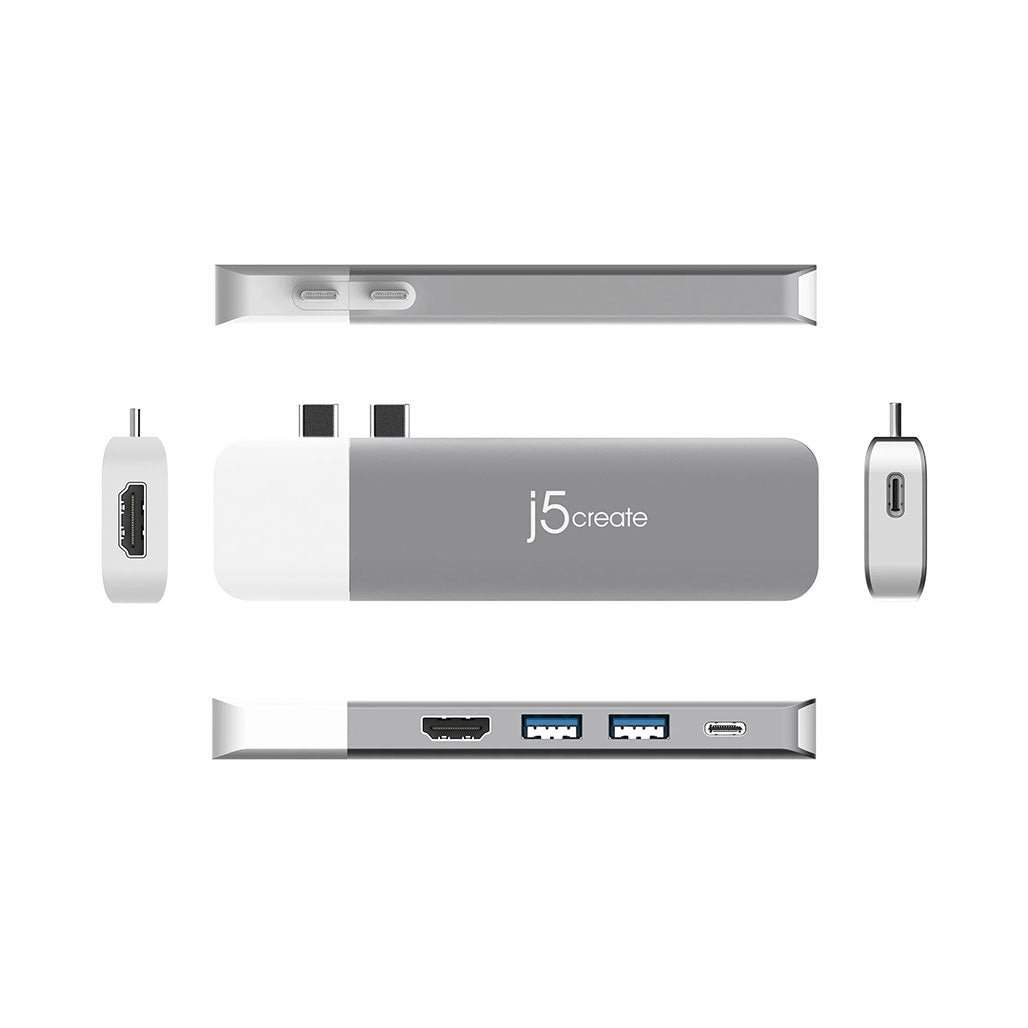

• Modular Design: Features 5 detachable magnetic kits and a main body to create up to 12 different configurations.

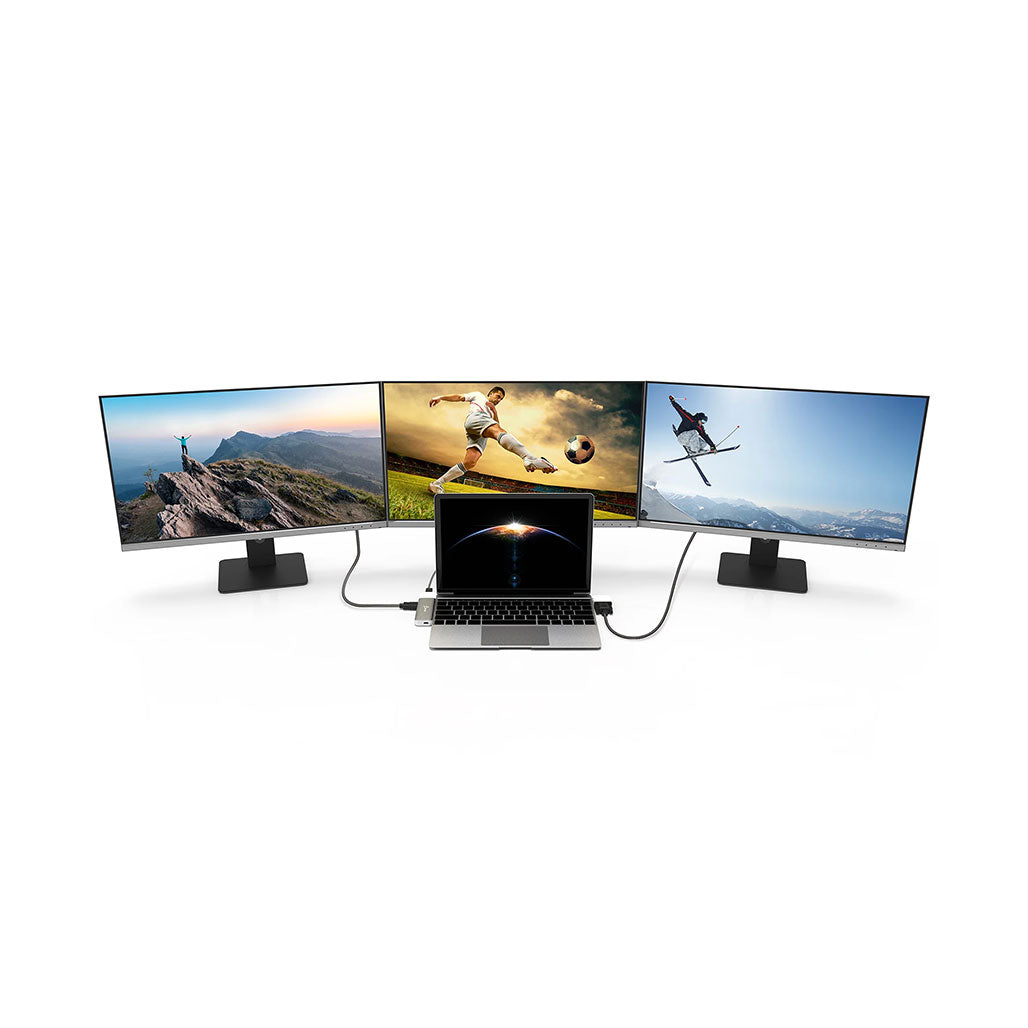

• Triple Display Setup: Allows for an extended triple display setup when used with a compatible MacBook Pro®.
• Versatile Ports: Includes USB-C™ to HDMI™, mini DisplayPort™, VGA, Gigabit Ethernet™, and SD™/microSD™ card reader.
• High-Resolution Support: Supports up to 4K resolution at 60 Hz for clear and detailed visuals.
• Enhanced Connectivity: Gigabit Ethernet™ and high-speed USB-C™ ports for fast data transfer and network access.
• Travel-Friendly: Comes with a hard-shell carrying case to keep adapters and cables organized.

Specifications:

• Hardware:

  • Audio Supported: Yes
  • Host Connector:
    • Main Body: USB-C™ Male
    • Magnetic Kits: USB-C™ Male
  • Network Interface:
    • Main Body: N/A
    • Magnetic Kits: RJ45 (Gigabit Ethernet)

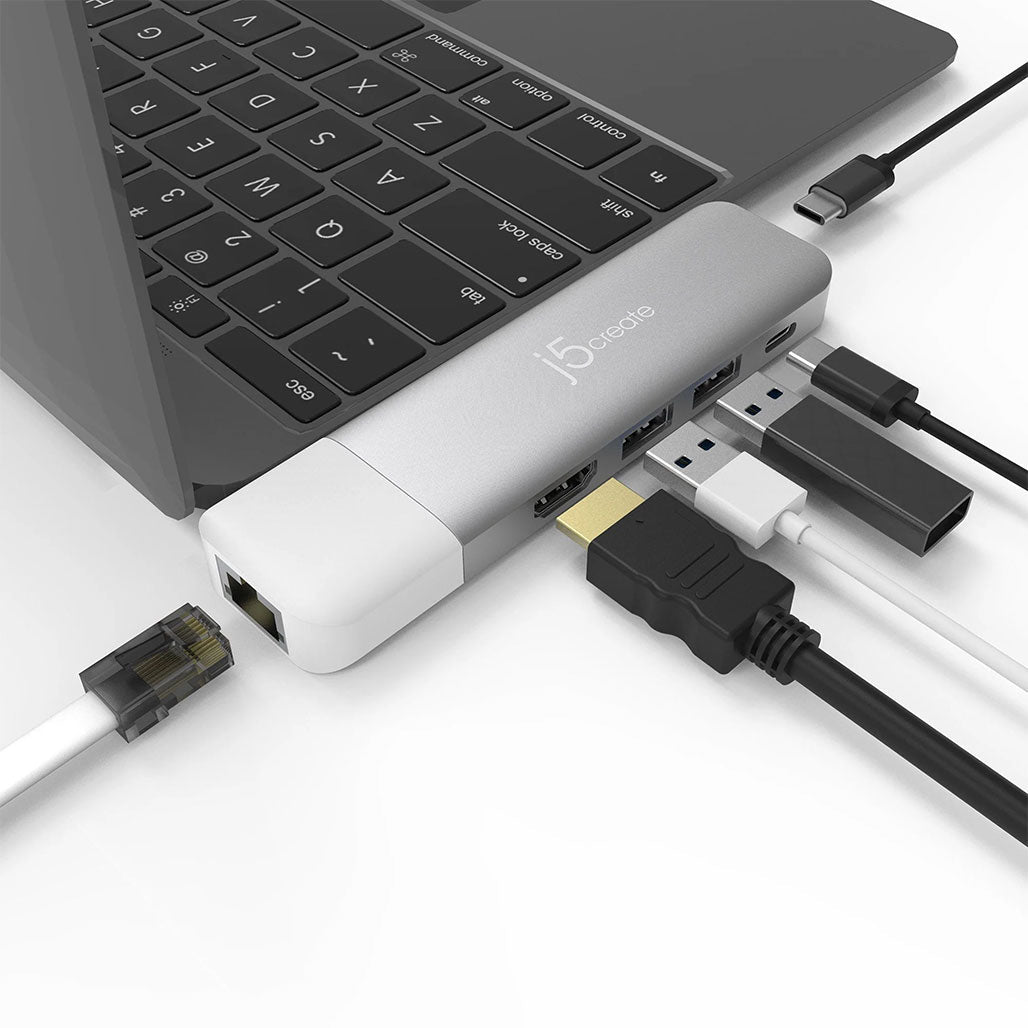

  • Ports:

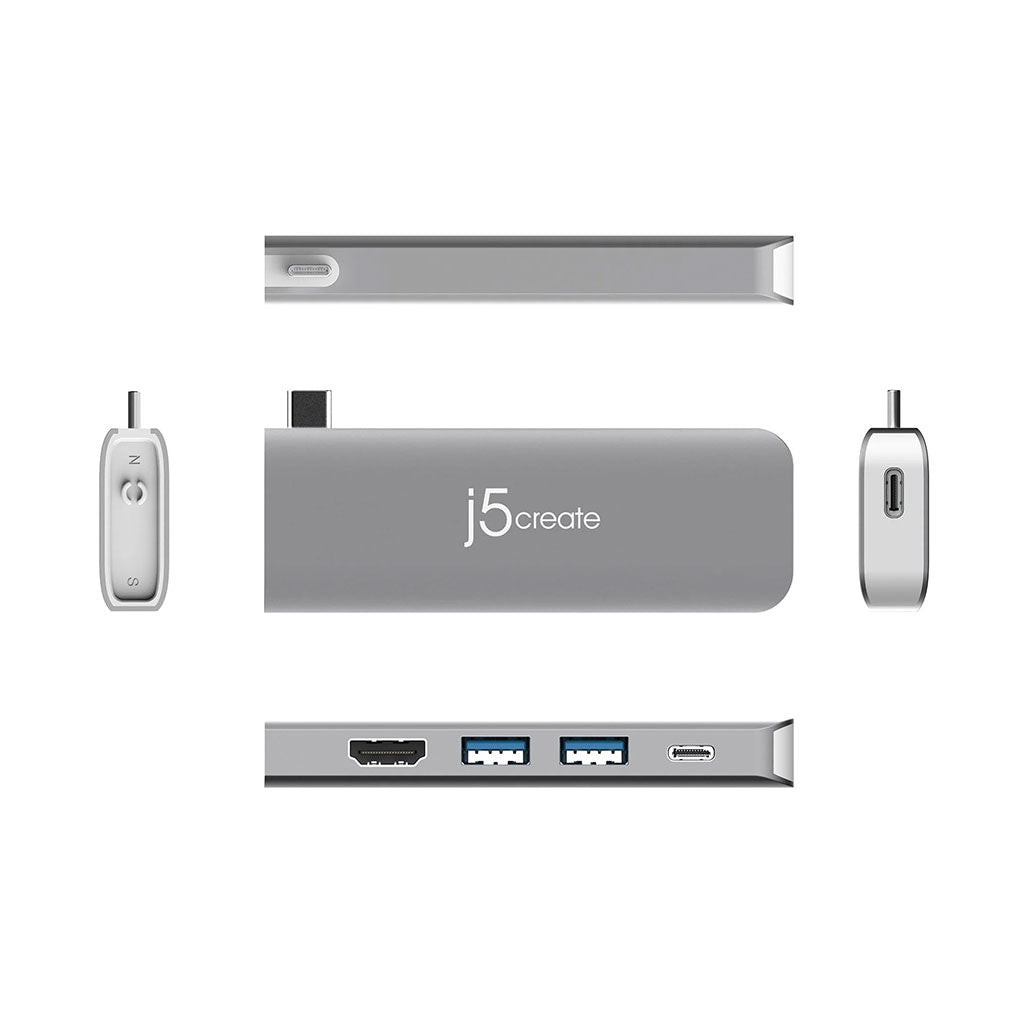

    • Main Body:
      • 1 - USB-C™ Power Delivery 3.0
      • 1 - USB-C™ 3.1 Gen 1
      • 2 - USB™ 3.1 Gen 1 Type-A
      • 1 - 4K HDMI™
    • Magnetic Kits (stand-alone mini adapters):
      • 1 - USB-C™ to 4K HDMI™
      • 1 - USB-C™ to 4K mini DisplayPort™
      • 1 - USB-C™ to VGA
      • 1 - USB-C™ to Gigabit Ethernet™
      • 1 - USB-C™ to SD™/microSD™ 3.0 memory card reader & writer
  • Power Source: Bus-powered or self-powered
  • Video Output:
    • Main Body: HDMI™ Female
    • Magnetic Kits: HDMI™ Female, mini DisplayPort™ Female, VGA Female

• Performance:

  • Audio Channel:
    • Main Body: 2.1 via HDMI™
    • Magnetic Kits: 2.1 via HDMI™/mini DisplayPort™
  • Compatible Networks:
    • Main Body: N/A
    • Magnetic Kits: 10 / 100 / 1000 Mbps
  • Displays Supported:
    • Main Body: 1
    • Magnetic Kits: 3 (when used with the main body and connected to a compatible MacBook®)
  • Max Data Transfer Rate:
    • Main Body: 5 Gbps
    • Magnetic Kits: 5 Gbps
  • Max Display Refresh Rate:
    • Main Body: 30 Hz
    • Magnetic Kits: 60 Hz
  • Max Display Resolution:
    • Main Body: 3840 x 2160
    • Magnetic Kits: 3840 x 2160

• Power:

  • Input Current: Up to 5A
  • Input Voltage: Up to 20V
  • Output Current: Up to 4.75A
  • Output Voltage: Up to 20V
  • Power Consumption: ≤ 600 mA
  • Power Delivery: Up to 100W via USB-C™

• Physical Specifications:

  • Cable Length: N/A
  • Color: Silver, White
  • Enclosure Type:
    • Main Body: Aluminum
    • Magnetic Kits: ABS Plastic
  • Operating Humidity: < 85% non-condensing
  • Operating Temperature: 32 to 118°F (0 to 48°C)
  • Product Depth:
    • Main Body: 3.86 in. (98 mm)
    • Magnetic Kits: 0.83 in. (21 mm)
  • Product Height:
    • Main Body: 0.51 in. (13 mm)
    • Magnetic Kits: 0.51 in. (13 mm)
  • Product Weight:
    • Main Body: 1.69 oz (48 g)
    • Magnetic Kits: 0.42 oz (12 g)
  • Product Width:
    • Main Body: 1.34 in. (34 mm)
    • Magnetic Kits: 1.34 in. (34 mm)
  • Storage Humidity: < 85% non-condensing
  • Storage Temperature: 14 to 149°F (-10 to 65°C)

Package Contents:

• 1 - JCD389 ULTRADRIVE Kit USB-C™ Multi-Display Modular Dock
• 1 - Hard Carrying Case
• 1 - Quick Installation Guide

The J5Create Ultradrive Kit JCD389 is designed to enhance productivity and connectivity with its modular setup and comprehensive features. By offering multiple configurations and high-resolution support, it meets the needs of both professional and personal use, making it a valuable addition to any tech setup.
