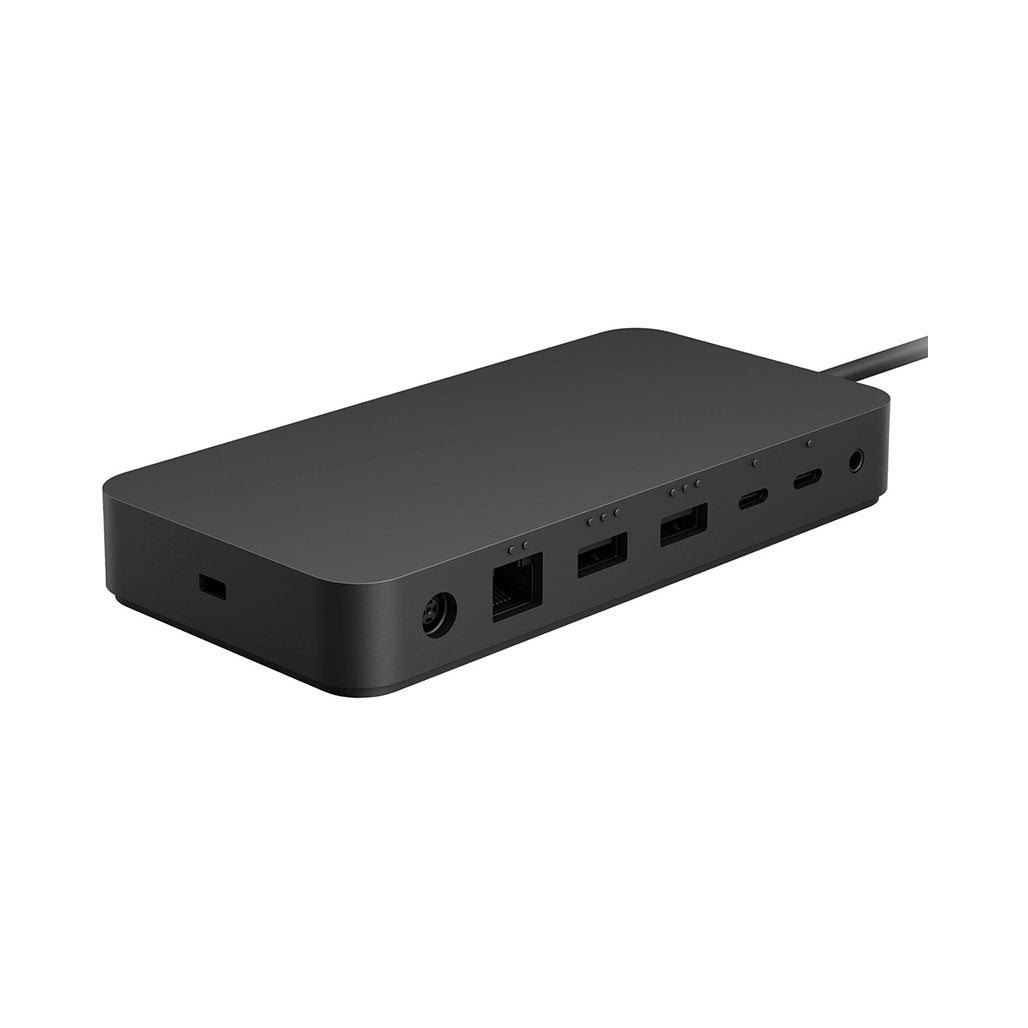

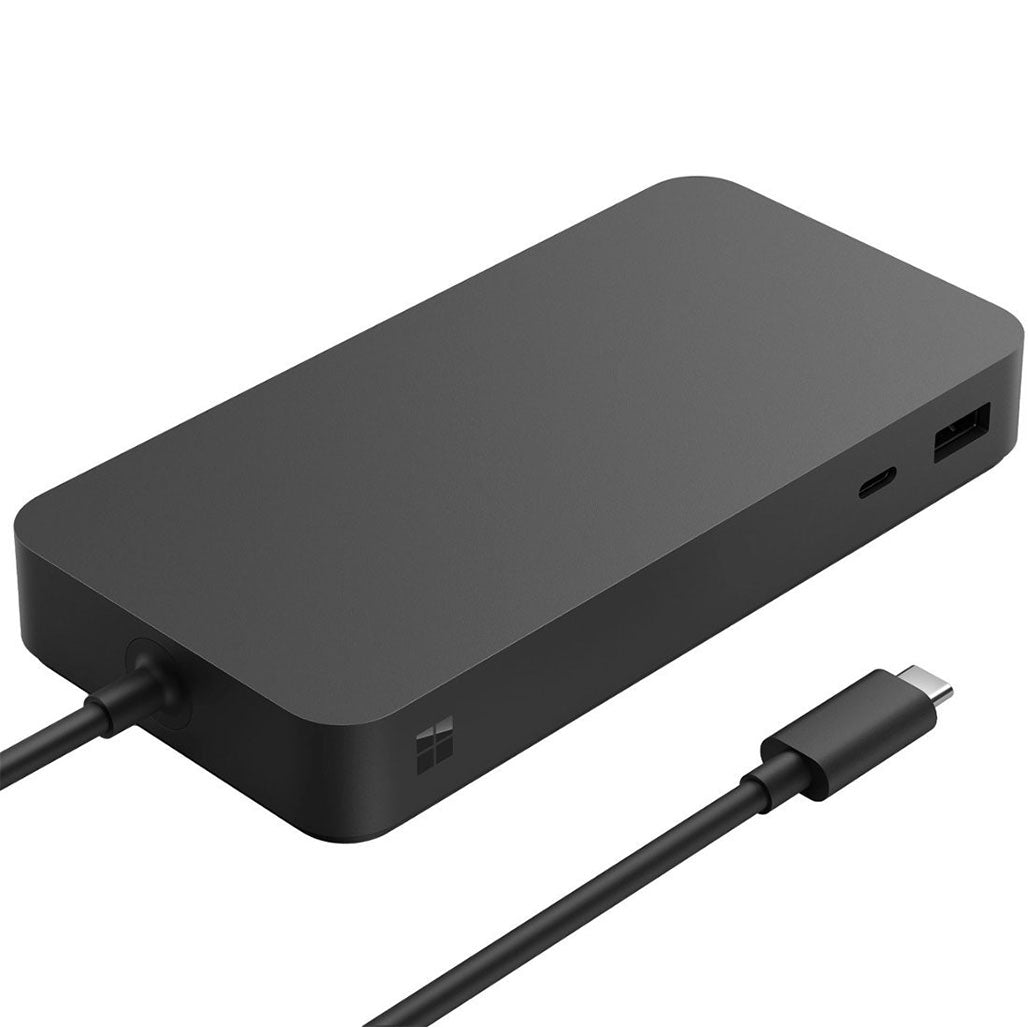

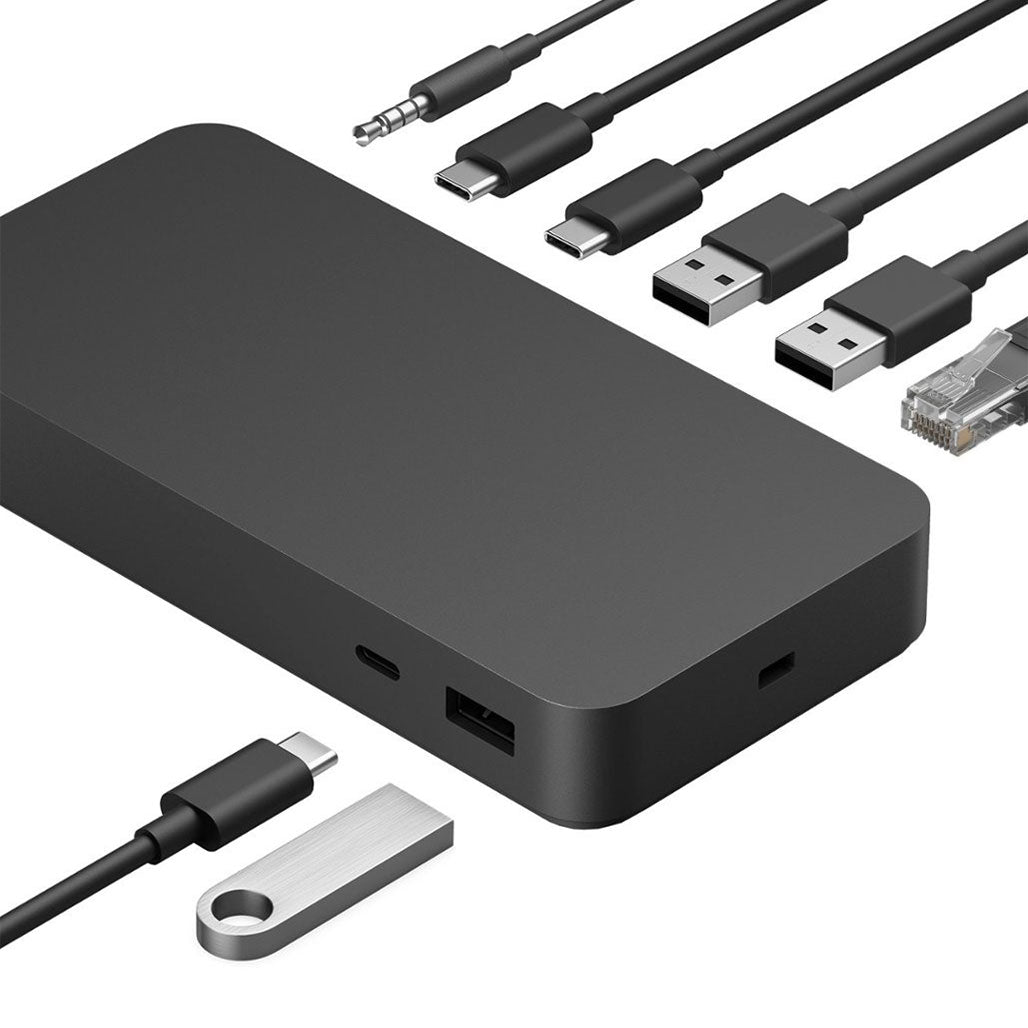

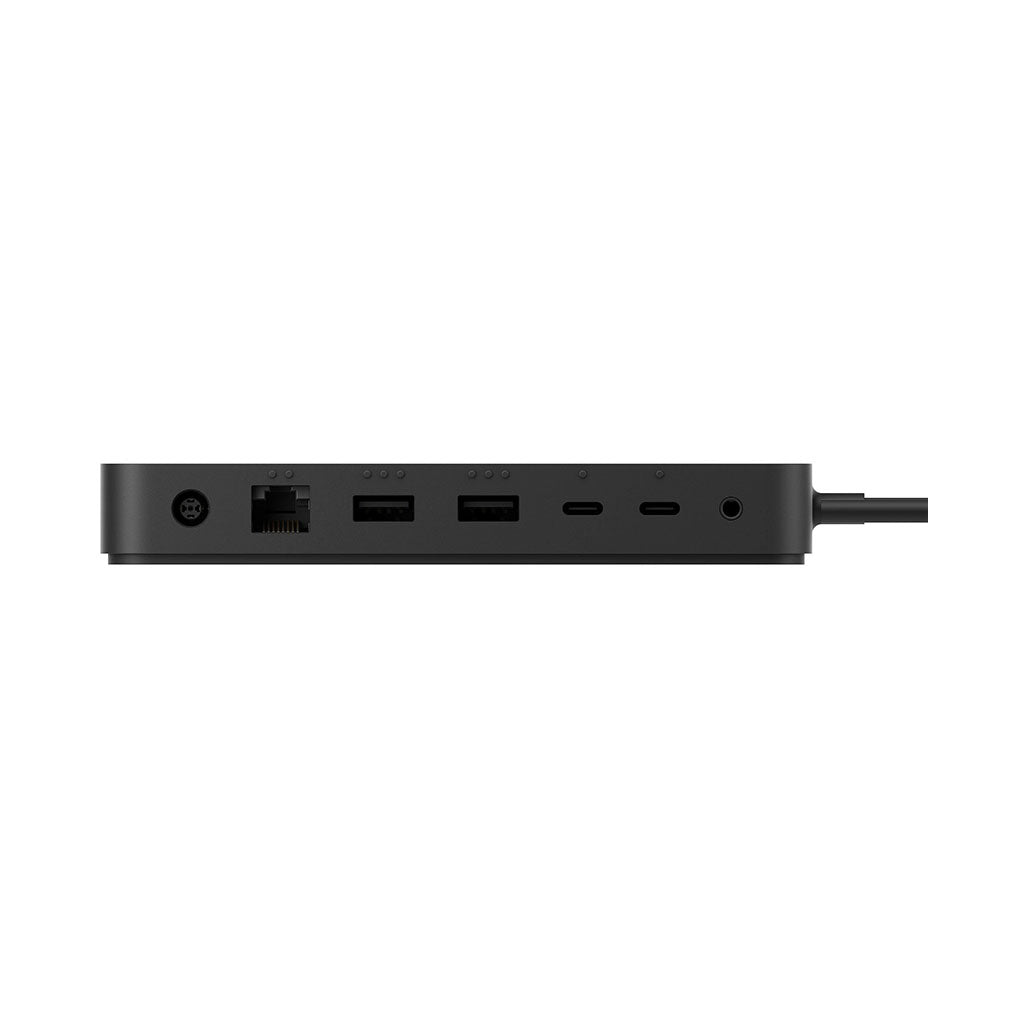

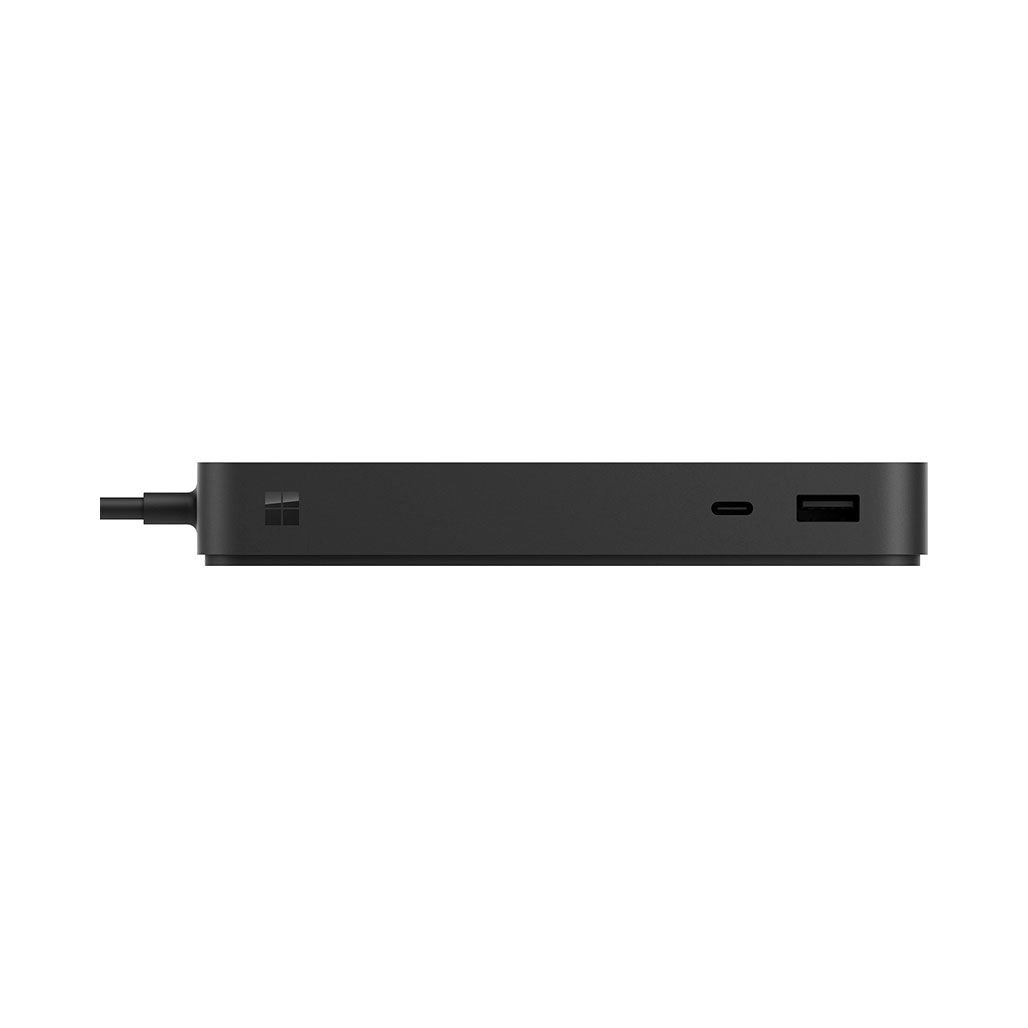

Microsoft Surface Thunderbolt 4 Dock T8H-00001 | Black | High-Speed USB-C Hub & Ethernet Connectivity

The Microsoft Surface Thunderbolt 4 Dock T8H-00001 is a powerful docking solution designed to enhance the capabilities of your compatible Microsoft Surface devices. This sleek, black dock connects via a built-in Thunderbolt 4 cable, offering three high-speed USB-C ports, each supporting external 4K displays and up to 15W power delivery. It also includes three USB-A 3.1 Gen 2 ports for fast data transfer up to 10 Gb/s and a 2.5G Ethernet port for high-speed network connections. For audio needs, a 3.5mm headphone jack is provided, ensuring private listening experiences.

Constructed with sustainability in mind, this dock is designed using 20% ocean-bound plastic and features a more eco-friendly packaging approach. The innovative design includes raised tactile indicators for rear-facing ports, aiding users with low vision. The included 165W AC adapter supports up to 96W power passthrough, making it an ideal choice for maintaining device performance and connectivity.

Key Features:

• High-Speed Connectivity: Equipped with three USB-C Thunderbolt 4 ports supporting up to 40 Gb/s, capable of connecting external 4K displays and delivering up to 15W power.
• Fast Data Transfer: Three USB-A 3.1 Gen 2 ports offer data transfer speeds of up to 10 Gb/s with compatible peripherals.
• Reliable Network Connection: A 2.5G Ethernet port ensures stable and high-speed wired network access.
• Audio and Power: Includes a 3.5mm headphone jack for audio and a 165W AC adapter providing up to 96W power passthrough.
• Sustainable Design: Made from 20% ocean-bound plastic with eco-friendly packaging, making it approximately 99% recyclable.

Specifications:

• Ports:

  • USB: 3 x USB-A 3.0 / 3.1/3.2 Gen 1 (7.5 W)
  • Thunderbolt: 3 x Thunderbolt 4 (15 W)
  • Ethernet: 1 x RJ45 (2.5 Gb/s)
  • Audio: 1 x 1/8" / 3.5 mm Headphone Output
  • Media Card Reader: None

• Host Connections:

  • Host Connection: USB-C (Thunderbolt 4)
  • Connection Type: Integrated Cable
  • Powered Connection: 96 W

• General:

  • Number of Displays Supported: 2
  • Maximum Resolution Supported: 4096 x 2160 at 60 Hz
  • HDCP Support: No
  • Compatibility: Surface Pro 9 with 5G, Surface Pro 7+, Surface Pro 7, Surface Pro X, Surface Laptop 4, Surface Laptop 3, Surface Laptop Go 2, Surface Laptop Go, Surface Go 3, Surface Go 2, Surface Book 3, Surface Studio 2+ (no charging)
  • OS Compatibility: Windows
  • UASP Support: No

• Power:

  • Power Source: AC Adapter
  • Power I/O: Barrel Connector (Unspecified Diameter)
  • Maximum Power Consumption: 165 W

• Physical:

  • Cable Length: 31.5" / 80 cm
  • LED Indicator: Power
  • Lock Slot: Yes, Kensington
  • Dimensions: 5.9 x 3 x 0.8" / 150 x 75 x 21.3 mm
  • Weight: 0.9 lb / 410 g

• Packaging Info:

  • Package Weight: 2.305 lb
  • Box Dimensions (LxWxH): 11 x 4.6 x 3.1"

Conclusion:

The Microsoft Surface Thunderbolt 4 Dock T8H-00001 offers a robust expansion solution for Surface devices, combining high-speed connectivity with a sustainable design. Its comprehensive set of ports and power delivery features ensures that your devices remain well-connected and efficiently powered. With its eco-friendly materials and practical design enhancements, this dock is a valuable addition to any modern workspace, designed to meet both performance and environmental standards.
