Transform your outdoor wireless setup with the MikroTik LDF 5, a compact and high-performance device designed for robust long-range connectivity. Featuring a built-in antenna and designed to integrate seamlessly with satellite offset dishes, this device enhances signal strength and extends wireless coverage. Ideal for extending your network over substantial distances, the LDF 5 utilizes the dish's reflective properties to amplify the wireless signal effectively.

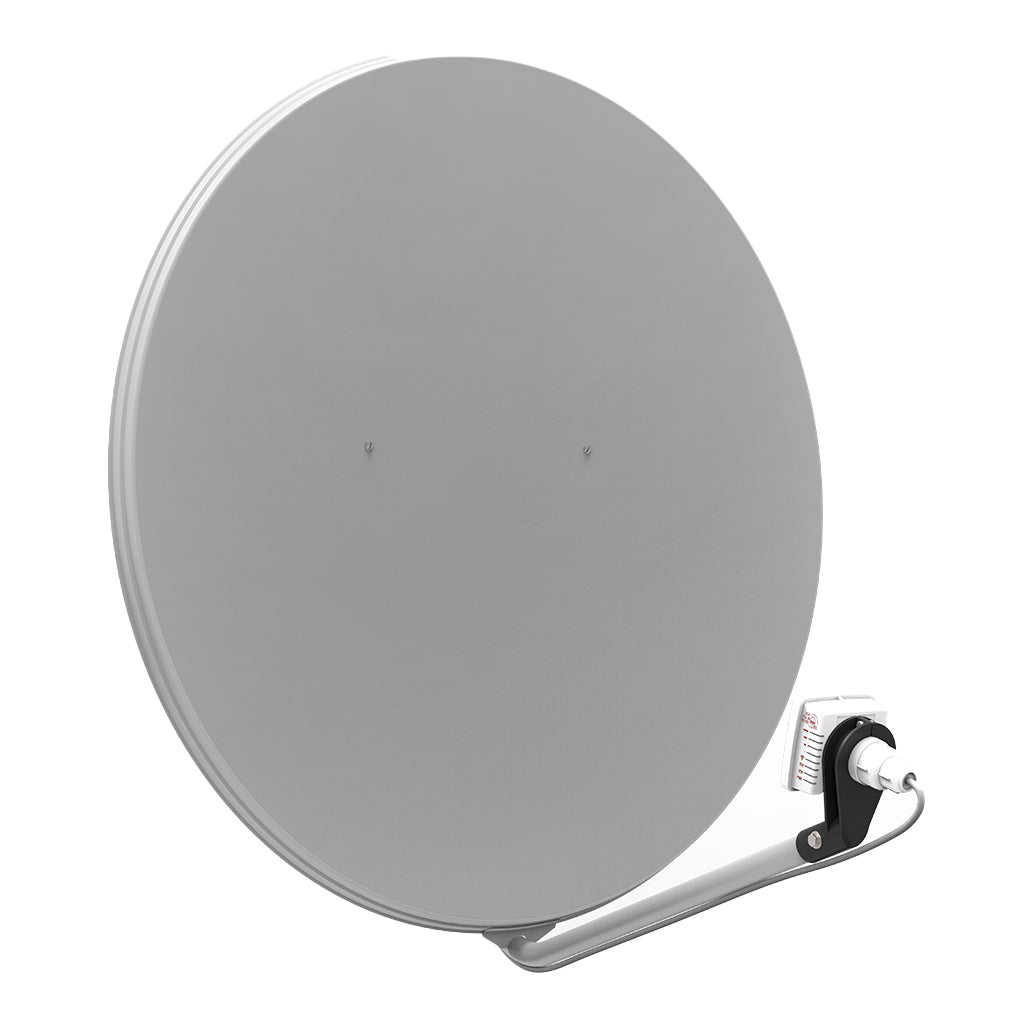

The MikroTik LDF 5 is highly adaptable and can be paired with any satellite dish featuring a 40mm offset mount, making installation straightforward and cost-effective. With the capability to achieve up to 33 dBi of antenna gain using a dish up to 100 cm in diameter, this device is well-suited for demanding outdoor environments. Preinstalled with RouterOS for immediate use, it ensures a powerful and reliable wireless solution right out of the box.
Key Features:
- Integrated Antenna System: Comes with a built-in antenna offering up to 9 dBi gain on the 5 GHz band, optimized for use with satellite offset dishes.
- Long-Range Wireless Performance: Delivers up to 300 Mbit/s data rate on the 5 GHz band, providing strong and reliable connections over extended distances.
- Versatile Installation: Designed to be used with satellite dishes featuring a 40 mm offset mount, ensuring easy and flexible deployment.
- High Antenna Gain: Achieves up to 33 dBi of gain with appropriate dish size, enhancing signal strength and coverage.
- Preinstalled RouterOS: Ready for immediate use with RouterOS, facilitating quick setup and operation.
Specifications:
- Product Code: RBLDF-5nD
- Architecture: MIPSBE
- CPU: AR9344
- CPU Core Count: 1
- CPU Nominal Frequency: 600 MHz
- Dimensions: 84 x 84 x 115 mm
- RouterOS License: 3
- Operating System: RouterOS
- Size of RAM: 64 MB
- Storage Size: 16 MB
- Storage Type: FLASH
- MTBF: Approximately 100,000 hours at 25°C
- Tested Ambient Temperature: -40°C to 70°C
Powering:
- Number of DC Inputs: 1 (PoE-IN)
- Max Power Consumption: 6 W
- Cooling Type: Passive
- PoE In: Passive PoE
- PoE In Input Voltage: 10-30 V
Wireless Specifications:
- Wireless 5 GHz Max Data Rate: 300 Mbit/s
- Wireless 5 GHz Number of Chains: 2
- Wireless 5 GHz Standards: 802.11a/n
- Antenna Gain dBi for 5 GHz: 9
- Wireless 5 GHz Chip Model: AR9344
- Wireless 5 GHz Generation: Wi-Fi 4
Ethernet:
- 10/100 Ethernet Ports: 1
Certification & Approvals:
- Certification: CE, FCC, IC, EAC, ROHS
- IP Rating: IP54
Conclusion:
The MikroTik LDF 5 provides an efficient and cost-effective solution for outdoor wireless networking. By utilizing existing satellite dishes, it enables the deployment of powerful long-range wireless links with significant signal amplification. The device's integrated antenna and RouterOS support ensure reliable and high-performance connectivity, making it a valuable addition to any outdoor network setup.
