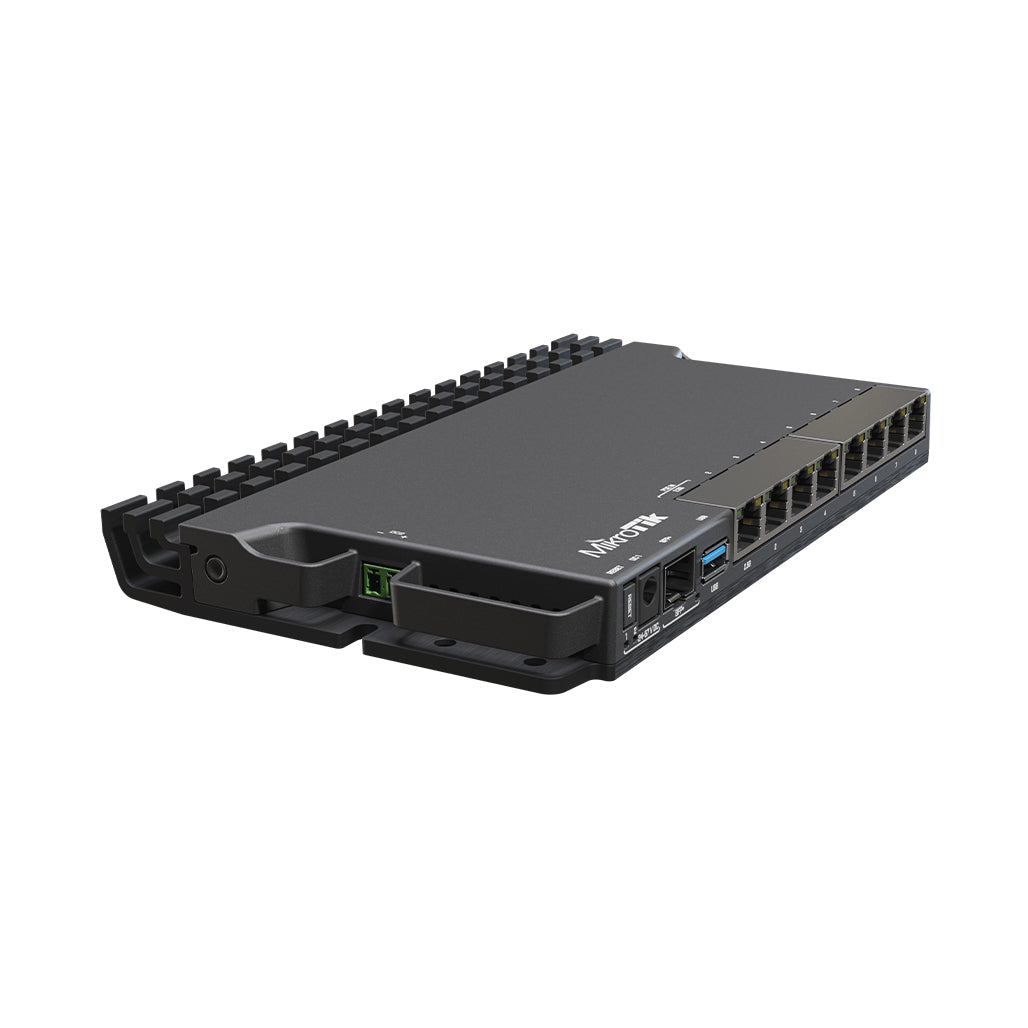

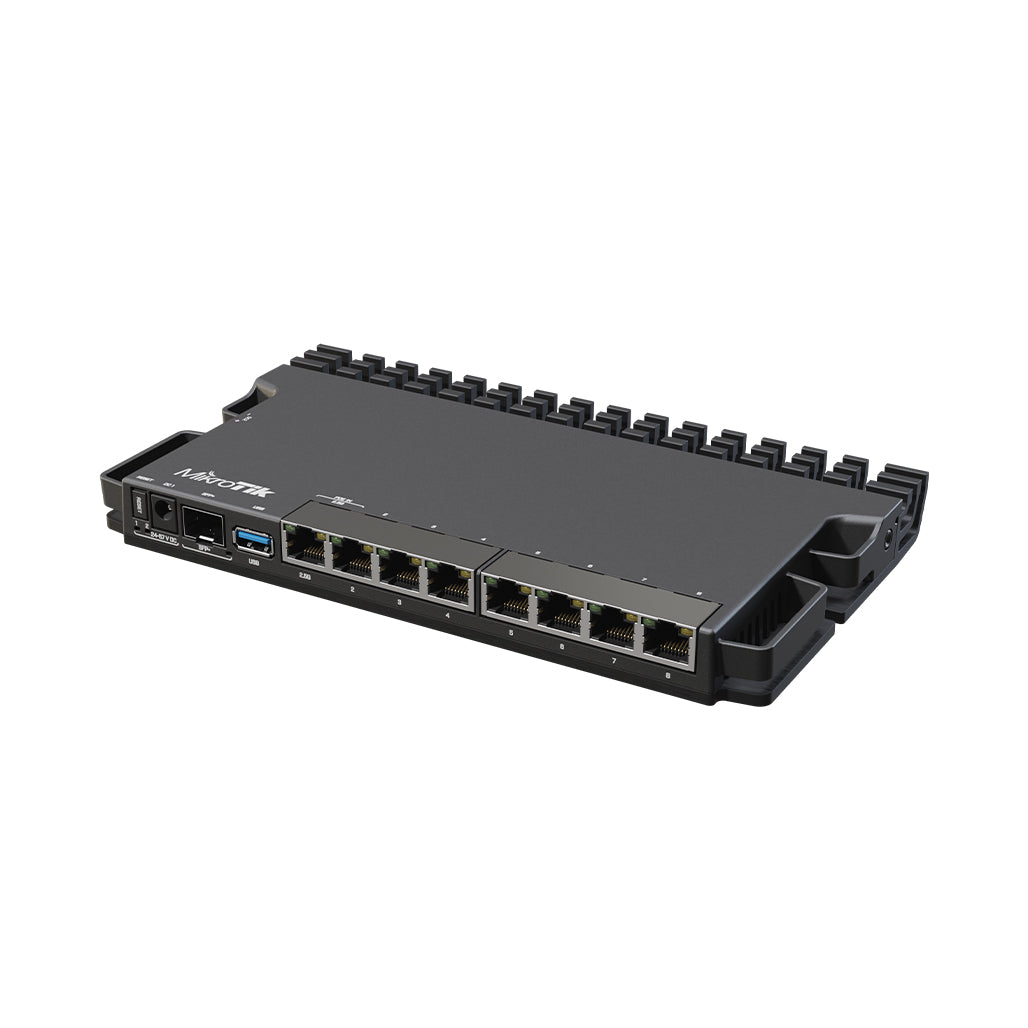

MikroTik RB5009UG+S+IN Home Lab Router: High-Performance 1G, 2.5G Ethernet & 10G SFP+ Cage with USB 3.0

The MikroTik RB5009UG+S+IN router is engineered to meet the demands of high-performance home lab setups and demanding networking environments. Equipped with a robust Marvell Armada Quad-core ARMv8 CPU and a powerful Marvell Amethyst switch-chip, this router provides exceptional speed and efficiency. The device features nine wired ports, including seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, and a 10G SFP+ cage, making it an ideal choice for high-speed data transfers and complex networking tasks. Its advanced cooling system ensures optimal performance even under heavy load conditions.

This router supports multiple powering options: PoE-in from Ethernet port #1, a DC Jack, and a 2-pin terminal. It comes with 1GB of DDR4 RAM and 1GB of NAND storage, offering substantial performance improvements over similar devices. Designed for versatility, the RB5009UG+S+IN can be mounted in a standard 1U rack, accommodating up to four units in a single space, thereby enhancing productivity and efficiency in server rooms or home labs.

Key Features:

• High-Speed Ports: The RB5009UG+S+IN includes seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, and one 10G SFP+ cage, providing flexible and high-speed connectivity options.
• Powerful Performance: Equipped with a Marvell Armada Quad-core ARMv8 CPU and a Marvell Amethyst switch-chip, the router delivers superior performance and handles heavy CPU loads effectively.
• Flexible Powering Options: It supports PoE-in, DC Jack, and 2-pin terminal powering, offering versatility in different deployment scenarios.
• Efficient Cooling: The passive cooling design, with components mounted on the board’s bottom, acts as a heat sink to ensure reliable performance under high load.
• Mounting Capability: Four RB5009UG+S+IN routers can be mounted in a single 1U rack space, optimizing space usage and productivity in server environments.

Specifications:

• Product code: RB5009UG+S+IN
• Architecture: ARM 64bit
• CPU: 88F7040
• CPU core count: 4
• CPU nominal frequency: 350-1400 (auto) MHz
• Switch chip model: 88E6393
• RouterOS license: 5
• Operating System: RouterOS v7
• Size of RAM: 1 GB
• Storage size: 1 GB
• Storage type: NAND
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 60°C
• IPsec hardware acceleration: Yes

Powering:

• Number of DC inputs: 3 (2-pin terminal, DC jack, PoE-IN)
• DC jack input Voltage: 24-57 V
• 2-pin terminal input Voltage: 24-57 V
• Max power consumption: 25 W
• Max power consumption without attachments: 14 W
• Cooling type: Passive
• PoE in: 802.3af/at
• PoE in input Voltage: 24-57 V

Ethernet:

• 10/100/1000 Ethernet ports: 7
• Number of 2.5G Ethernet ports: 1

Fiber:

• SFP+ ports: 1

Peripherals:

• Number of USB ports: 1
• USB Power Reset: Yes
• USB slot type: USB 3.0 type A
• Max USB current (A): 1.5

Other:

• CPU temperature monitor: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS

In conclusion, the MikroTik RB5009UG+S+IN router is crafted to provide high performance and versatility for various networking applications. With its array of high-speed ports, robust processing capabilities, and multiple powering options, it stands as a reliable choice for enhancing network infrastructure and managing demanding tasks efficiently.
