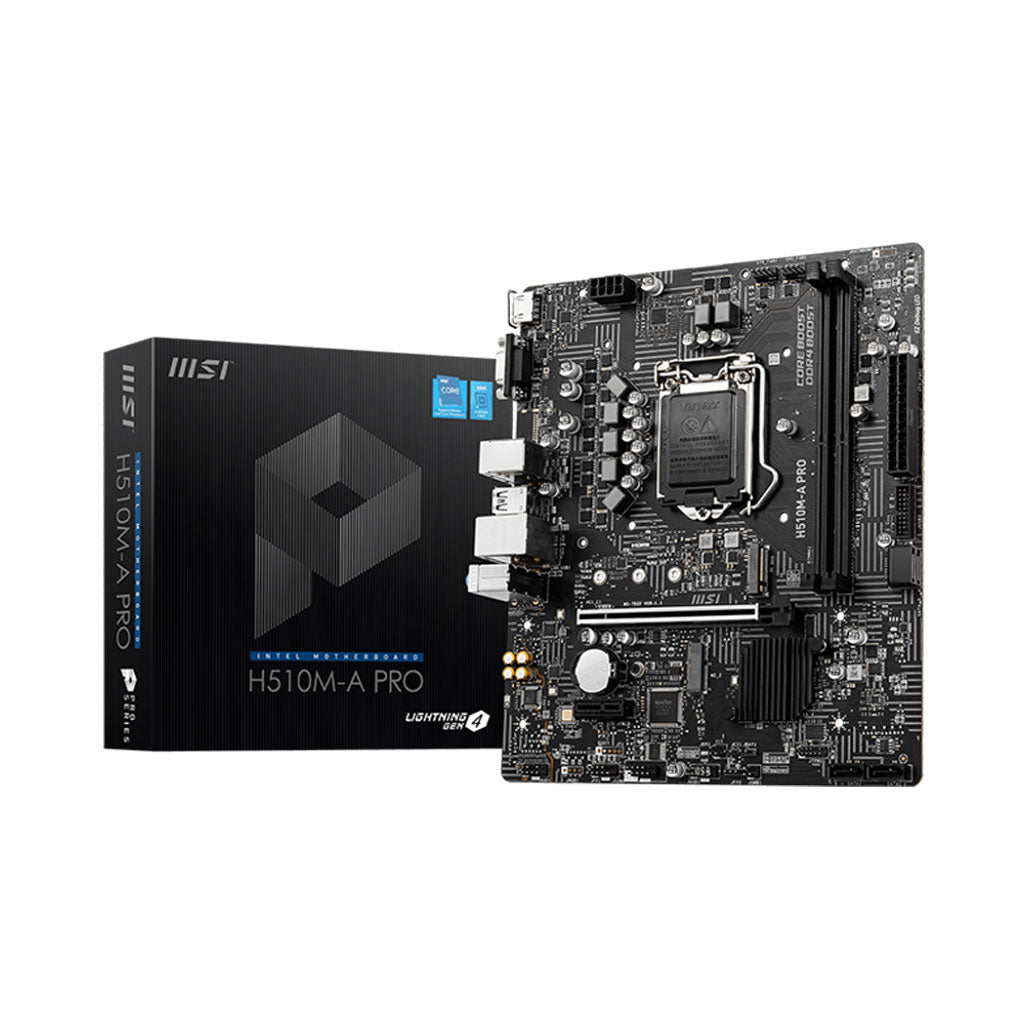

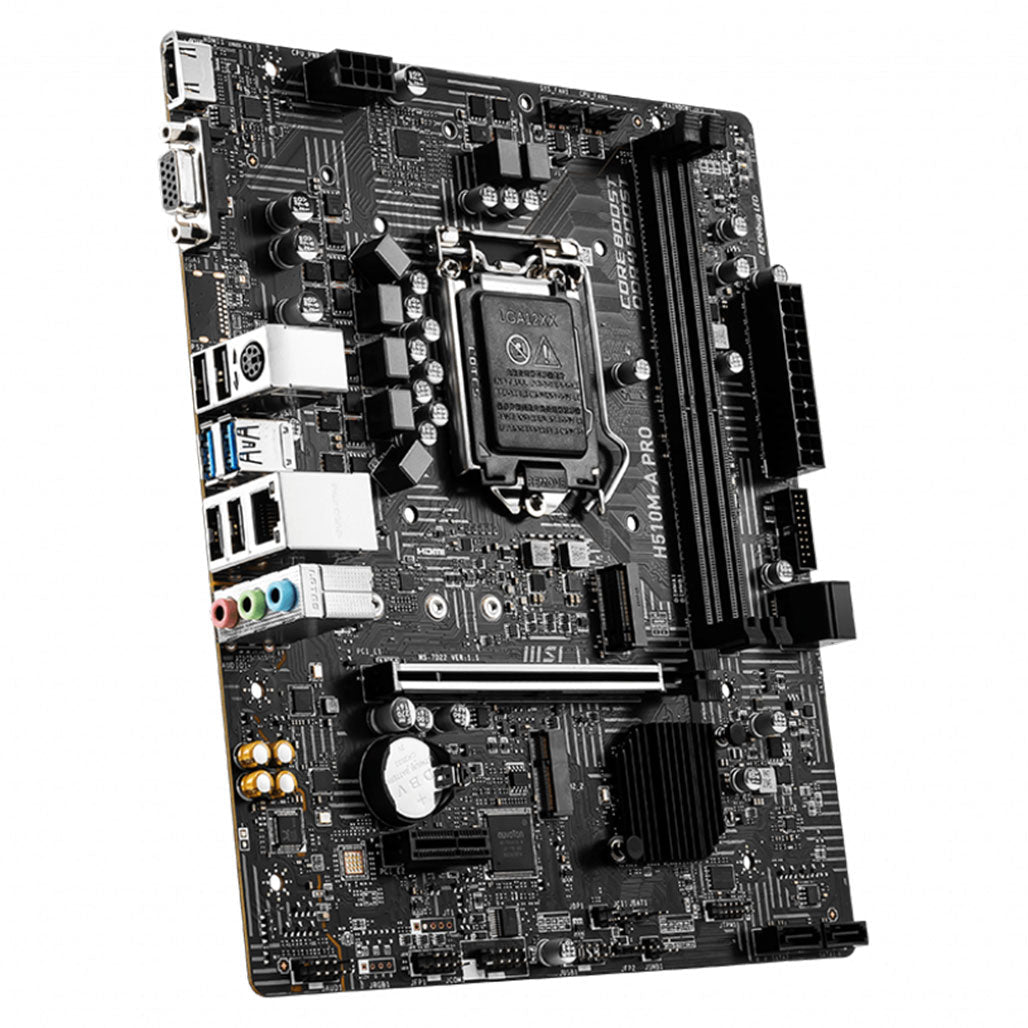

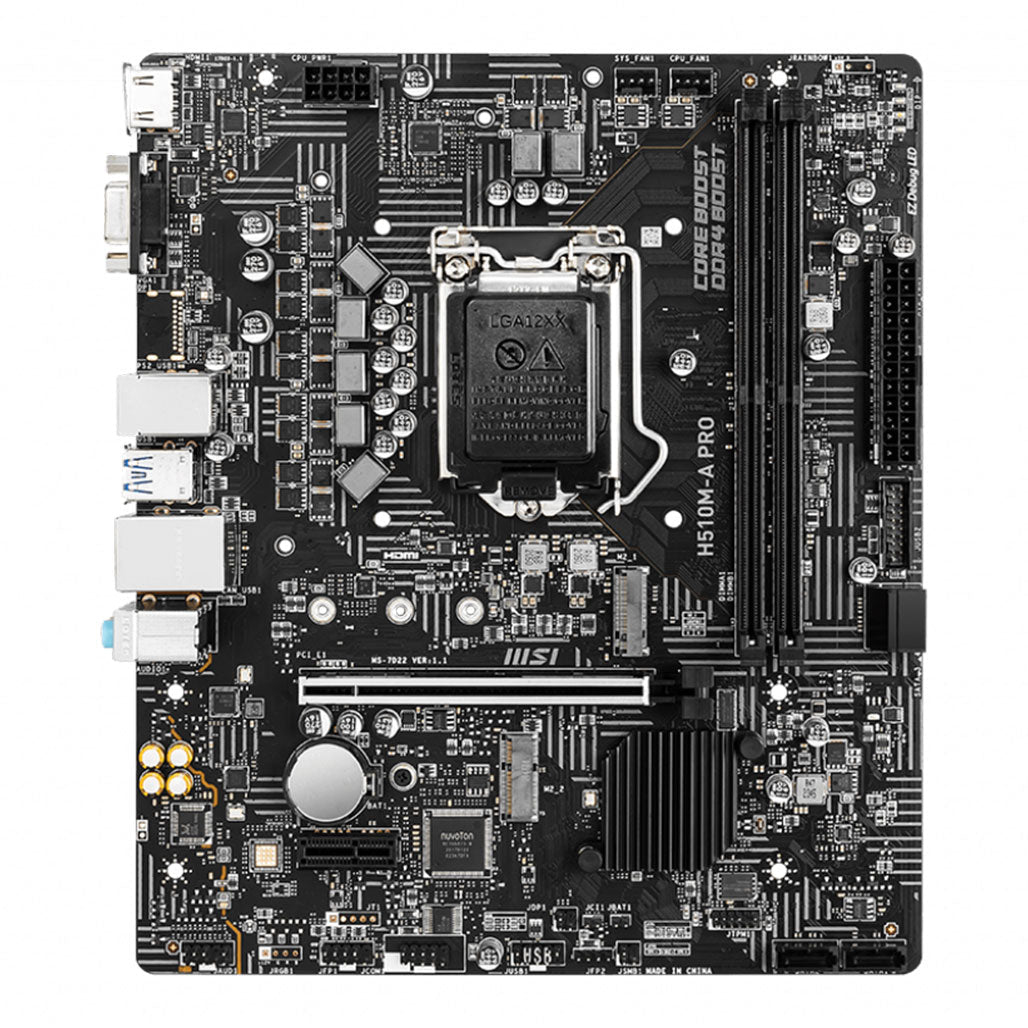

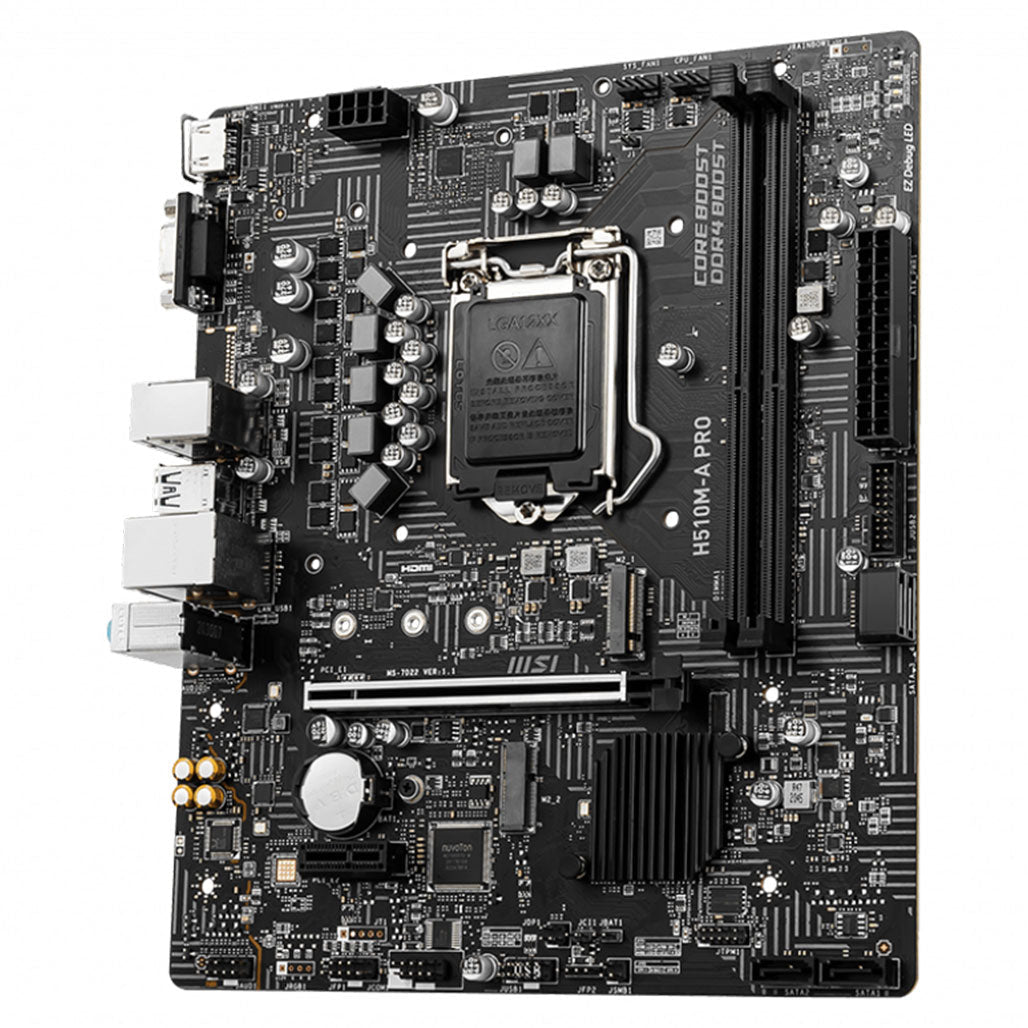

MSI H510M-A PRO MotherBoard - LGA 1200

CPU MAX Support

i9

CPU Support

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

CPU Socket

LGA 1200

Chipset

Intel® H510 Chipset

Graphics Interface

1x PCIe 4.0 x16 slot

Display Interface

Support 4K@60Hz as specified in HDMI 2.0b DisplayPort 1.4, VGA – Requires Processor Graphics

Memory Support

2 DIMMs, Dual Channel DDR4-3200MHz (MAX)

Expansion Slots

• 1x PCIe 3.0 x1 slot
• 1x M.2 2230 with E-Key for WiFi Module

Storage

• 1x M.2 Gen3 x4 slot
• 4x SATA 6Gb/s ports

USB ports

• 4x USB 3.2 Gen 1 5Gbps(4 Type-A)
• 6x USB 2.0

LAN

Intel® I219-V 1G LAN

Audio

8-Channel(7.1) HD Audio with Audio Boost
