MSI MAG B560 TOMAHAWK WIFI Motherboard - LGA 1200, Intel B560 Chipset, ATX

The MSI MAG B560 TOMAHAWK WIFI motherboard offers a powerful and versatile platform for your PC build with its LGA 1200 socket and Intel B560 chipset. This ATX motherboard is designed to accommodate the latest 10th and 11th Gen Intel® Core™ processors, providing robust performance for both gaming and productivity tasks. With support for up to 128GB of DDR4 memory across four DIMM slots, this motherboard ensures ample capacity for demanding applications and multitasking.

Featuring a dual PCIe x16 slot configuration and a PCIe x1 slot, the MAG B560 TOMAHAWK WIFI is well-equipped for high-performance graphics cards and other expansion cards. The motherboard includes three M.2 slots and six SATAIII ports for flexible and high-speed storage options. Connectivity is enhanced with Intel® Wi-Fi 6E AX210 for advanced wireless networking and Bluetooth support. USB ports are plentiful with multiple options for both front and rear panel connections, including Gen 2 and Gen 1 USB ports, catering to a range of peripherals and devices.

Key Features:

• Socket: LGA 1200 socket provides compatibility with 10th and 11th Gen Intel® Core™ processors, as well as Pentium® Gold and Celeron® processors.
• Chipset: Intel® B560 chipset supports enhanced performance and system stability.
• Memory: Dual-channel support with four DIMM slots, accommodating up to 128GB of DDR4 memory.
• PCIe Slots: Includes 2x PCIe x16 slots for graphics cards and 1x PCIe x1 slot for additional expansion cards.
• Storage: Features 3x M.2 slots and 6x SATAIII ports for flexible and high-speed storage solutions.
• Wi-Fi & Bluetooth: Equipped with Intel® Wi-Fi 6E AX210 for superior wireless connectivity and Bluetooth support.

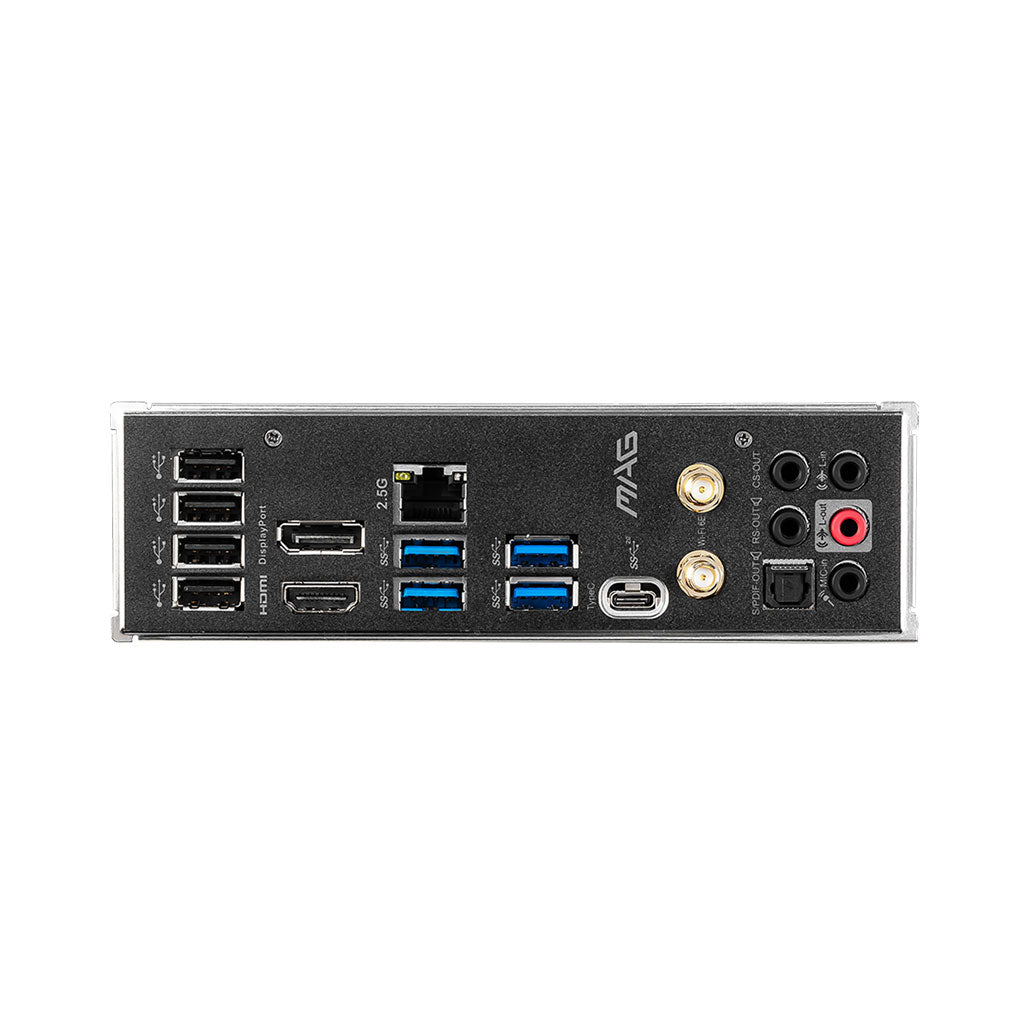

• USB Ports: Multiple USB ports on both the front and rear panels, including 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-C, and several Gen 1 and USB 2.0 Type-A ports.
• Audio: Realtek® ALC897 Codec provides high-quality audio output.
• Display Interfaces: 1x DisplayPort and 1x HDMI port support high-resolution display connections.
• Crossfire Support: 2-way AMD® CrossFire™ Technology for enhanced multi-GPU setups.
• Operating System: Compatible with Windows® 10 64-bit for optimal software support.

Specifications:

• Socket: 1200
• Chipset: Intel® B560 Chipset
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 2
• PCI-E x1: 1
• SATAIII: 6
• M.2 Slot: 3
• WiFi & Bluetooth: Intel® Wi-Fi 6E AX210
• USB 3.2 Ports (Front): 1 (Gen 2, Type C), 2 (Gen 1, Type A)
• USB 3.2 Ports (Rear): 1 (Gen 2x2, Type C), 4 (Gen 1, Type A)
• USB 2.0 Ports (Front): 4
• USB 2.0 Ports (Rear): 4
• Audio Ports (Rear): Realtek® ALC897 Codec
• DisplayPort: 1
• HDMI: 1
• Crossfire: Y
• Operating System: Support for Windows® 10 64-bit
• Form Factor: ATX

The MSI MAG B560 TOMAHAWK WIFI motherboard delivers comprehensive features and performance capabilities for a variety of computing needs. Its high-speed connectivity options and ample expansion slots make it a suitable choice for both gamers and professionals seeking a reliable and versatile motherboard.
