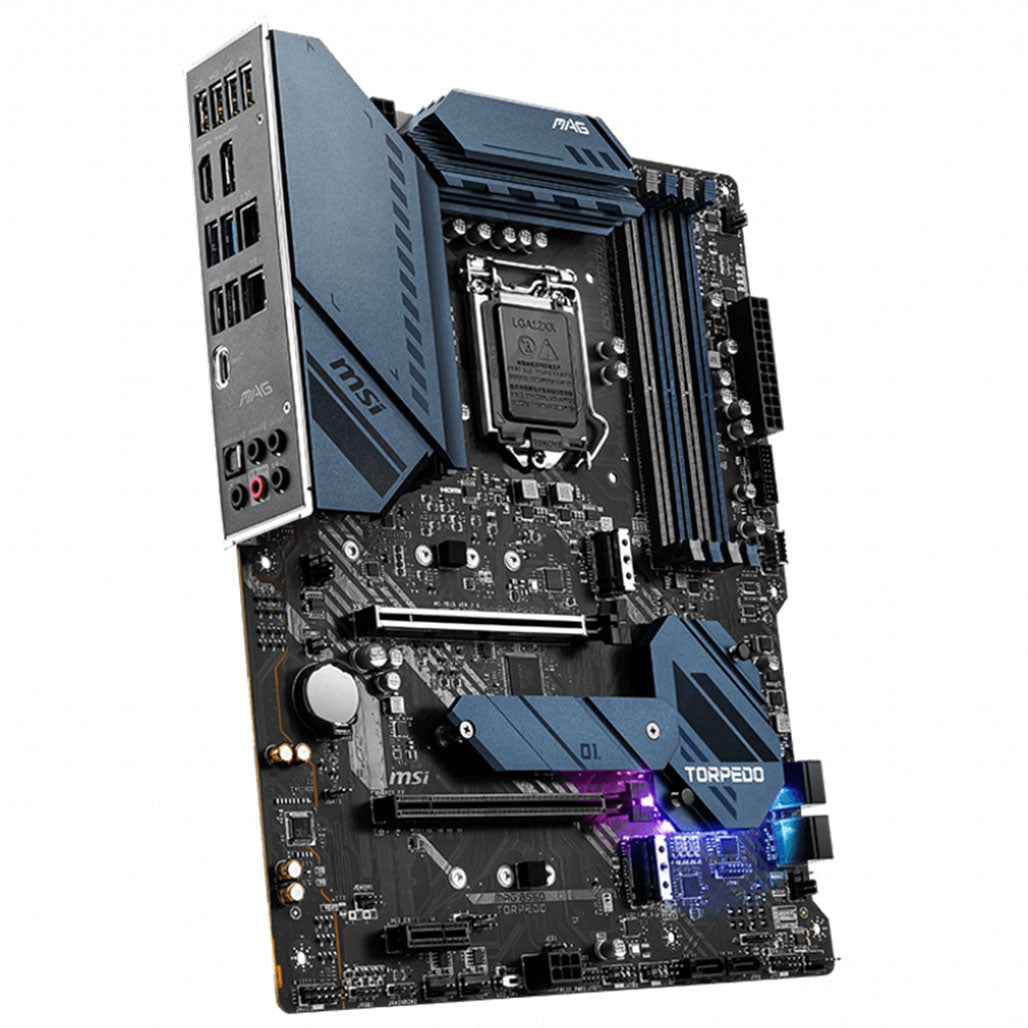

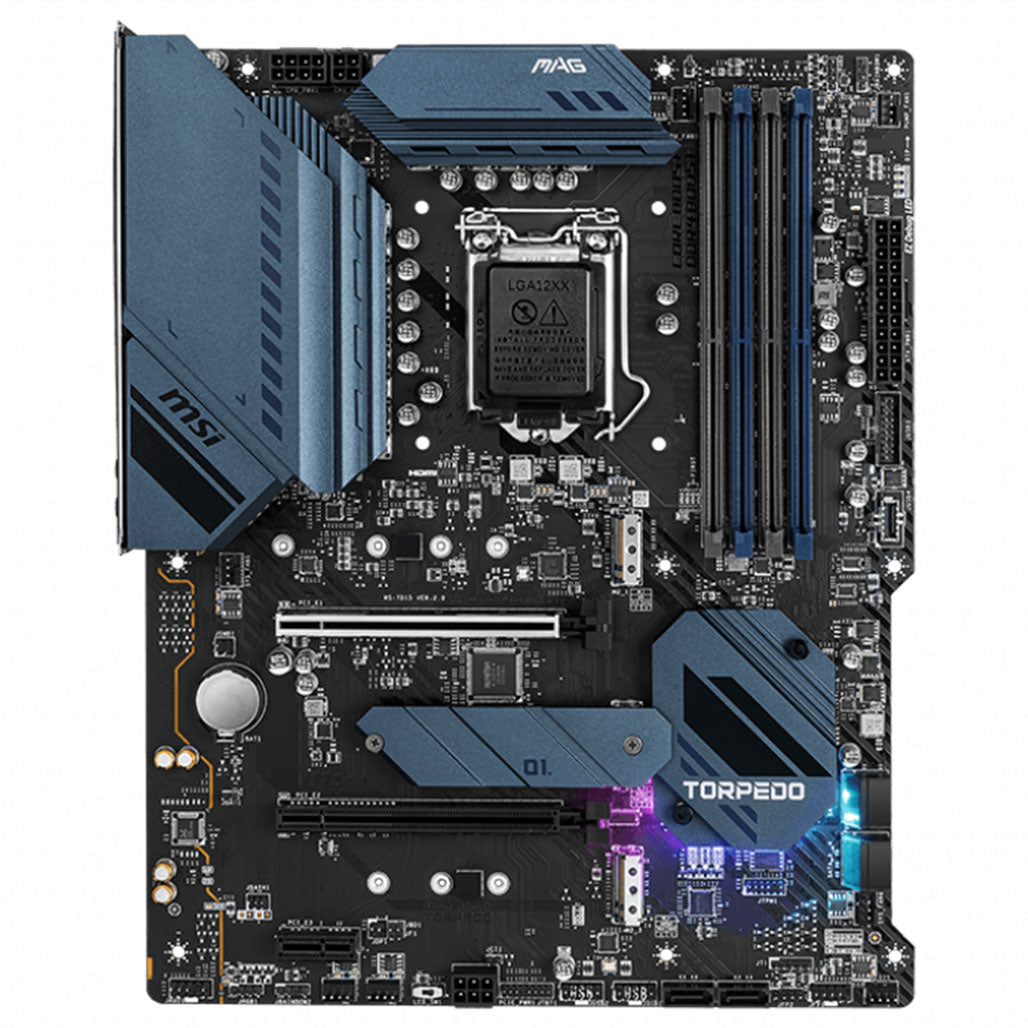

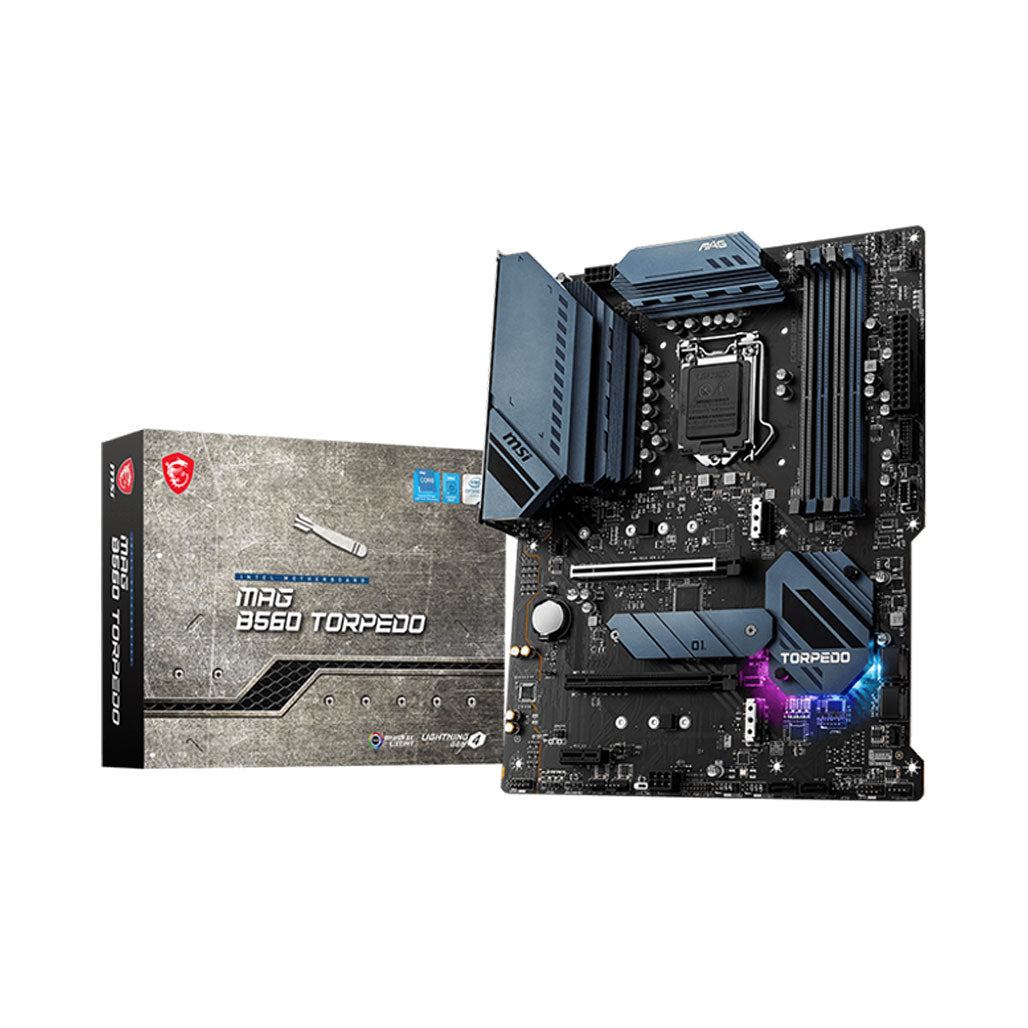

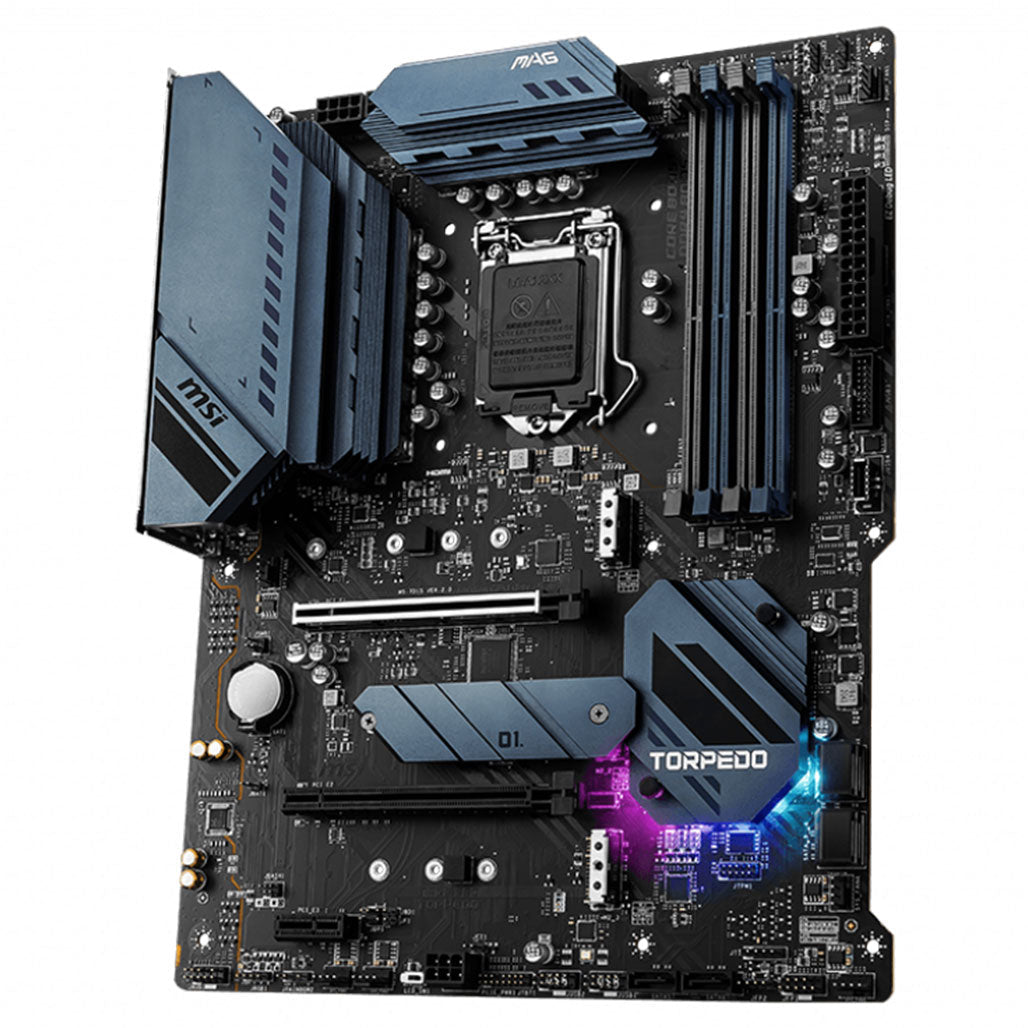

MSI MAG B560 TORPEDO Motherboard - LGA 1200, Intel B560 Chipset, ATX, Wi-Fi 6E

The MSI MAG B560 TORPEDO motherboard is designed to deliver exceptional performance for modern computing needs. Featuring an LGA 1200 socket and the Intel® B560 chipset, this ATX motherboard provides robust support for 10th and 11th Gen Intel® Core™ processors, as well as Pentium® Gold and Celeron® processors. With the capability to support up to 128GB of DDR4 memory across four DIMM slots, it ensures ample capacity for high-demand applications and efficient multitasking.

This motherboard stands out with its dual PCIe x16 slots and a PCIe x1 slot, making it ideal for high-performance graphics cards and additional expansion cards. Equipped with three M.2 slots and six SATAIII ports, the MAG B560 TORPEDO offers flexible and high-speed storage options. Connectivity is enhanced with Intel® Wi-Fi 6E AX210 for advanced wireless networking and Bluetooth integration. The motherboard also features multiple USB ports for a range of peripherals, including USB 3.2 Gen 2x2 Type-C and USB 3.2 Gen 1 Type-A options. The inclusion of Realtek® ALC897 Codec ensures high-quality audio output.

Key Features:

• Socket: LGA 1200 socket supports 10th and 11th Gen Intel® Core™ processors, as well as Pentium® Gold and Celeron® processors.
• Chipset: Intel® B560 chipset provides advanced performance and stability.
• Memory: Dual-channel support with four DIMM slots for up to 128GB of DDR4 memory.
• PCIe Slots: 2x PCIe x16 slots for high-performance graphics cards and 1x PCIe x1 slot for additional expansion.
• Storage: 3x M.2 slots and 6x SATAIII ports offer versatile and high-speed storage options.
• Wi-Fi & Bluetooth: Integrated Intel® Wi-Fi 6E AX210 for advanced wireless connectivity and Bluetooth support.
• USB Ports: Includes 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-C, and multiple Gen 1 and USB 2.0 Type-A ports for a variety of peripherals.
• Audio: Realtek® ALC897 Codec for high-definition audio.
• Display Interfaces: 1x DisplayPort and 1x HDMI port for high-resolution display connections.
• Crossfire Support: Supports 2-way AMD® CrossFire™ Technology for enhanced multi-GPU setups.
• Operating System: Compatible with Windows® 10 64-bit for optimal software performance.
• Form Factor: ATX for standard case compatibility.

Specifications:

• Socket: 1200
• Chipset: Intel® B560 Chipset
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 2
• PCI-E x1: 1
• SATAIII: 6
• M.2 Slot: 3
• WiFi & Bluetooth: Intel® Wi-Fi 6E AX210
• USB 3.2 Ports (Front): 1 (Gen 2, Type C), 2 (Gen 1, Type A)

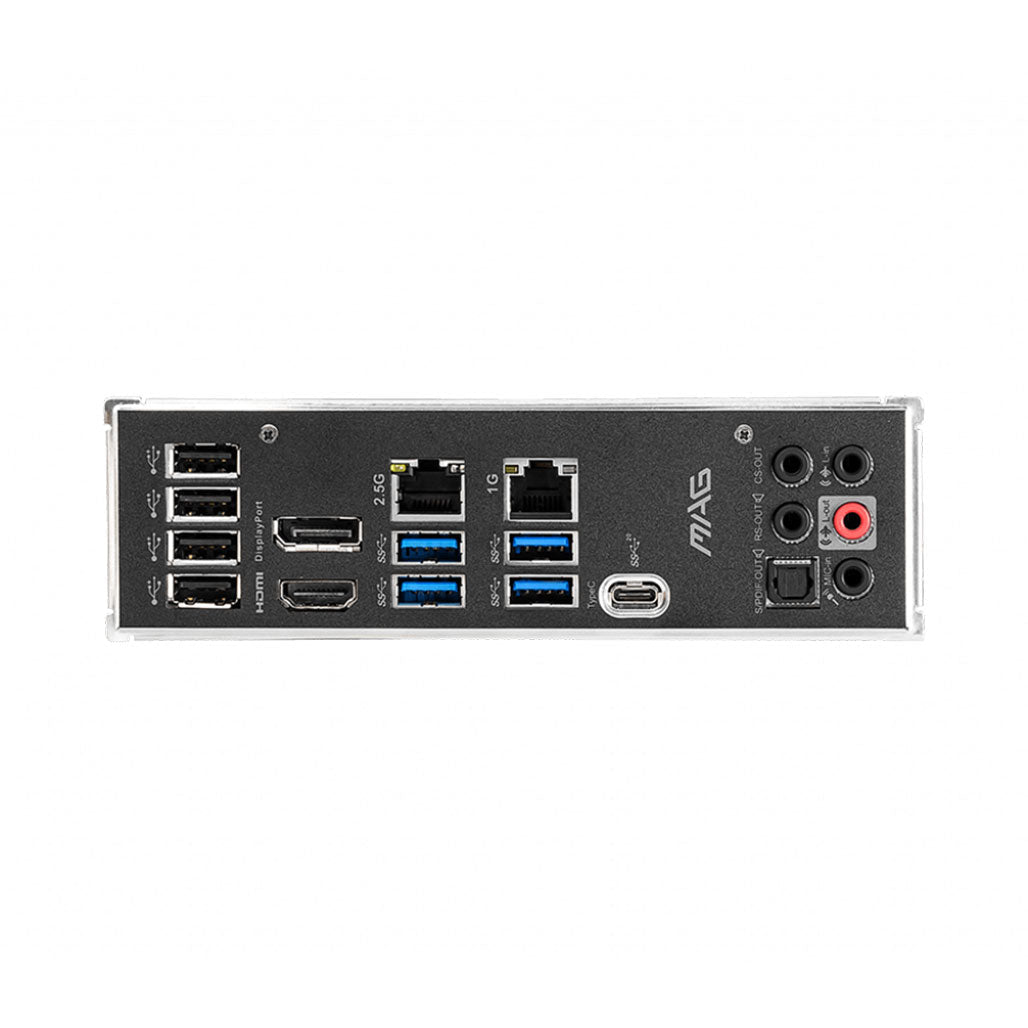

• USB 3.2 Ports (Rear): 1 (Gen 2x2, Type C), 4 (Gen 1, Type A)
• USB 2.0 Ports (Front): 4
• USB 2.0 Ports (Rear): 4
• Audio Ports (Rear): Realtek® ALC897 Codec
• DisplayPort: 1
• HDMI: 1
• Crossfire: Y
• Operating System: Support for Windows® 10 64-bit
• Form Factor: ATX

The MSI MAG B560 TORPEDO motherboard provides a comprehensive solution for high-performance computing. Its advanced features and connectivity options cater to both gaming enthusiasts and professionals seeking a reliable and powerful platform.
