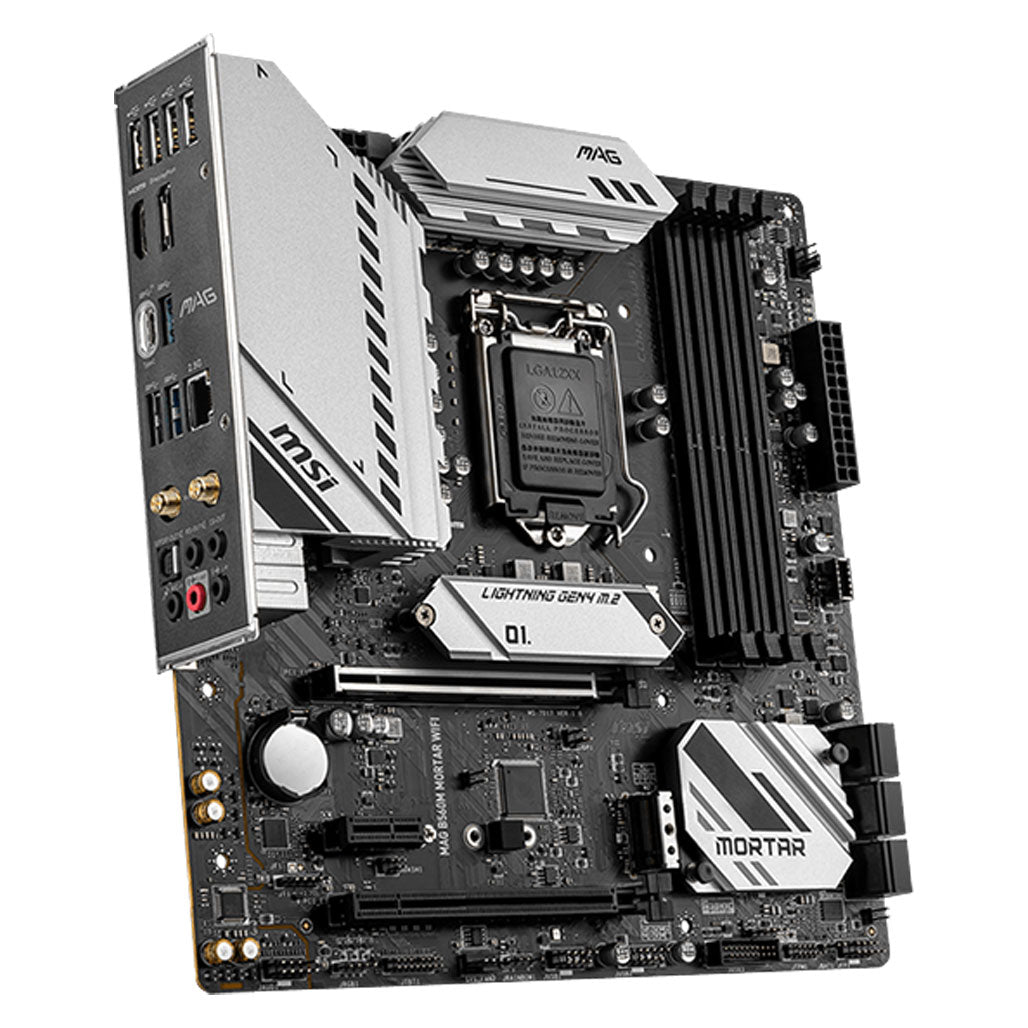

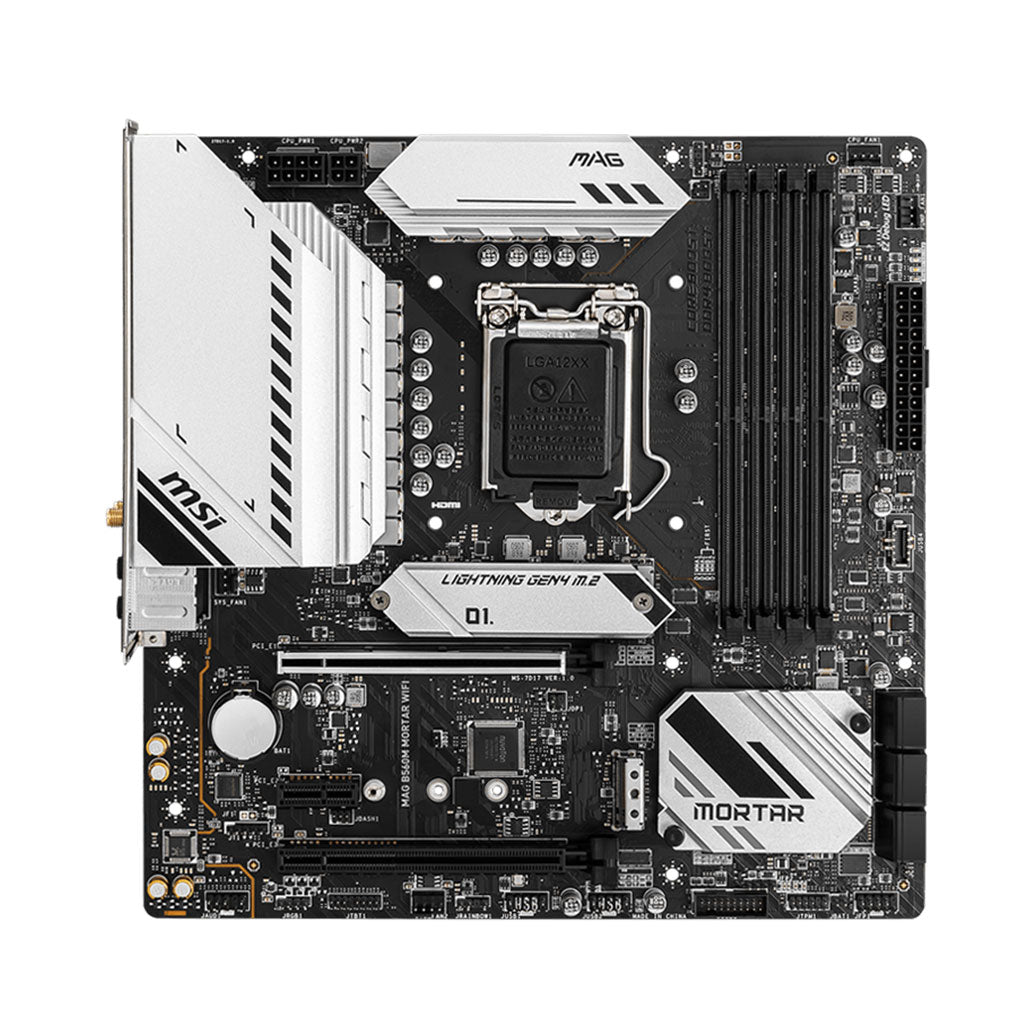

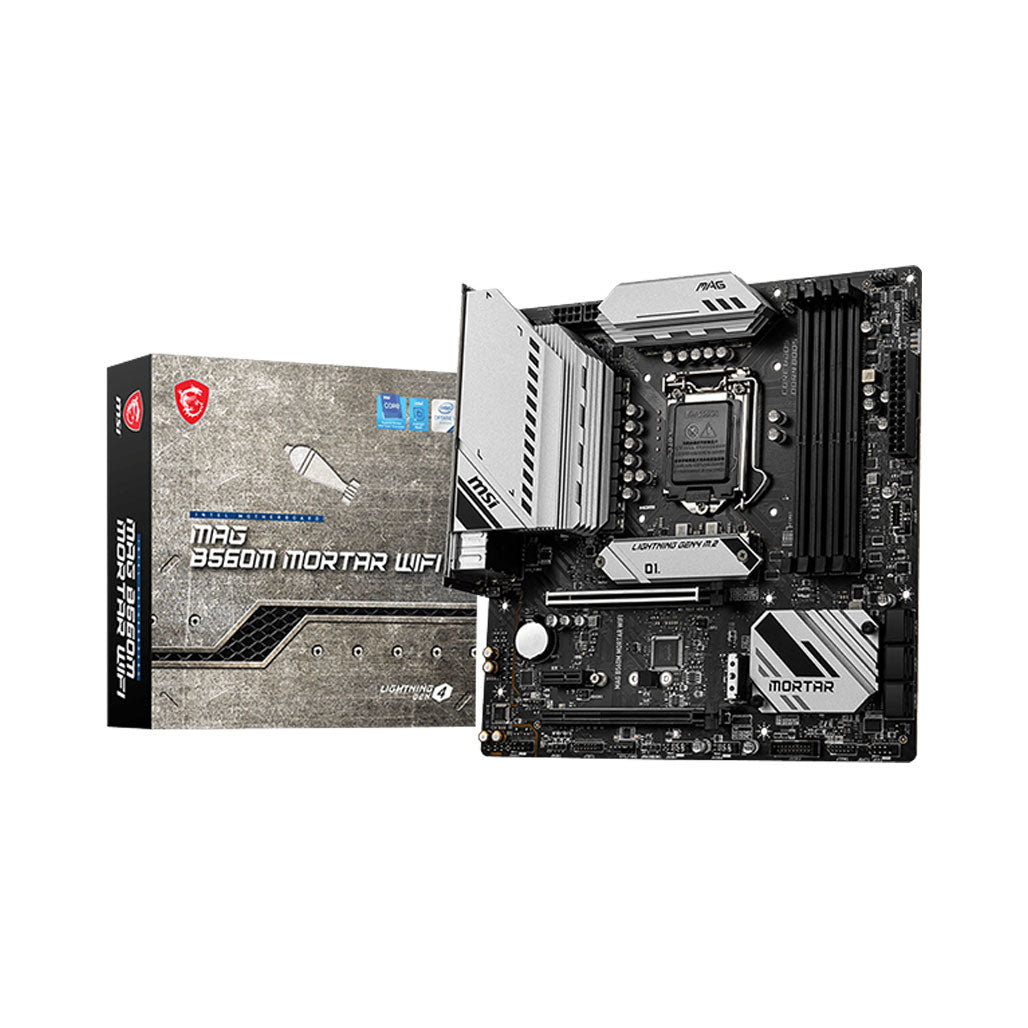

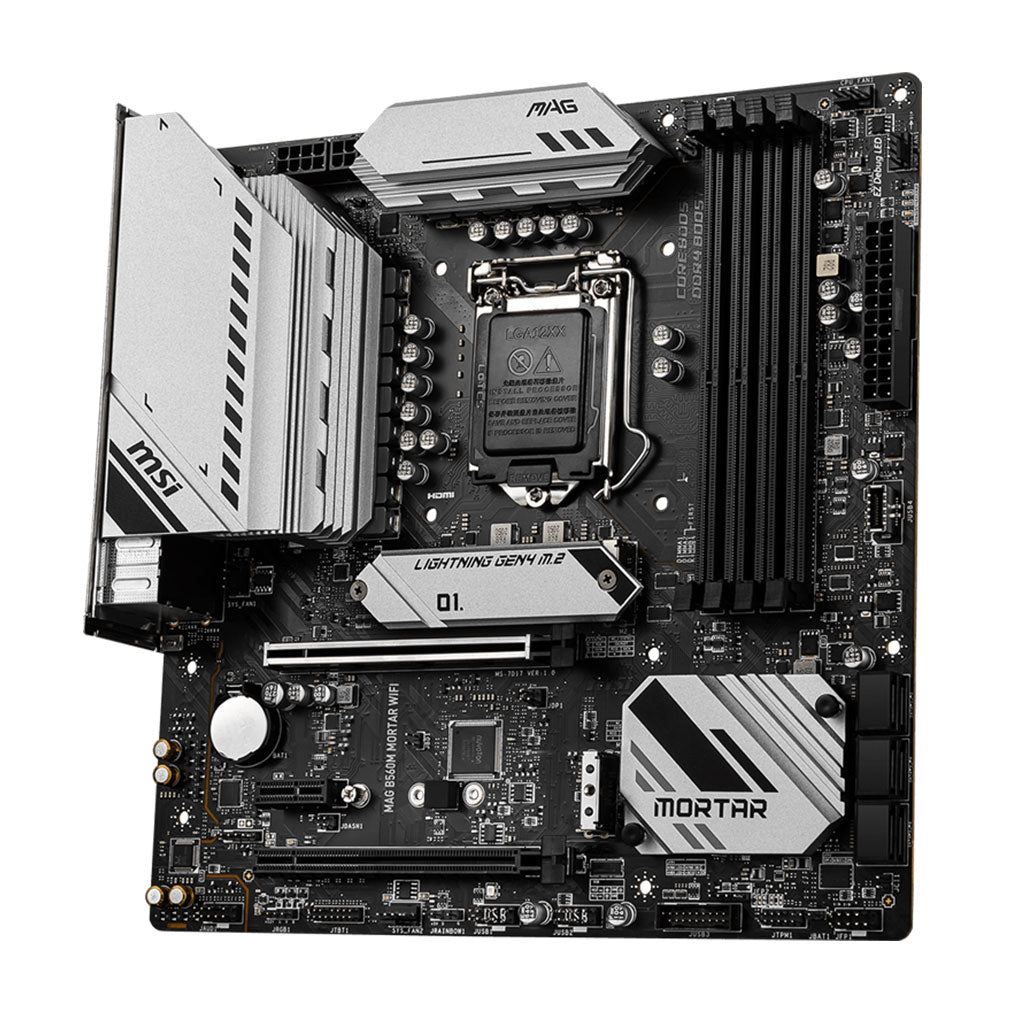

MSI MAG B560M MORTAR WIFI MotherBoard - LGA 1200

CPU MAX SUPPORT

i9

CPU Support

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

CPU Socket

LGA 1200

Chipset

Intel® B560 Chipset

Graphics Interface

• 1x PCIe 4.0 x16 slot
• 1x PCIe 3.0 x16 slot
• Support 2 way AMD® CrossFire™ Technology

Display Interface

HDMI, Displayport – Requires Processor Graphics

Memory Support

4 DIMMs, Dual Channel DDR4-5066(OC)Mhz

Expansion Slots

1x PCIe 3.0 x1 slot

Storage

• 1x M.2 Gen4 x4 slot,1x M.2 Gen3 x4 slots
• 6x SATA 6Gb/s ports

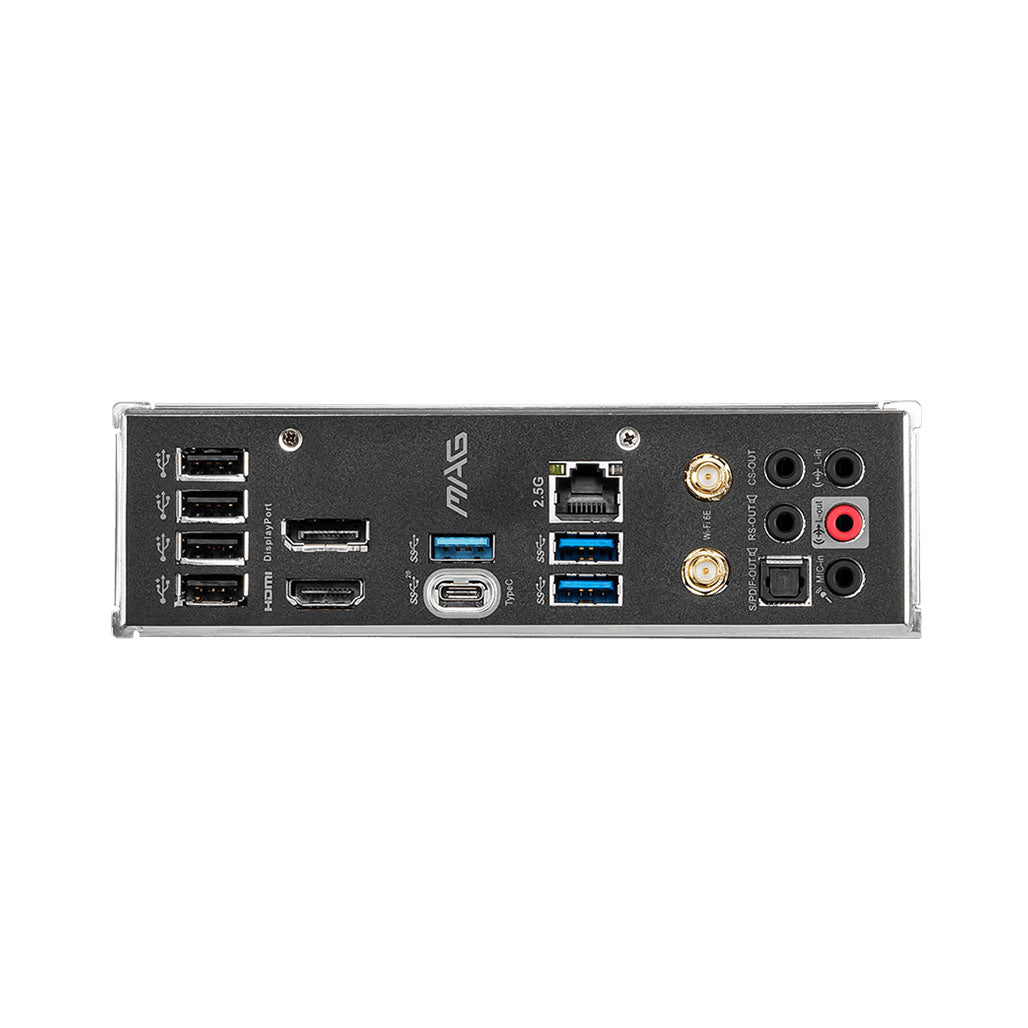

USB ports

• 1x USB3.2 Gen 2x2 20Gbps (Type-C)
• 1x USB 3.2 Gen 2 10Gbps (Type-C)
• 5x USB 3.2 Gen 1 5Gbps (Type-A)
• 8x USB 2.0

LAN

Realtek® 8125B 2.5G LAN

Wi-Fi/Bluetooth

Intel® Wi-Fi 6E AX210, Bluetooth 5.2

Audio

8-Channel (7.1) HD Audio with Audio Boost(ALC897)
