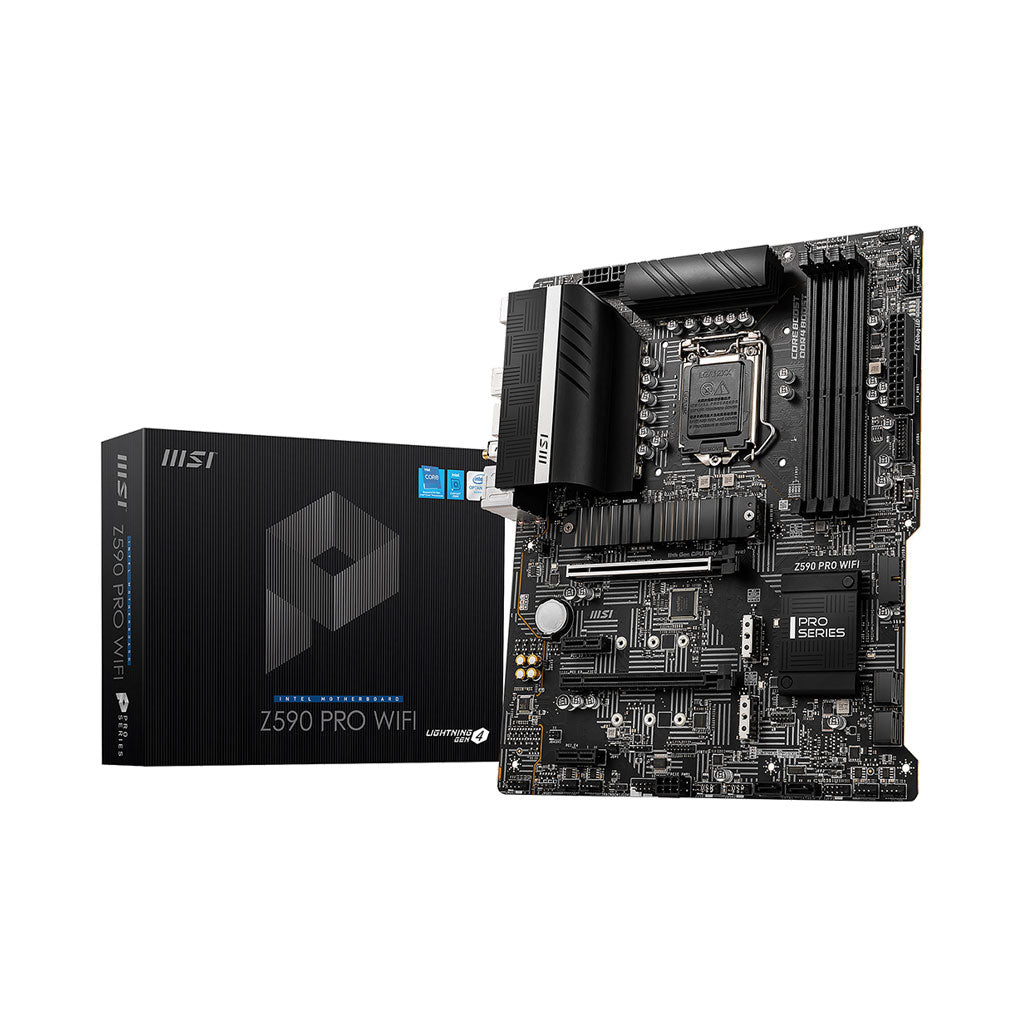

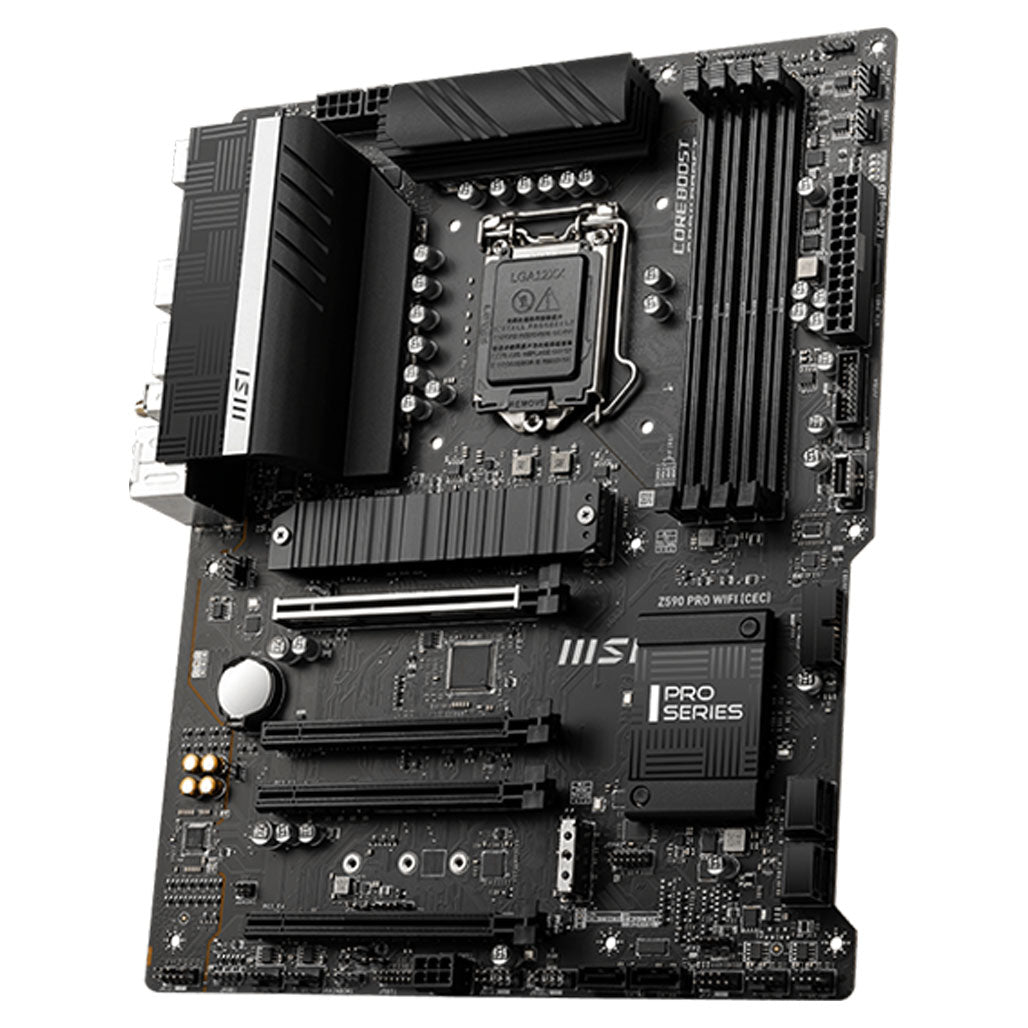

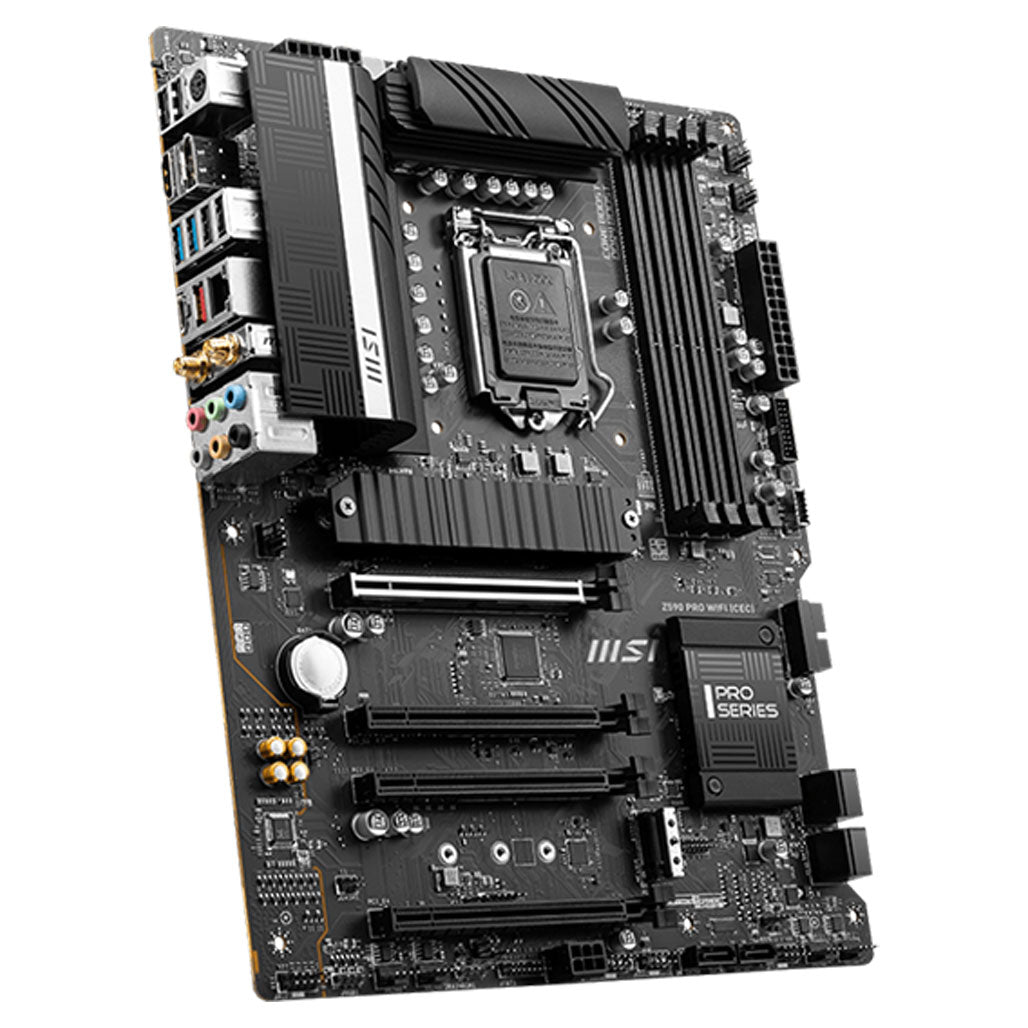

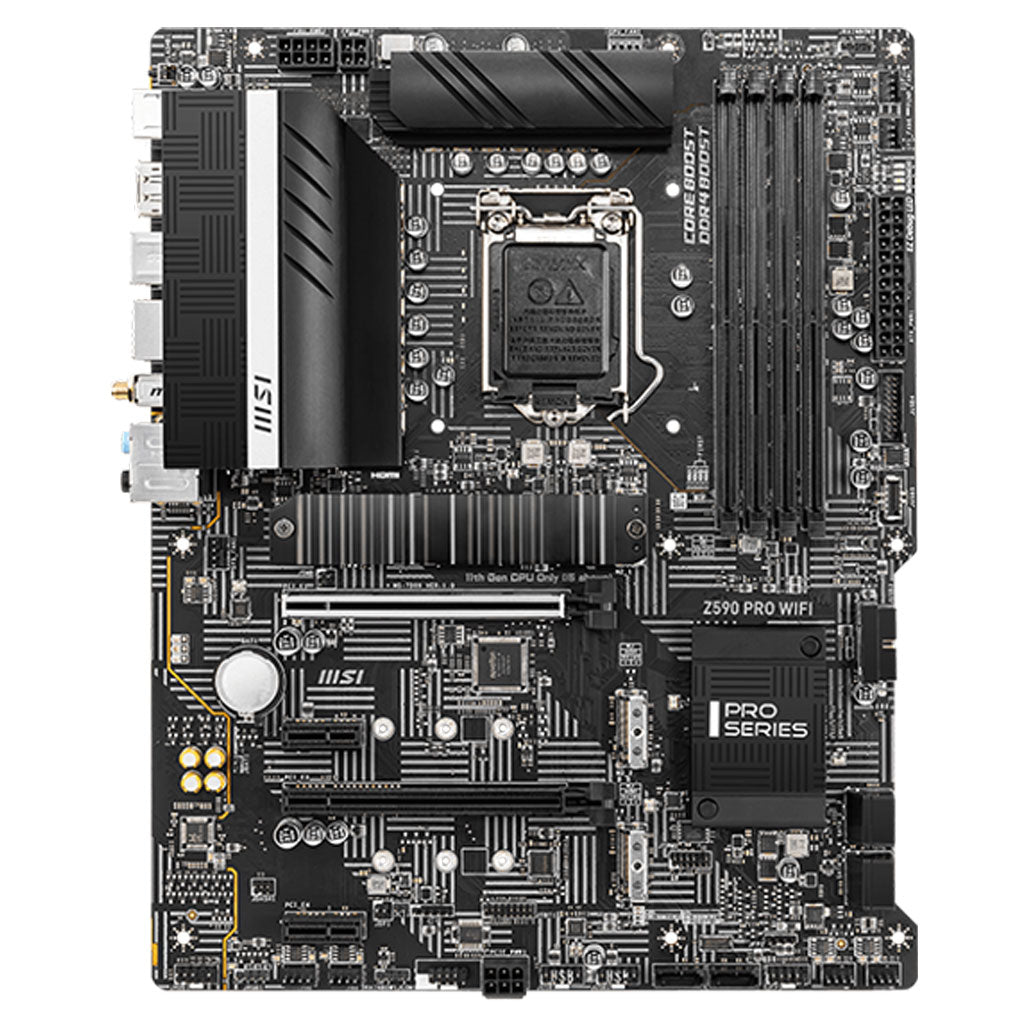

MSI MOTHERBOARD Z590 PRO WIFI - LGA 1200

PROCESSOR

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1200

CHIPSET

Intel^® Z590 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB

EXPANSION SLOT

• 4x PCIe x16 slots

ONBOARD GRAPHICS

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

MULTI-GPU

• Supports 2-Way AMD^® CrossFire^™ Technology

STORAGE

• 6x SATA 6Gb/s ports (from Z590 chipset)
• 2x M.2 slots (Key M)
• M2_1 slot (from CPU)

USB

AUDIO

Realtek^®ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel^® I225-V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH^®

Intel^® Wi-Fi 6E AX210

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.2, FIPS, FISMA

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x 6-pin ATX PCIe power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x Tuning controller connector
• 1x TBT connector (Supports RTD3)

LED FEATURE

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

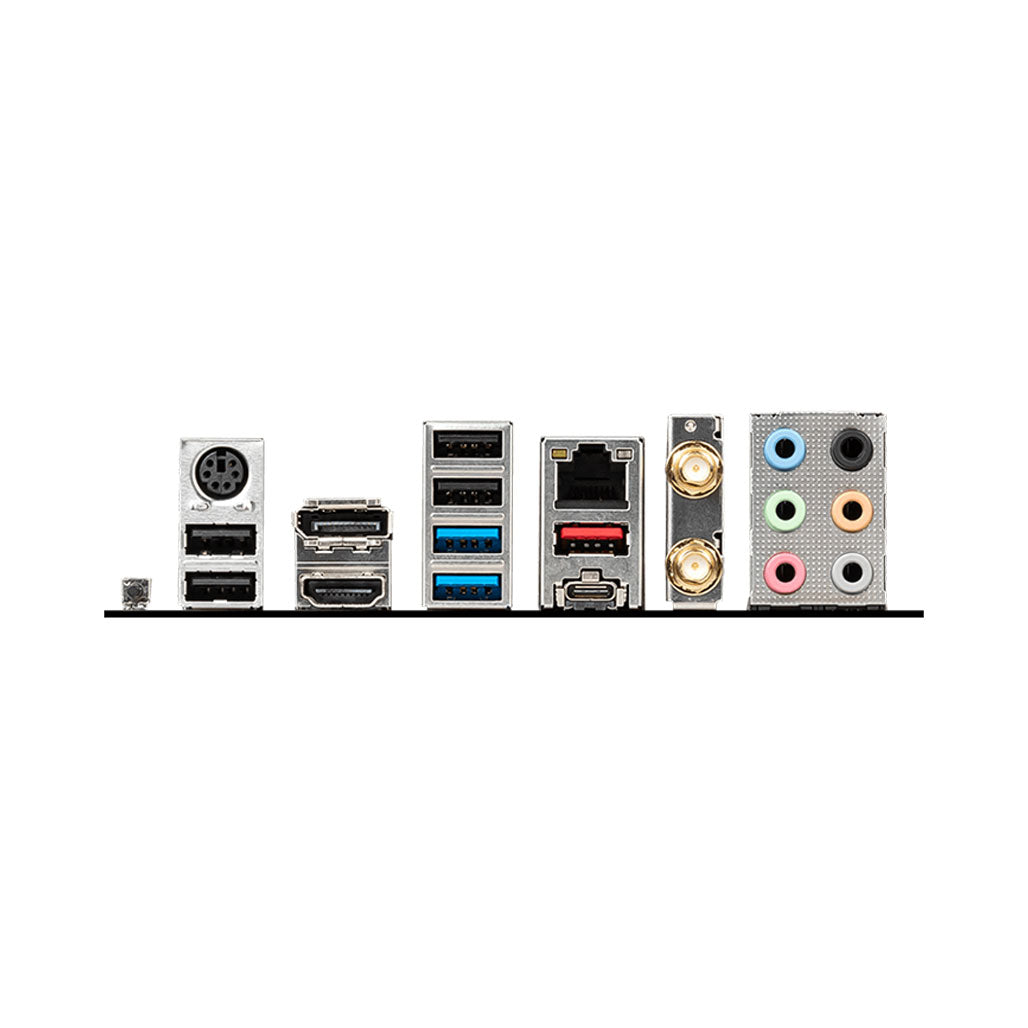

BACK PANEL PORTS

DIMENSIONS

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows^® 10 64-bit
