Synology 4-Bay NAS RackStation RS822RP+ – Compact, Reliable Edge Storage Solution

The Synology RS822RP+ is a compact 1U 4-bay NAS RackStation designed to meet the storage needs of branch offices and small to medium-sized businesses. Featuring the advanced Synology DiskStation Manager (DSM) operating system, this unit offers a powerful edge storage solution with extensive connectivity and scalability. Ideal for managing file storage, backups, and surveillance data, the RS822RP+ provides reliable performance and the flexibility to adapt to various operational demands.

With four Gigabit RJ-45 ports, the RS822RP+ supports Link Aggregation for automatic network failover and load balancing. This ensures uninterrupted network connectivity and optimized data transfer speeds. The unit can be paired with another RS822RP+ using Synology High Availability to form a resilient active/passive server cluster, enhancing service uptime and reliability. The inclusion of a redundant power supply further supports continuous operation, making it a dependable choice for critical applications.

Key Features

• Scalable Storage Solutions: Expandable from 4 to 8 drive bays using the RX418 expansion unit, accommodating growing data needs.
• Enhanced Performance: NVMe or SATA SSD Cache can boost read/write IOPS by up to 16 times compared to HDD-only arrays.
• Robust Connectivity: Four 1GbE RJ-45 ports with Link Aggregation for failover and load balancing; 10/25GbE readiness for high-speed networking.
• High Availability: Redundant power supply in RS822RP+ for uninterrupted service and Synology High Availability for an active/passive server cluster setup.
• Versatile Data Management: Supports various applications including file management, data backup, and surveillance with Synology Drive and Hybrid Share integration.
• Advanced Backup Options: Features Hyper Backup for comprehensive data protection and Snapshot Replication for point-in-time snapshots with quick recovery.
• Efficient Surveillance: Supports up to 40 IP cameras with wide compatibility, live streaming, and advanced video analytics for security and monitoring.

Specifications

Hardware Specifications

• CPU:
  • Model: AMD Ryzen V1500B
  • Quantity: 1
  • Architecture: 64-bit
  • Frequency: 4-core 2.2 GHz
  • Hardware Encryption Engine (AES-NI): Yes
• Memory:
  • System Memory: 2 GB DDR4 ECC SODIMM
  • Memory Module Pre-installed: 2 GB (2 GB x 1)
  • Total Memory Slots: 2
  • Maximum Memory Capacity: 32 GB (16 GB x 2)
  • Notes: Compatibility and stability verified with Synology memory modules; warranty and technical support are provided only with Synology memory.
• Storage:
  • Drive Bays: 4
  • Maximum Drive Bays with Expansion Unit: 8 (RX418 x 1)
  • Compatible Drive Types: 3.5" SATA HDD, 2.5" SATA SSD
  • Hot Swappable Drive: Yes

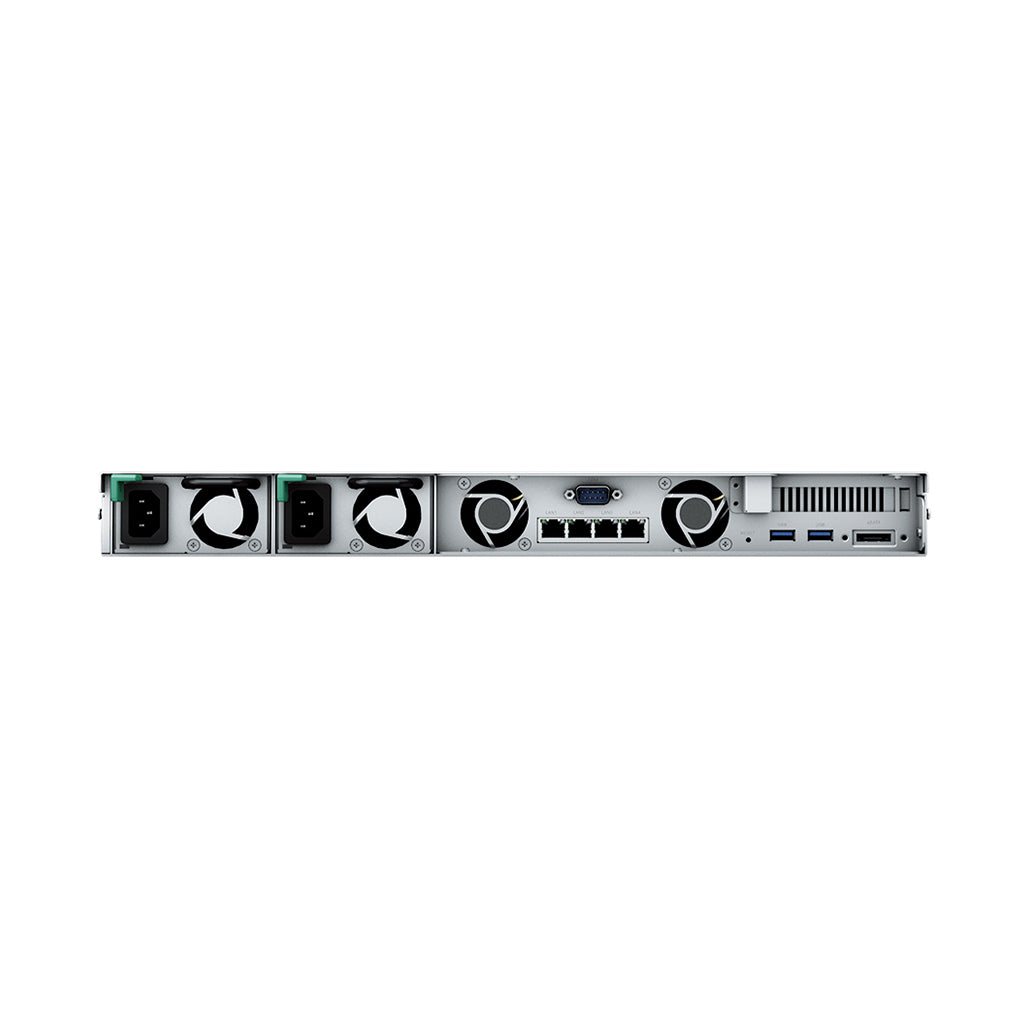

• External Ports:
  • RJ-45 1GbE LAN Ports: 4 (with Link Aggregation / Failover support)
  • USB 3.2 Gen 1 Ports: 2
  • eSATA Port: 1
• PCIe:
  • Expansion Slot: 1 x Gen3 x8 slot (x4 link)
• Appearance:
  • Form Factor (RU): 1U
  • Size (Height x Width x Depth): RS822+: 44 mm x 480 mm x 492.6 mm; RS822RP+: 44 mm x 480 mm x 518.6 mm
  • Weight: RS822+: 6.4 kg; RS822RP+: 8.0 kg
  • Rack Installation Support: 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
• Others:
  • System Fan: RS822+: 40 mm x 40 mm x 3 pcs; RS822RP+: 40 mm x 40 mm x 2 pcs
  • Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
  • Power Recovery: Yes
  • Noise Level: RS822+: 27.4 dB(A); RS822RP+: 38.8 dB(A)
  • Scheduled Power On / Off: Yes
  • Wake on LAN / WAN: Yes
  • Power Supply Unit / Adapter: 150 W
  • Redundant Power Supply: RS822RP+ only
  • AC Input Power Voltage: 100 V to 240 V AC
  • Power Frequency: 50/60 Hz, Single Phase
  • Power Consumption: 47.69 W (Access); 16.7 W (HDD Hibernation)
  • British Thermal Unit: 162.83 BTU/hr (Access); 57.02 BTU/hr (HDD Hibernation)
  • Operating Temperature: 0°C to 35°C (32°F to 95°F)
  • Storage Temperature: -20°C to 60°C (-5°F to 140°F)
  • Relative Humidity: 5% to 95% RH
  • Certification: FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL
  • Warranty: 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
  • Environment: RoHS Compliant
  • Packaging Content: RS822+: Main Unit X 1, Accessory Pack X 1, AC Power Cord X 1, Quick Installation Guide X 1; RS822RP+: Main Unit X 1, Accessory Pack X 1, AC Power Cord X 2, Quick Installation Guide X 1
  • Optional Accessories: DDR4 ECC SODIMM, Expansion Units, Enterprise and Plus Series HDDs, M.2 SSD & 10GbE Combo Adapter Card, M.2 SSD Adapter Card, 25GbE and 10GbE Network Interface Cards, Rail Kit Sliding and Mounted

Software Specifications

• DSM Specifications:
  • Storage Management: Maximum Single Volume Size: 108 TB; Maximum Internal Volume Number: 64; SSD Read / Write Cache: Yes; SSD TRIM: Yes
  • Supported RAID Types: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
  • RAID Migration: Supports migration between Basic, RAID 1, RAID 5, RAID 6
  • Volume Expansion: Supports expansion with larger HDDs or by adding an HDD
  • Global Hot Spare Supported RAID Types: Synology Hybrid RAID, RAID 1, RAID 5, RAID 6, RAID 10
  • File System: Internal Drives: Btrfs, ext4; External Drives: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT
  • File Services: Protocols Supported: SMB, AFP, NFS, FTP, WebDAV, Rsync; Maximum Concurrent Connections: 500 (2,000 with RAM expansion)
  • Account & Shared Folder: Maximum Local User Accounts: 2,048; Maximum Local Groups: 256; Maximum Shared Folder: 512; Maximum Shared Folder Sync Tasks: 16
  • Hybrid Share: Hybrid Share Folder Number: 10
  • Hyper Backup: Folder and Package Backup, Entire System Backup
  • High Availability: Synology High Availability: Yes
  • Log Center: Syslog Events per Second: 800
  • Virtualization: VMware ESXi 6.5 and VAAI, Windows Server 2016 and 2022, Citrix Ready, OpenStack
  • General Specifications: Supported Protocols include SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV; Supported Browsers: Chrome, Firefox, Edge, Safari; Supported Languages: Multiple languages including English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
  • Add-on Packages: Antivirus by McAfee (Trial), Central Management System, Synology Chat, Download Station, SAN Manager, Synology MailPlus / MailPlus Server

Conclusion

The Synology RS822RP+ 4-bay NAS RackStation delivers a compact and efficient edge storage solution with impressive scalability and reliability. Its robust feature set, including advanced data management capabilities and high availability options, makes it a valuable asset for businesses seeking to enhance their data handling and backup strategies. Whether for file management, surveillance, or collaborative work, the RS822RP+ stands out as a reliable and adaptable network storage solution.
