Synology RS1221RP+ 8-Bay NAS RackStation – High Performance, Reliable Storage Solution for Businesses

The Synology RS1221RP+ 8-Bay NAS RackStation offers exceptional performance and reliability for demanding data environments. With its compact design measuring just 30 centimeters in depth, the RS1221RP+ is an ideal choice for space-constrained deployments. This NAS unit is engineered to handle intensive workloads, providing over 100,000 4K random read IOPS and up to 2,315 MB/s sequential read speeds. Designed with redundancy and service continuity in mind, it ensures minimal disruption with its robust features.

The RS1221RP+ maximizes efficiency with its ability to support SSD caching, significantly improving read/write operations. It also supports extensive storage expansion capabilities, allowing for up to 12 drive bays when paired with the RX418 expansion unit. Equipped with high-performance components, including an AMD Ryzen V1500B processor, 4 GB DDR4 ECC memory (expandable up to 32 GB), and various external ports for versatile connectivity options, it ensures reliable data protection. Data integrity is reinforced with built-in Hyper Backup and Snapshot Replication features, while Synology High Availability ensures automatic failover to minimize downtime. The Synology RS1221RP+ stands out as a reliable, high-performance storage solution designed to grow with your business needs.

Key Features:

• High Performance: The RS1221RP+ delivers outstanding performance with over 100,000 4K random read IOPS and up to 2,315 MB/s sequential read speeds, making it well-suited for demanding workloads.
• Compact Design: At 30 cm in depth, the RS1221RP+ is designed to fit snugly into space-sensitive 2-post or shallow rackmount enclosures, optimizing space without compromising performance.
• Data Protection: Equipped with ECC memory and the Btrfs file system, the NAS enhances data integrity and protection against corruption. Built-in Hyper Backup and Snapshot Replication ensure comprehensive data safeguarding.
• Scalability: The NAS supports expansion up to 12 drive bays with the RX418 unit, allowing for increased storage capacity as needs grow.
• SSD Cache: SSD caching capabilities are available to boost performance, with support for NVMe or SATA SSDs to enhance read/write operations.
• 10GbE Ready: The RS1221RP+ is prepared for faster networking with 10GbE options, improving overall I/O performance.
• Versatile Connectivity: It includes various ports such as RJ-45 1GbE LAN, USB 3.2 Gen 1, and PCIe expansion for added flexibility in network and peripheral connections.

Specifications:

• CPU Model: AMD Ryzen V1500B
• CPU Quantity: 1
• CPU Architecture: 64-bit
• CPU Frequency: 4-core 2.2 GHz
• Hardware Encryption Engine: Yes (AES-NI)
• System Memory: 4 GB DDR4 ECC SODIMM
• Memory Module Pre-installed: 4 GB (4 GB x 1)
• Total Memory Slots: 2
• Maximum Memory Capacity: 32 GB (16 GB x 2)
• Drive Bays: 8
• Maximum Drive Bays with Expansion Unit: 12 (RX418 x 1)
• Compatible Drive Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• Hot Swappable Drive: Yes

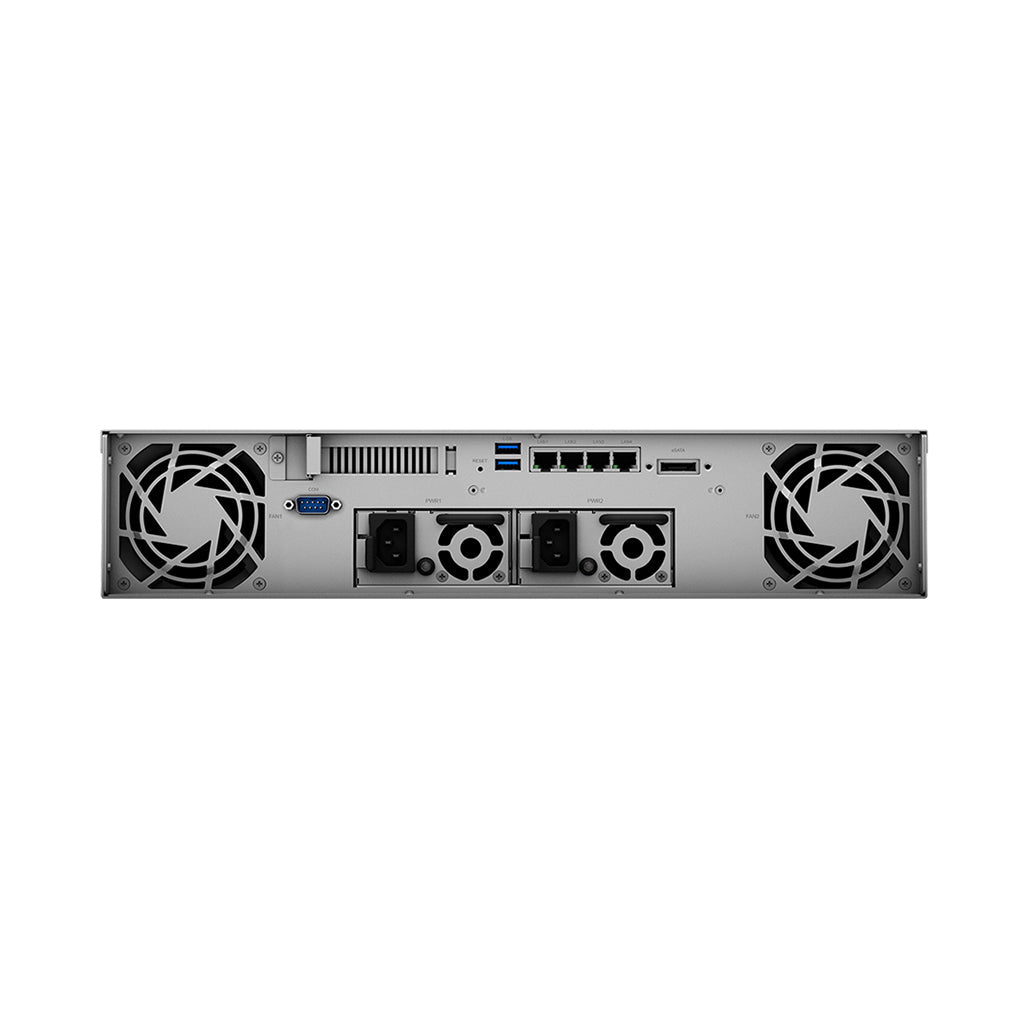

• External Ports: 4 x RJ-45 1GbE LAN Port, 2 x USB 3.2 Gen 1 Port, 1 x eSATA Port
• PCIe Expansion: 1 x Gen3 x8 slot (x4 link)
• Form Factor (RU): 2U
• Size (Height x Width x Depth): 88 mm x 482 mm x 306.6 mm
• Weight: 6.9 kg
• System Fan: 80 mm x 80 mm x 2 pcs
• Power Supply Unit: 250 W
• AC Input Power Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 49.89 W (Access), 22.64 W (HDD Hibernation)
• Temperature Operating Range: 0°C to 35°C (32°F to 95°F)
• Storage Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative Humidity: 5% to 95% RH
• Warranty: 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus

Conclusion: The Synology RS1221RP+ NAS RackStation provides a compact yet powerful solution for businesses seeking high performance and reliable data storage. Its advanced features, including high-speed SSD caching, scalable storage options, and robust data protection mechanisms, make it a valuable addition to any IT infrastructure. Designed with efficiency and reliability in mind, the RS1221RP+ meets the demands of modern data environments, ensuring seamless performance and protection for your critical data.
