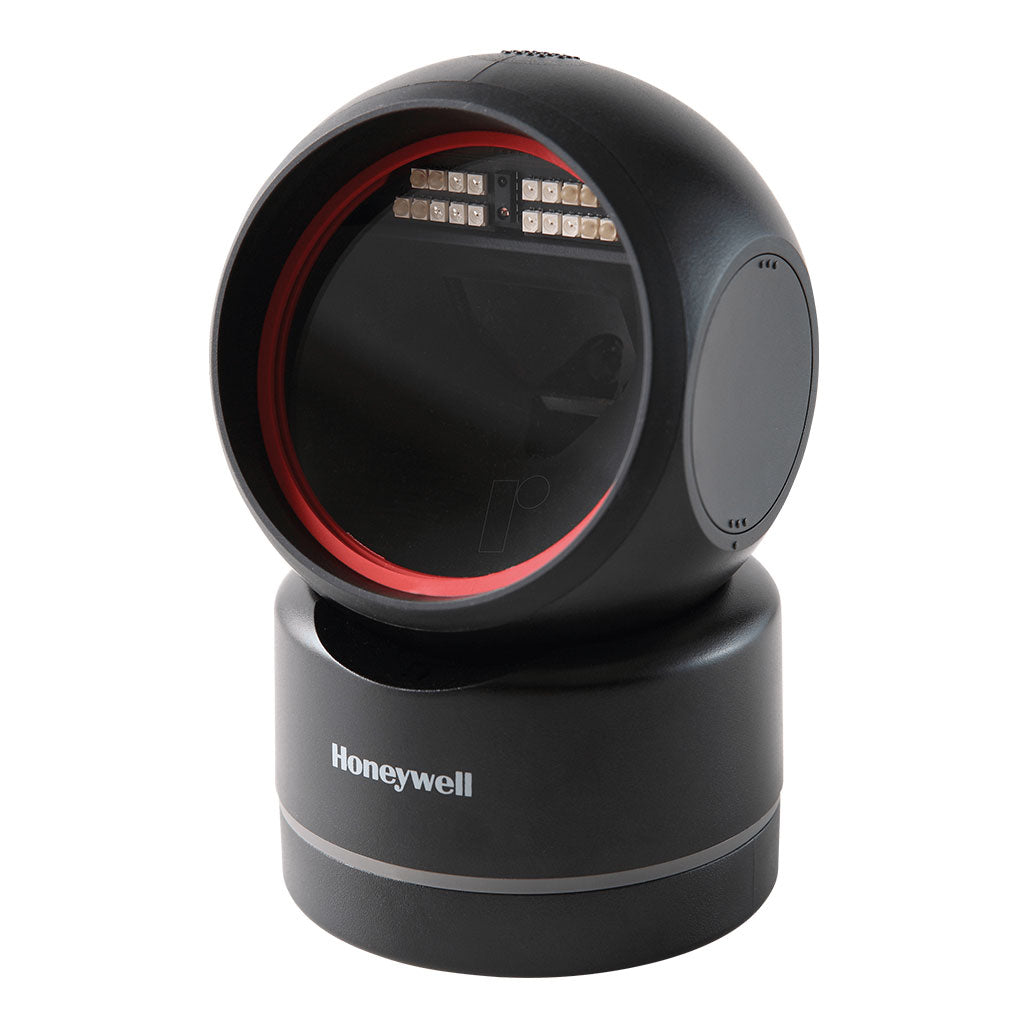

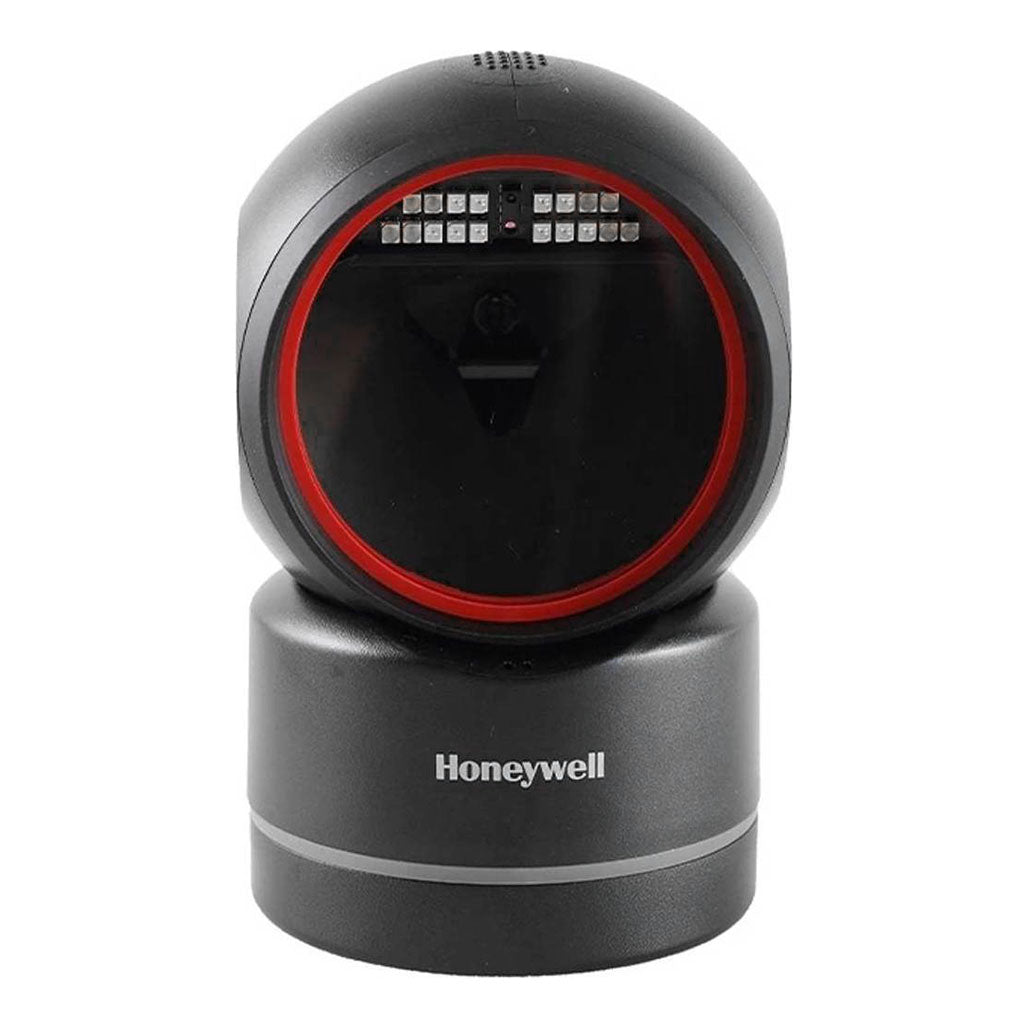

Honeywell Orbit HF680 2D Hands-Free Area-Imaging Scanner - Fast, Reliable, Modern Design

The Honeywell Orbit HF680 is an exceptional hands-free point-of-sale (POS) scanner, designed to offer a seamless blend of affordability, high performance, and contemporary style. Ideal for busy retail environments, this scanner allows for rapid and efficient scanning of both 1D and 2D barcodes, including difficult-to-read and damaged barcodes. The Orbit HF680 is engineered to minimize checkout delays, ensuring a smooth and efficient transaction process for customers.

Featuring a Megapixel sensor and a 1 GHz processor, the Orbit HF680 delivers quick and accurate scans, even with digital or damaged barcodes. Its modern, low-profile design is complemented by recessed LED lights that illuminate barcodes without causing discomfort to customers. The scanner’s lighting automatically turns off when not in use, enhancing the overall user experience while maintaining energy efficiency. With easy integration through Honeywell’s EZConfig utility and compatibility with OPOS/JPOS drivers, the Orbit HF680 simplifies setup and ensures broad compatibility with various POS systems.

Key Features:

• Faster Scanning: Equipped with a Megapixel sensor and 1 GHz processor, enabling rapid scanning of 1D and 2D barcodes, including digital and damaged barcodes.
• Simplified Integration: Easily configure and integrate the scanner with Honeywell’s EZConfig utility and OPOS/JPOS drivers, ensuring compatibility with multiple POS systems.
• Modern Design: Features a sleek, low-profile design with recessed LED lights that provide barcode illumination without irritating customers.
• Affordable Performance: Offers high performance and modern aesthetics at a competitive price, making it a cost-effective solution for retail environments.

Specifications:

• Form Factor: Hands-Free
• Dimensions:
  • Overall Height: 139 mm
  • Overall Width: 88 mm
  • Overall Depth: 85 mm
  • Weight: 278 ±10 g
• Scanning Specifications:
  • Scanning Range: Standard range (SR)
  • Pitch: ±60°
  • Maximum Brightness: 100,000 Lux
  • Motion Tolerance: 2.5 m/s for 13 mil UPC
  • Decode Capability: 1D/2D
  • Skew: ±70°
  • Scan Pattern: 1280 × 800 pixel
  • Print Contrast: 20%
• Hardware:
  • Host System Interface: USB/RS232
  • Engine Type: Standard Range
• Electrical:
  • Standby Current: 0.85 W (170 mA @ 5V)
  • Operating Current: 2.0 W (400 mA @ 5V)
  • Input Voltage: 5 VDC ±0.5V
• Environmental:
  • Storage Temperature Range: -40°C to 60°C (-40°F to 140°F)
  • Operating Humidity: 0% to 95% RH, no condensation
  • Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Power Connector Type: Corded

The Honeywell Orbit HF680 2D Hands-Free Scanner stands out for its efficient and modern design, offering a high level of performance and affordability. It is a valuable addition to any retail setup, ensuring swift and accurate barcode scanning while enhancing the customer experience at checkout.
