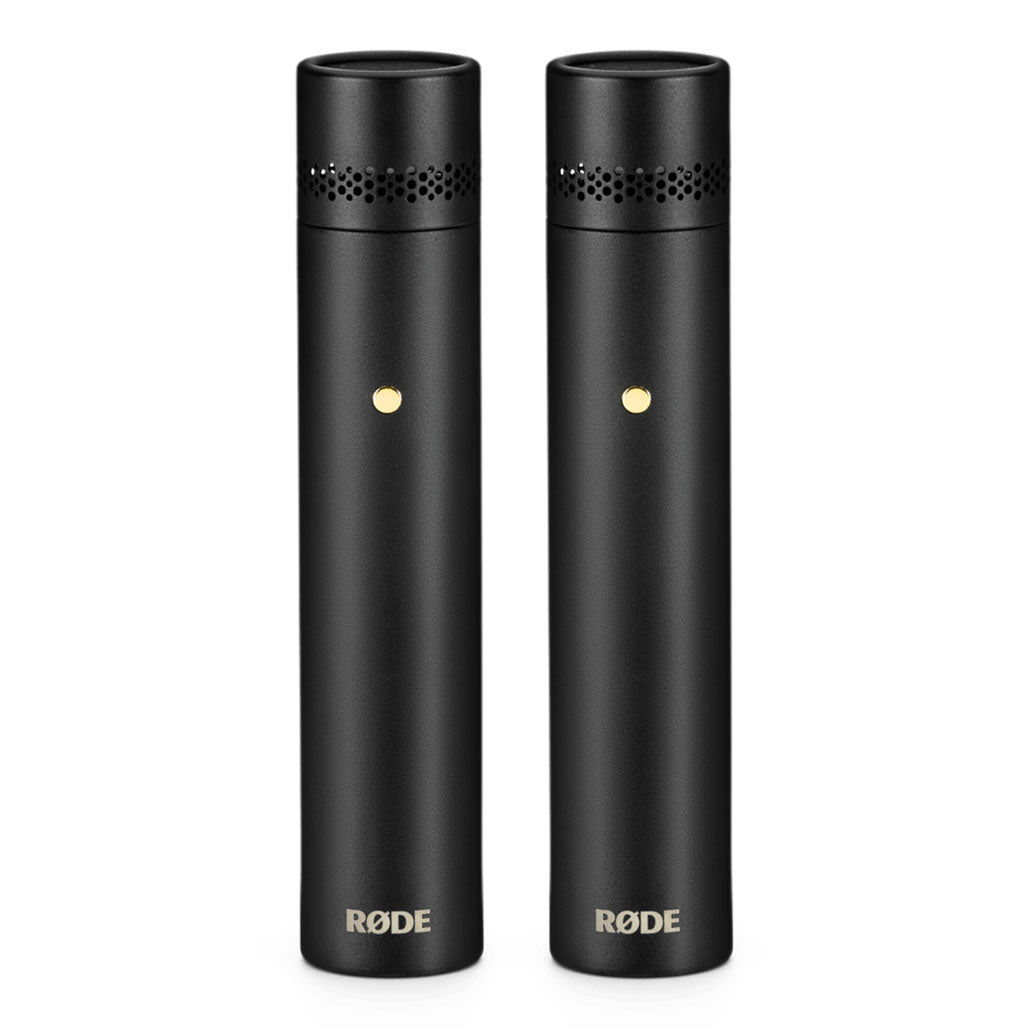

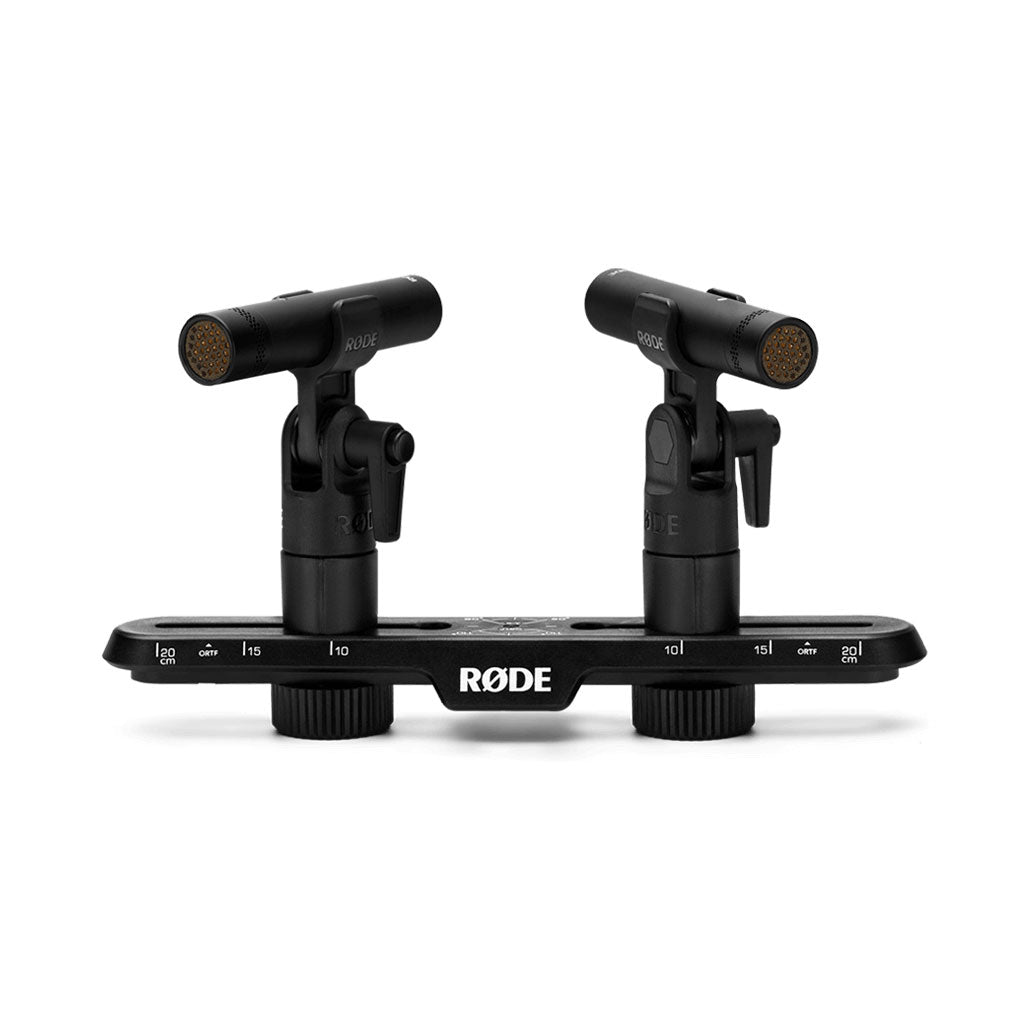

Rode TF-5 Premium Small-Diaphragm Condenser Cardioid Microphones – Matched Pair with Stereo Bar

The Rode TF-5 sets a new benchmark for small-diaphragm condenser microphones, offering a blend of exceptional clarity and a warm, natural sound. Designed to deliver world-class audio quality, the TF-5 provides outstanding accuracy and detail, making it ideal for a wide range of applications from intricate stereo orchestral recordings to capturing the subtle nuances of individual performances.

Sold as a precision-matched pair, the TF-5 is a versatile tool for professional audio recording. Its ultra-low noise floor, flat frequency response, and tight cardioid polar pattern ensure a detailed and immersive sound experience. The microphones have been developed in collaboration with Grammy® award-winning classical producer and engineer, Tony Faulkner, guaranteeing high-quality performance in any recording setting. The included accessories, such as the RØDE Stereo Bar, mic clips, and windshields, enhance the TF-5’s usability and convenience for stereo recording setups.

Key Features:

• Precision-Matched Pair: Consists of two small-diaphragm cardioid condenser microphones for accurate stereo imaging.
• Ultra-Low Noise: Provides a flat frequency response with minimal self-noise.
• Cardioid Polar Pattern: Ensures focused sound capture with excellent off-axis rejection.
• Warm, Detailed Sound: Delivers a natural and clear audio quality.
• Collaborative Design: Developed with Grammy® award-winning engineer Tony Faulkner for superior performance.

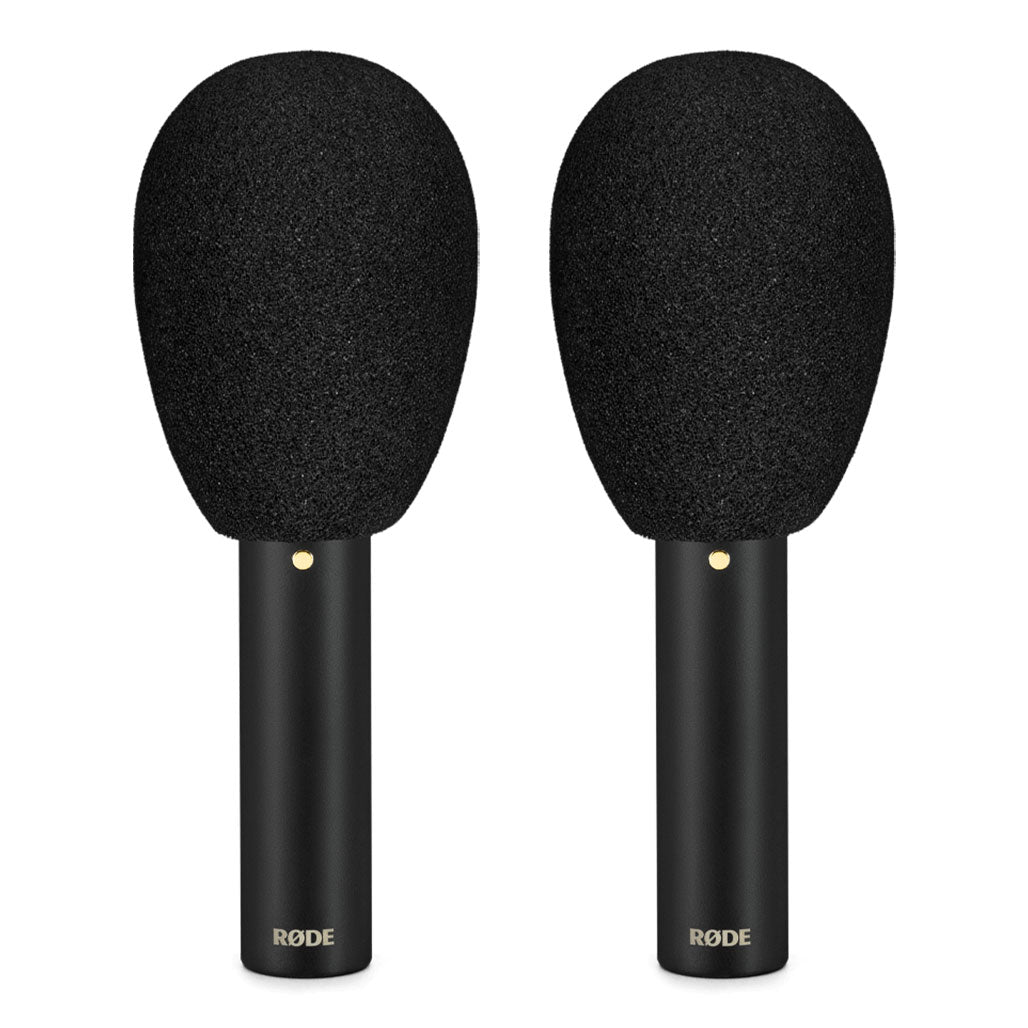

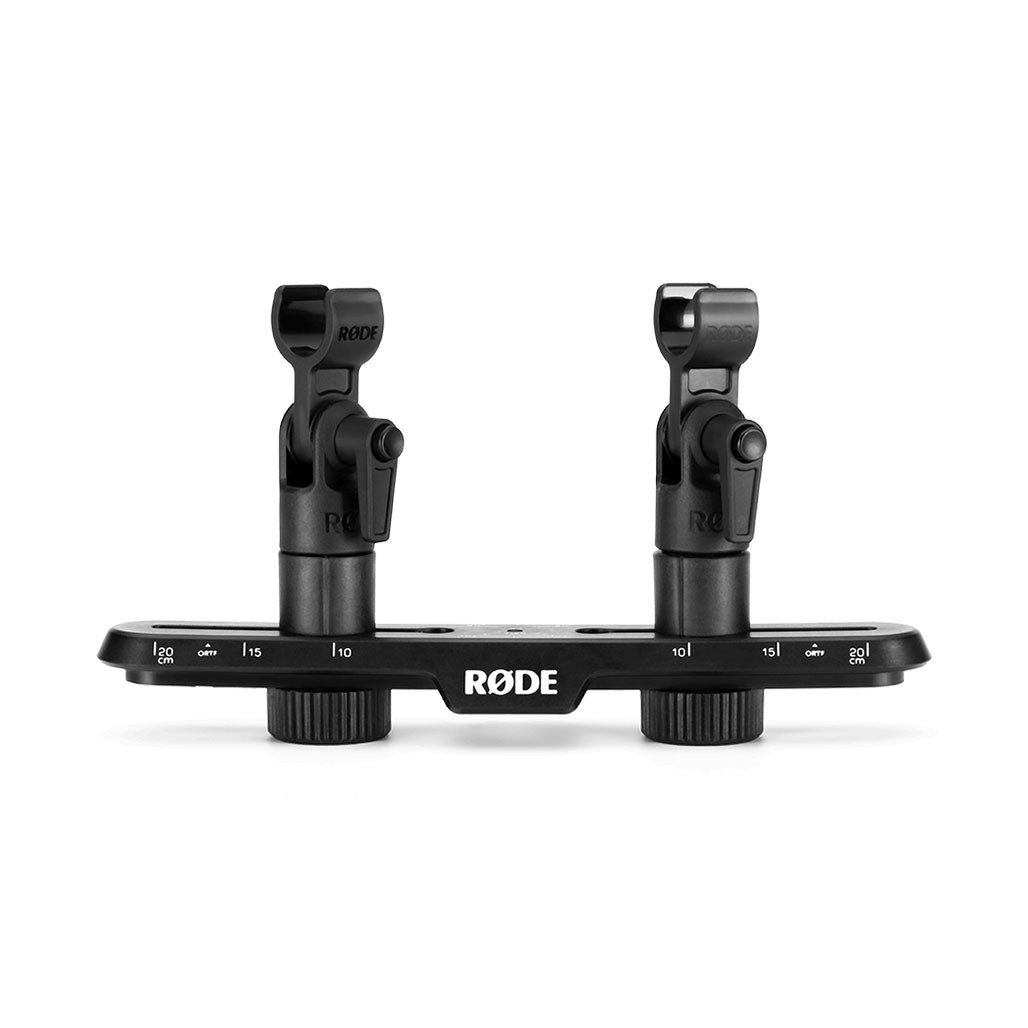

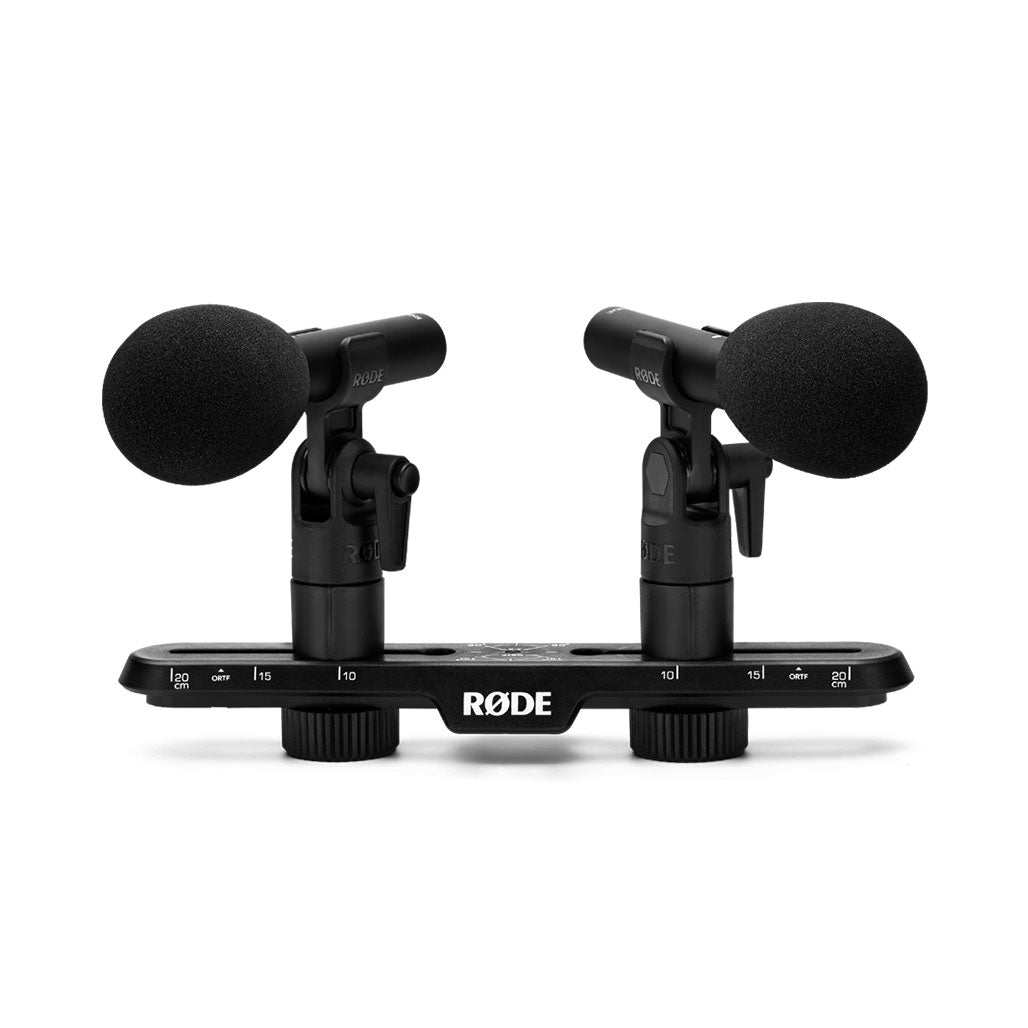

• Complete Stereo Kit: Includes RØDE Stereo Bar, mic clips, windshields, and a 3/8" to 5/8" adaptor for versatile recording options.

Specifications:

• Acoustic & Electrical Specifications:

  • Acoustic Principle: Externally biased condenser
  • Active Electronics: JFET impedance converter with bipolar output buffer
  • Polar Pattern: Cardioid
  • Frequency Range: 20Hz - 20kHz
  • Frequency Response: 30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB
  • Output Impedance: 63Ω
  • Signal to Noise Ratio: 80 dB
  • Equivalent Noise: 14 dB SPL (A-weighted, as per IEC651)
  • Input SPL @ 1% THD: 135 dB SPL (1kHz @ 1% THD, 600Ω load)
  • Sensitivity: -29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz)
  • Dynamic Range: 112.6 dB (1kHz @ Max SPL)
  • Power Requirements: 7mA @ 48V phantom power

• Mechanical Specifications:

  • Weight: 114g (per microphone)
  • Dimensions: Length: 98.7mm, Diameter: 20mm

Conclusion:

The Rode TF-5 represents an exceptional choice for professional audio recording, offering a combination of precision, warmth, and detail. This matched pair of small-diaphragm cardioid microphones, complete with a comprehensive stereo recording kit, is designed to meet the demands of high-quality audio capture in various settings. With its advanced features and robust construction, the TF-5 ensures reliable performance and superior sound quality for both studio and field recordings.
