Pioneer DM-40D-BT - 4-Inch Desktop Monitor System with Bluetooth® Connectivity

The Pioneer DM-40D-BT desktop monitors combine powerful sound quality with modern Bluetooth® convenience, making them an excellent choice for both DJing and music production. Featuring advanced Class D amplification and a robust 4-inch woofer, these monitors deliver punchy bass and clear high frequencies. The intuitive switch between DJ and Production modes ensures that the DSP settings are optimized for various audio applications, enhancing your listening or mixing experience.

Designed with cutting-edge audio technology, the DM-40D-BT speakers feature updated DECO convex diffusers that provide expansive 3D stereo sound and a wide sweet spot. The speakers’ precise time alignment and grooved ducts contribute to tight, distortion-free bass, while the Class D amplifier ensures efficient power delivery. With Bluetooth® functionality, users can effortlessly stream high-quality audio from their devices, adding convenience to professional setups and home use.

Key Features

• Class D Amplifier: Each monitor includes a Class D amplifier with 96kHz sampling DSP, ensuring balanced and powerful bass reproduction. This technology supports clear sound even at high volumes, without introducing distortion.

• DECO Convex Diffusers: The advanced DECO convex diffusers enhance high-frequency dispersion, delivering crystal-clear sound throughout the room. This design feature ensures a wide listening area with immersive 3D stereo effects.

• Time Alignment: The precise alignment of the woofer and tweeter allows for accurate frequency reproduction, providing a well-balanced sound profile across all frequencies.

• Grooved Ducts: The innovative grooves on the ducts reduce air friction, resulting in tight, punchy bass. This feature is especially effective even when the speakers are positioned near walls. The curved front edges also minimize resonance and ensure clean audio output.

• 4-Inch Woofer: The robust 4-inch fiberglass woofer delivers powerful sound without distortion, maintaining audio clarity even at higher volumes.

• Dual Sound Modes: Users can easily switch between DJ and Production modes using a simple switch. Each mode adjusts the DSP settings to optimize sound performance for its specific application.

• Bluetooth® Connectivity: The DM-40D-BT integrates Bluetooth® technology, allowing users to wirelessly stream high-quality audio from smartphones, mobile devices, or PCs/Macs.

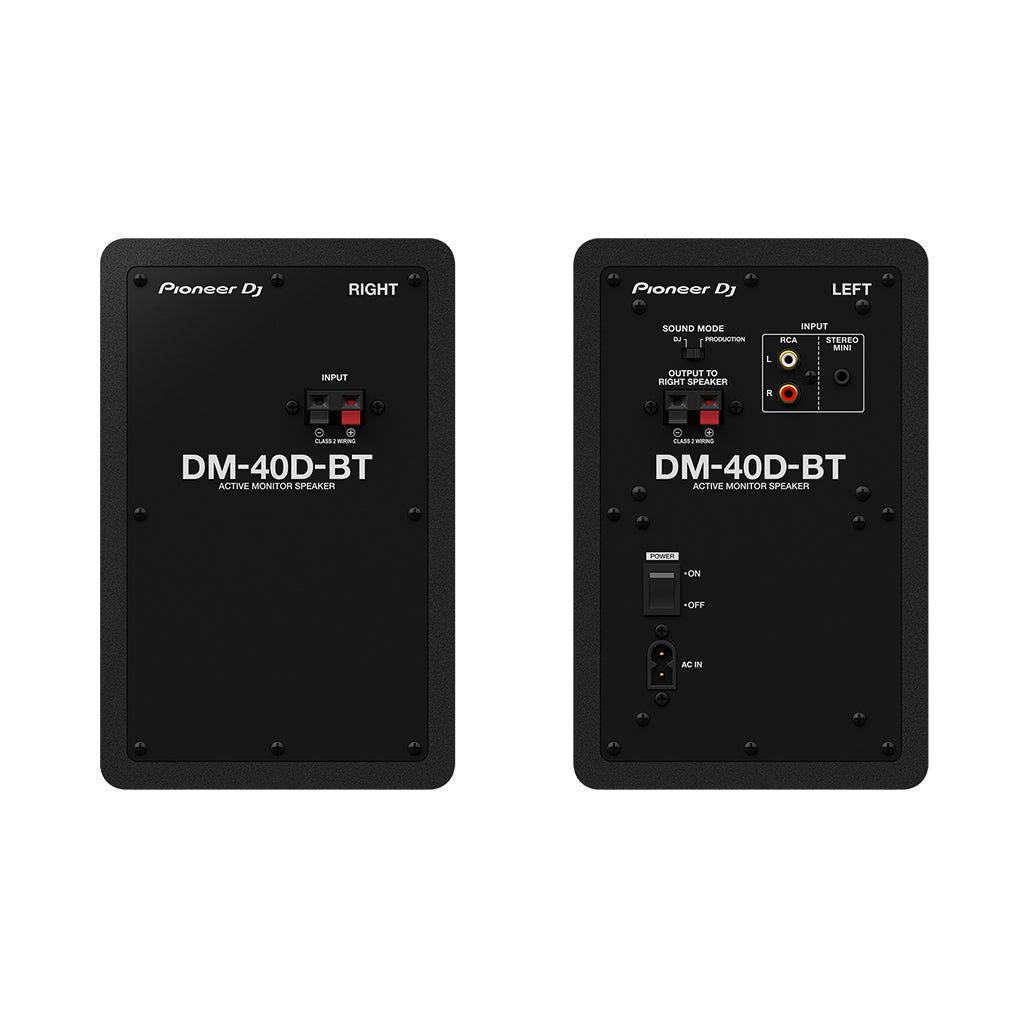

• Flexible Connectivity: Equipped with RCA and mini jack terminals, the DM-40D-BT can connect to various DJ controllers, mixers, and soundcards. A front-panel headphone socket and volume control add to its user-friendly design.

Specifications

• Dimensions:
  • Left Channel: 146 x 227 x 223 mm (5.75” x 8.94” x 8.78”)
  • Right Channel: 146 x 227 x 212 mm (5.75” x 8.94” x 8.35”)
• Weight:
  • Left Channel: 2.5 kg (5.5 lbs.)
  • Right Channel: 2.2 kg (4.9 lbs.)
• Amplifier Output:
  • Class D with DSP
  • Lch: 19 W / 4 Ω
  • Rch: 19 W / 4 Ω
• Impedance: 10 kΩ
• Enclosure: Bass reflex, MDF vinyl laminate
• Power Consumption: 20 W
  • Standby mode: 0.3 W or less
• Terminals:
  • Inputs: RCA pin jack x 1 (unbalanced), 3.5 mm stereo mini jack x 1 (unbalanced)
  • Outputs: 3.5 mm stereo mini jack x 1

Conclusion

The Pioneer DM-40D-BT desktop monitor system offers a blend of powerful sound performance and modern connectivity features. With its advanced Class D amplifier, updated diffusers, and Bluetooth® functionality, it caters to a range of audio needs, from professional DJing to casual listening. Its design ensures that both sound clarity and convenience are prioritized, making the DM-40D-BT a valuable addition to any audio setup.
